Basic Specifications

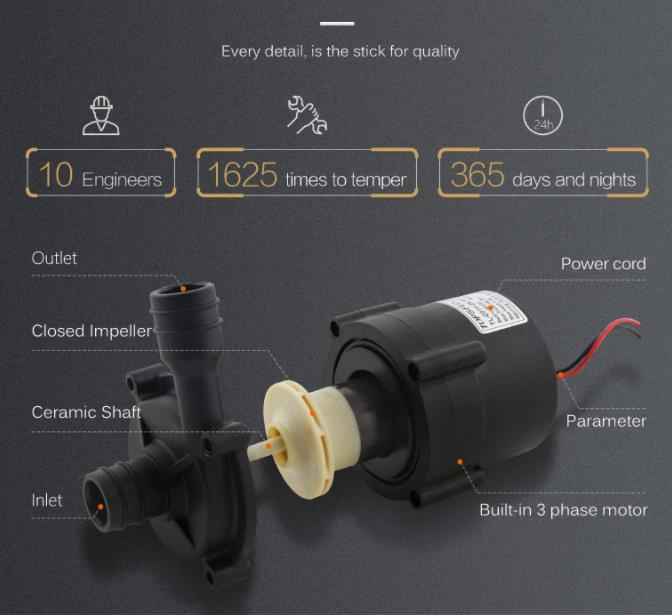

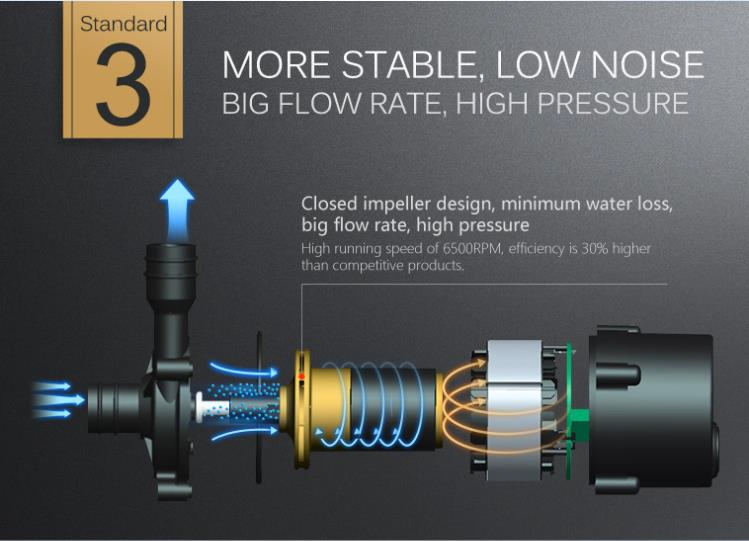

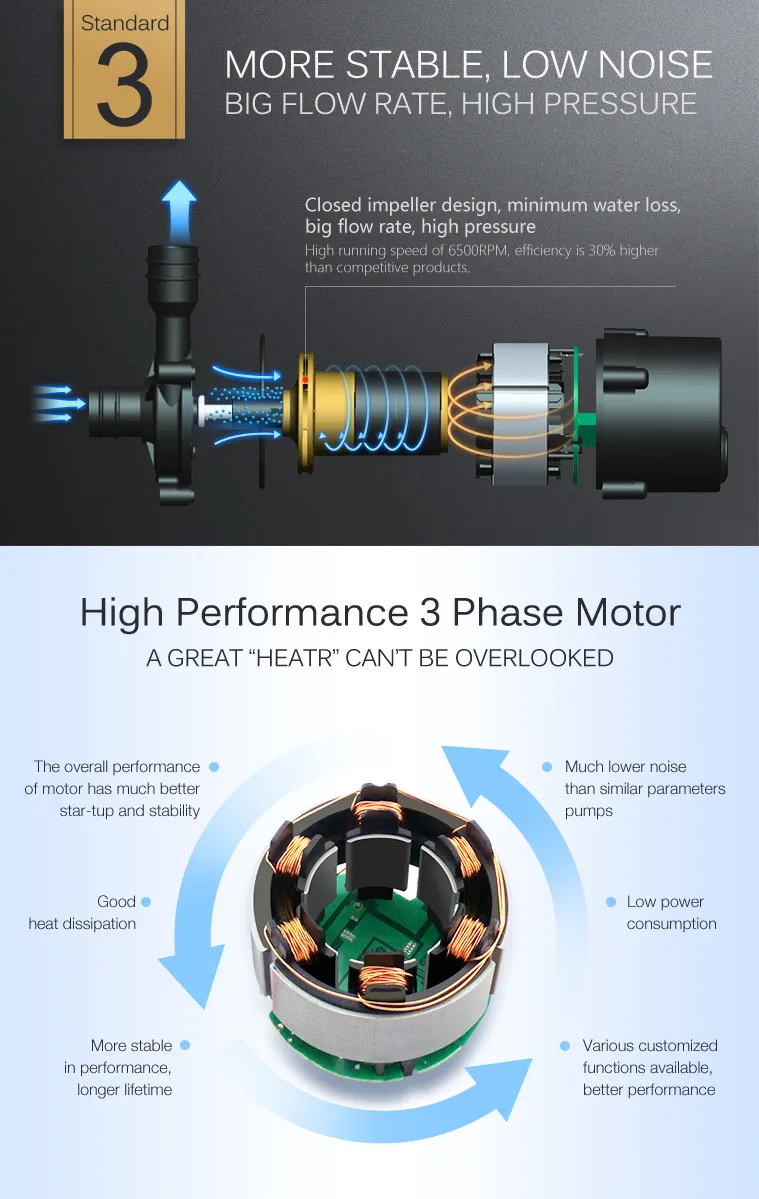

Structure
Single-stage Pump
Motor
DC Brushless Motor (BLDC)
Why Choose Our Brushless DC Pump?
- Dual Certification: Only enterprise certified by German TUV IATF16949 & ISO9001 in the industry.
- Industry Leader: 16 years of independent R&D with multiple invention patents.
- Large Capacity: Annual production of 3,008,000 pieces.
- Global Reach: 80% products exported to high-end European and American markets.

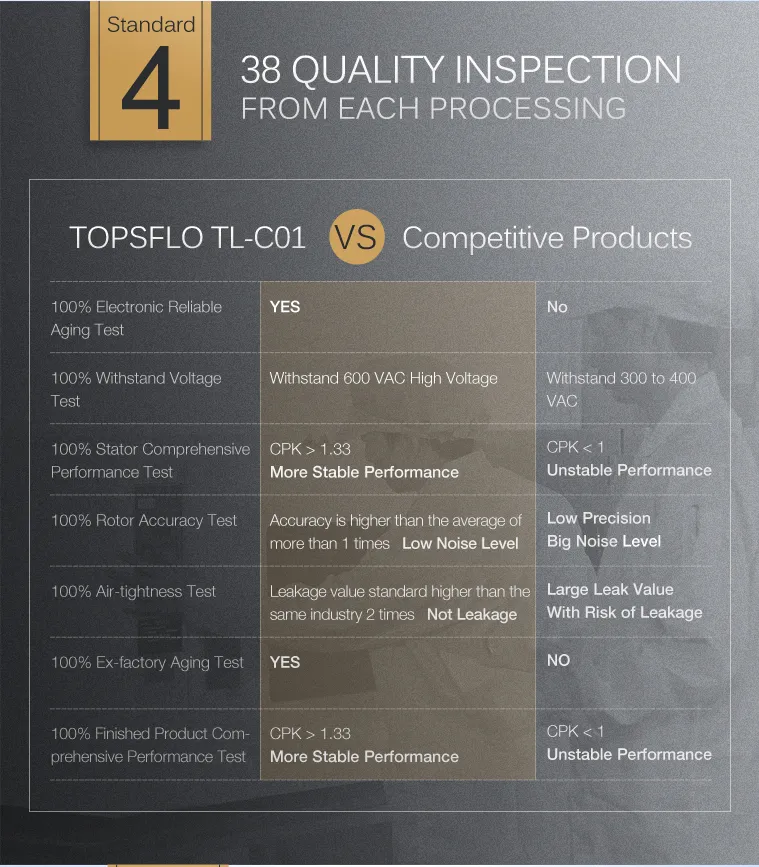

- Advanced Testing: 4 laboratories meeting CNAS certification standards.

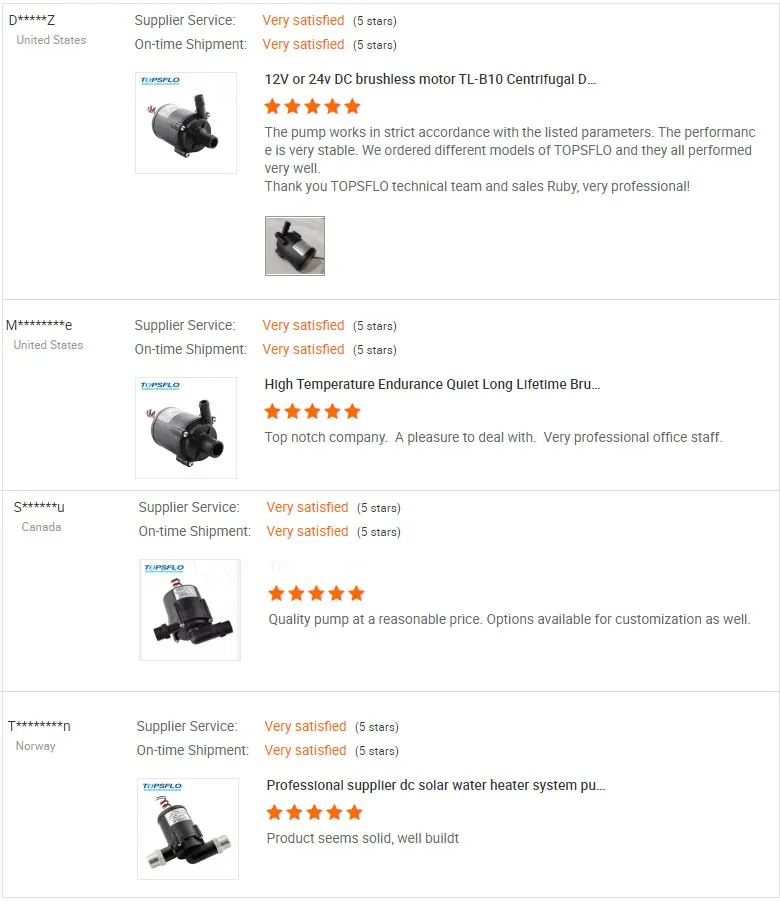

Customer Reviews & Visuals

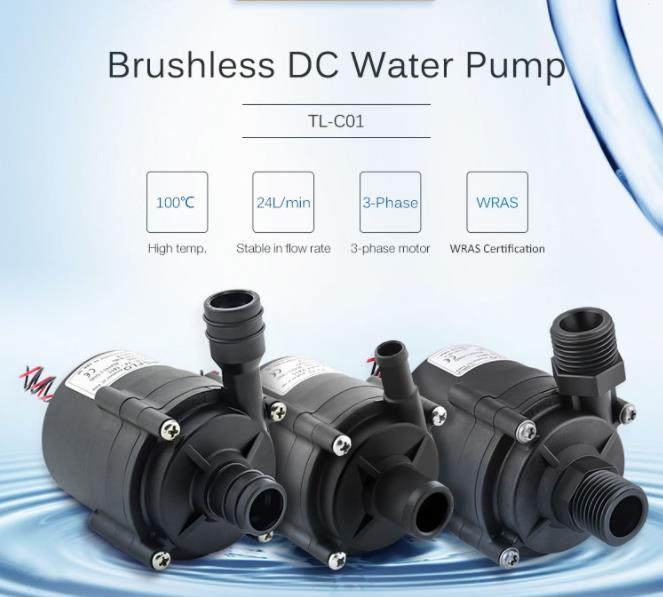

Core Features
- Advanced magnetic driving technology for static-seal, zero leakage.
- Supports continuous 24-hour heavy-duty work.
- High efficiency ECM brushless motor with 25,000 hours lifetime.
- 3-phase motor for lower power consumption and heat.
- Food grade materials and imported Japan XYRON PPE (WRAS certified).
- Handles liquid temperatures ≥100°C.
Technical Specification Data
| Model |
Product Code |
Flow (L/Min) |
Voltage |
Current (A) |
Head (M) |
Power (W) |
| C01 | TL-C01-A12-1706 | 17 | 12VDC | 2.0 | 6 | 24 |
| C01 | TL-C01-A12-2008 | 20 | 12VDC | 2.8 | 8 | 33.6 |
| C01 | TL-C01-A24-1908 | 19 | 24VDC | 1.33 | 8 | 31.92 |
| C01 | TL-C01-A24-2411 | 24 | 24VDC | 2.0 | 11 | 48 |
Application Fields
Common Uses:
Electric water heaters, Coffee machines, EV battery cooling systems, Computer water cooling, Solar irrigation, and Hot water circulation.
Frequently Asked Questions
Can this pump run continuously?
Yes, the pump is designed for heavy-duty work and can sustain continuous 24-hour operation.
Is the pump safe for food and beverage use?
Absolutely. It is built with food-grade materials and high-quality PPE material certified by WRAS.
What is the expected lifespan of the motor?
The high-efficiency ECM brushless DC motor provides a long lifetime of approximately 25,000 hours.
Can it handle boiling water?
Yes, it uses high-temperature resistant materials suitable for liquid temperatures ≥100°C.
Does the pump require regular maintenance?
Due to the advanced magnetic driving technology and brushless design, the pump requires low to no maintenance.
Can the speed be controlled?
We offer customized functions including PWM and 0~5V speed control based on your requirements.
