📦 Basic Info.
Output Signal
Digital Type
Process
SemiConductor Integrated
Material
Semiconductor Material
Application
Barrier/Automatic/Sliding Gate
🚚 Packaging & Delivery
Package Size
15.50cm * 12.50cm * 6.00cm
💡 Product Description

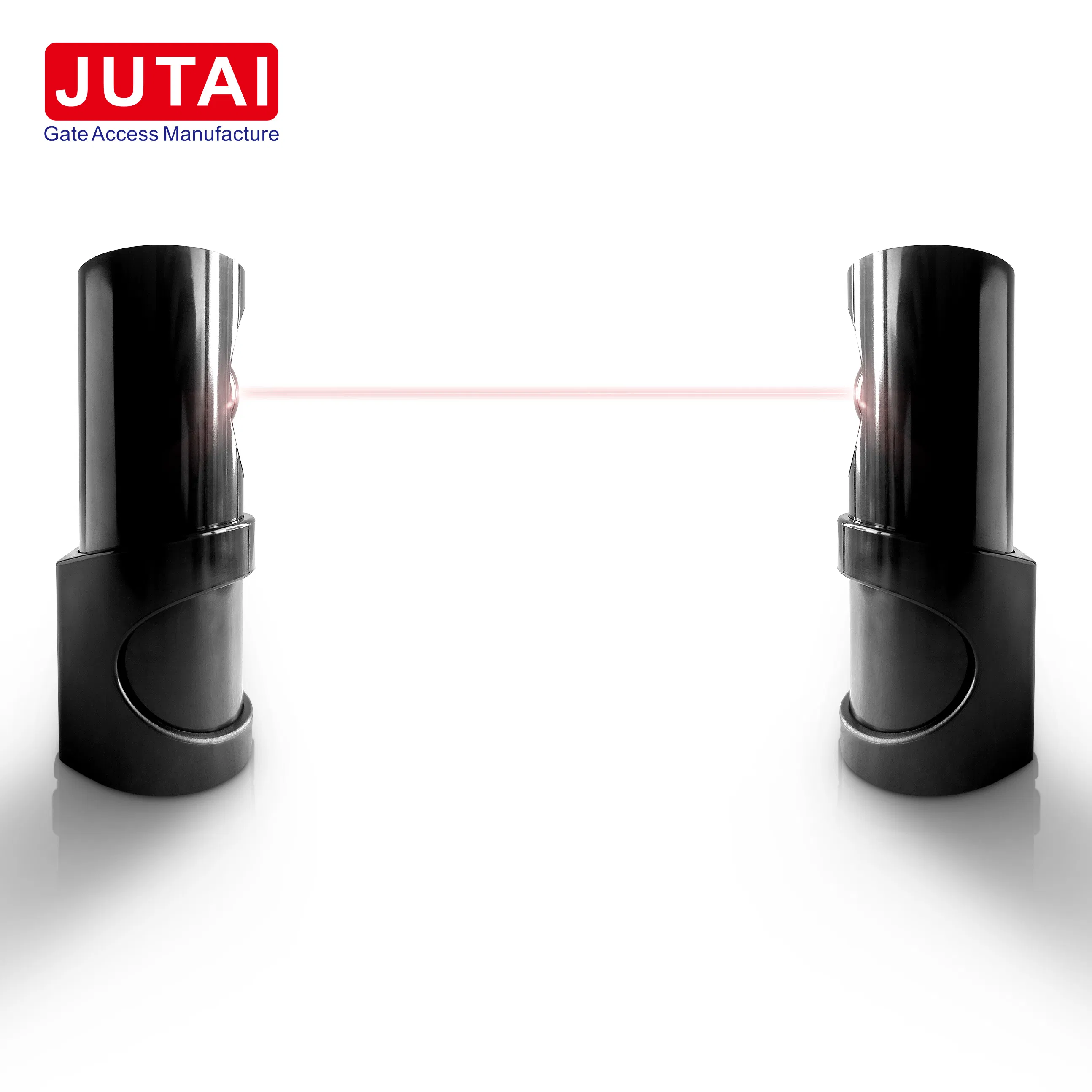

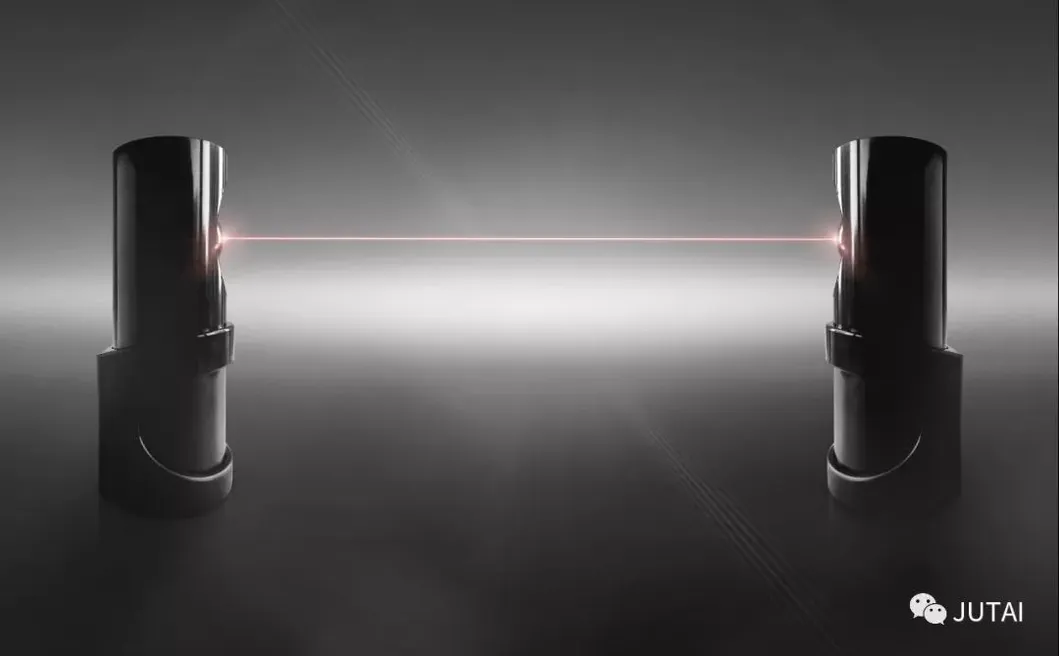

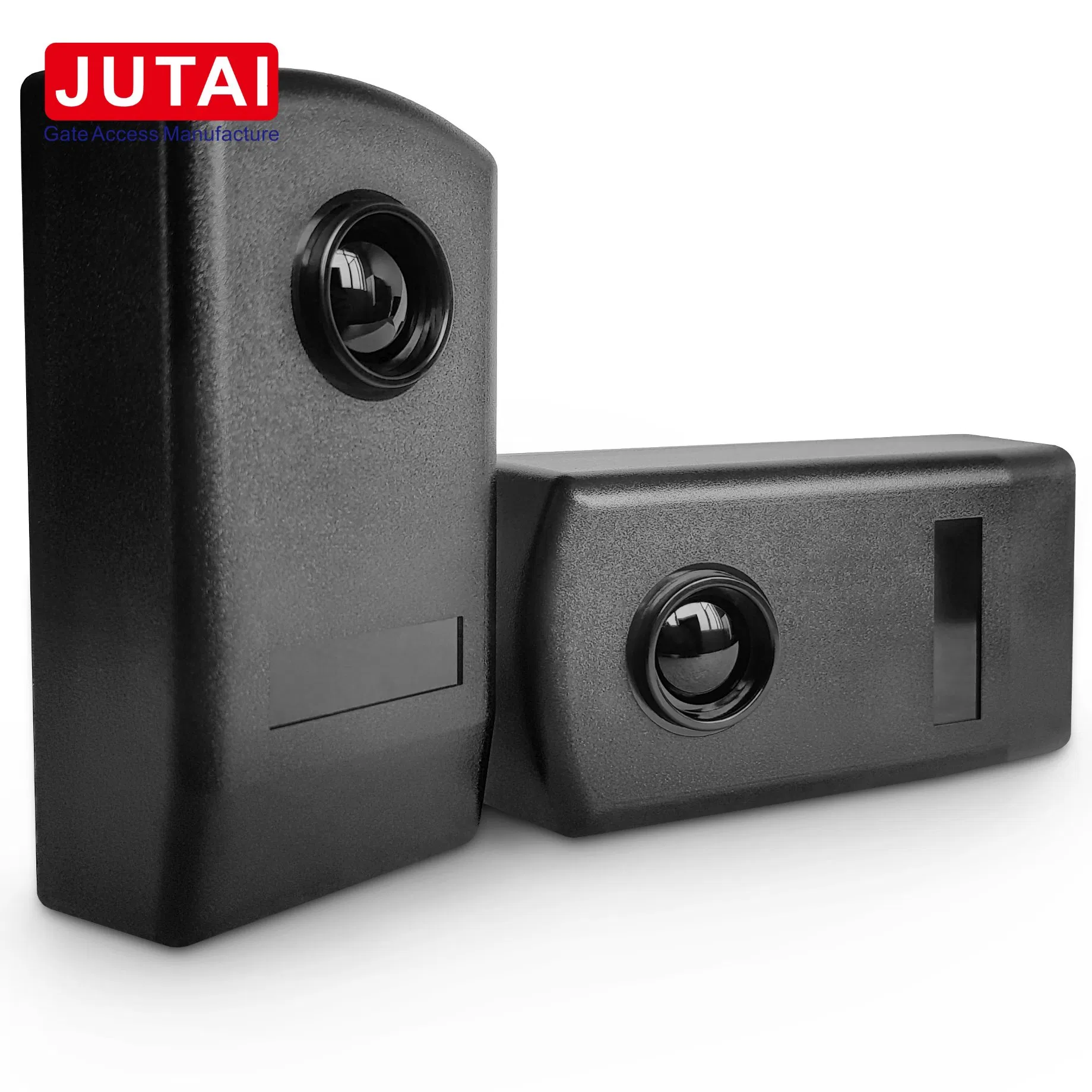

External Rotation Wireless Infrared Beam Sensor

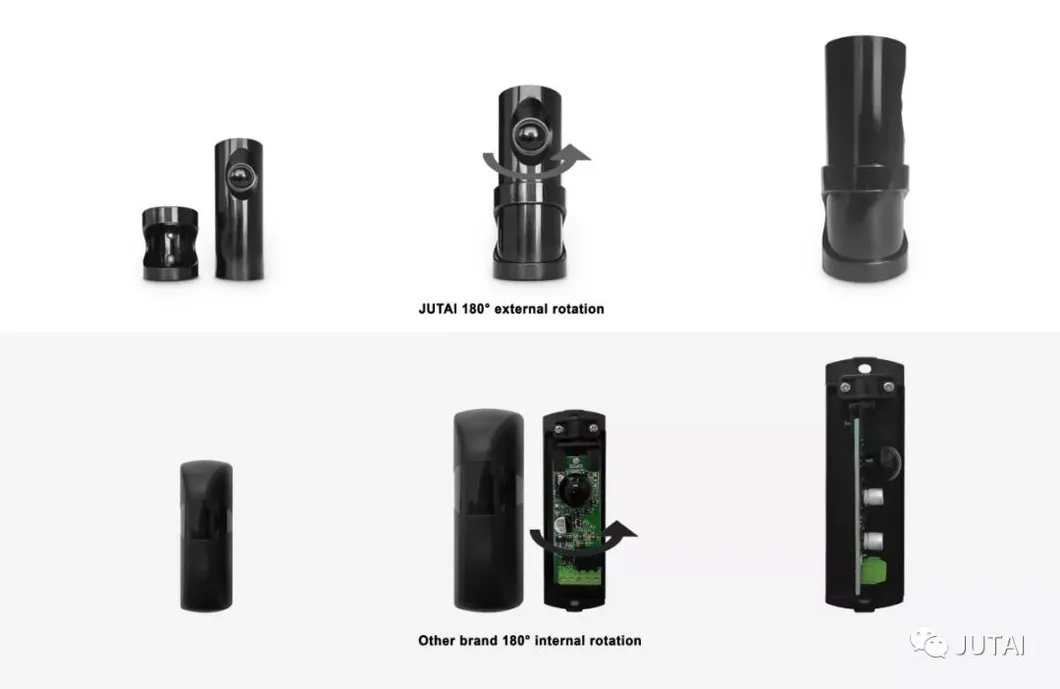

The IS-30R Wireless Photocell Sensor features an external rotation 180-degree design, allowing for simple rotational alignment. It includes a wireless transmitter, eliminating the need to tunnel under driveways, making it more convenient and safer for door automation.
Main Features

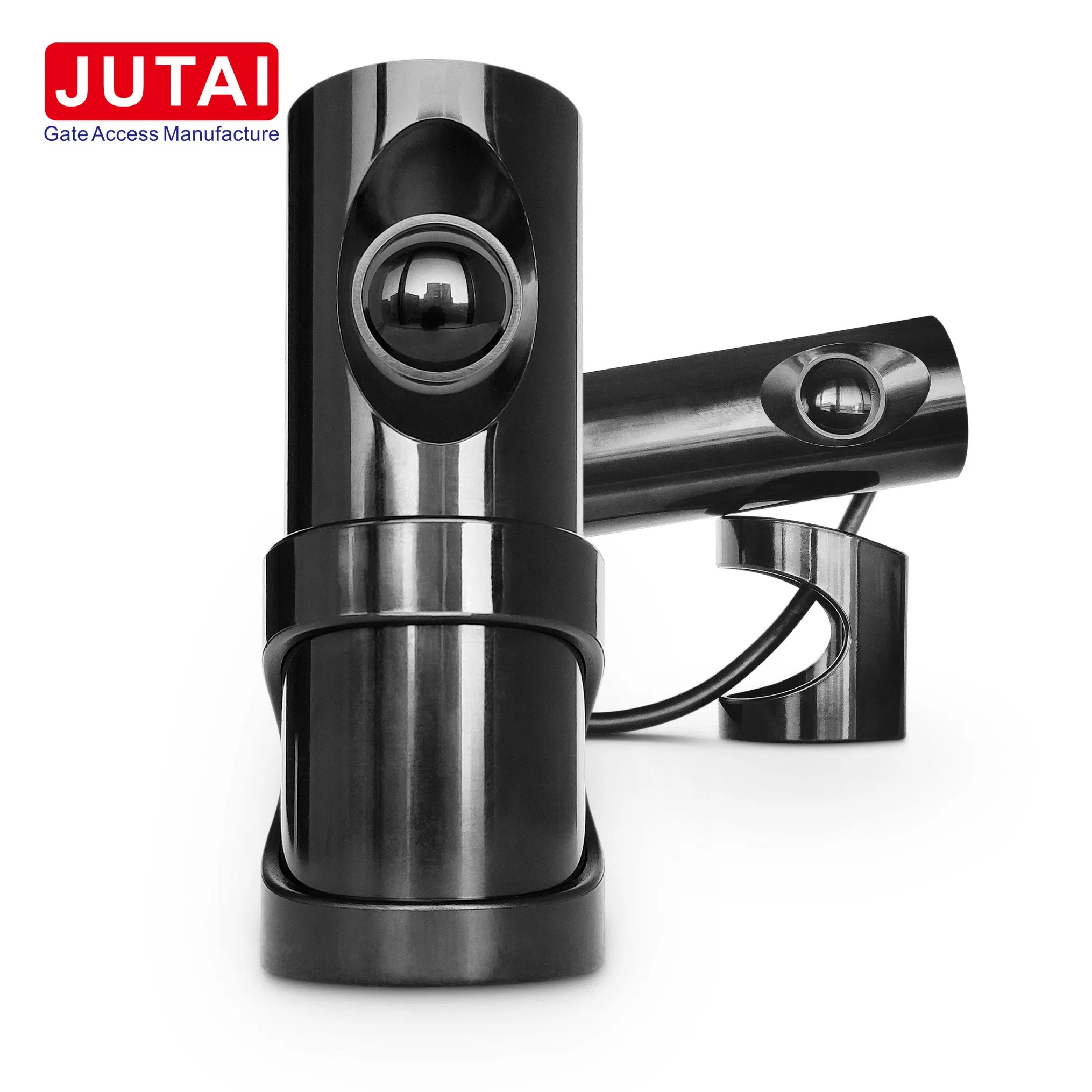

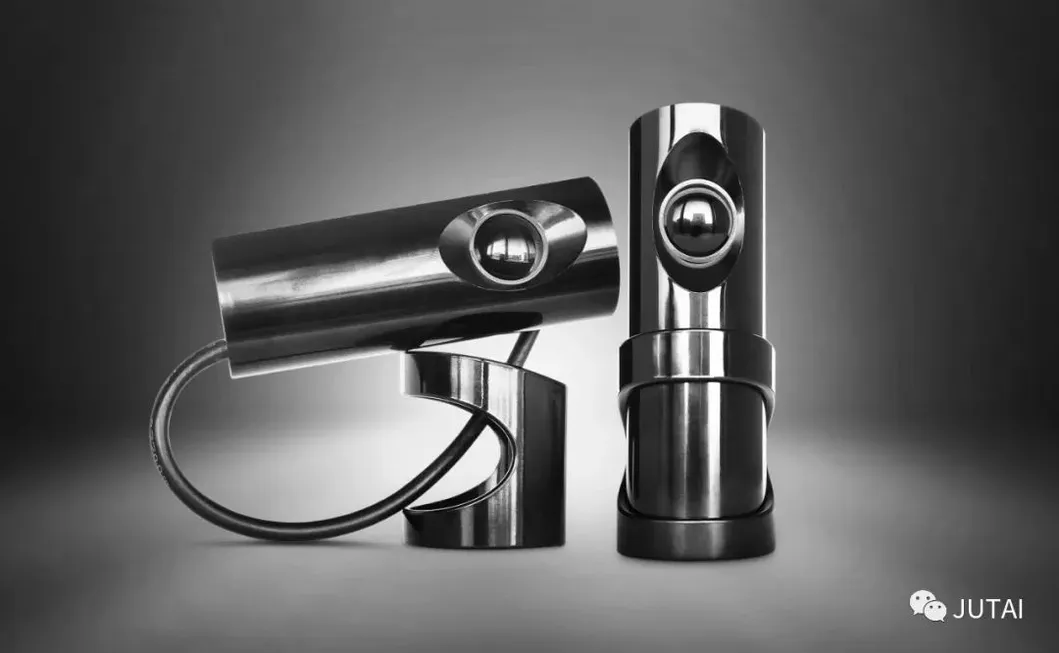

- 180-Degree External Rotation: Simply rotational align, easy installation, saving labor costs.
- Wireless Transmitter: Battery-operated to save installation time and money.

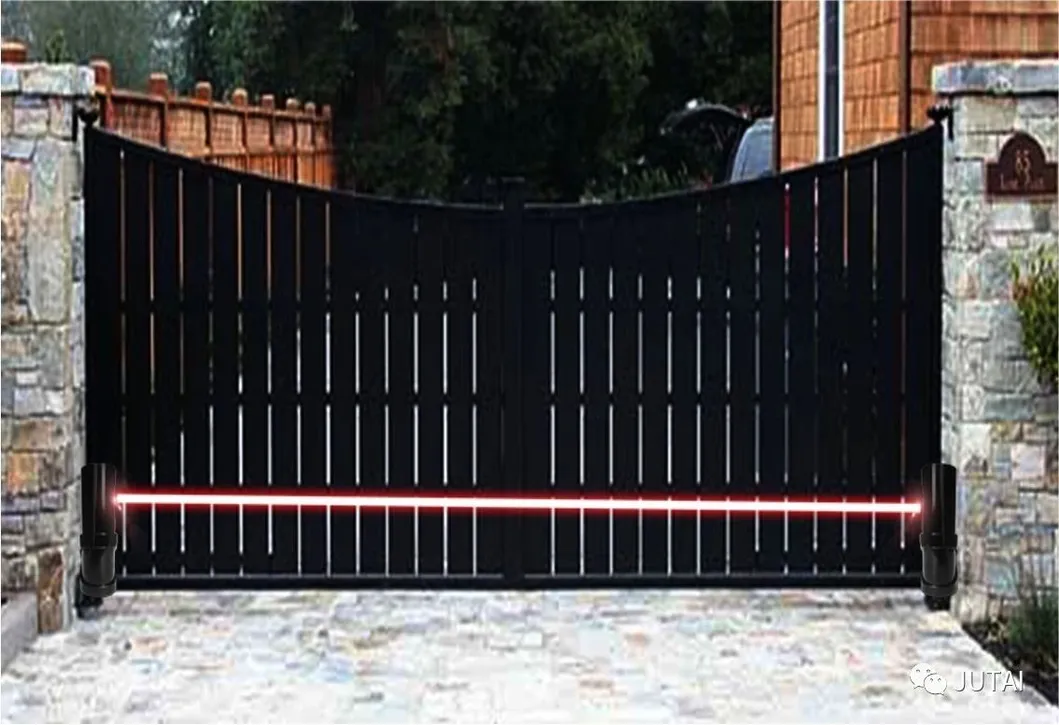

- 30 Meters Range: Ideal for almost any entrance gate width.

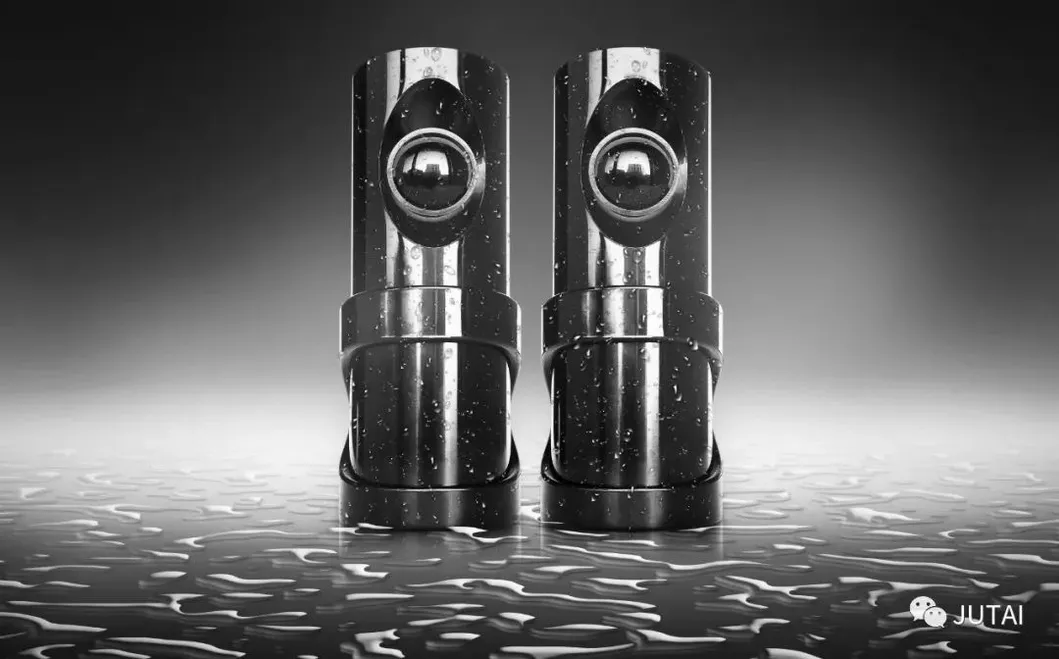

- Weather-Resistant: Fully ant-proof and weather-resistant enclosure for greater reliability.
- Audible Feedback: Transmitter provides setup feedback and battery-low indication.
- Low Power Consumption: High efficiency throughout the system.
- Enhanced Security: Compatible with Intruder-detection Alarms.
- Laser Alignment: Quick, easy installation with built-in laser beam system.
Why Choose IS-30R?
The most outstanding feature is the 180-degree external rotation. The transmitter requires only two AA batteries for up to two years of reliable operation. These sensors are compatible with voltages from 12V to 30V DC, making them suitable for any brand of gate operator, including sliding gates, swing gates, garage doors, and industrial doors.

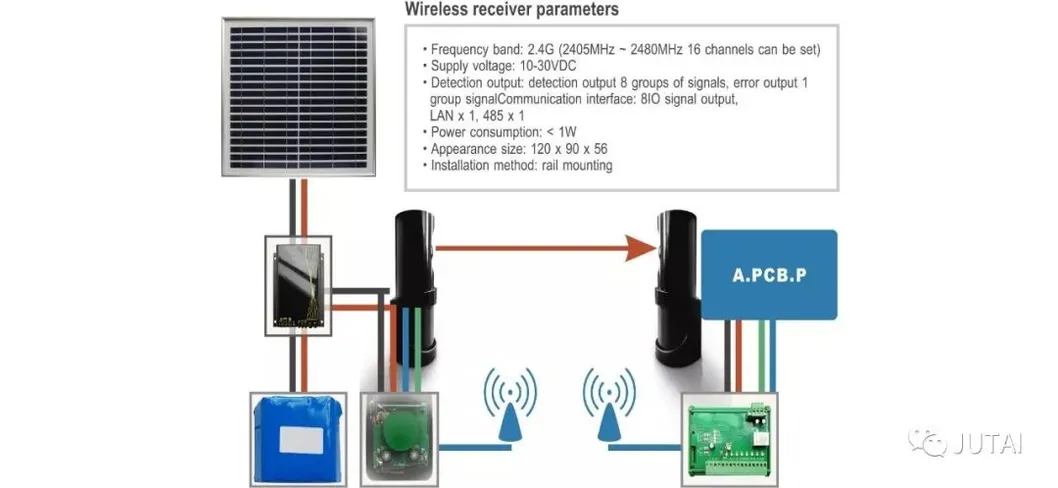

Innovative Solar Energy Application
The solar panel collects light energy, stored in a battery via a controller. This powers the wireless receiving end and transmitter, while the transmitting end uses AA batteries. This setup requires no road surface damage or cabling, offering a safe and convenient security solution.

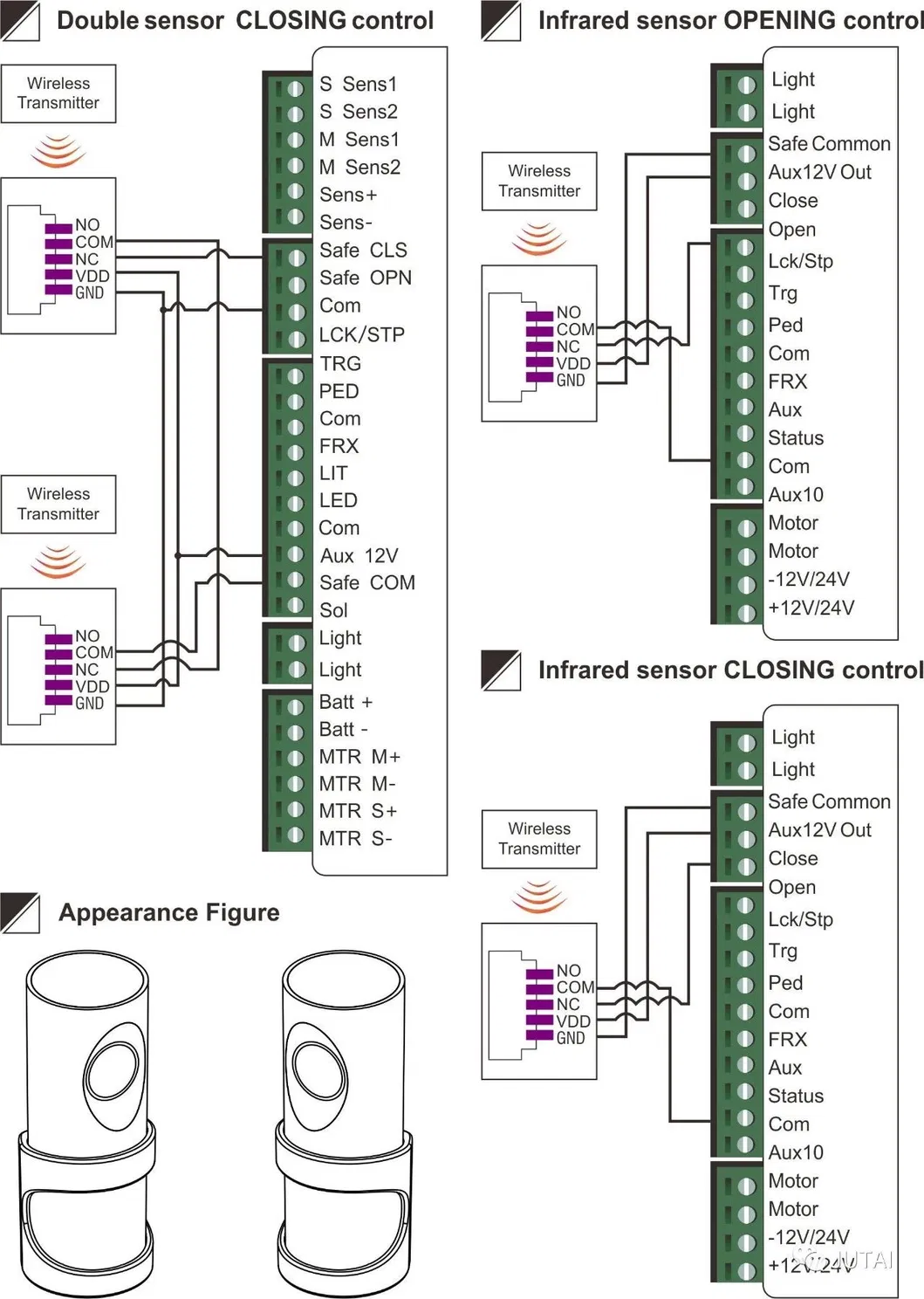

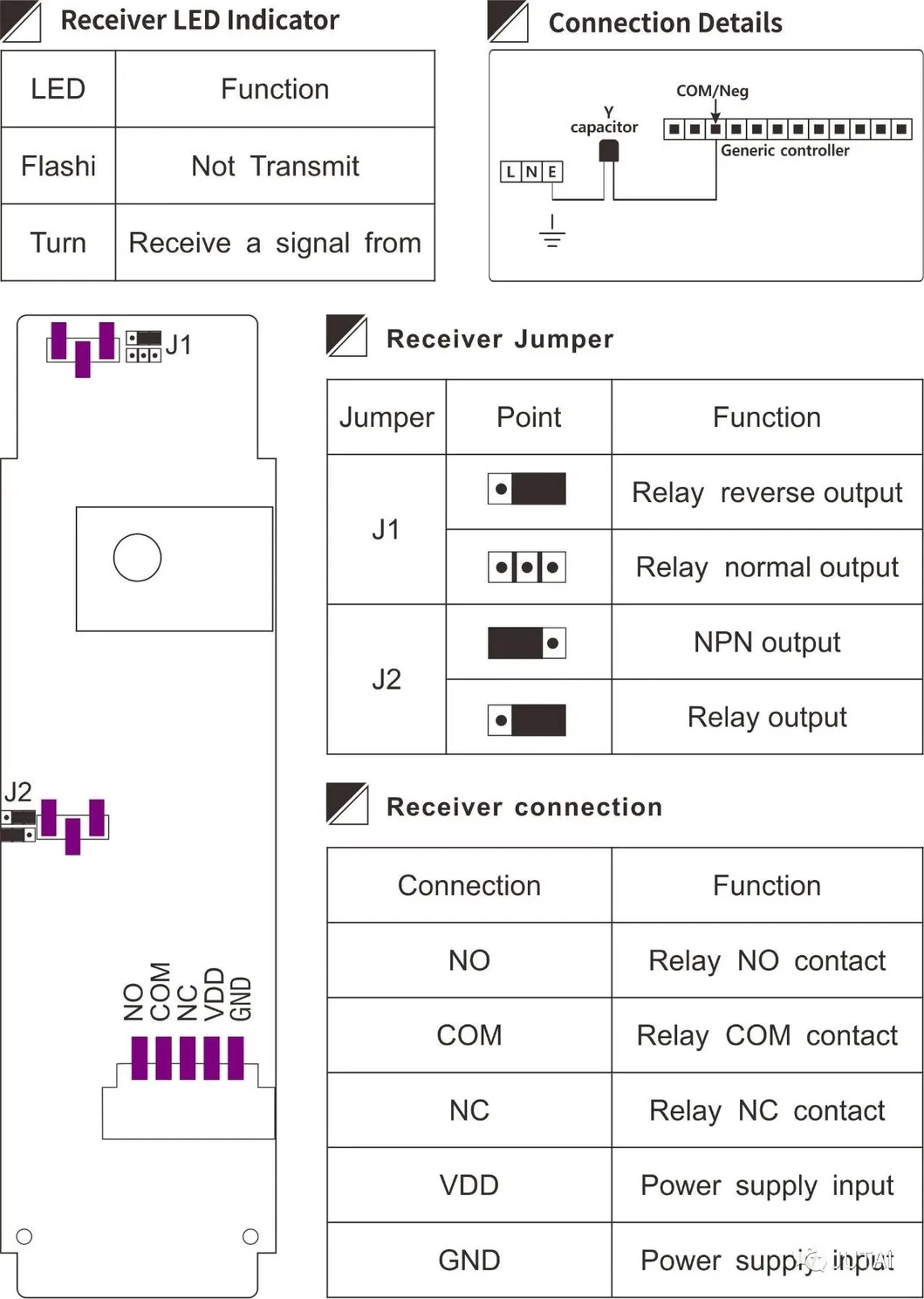

🛠 Installation & Diagrams
Step-by-Step Installation:
- Align the two holes in the case and lock two screws.
- Insert batteries (transmitter) or lead cables out (receiver).
- Fix the main screws.
- Rotate the angle as required and fix the bottom screw.
❓ Frequently Asked Questions
Q1: How far is the operating range of the IS-30R?
The IS-30R offers an operating range of up to 30 meters, making it suitable for even very wide entrance gates.
Q2: Does the transmitter require wiring?
No, the transmitter is wireless and powered by two AA batteries, eliminating the need for digging or cabling across the driveway.
Q3: Is the sensor compatible with other gate brands?
Yes, it is compatible with voltages from 12V to 30V DC, allowing it to work with almost any brand of gate operator or access automation equipment.
Q4: How long do the batteries last?
The low power consumption design allows two AA batteries to provide approximately two years of reliable operation.
Q5: What is the benefit of the 180-degree rotation?
The 180-degree external rotation allows for easy alignment of the infrared beam even in complex or non-standard project sites without moving the mounting hardware.
Q6: Can this be used in rainy conditions?
Yes, the IS-30R features a fully weatherproof and ant-proof enclosure with an IP65 rating for high reliability in outdoor environments.
