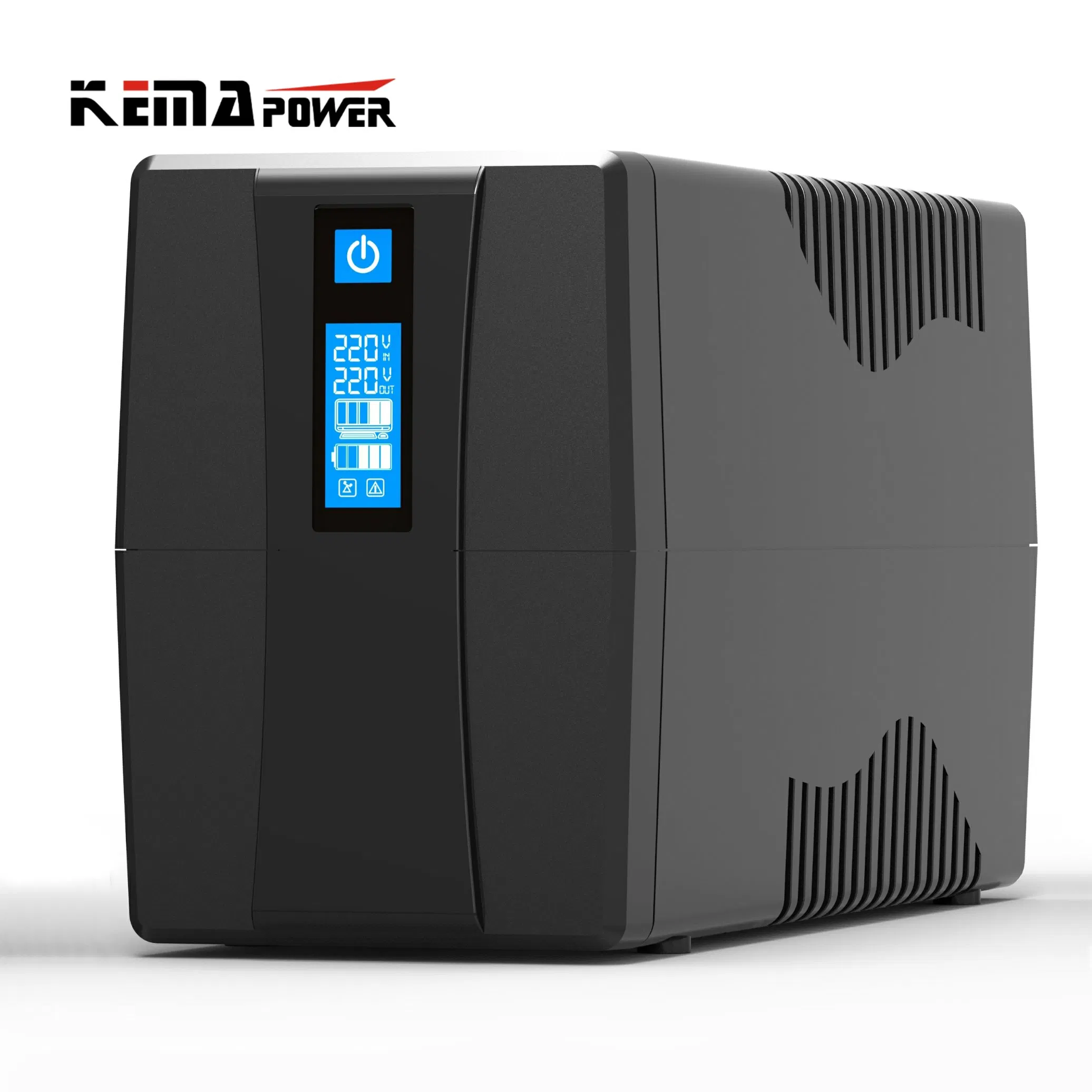

1kVA Sinewave Offline UPS for Computer Desktop Power Protection
1kVA Sinewave Offline UPS for Computer Desktop Power Protection
1kVA Sinewave Offline UPS for Computer Desktop Power Protection
1kVA Sinewave Offline UPS for Computer Desktop Power Protection
1kVA Sinewave Offline UPS for Computer Desktop Power Protection
1 / 5
1kVA Sinewave Offline UPS for Computer Desktop Power Protection
1kVA Sinewave Offline UPS for Computer Desktop Power Protection
1kVA Sinewave Offline UPS for Computer Desktop Power Protection
1kVA Sinewave Offline UPS for Computer Desktop Power Protection
1kVA Sinewave Offline UPS for Computer Desktop Power Protection

1kVA Sinewave Offline UPS for Computer Desktop Power Protection

Customization: Available
Phase: Single Phase
Type: Line Interactive
Send Inquiry

Product Description

Basic Information
Model NO.
SMD-P
Protection
Overvoltage
Application
Industry
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Decentralized
Packing Size
425*400*454-422*264*275
Specification
SMD series 500va-1500va
Origin
China
HS Code
8504402000
Line Interactive UPS SMD-(E)P 500-1500VA

KEY FEATURES

  • Plastic case, Line interactive UPS 500VA-1500VA
  • Input output 110V/120V or 220V/230V
  • CPU Control, SMT Technology, Boost and Buck AVR
  • Full Protection: Short circuit, overload and more
  • LED display and alarm function, Silence Settable
  • Intelligent battery management
  • AUTO Restart while AC recovers
  • Off charge and cold start function
  • USB Communication RJ45 Port, LCD Display option
Technical Specifications
MODEL SMD500P SMD500PA SMD600EP SMD1000EP SMD1200EP SMD1500EP
Capacity 500VA/300W 500VA/300W 600VA/360W 1000VA/500W 1200VA/720W 1500VA/900W
Input Voltage Range 90-132Vac / 175-265Vac 85-150Vac / 145-290Vac
Frequency 45-65Hz
Output Voltage 110/120Vac or 220/230/240Vac
Wave Form Modified Sine Wave (BAT Mode)
Transfer Time Typical 2-6ms, 10ms max
Battery DC Voltage 12VDC 12VDC 12VDC 12VDC 24VDC 24VDC
Internal Battery 1*4.5AH 1*4.5AH 1*7AH 1*9AH 2*7AH 2*9AH
Product Gallery

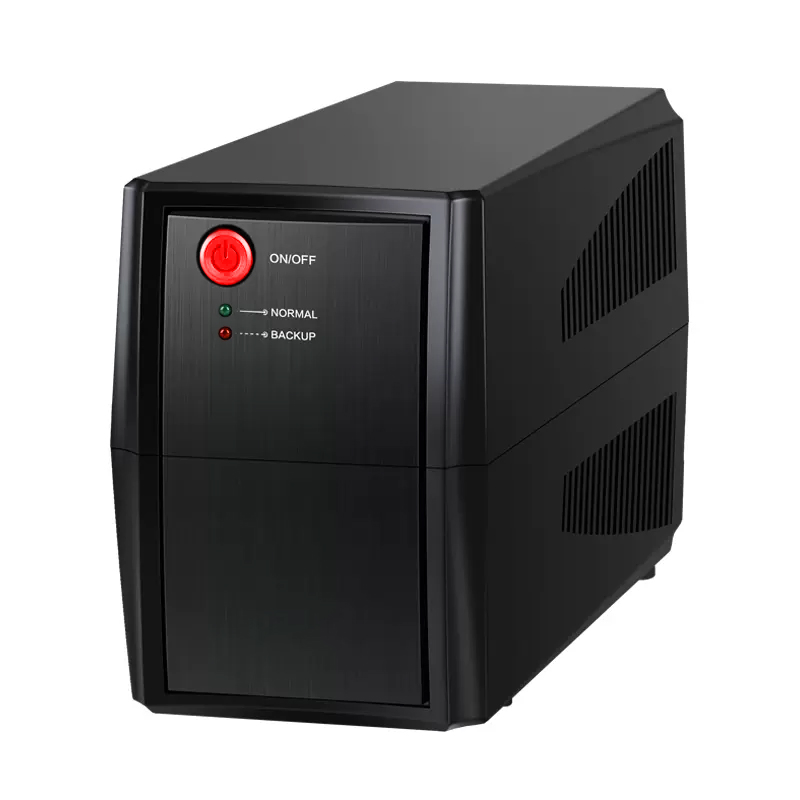

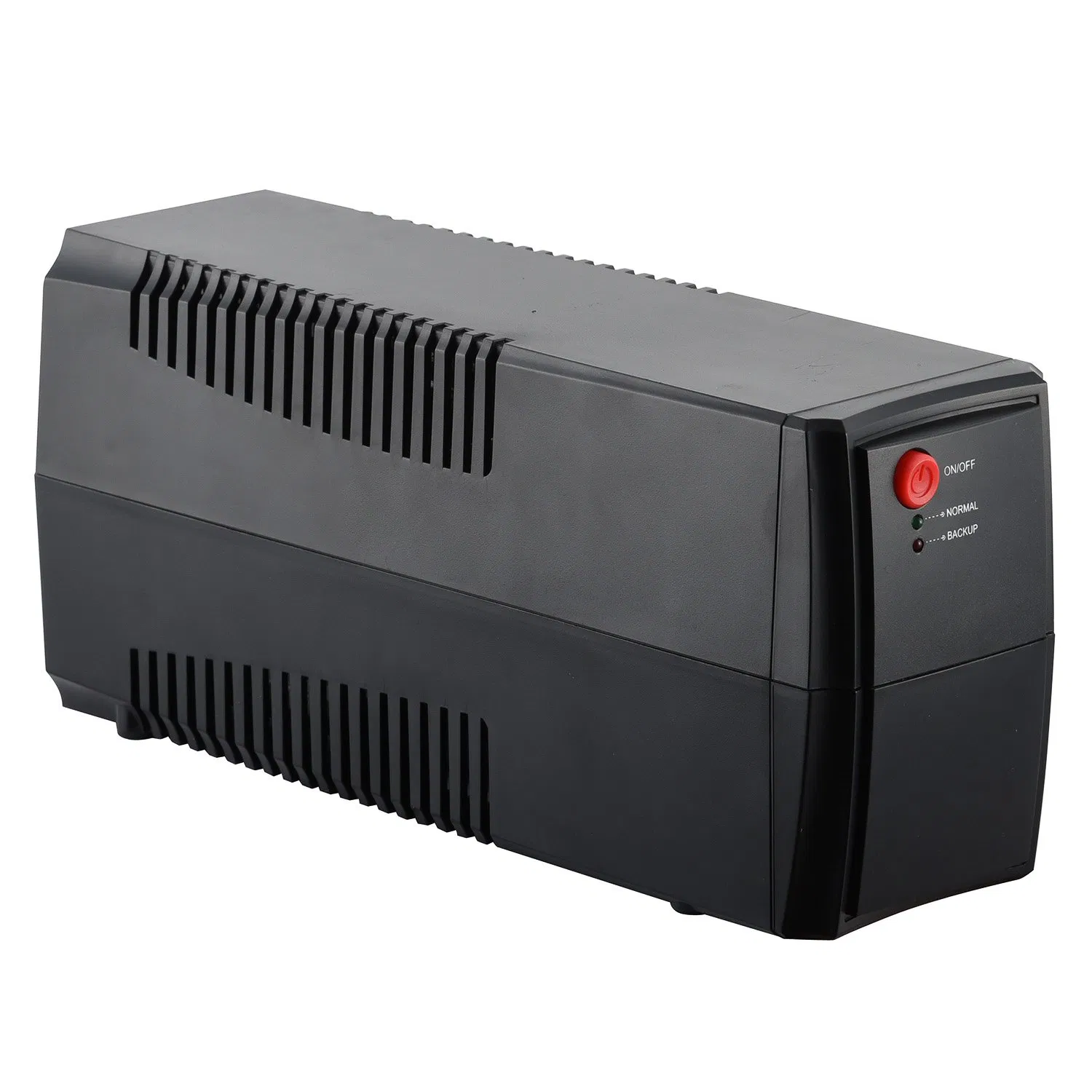

UPS Unit

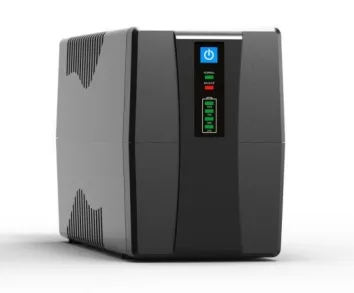

UPS Front
UPS Component

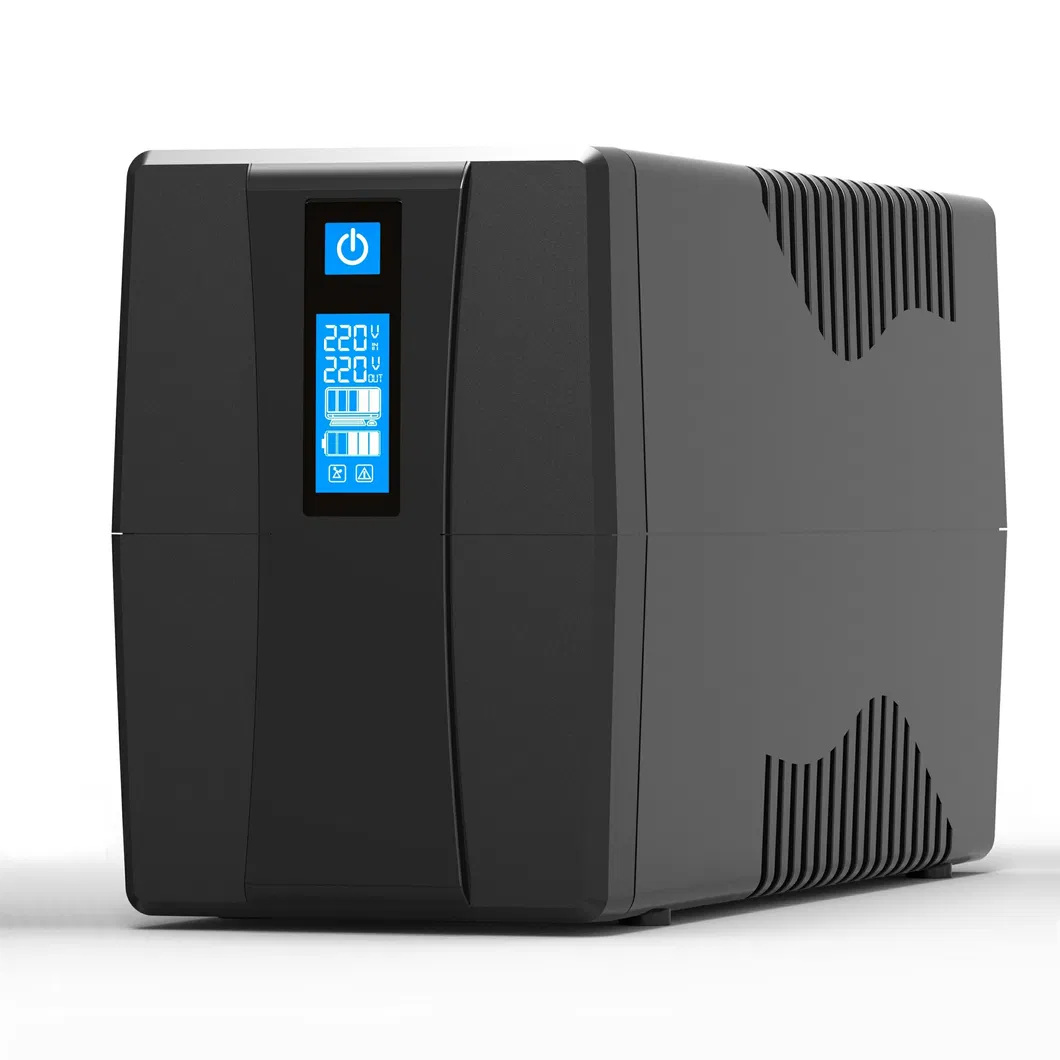

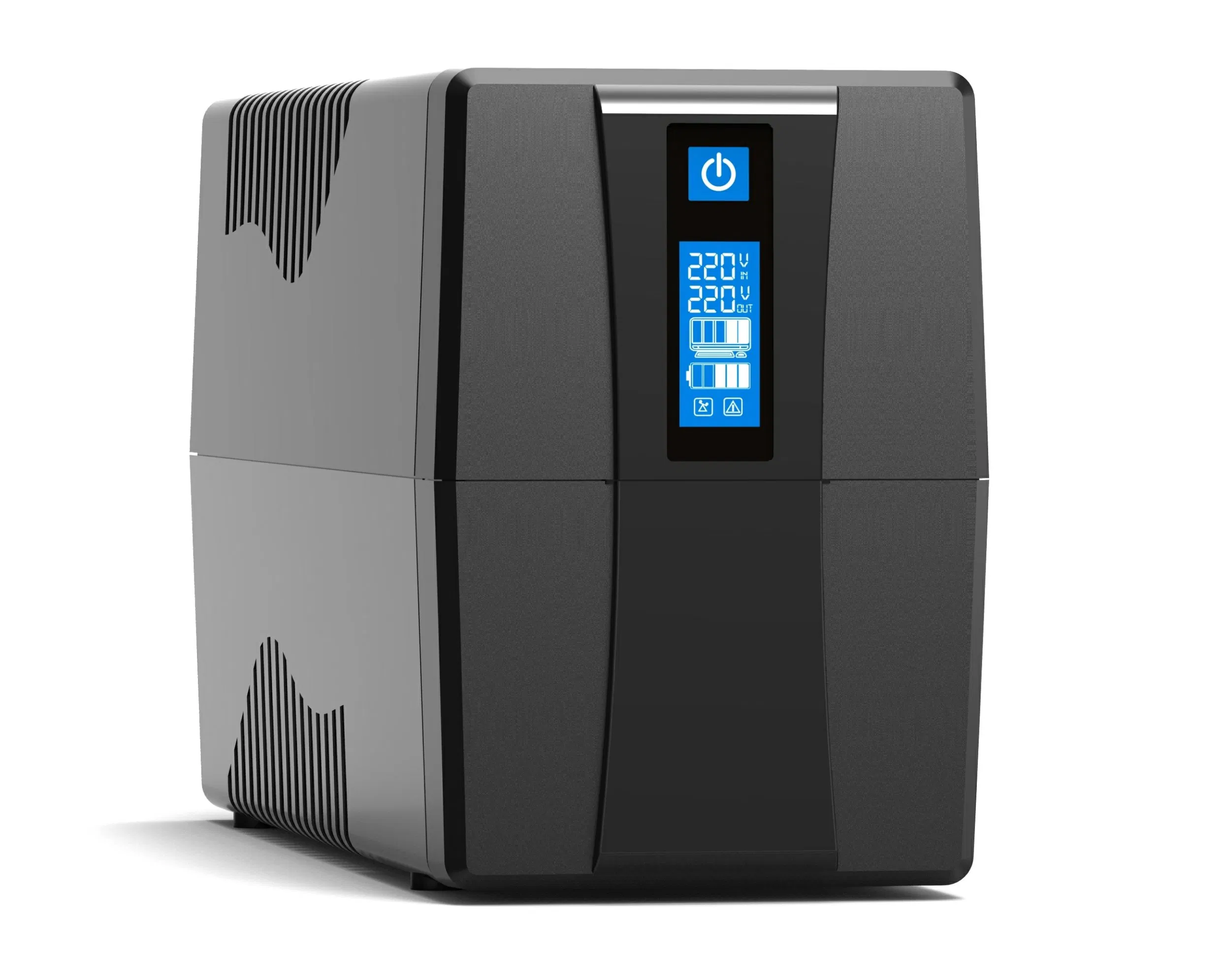

LCD Display
LCD SMD-EP Display Details:
1. ON/OFF switch | 2. Input voltage | 3. Output voltage | 4. Load level | 5. Battery capacity | 6. UPS fault | 7. Overload

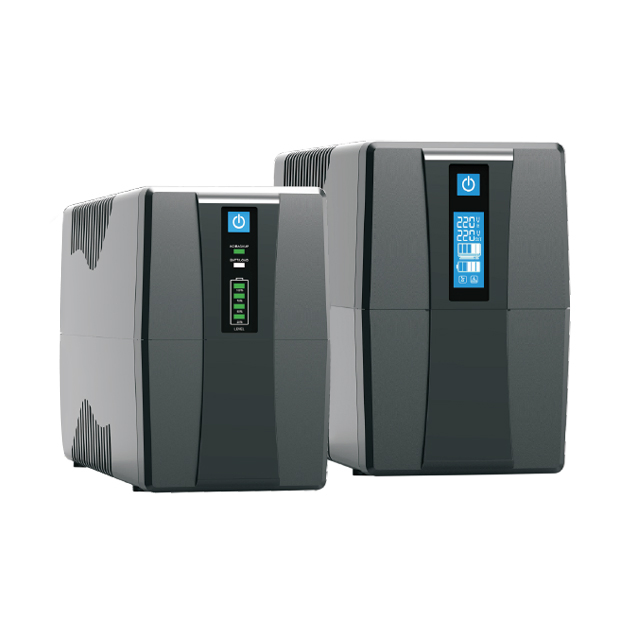

LED Display
LED SMD-EP Display Details:
1. ON/OFF switch | 2. AC / Backup status | 3. Battery / Load Status | 4. Battery capacity / Load level indicator
Technical Layout Back Panel Production Packaging
Frequently Asked Questions
Q1: What is the transfer time for the SMD series UPS? A1: The typical transfer time is between 2-6ms, with a maximum limit of 10ms.
Q2: Does this UPS support automatic restart? A2: Yes, it features an AUTO Restart function that activates as soon as the AC power recovers.
Q3: How long does it take to recharge the internal battery? A3: It takes approximately 4-6 hours to recover the battery to 90% of its capacity.
Q4: What types of protection does the SMD-P series offer? A4: It provides full protection against low voltage, overload, short circuits, and battery low voltage.
Q5: Is an LCD display available for all models? A5: The LED display is standard for AC/DC modes. An LCD display is available as an option for the SMD600-1500EP models.
Q6: What is the output waveform of this UPS? A6: The UPS provides a Modified Sine Wave output while in Battery (BAT) mode.
