Ga-Ex1fi-M8ss 4K 8MP 304 316 Stainless Steel Explosion Proof IP Poe Infrared Security Mini Camera for Marine Gas Station Oil Mine

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
GA-EX1FI-M8SS
Type
IP Camera
Sensor
CMOS
HDMI Format
H.265/H.264
Resolution
8MP, 3840*2160@20fps
Lens
4mm Fixed Lens
Material
304 Stainless Steel
Certification
CE, FCC, CCC, RoHS, ISO9001
Smart AI
Humanoid & Vehicle Detection
Effective Distance
10-30m
Power Supply
PoE/DC12V
Warranty
2 Year

Packaging & Delivery

Package Size
24.50cm * 14.00cm * 17.50cm
Gross Weight
1.650kg
Production Capacity
80000PCS/Month

Product Description

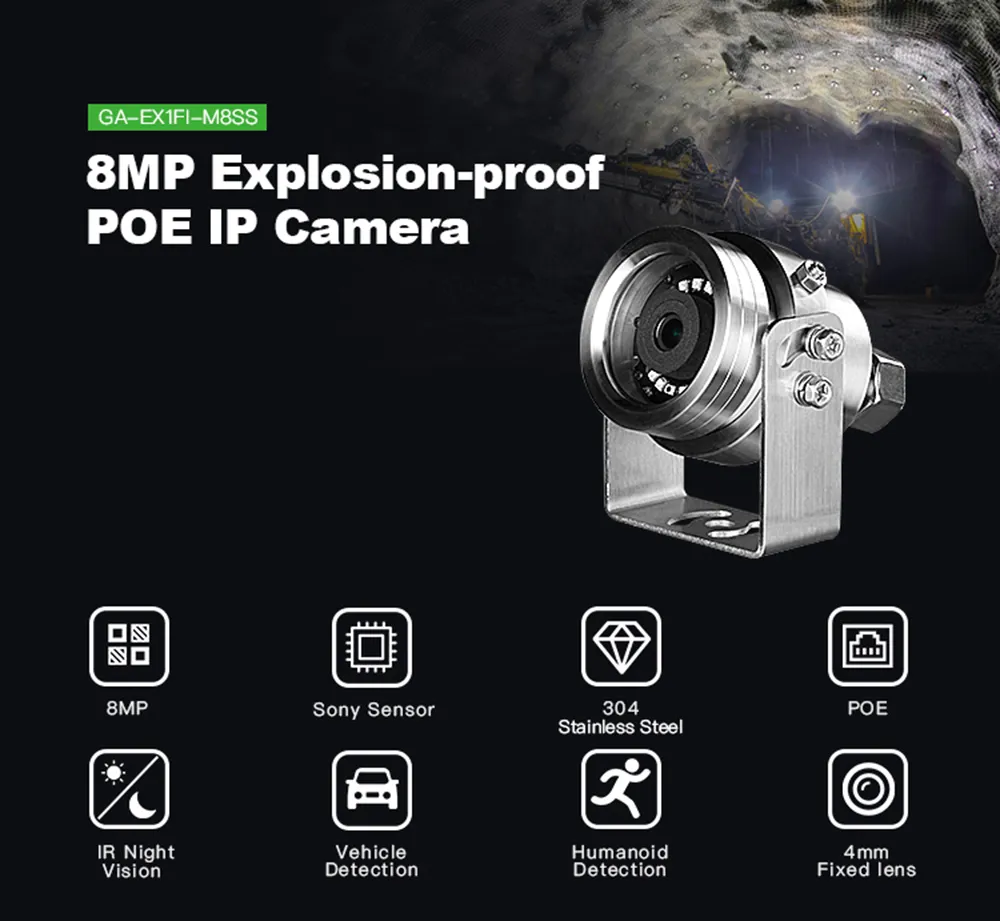

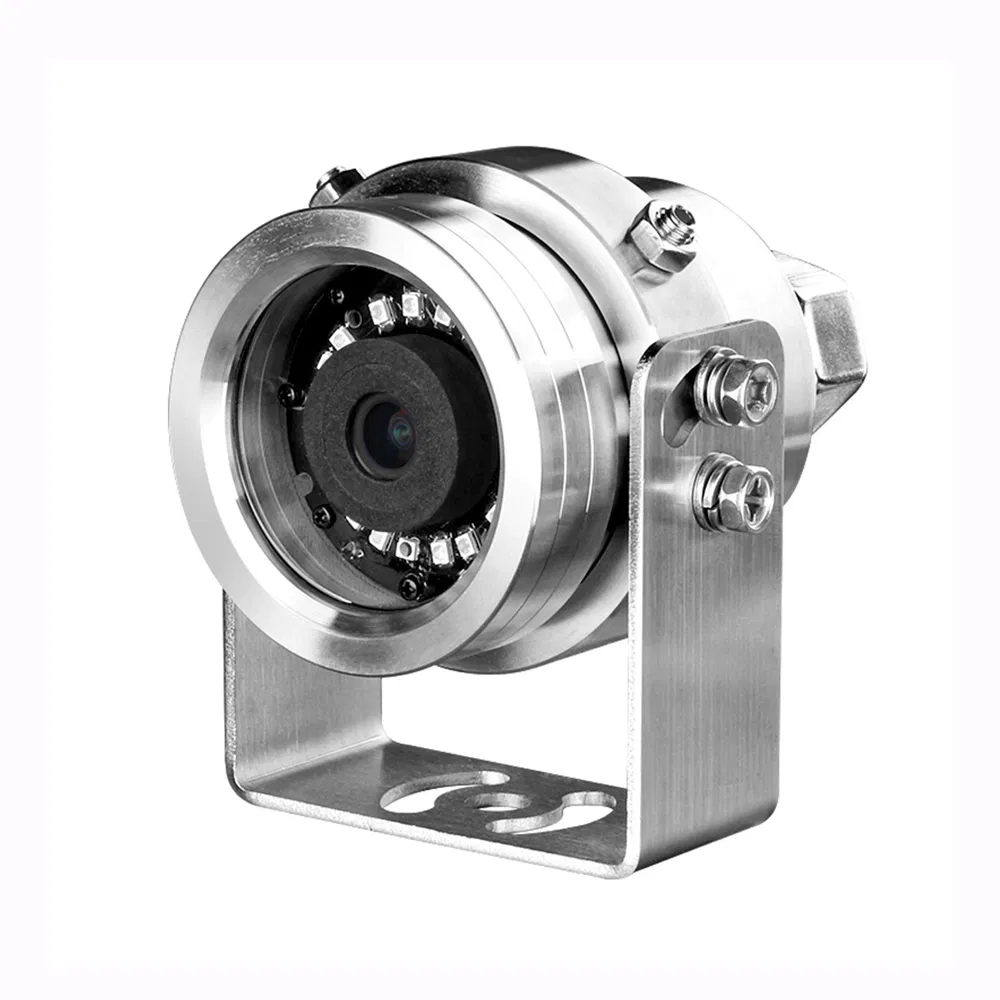

Stainless Steel Explosion Proof Camera

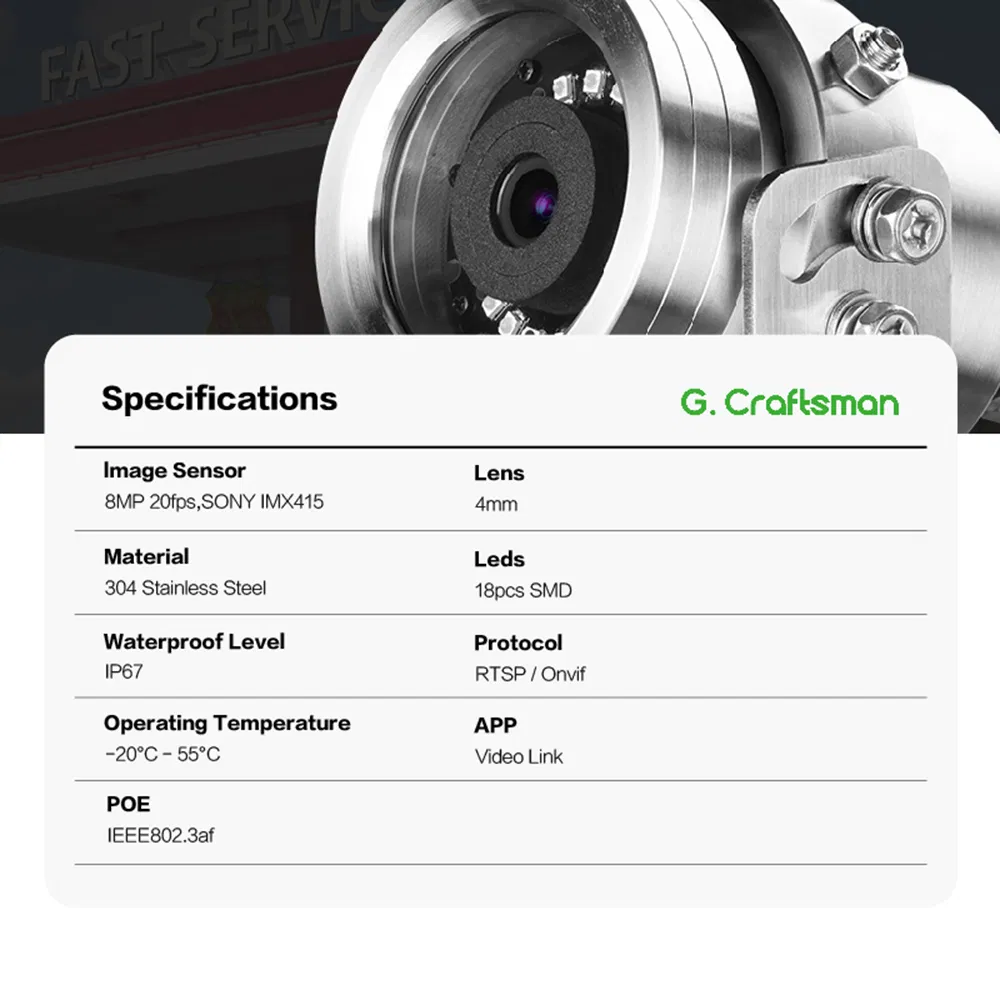

Detailed Parameters

Camera
Image Sensor8 Million Pixel, HD SONY IMX415 Sensor
Min. IlluminationColor: 0.001Lux; B/W: 0Lux with LED on
Electronic ShutterAUTO, 1/25s ~ 1/100000s

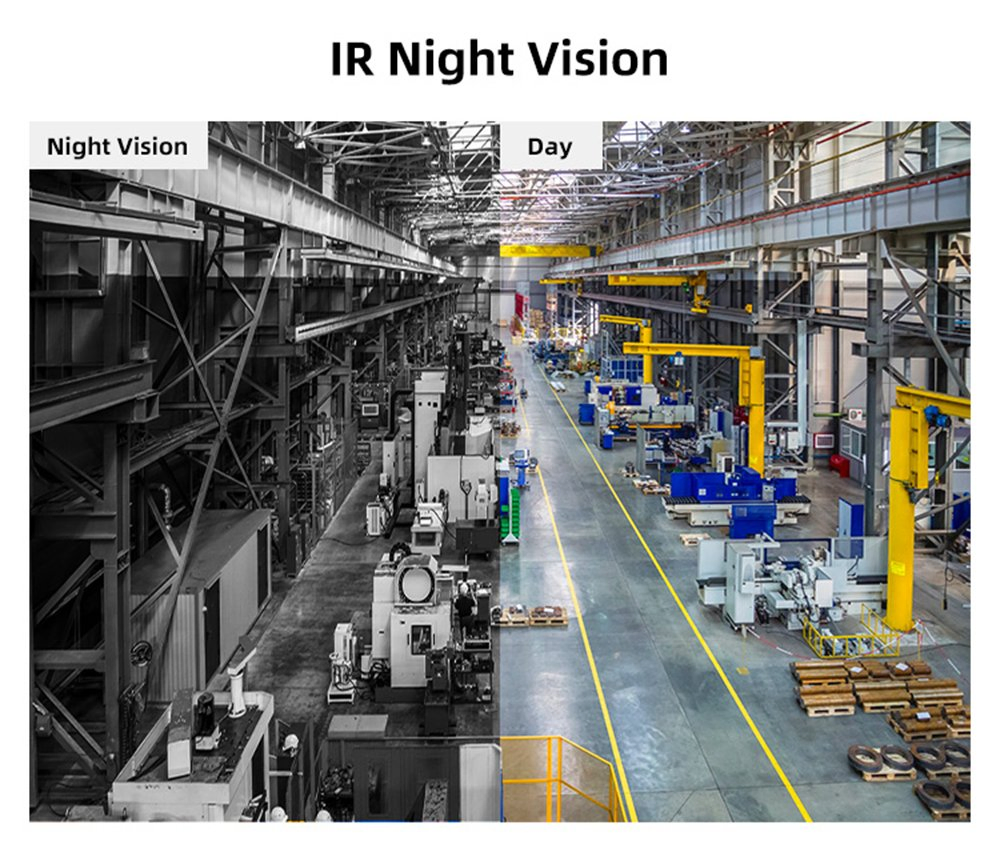

LED DistanceUp to 25m Infared
Video & Audio
CompressionH.265+/H.265/H.264 Support Bitrate 0.1M~8Mpbs
Main Stream20FPS (3840*2160), 30FPS (2592×1944), 60 FPS (1920×1080)
Audio StandardG.711-u/G.711-a
WDR120dB Super WDR
System & Network
ProtocolHTTP, RTSP, DHCP, NTP, ONVIF, P2P, RTMP
Intelligent AnalysisHumanoid Detection, Vehicle Detection
Protection Level304 Stainless Steel, IP67 (316 Optional)
Working Temperature-40ºC~60ºC (-40 °F to 140 °F)

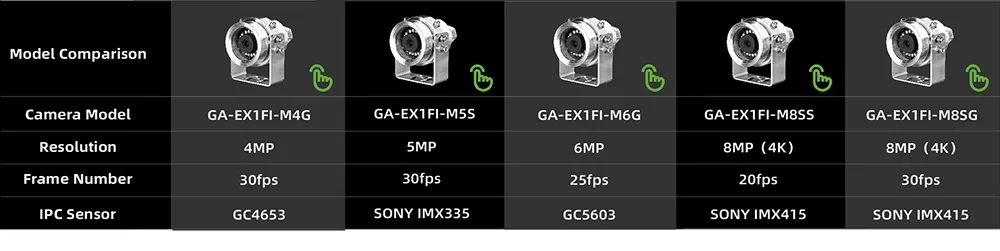

Product Overview

Application Scenarios

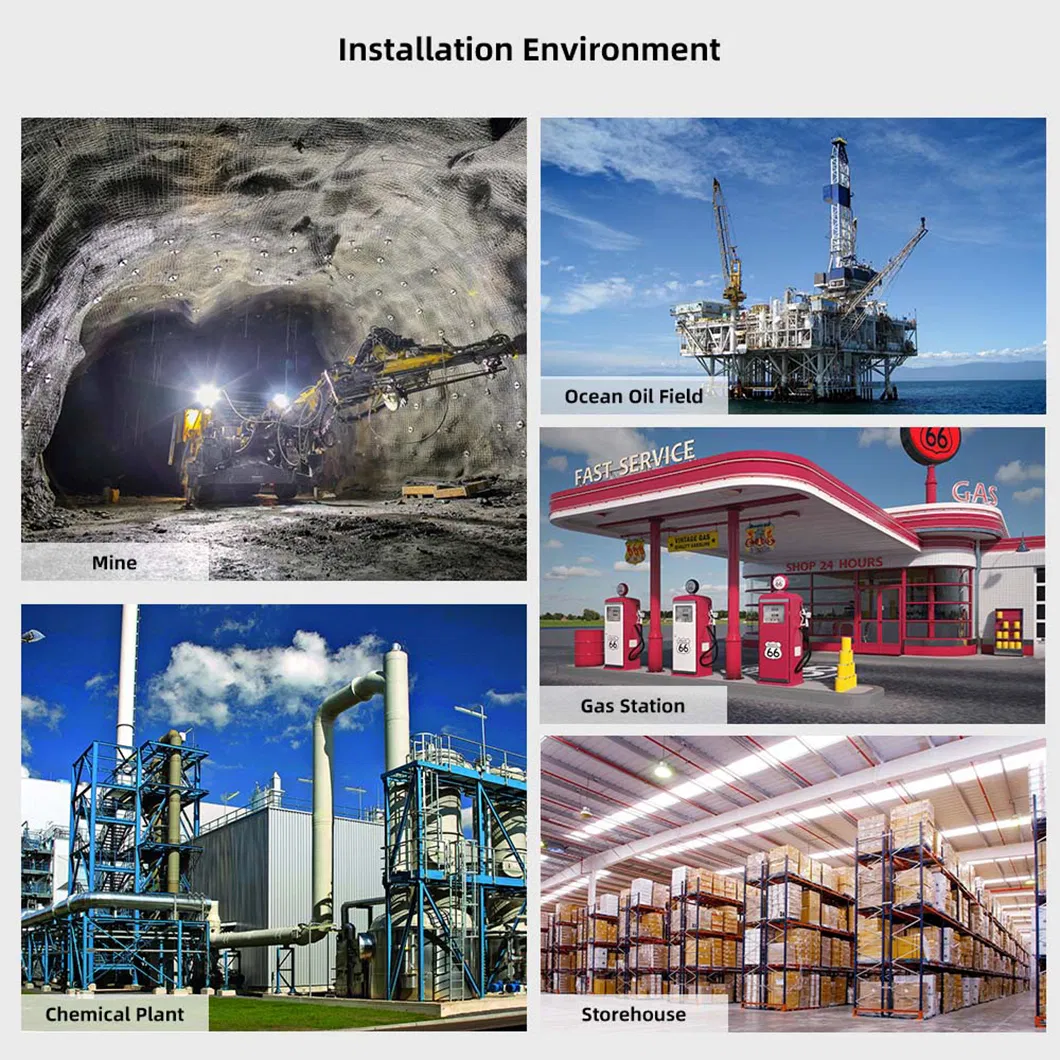

EX Series Camera is widely used in Gas stations, Chemical factories, Oil bases, Garbage transfer stations, Seaside Ports, Boats & Ships, Maritime monitoring, etc.

Scenario 1
Scenario 2

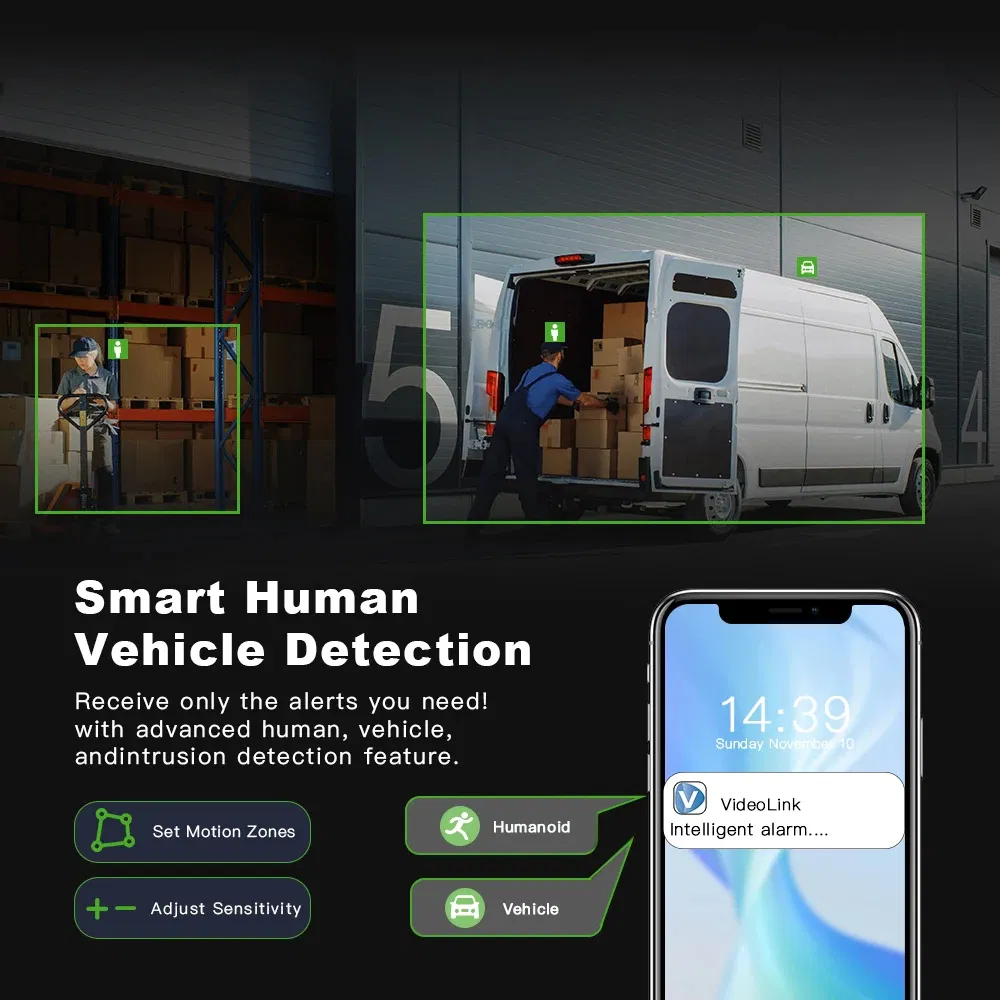

Advanced AI Technology

Intelligently filter objects to focus on human and vehicle detection, greatly enhancing monitoring efficiency for public security and business management.

The Smart Motion Detection function enables alerts by email / APP Push automatically when motion is detected in target areas.

AI Detection

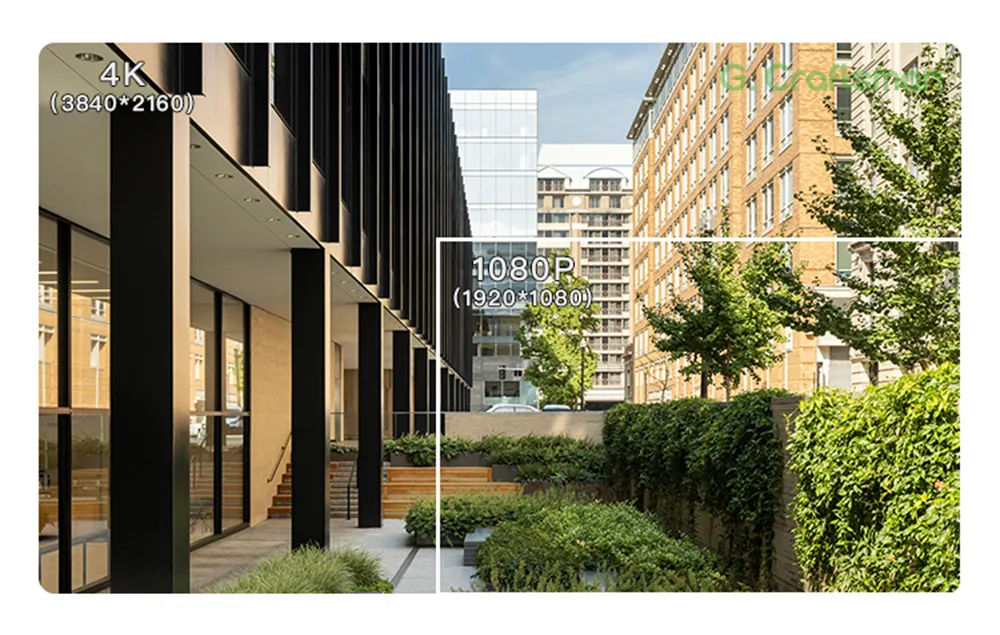

Starlight Performance

4K Video & High Frame Rate

Delivers up to 4K resolution (effectively four times that of Full HD) and supports high frame rates up to 60fps at 1080P, catching images with no latency.

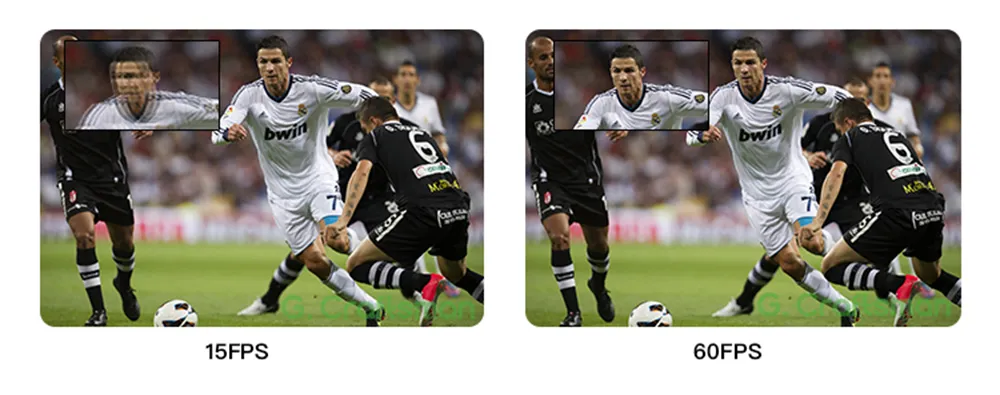

Frame Rate Comparison

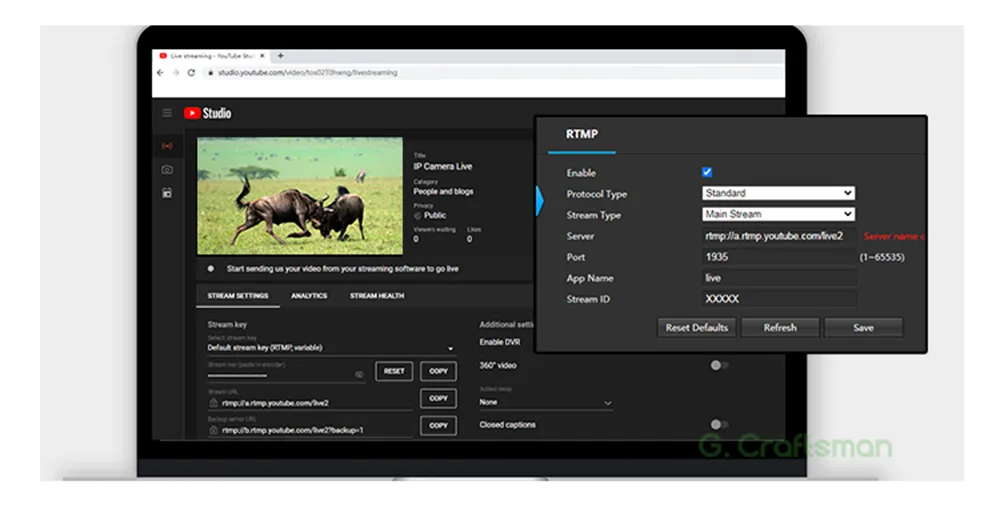

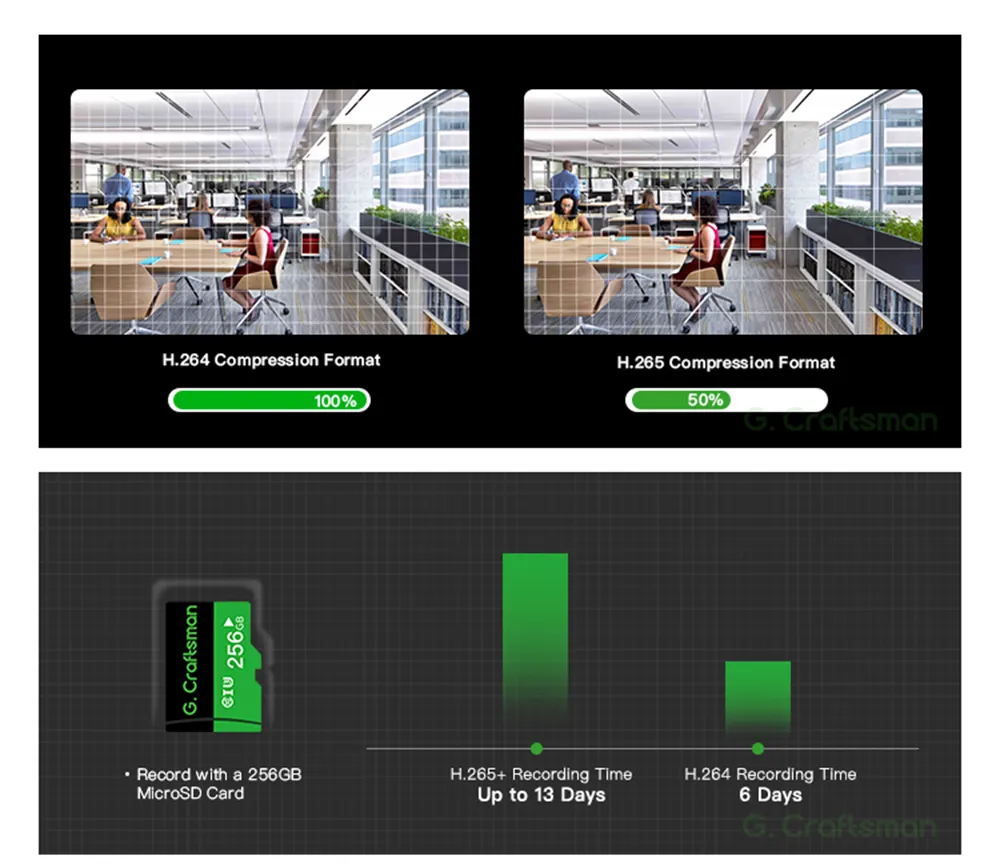

RTMP Streaming & H.265+

Supports RTMP streaming live to platforms like YouTube, Facebook Live, and Wowza. Advanced H.265+ codec saves more than 50% bandwidth compared with H.264.

RTMP Support
H.265 Compression

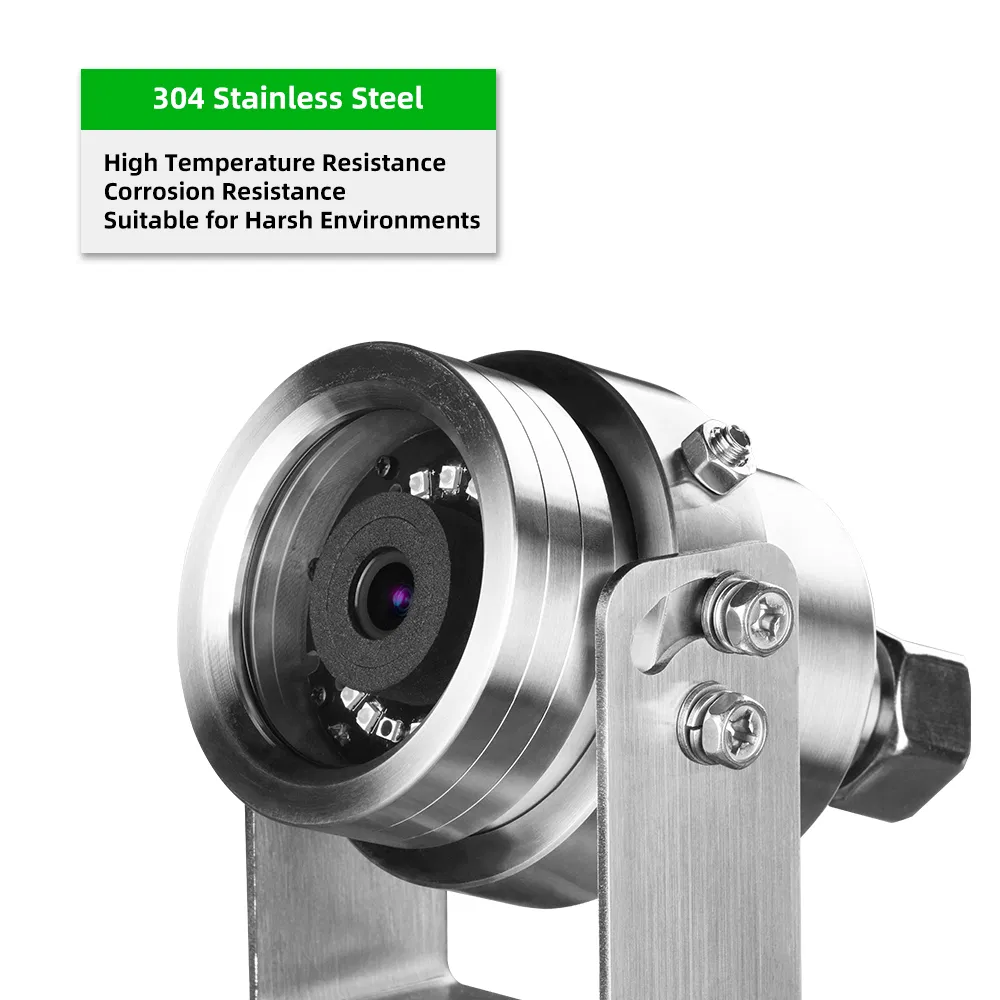

Explosion-Proof Structure

Equipped with F1.6 large apertures for 1.7x more light. Adopts high-quality 304/316 Stainless steel housing with double explosion-proof design for hazardous environments.

Lens Detail

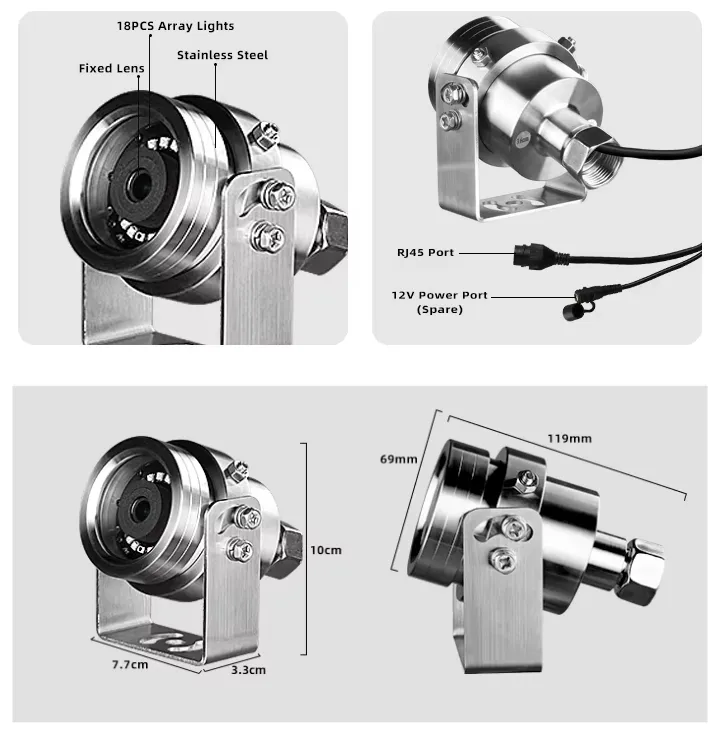

Structure Design

Frequently Asked Questions

Q1. What are the product advantages?
We ensure high quality through 48-hour aging tests and 7 inspections during production. Our defective rate is under 2‰, with 100% full checks before shipment.
Q2. What are the service advantages?
We provide 24/7 support with response times under 12 hours, quick delivery (3-5 days for small orders), and 12 years of OEM/ODM experience.
Q3. What are the available payment terms?
We accept T/T, L/C, PayPal, Western Union, MoneyGram, and Visa. OA terms are acceptable based on credit.
Q4. What is the production capacity?
Our monthly capacity is 30,000 units for cameras and 3,500 units for recorders. There is no limit for test orders.
Q5. How about the warranty policy?
We offer a two-year warranty and lifetime technical service with a rapid RMA process.
Q6. How are goods shipped?
Small parcels are shipped via FedEx/DHL/UPS. Bulk orders are sent by air, sea, or train as per requirement.
