📋 Basic Info.
Model NO.
Calcium silicate board
Non-Combustibility
Class A
Feature
Environment Friendly, High Strength, Fireproof
🏗️ Product Description

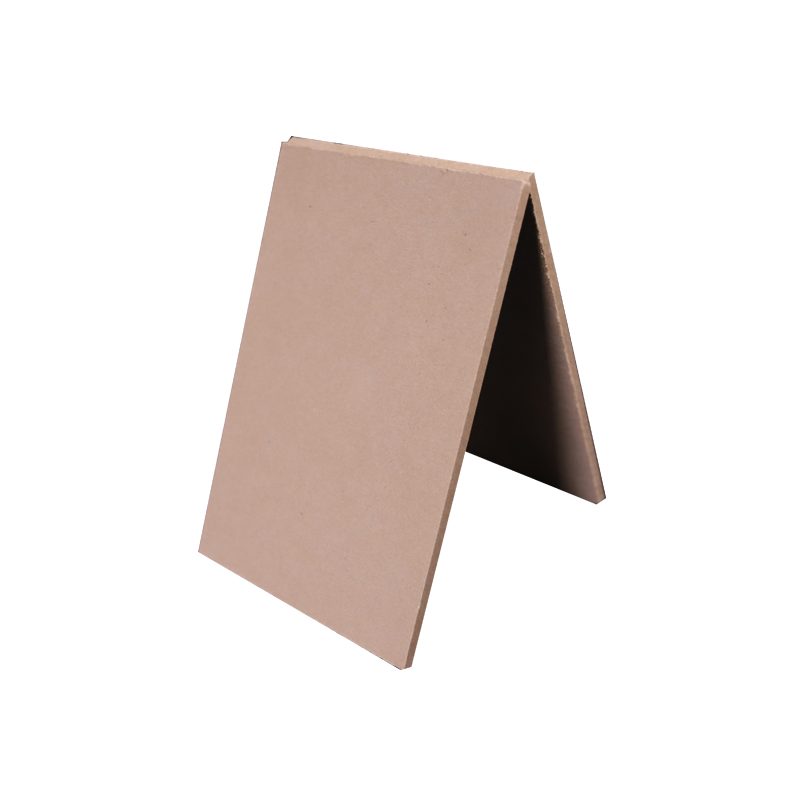

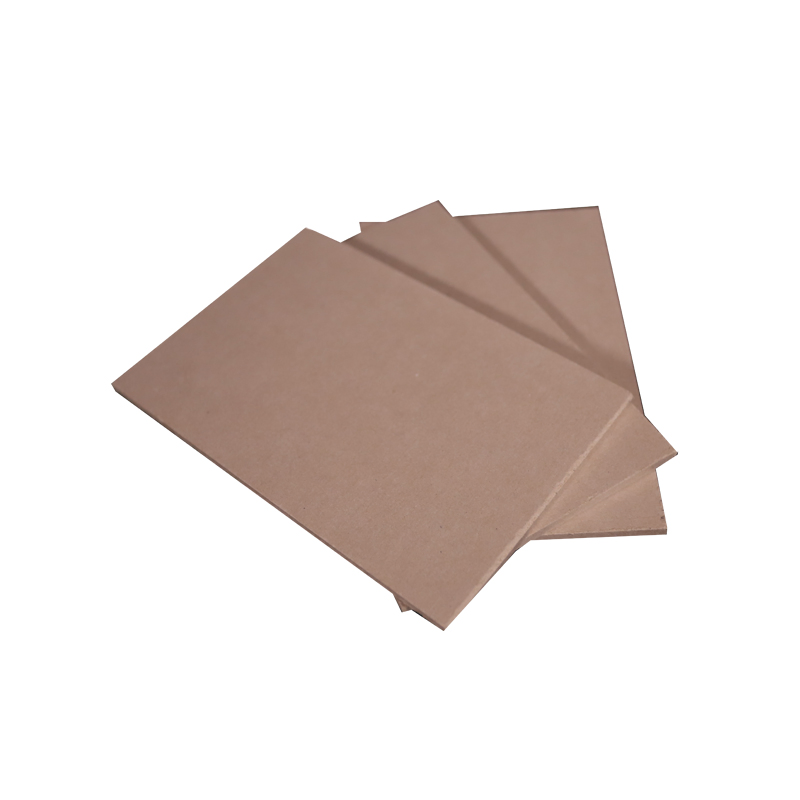

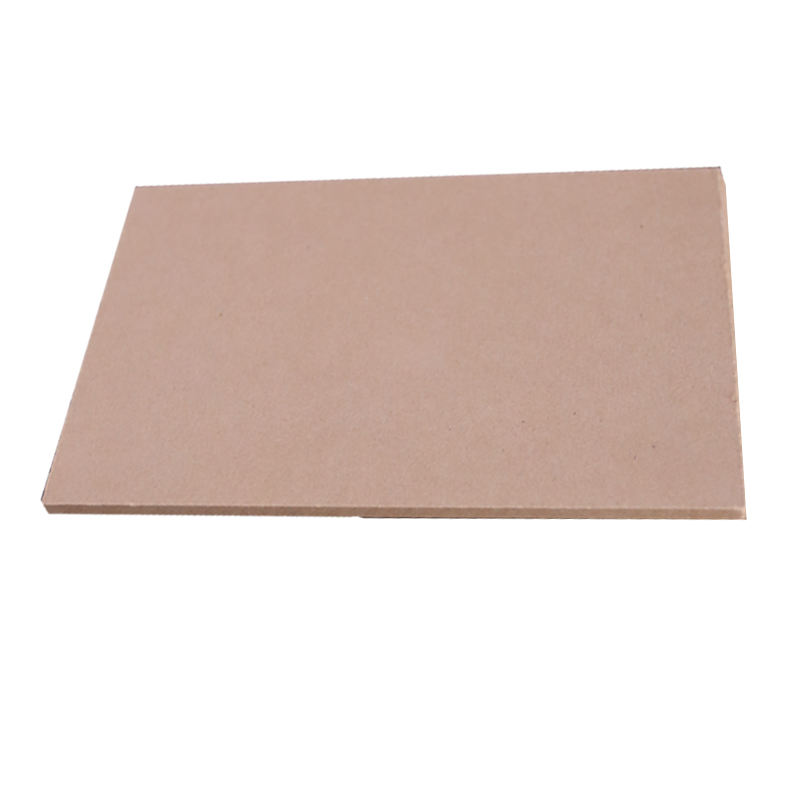

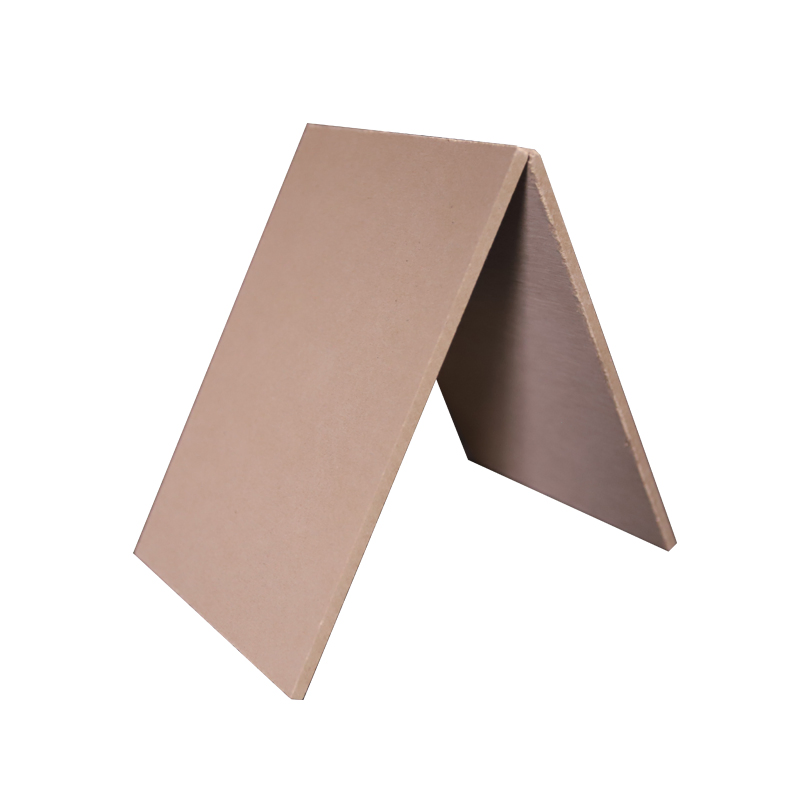

Calcium silicate board is a new type of green environmental protection board with excellent performance, such as fireproof, moisture proof, insect-resistant ant, easy working, thermal insulation, low deformation coefficient and durable. It is widely used for ceiling, partition wall, basal plate for EPS board and baseplate for decorative board.
| Technical Specification |
|---|
| Thickness(mm) | Width(mm) | Length(mm) |

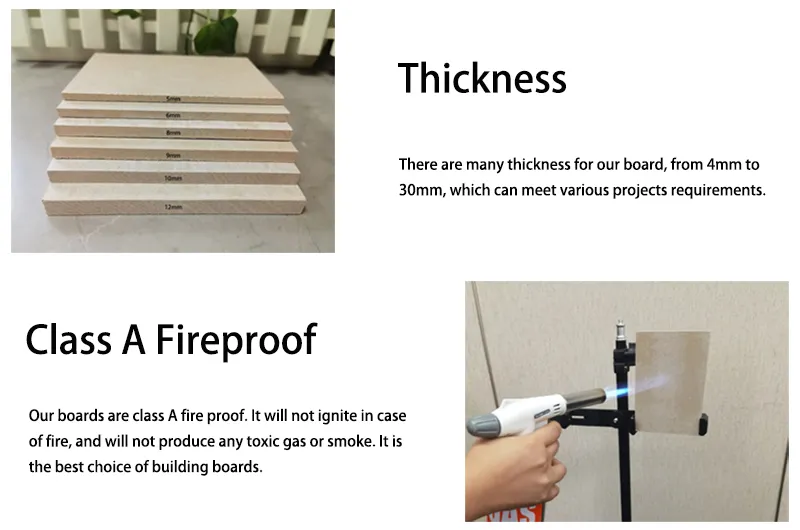

| 4-30 | 1220 | 2440 |
| Physical Properties |
| Density | 1.2-1.6g/cm3 |
| Thermal conductivity | ≤0.29 W/(m.k) |
| Water absorption | ≤40% |
| Bending strength | Average | >12 Mpa |
| Non-combustibility | Class A |

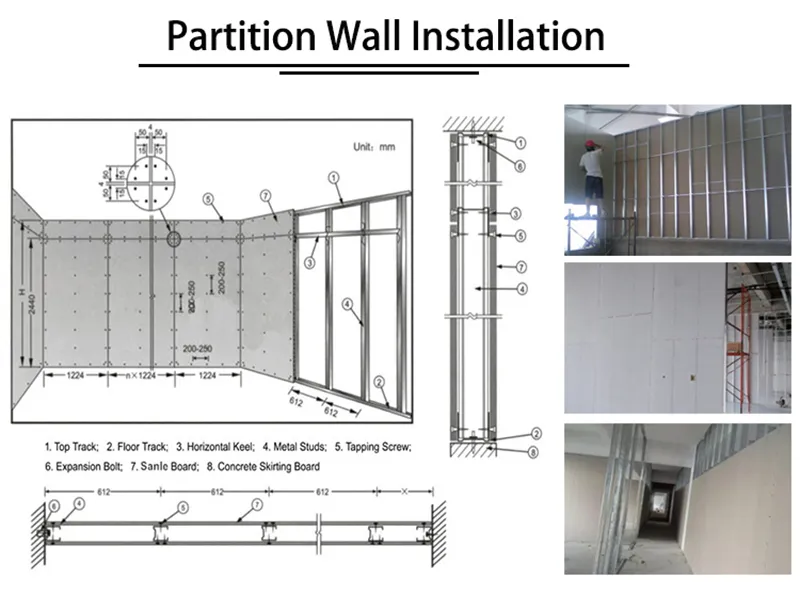

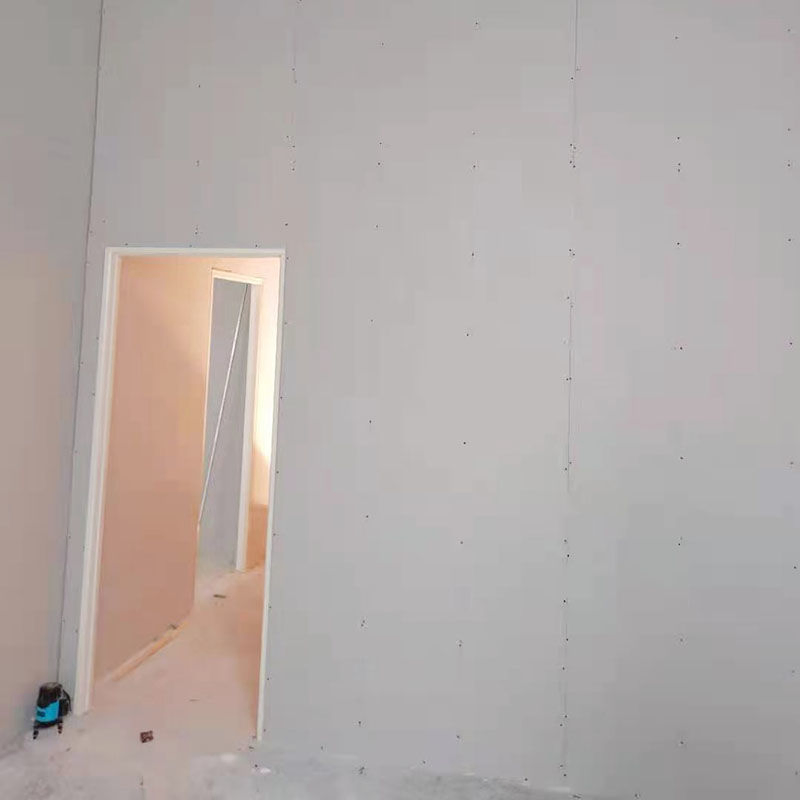

🛠️ Partition Installation Steps
1
Fix top and bottom keels with expansion bolts.2
Align vertical keels (generally 612 mm) with lateral support.3
Cut board material to dimensions (10mm lower than wall height).4
Fix board on keel with tapping screws (200~250mm interval).5
Keep expansion seam of about 4mm between boards.

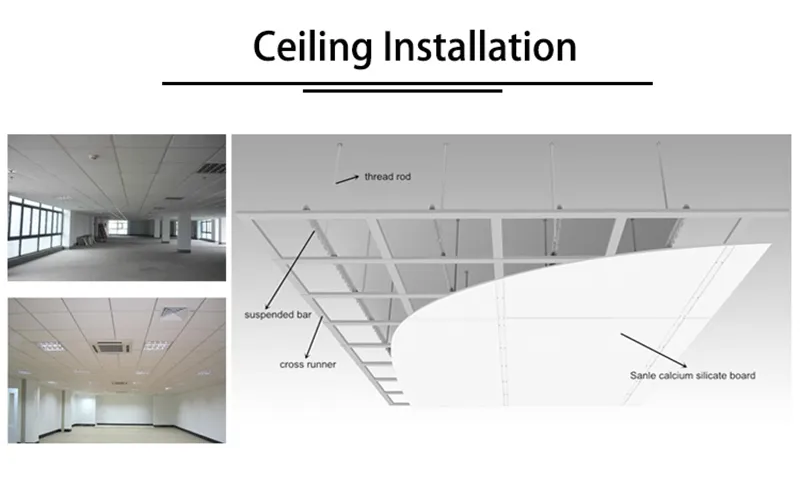

☁️ Ceiling Installation Steps
1
Carry out line-measuring; boom central range is generally 1200mm.2
Connect boom and main keel with hanging pieces.3
Fix sub-keel to main keel (612mm axis range).4
Install lateral supporting keels (1224mm range).5
Fix boards on sub-keels with tapping screws.
🏢 Professional Manufacturing

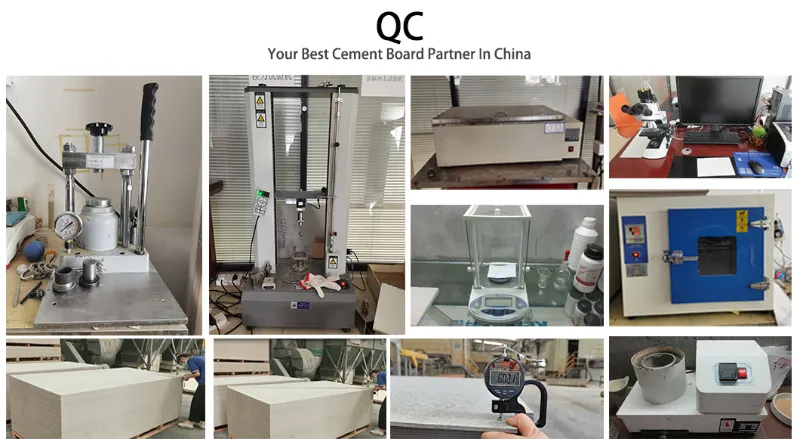

Engaging in the research, development, production, and sale of fiber cement board, calcium silicate board, EPS cement panel, and decorative cement panels. Our team has more than 20 years of production experience with advanced technologies and integrated management systems. All products are approved by national standards, ensuring high quality and efficiency for building projects.
📦 Main Products

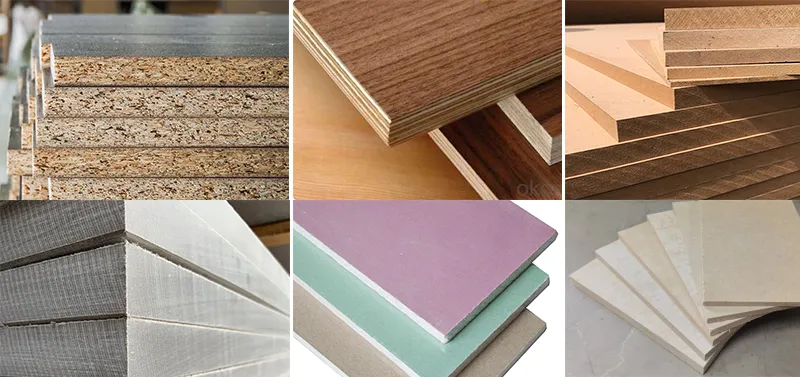

Plywood, MDF board, Particle board, Chip board, Gypsum board, Fiber cement siding board, Non-asbestos cement board, Calcium Silicate Board etc.
❓ FAQ

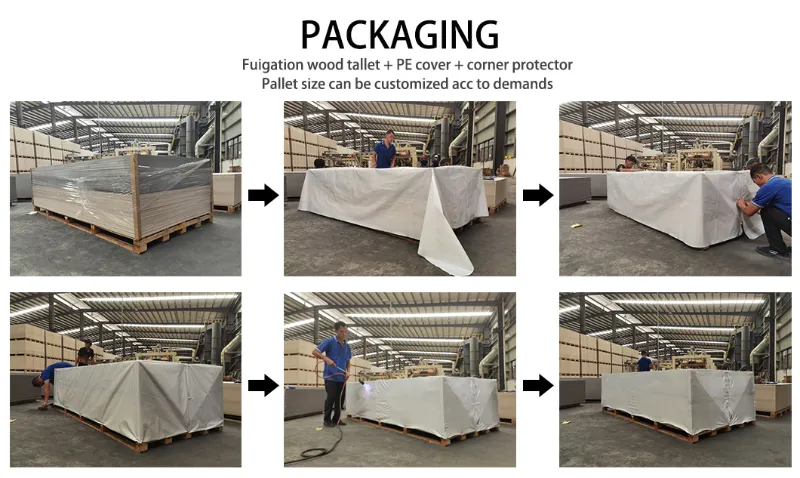

What are your terms of packing?
Generally, we pack our goods in bundles or wood pallets. We can also do packaging according to customer's requests.
What are your terms of payment?
We accept 30% T/T in advance, 70% during the period of shipment, or L/C at sight.
What are your terms of delivery?
EXW, FOB, CFR, CIF.
How about your delivery time?
For stock items, we can ship within 15 days after deposit. For production, it usually takes about 20-25 days.
Do you provide samples for free?
We can provide samples for free, but you need to cover the shipping costs.
Which certifications do your products have?
Our products meet international environmental standards and have passed ISO9001:2008, US CARB, SGS, and CE certification.
