| Model NO. | GL-R7100 |
| Auto Print Mode | Data or Curve Selectable |
| Auto Print Channel | All Channels, Some Channels Are Selectable. |
| Auto Print Interval | Data Printing Interval or Curve Printing Interval. |
| Manual Print Mode | Data, Curve, Data + Curve Selectable. |
| Trademark | Aice Tech |
| Origin | China |
1. INTRODUCTION – Cutting-Edge Monitoring Technology

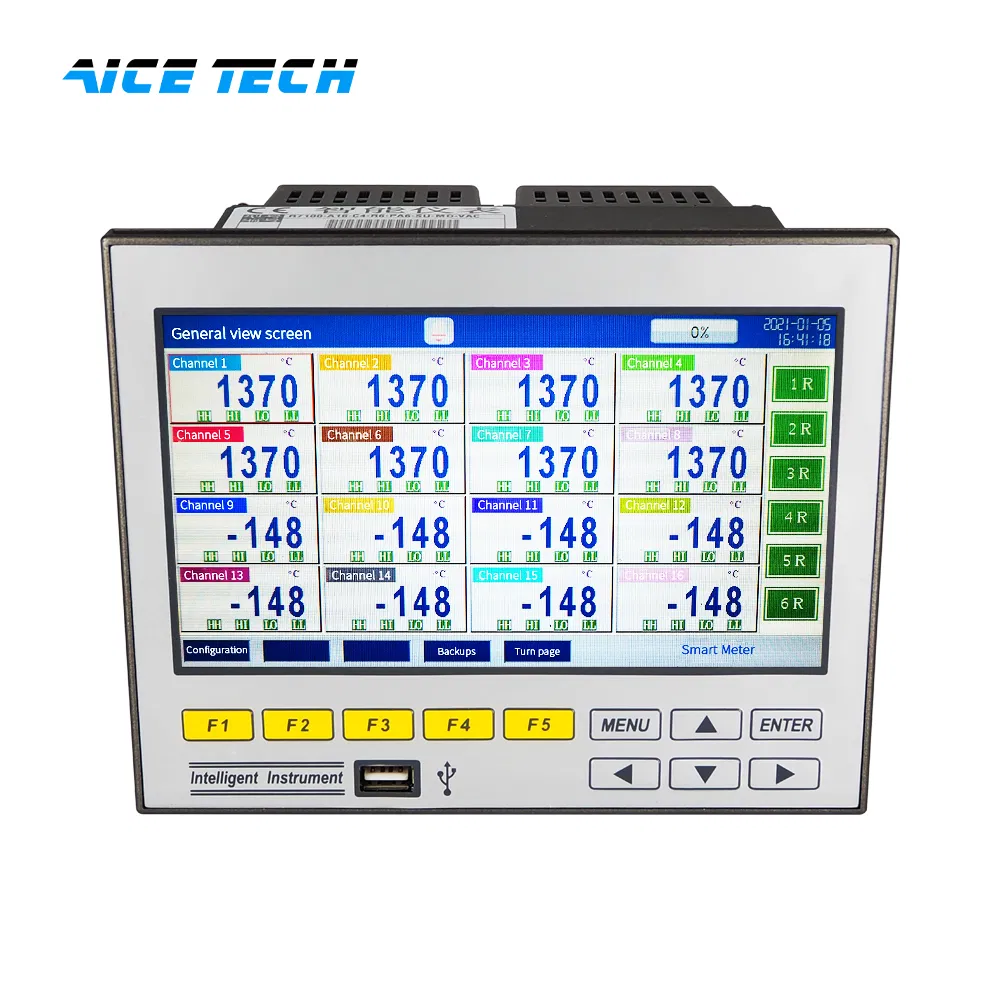

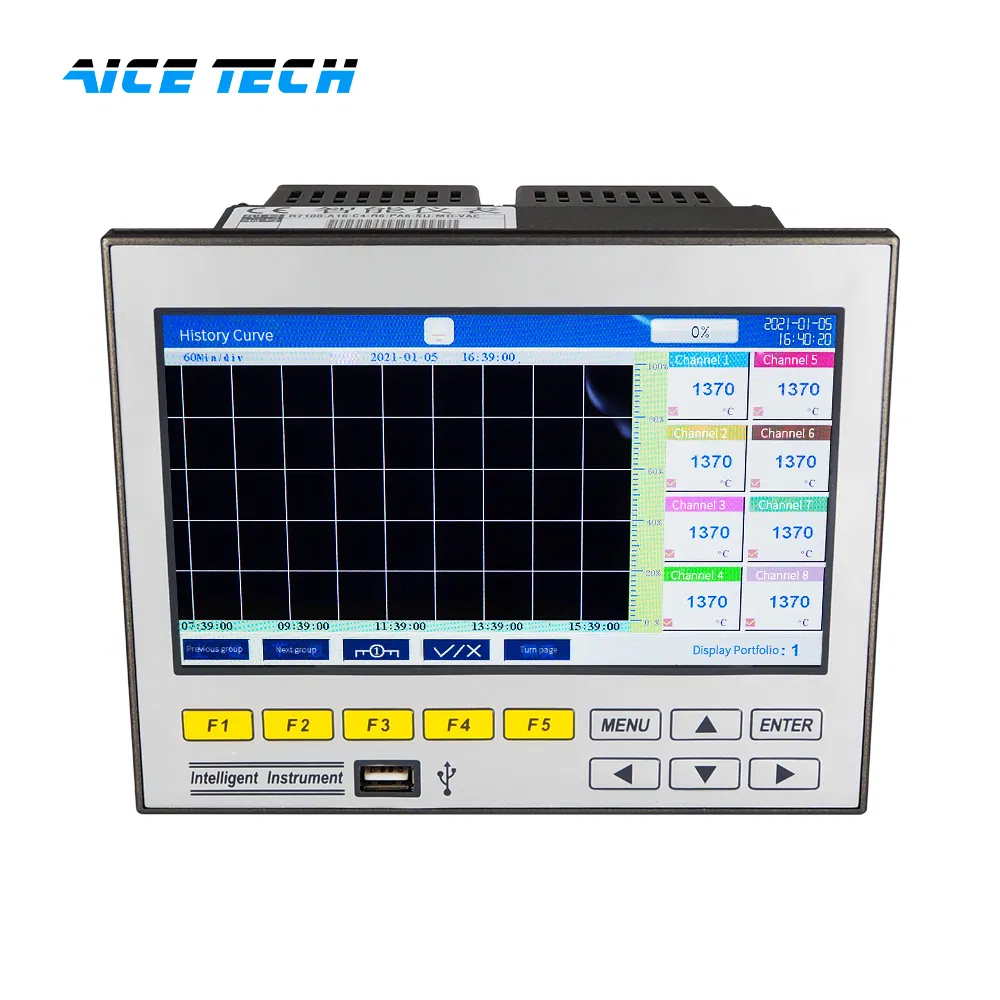

Introducing our state-of-the-art Industrial Touchscreen Color Paperless Recorder, featuring a stunning 7-inch color LCD touchscreen interface and supporting up to 32-channel isolated universal signal inputs for unparalleled versatility.

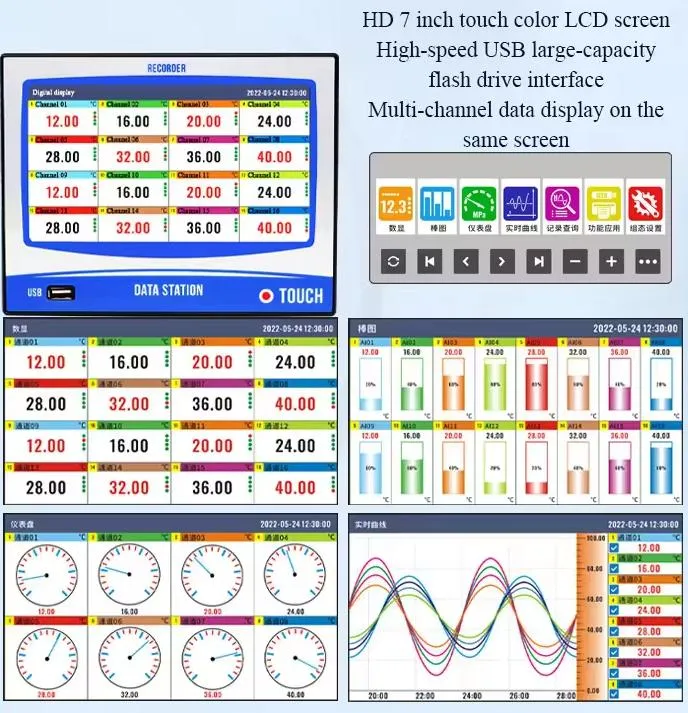

Capable of processing a wide range of industrial standard signals including current, voltage, thermocouple, RTD, and frequency. It offers real-time signal acquisition displayed as numerical values, bar graphs, and curves.

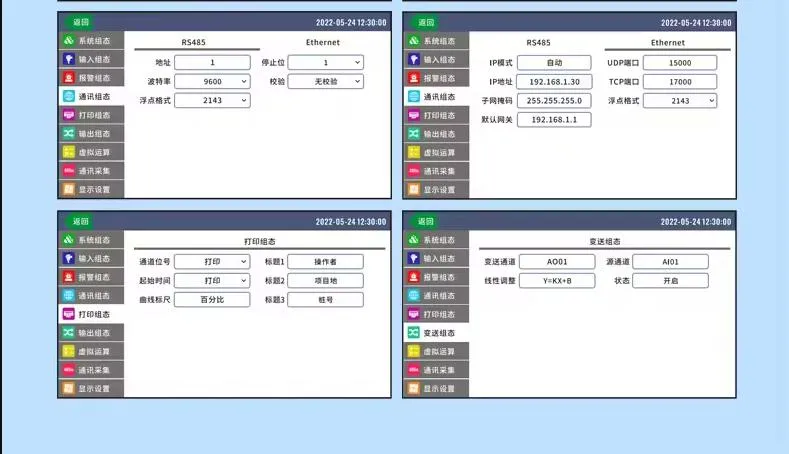

Equipped with RS485 and Ethernet communication interfaces, ensuring seamless and reliable connectivity. Historical data can be effortlessly transferred via USB.

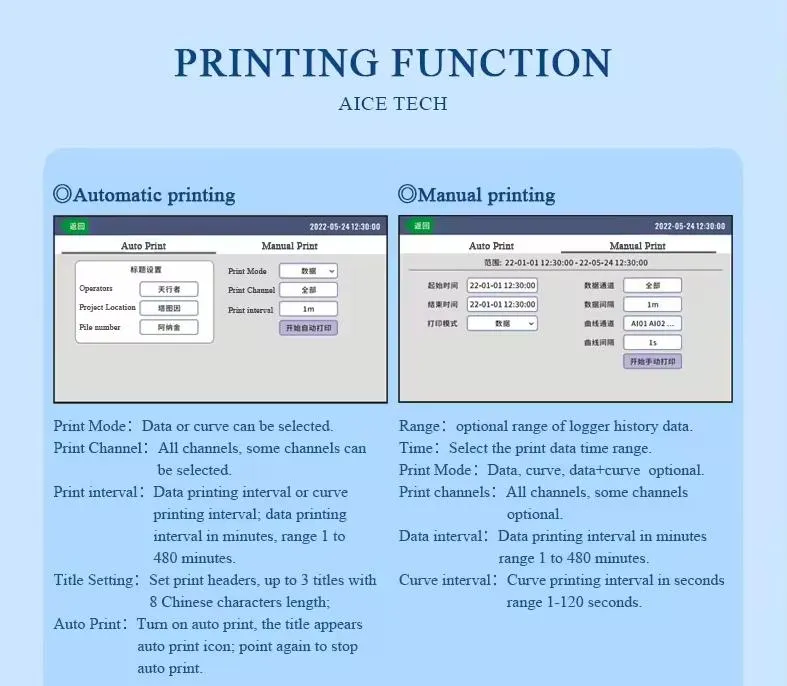

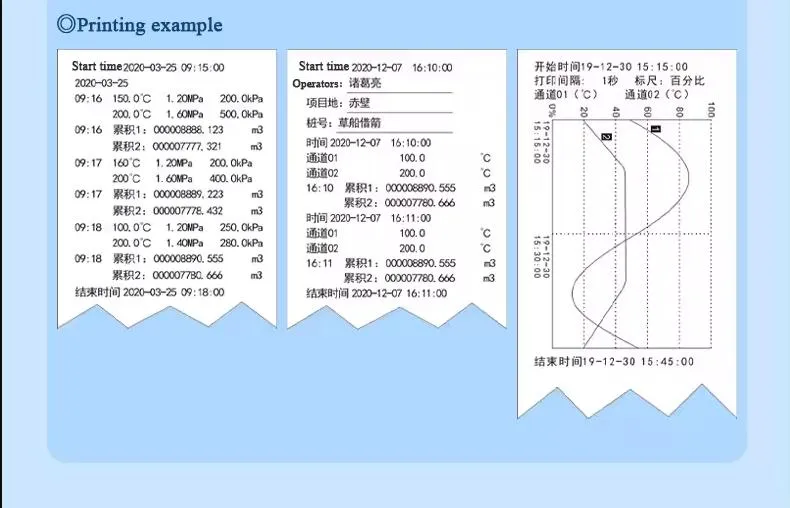

| Auto Print Mode | Data or curve selectable |
| Auto Print Channel | All channels, some channels are selectable. |
| Auto Print Interval | Data printing interval (1~480 min) or curve printing interval (1~120 sec). |
| Automatic Title Setting | Set up to 3 headings, 8 characters in length. |
| Manual Print Data Interval | Range 1~480 minutes. |
| Manual Print Curve Interval | Range 1~120 seconds. |
