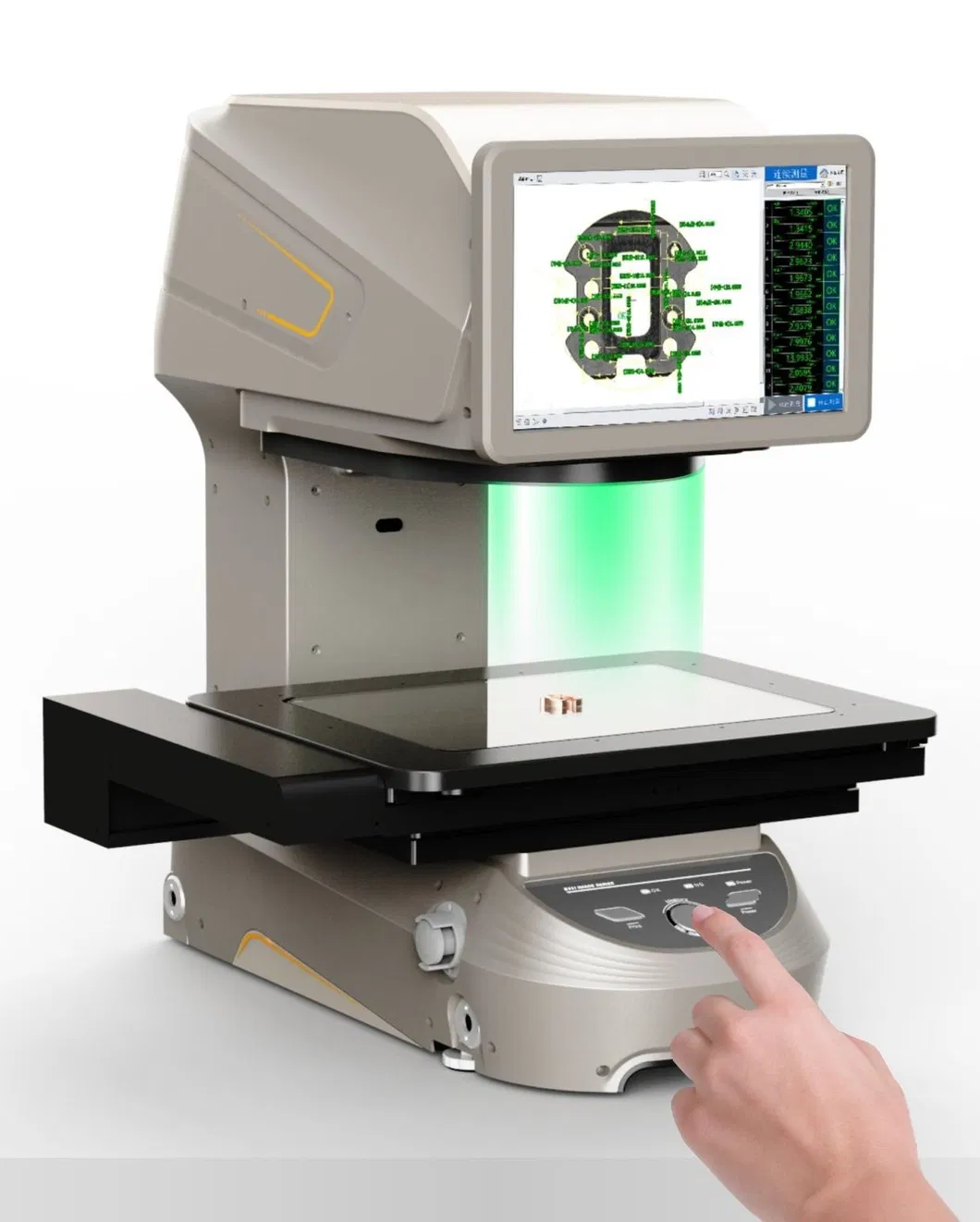

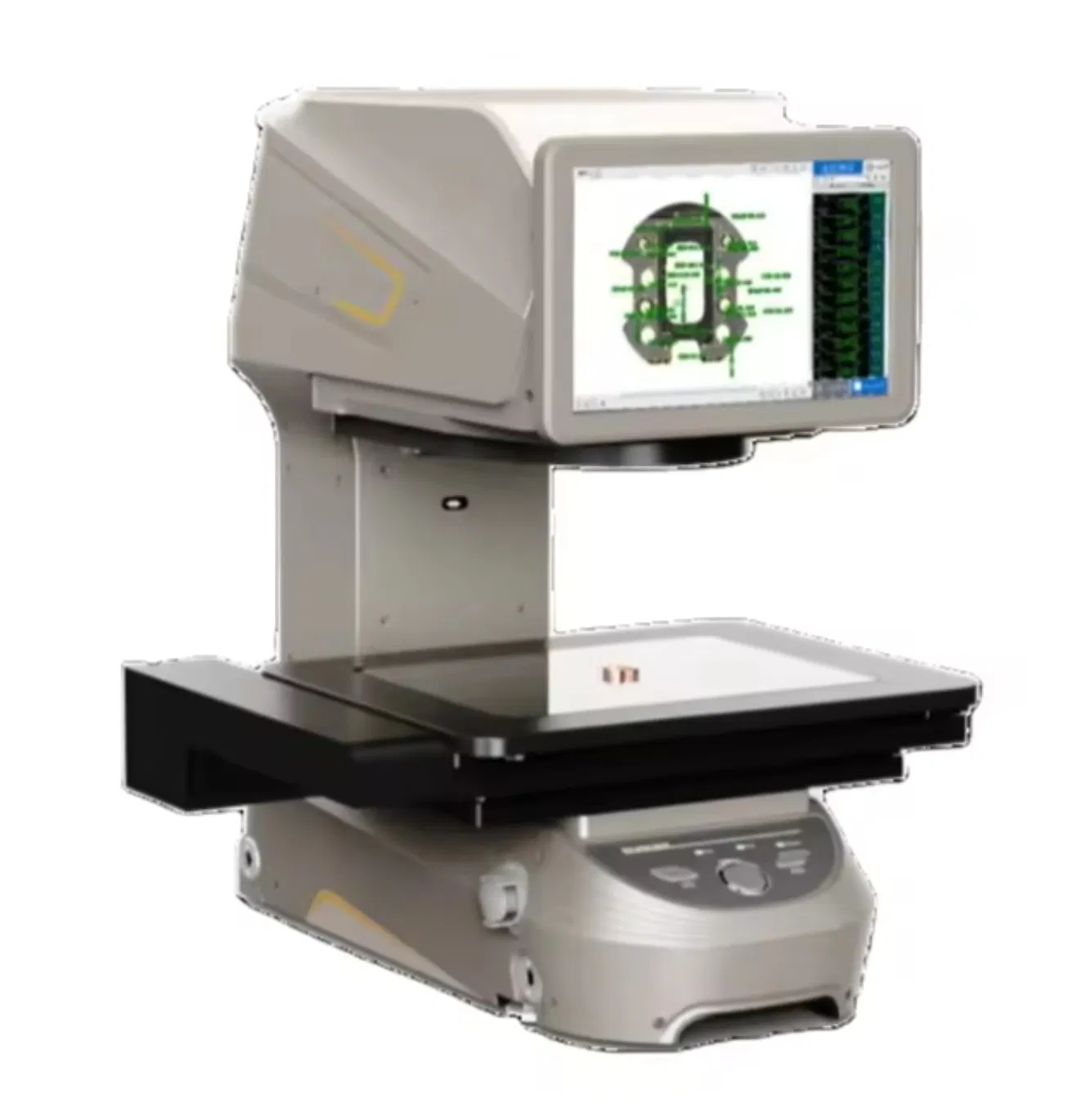

Ai-Powered Rapid Measurement Tool with Auto-Calibration

Customization:	Available
After-sales Service:	Life-Long Maintenance Service
Warranty:	1-Year

📊

Basic Information

Model NO.

JTD-IM Pro

Type

2D Video Measuring System

Operate Method

CNC

Working Travel

Ф100

Camera

1" 20MP Black and White Camera X 2

Lens

Double Magnification Double Telecentric Lens

🔍

Product Description

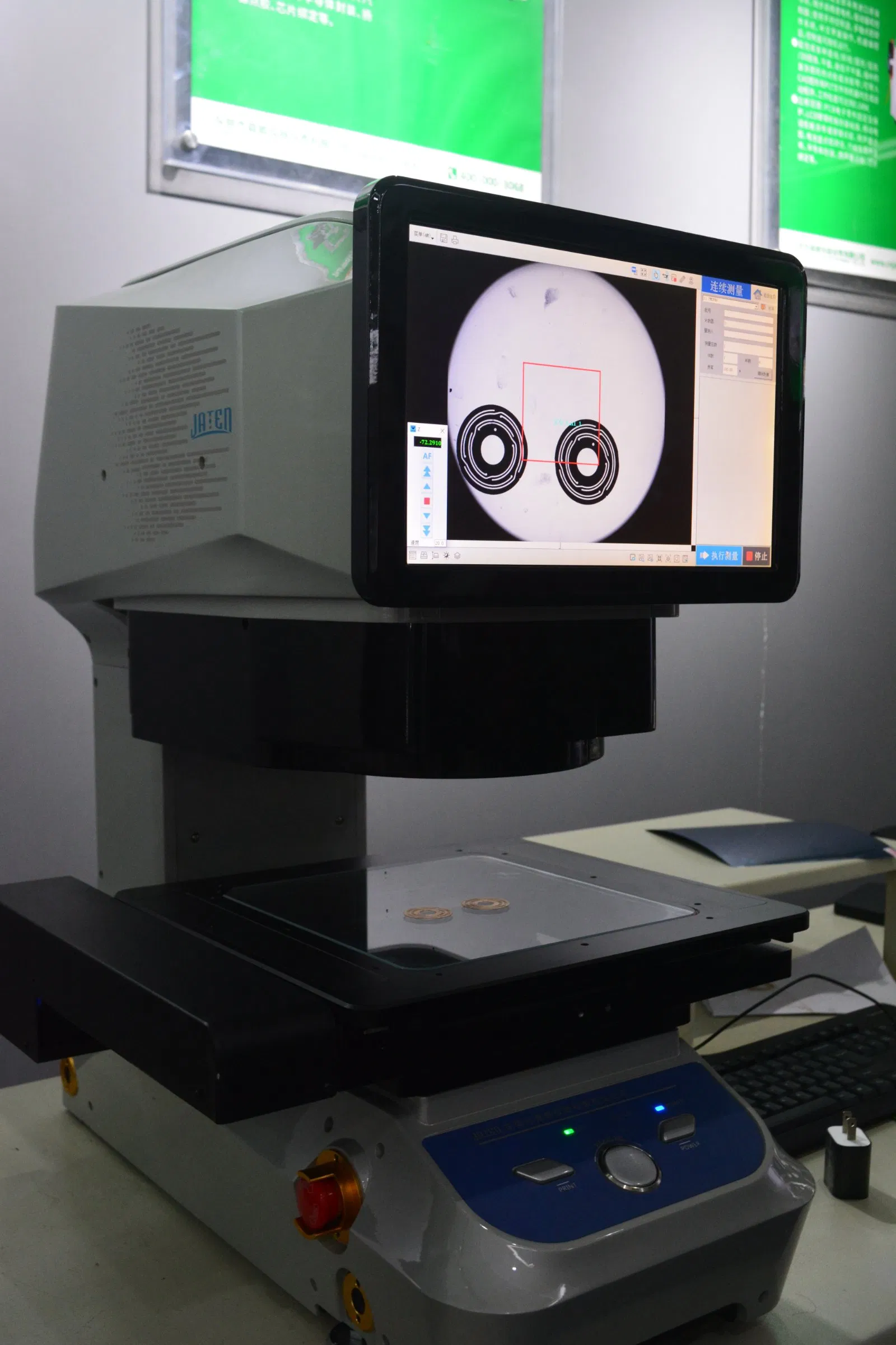

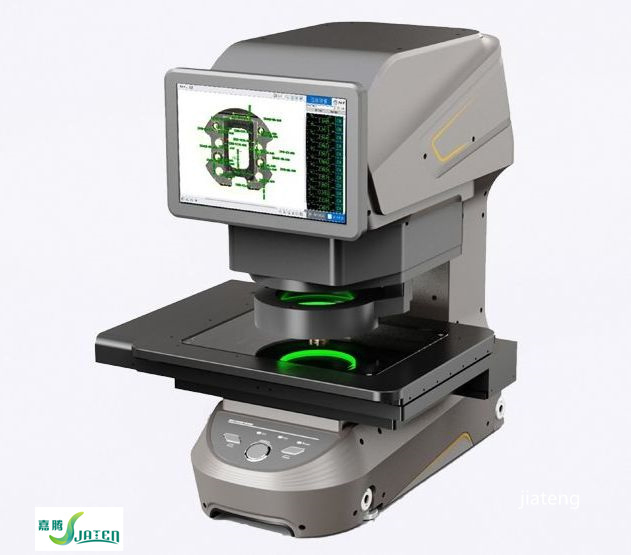

One-Click Fast Vision Measuring Machine Smart Algorithm Quick Video Measuring Machine IM1

🚀 High-Efficiency Performance

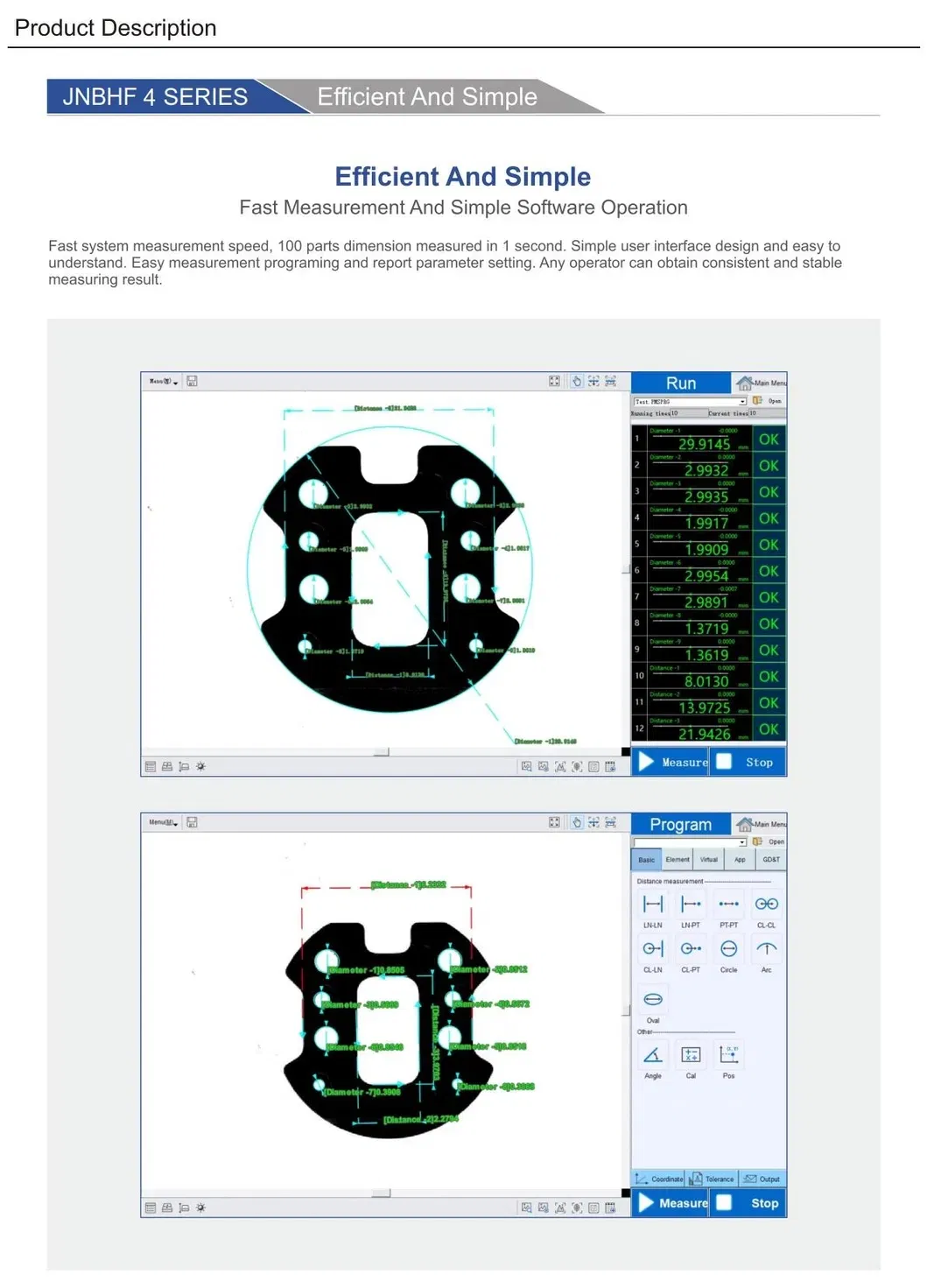

100 parts of measurement in 1 second, greatly reducing the measurement time. Reports can be automatically uploaded to the data management system.

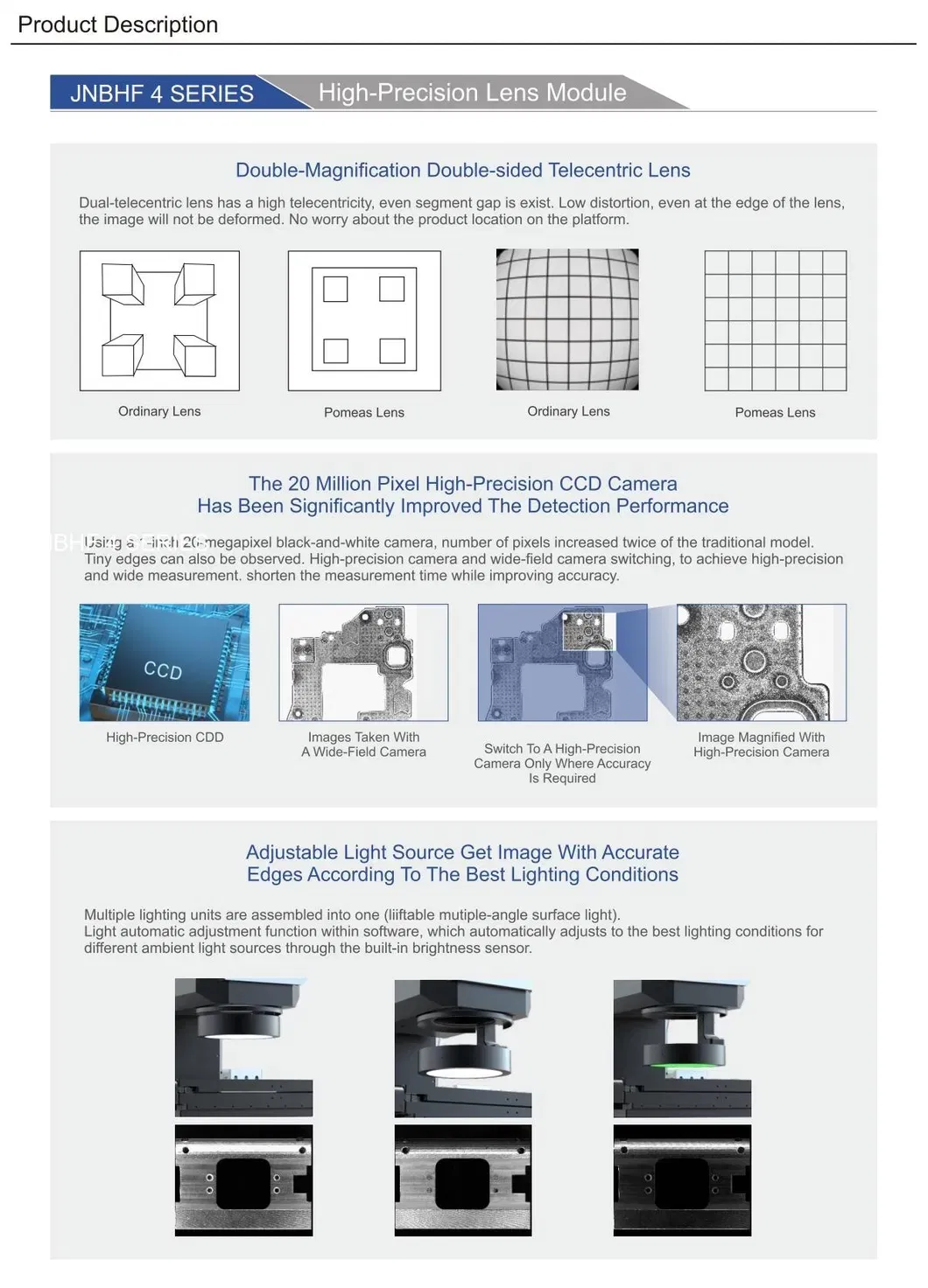

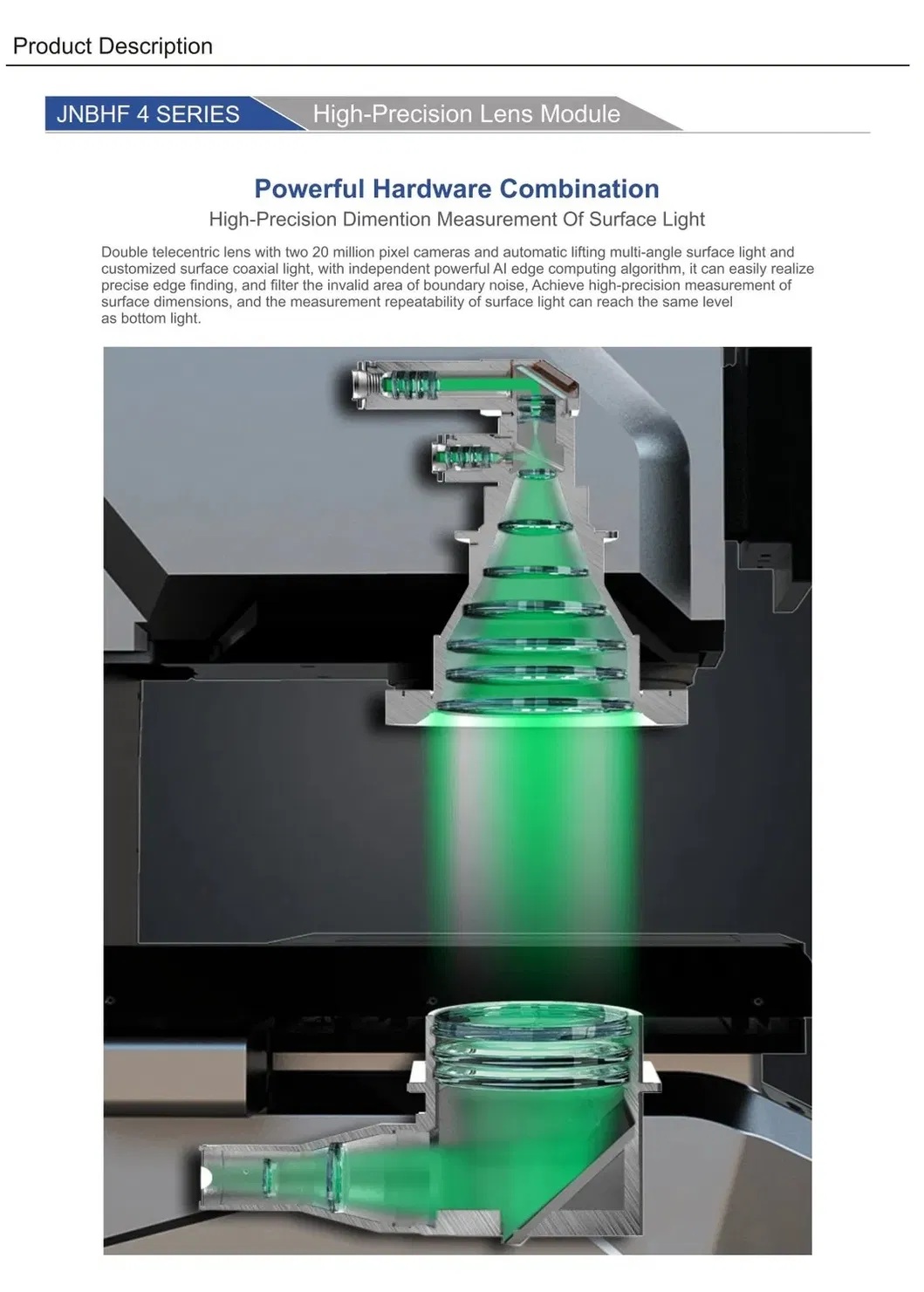

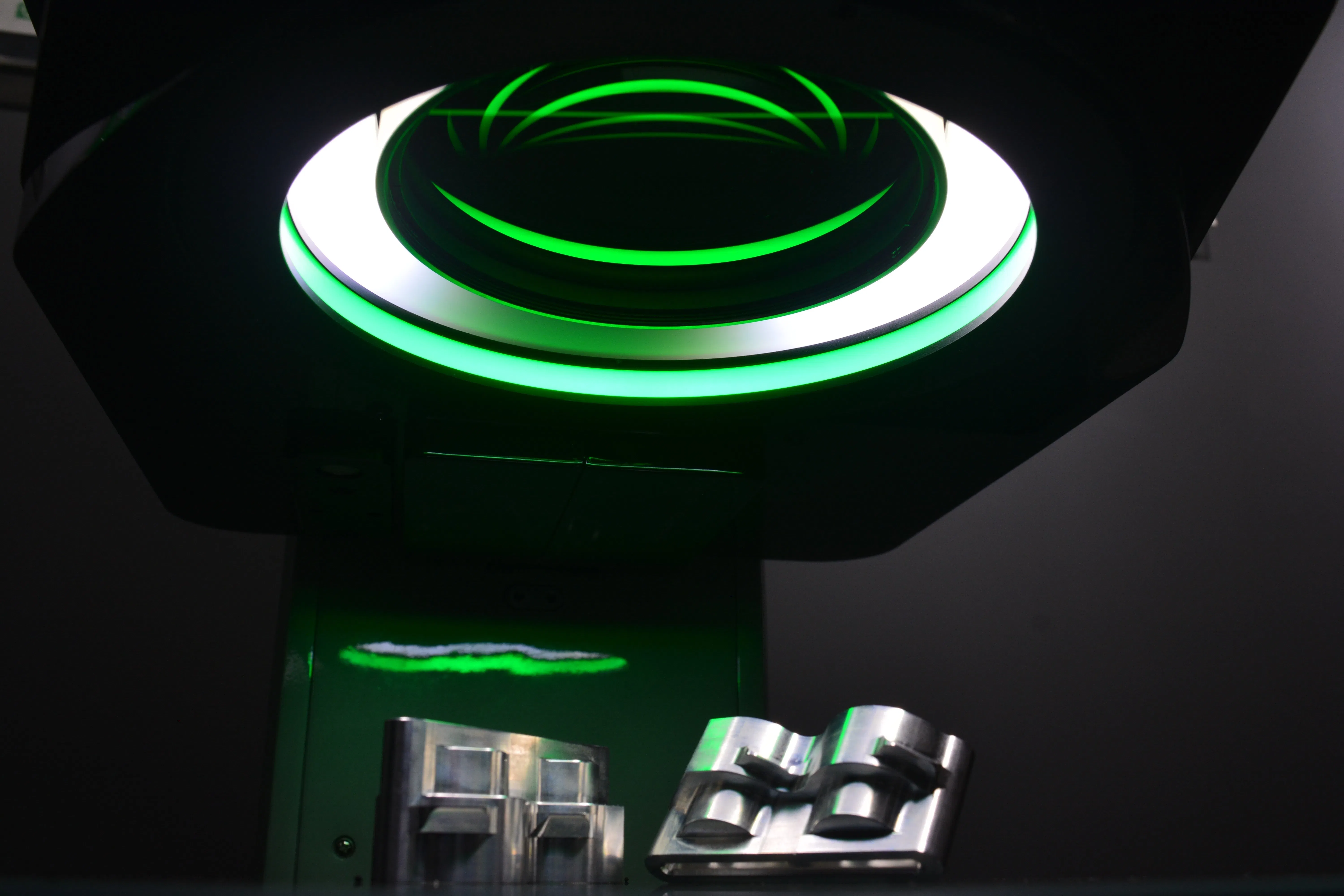

Double telecentric lens with two 20MP cameras and automatic lifting multi-angle surface light. With auto focus and auto positioning, anyone can get stable results.

📝

Technical Specifications

Device Model		IM	IM Plus	IM Pro

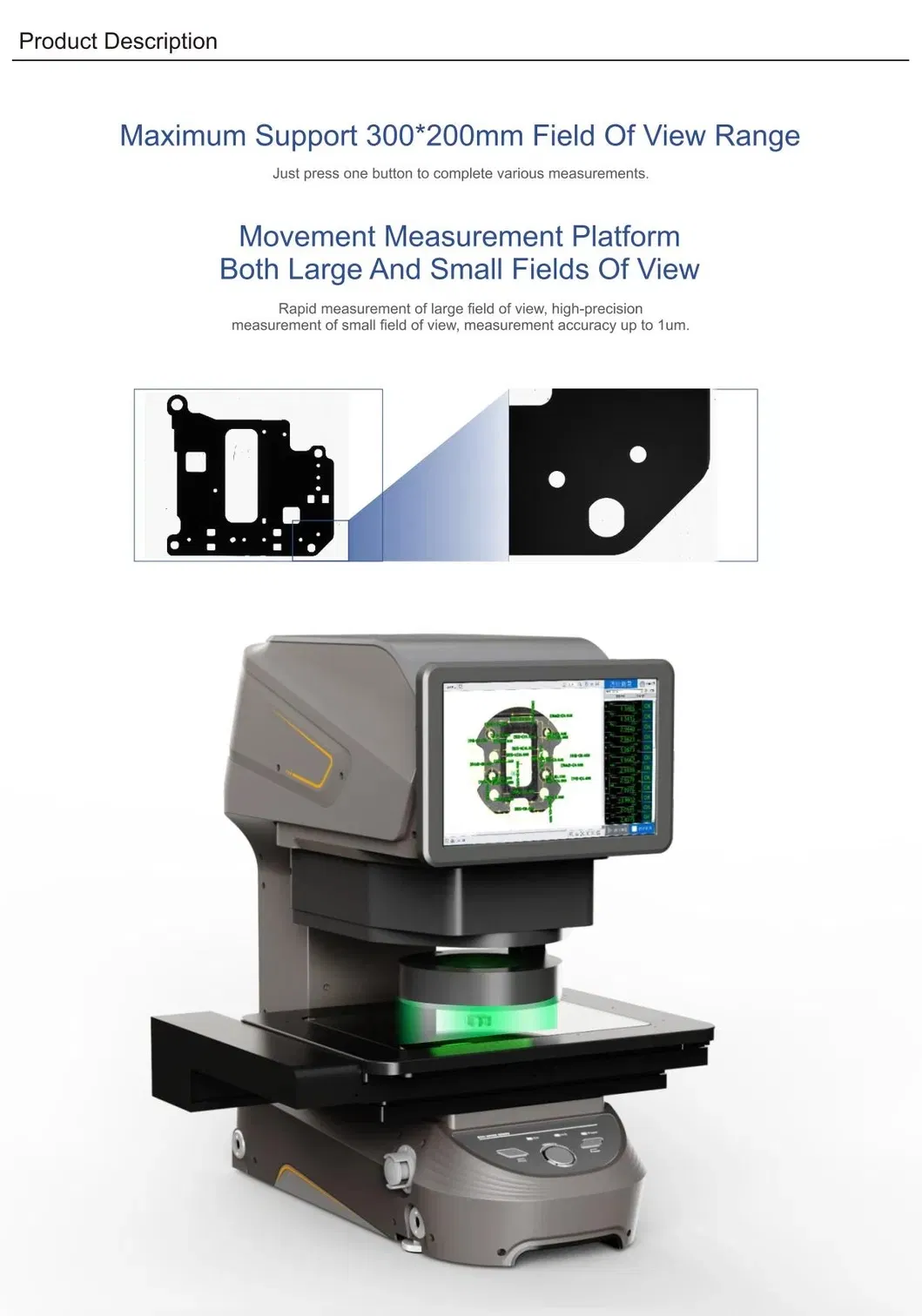

Measuring Range	X	Ф100	200mm	300mm
	Y	-	200mm	200mm
	Z	75mm	75mm	75mm
Repeatitive Accuracy		±1.5μm (High Precision Mode) / ±3μm (Wide FOV)
Camera System		1" 20MP Black And White Camera x 2
Power Supply		220V±10%, 50Hz

📸

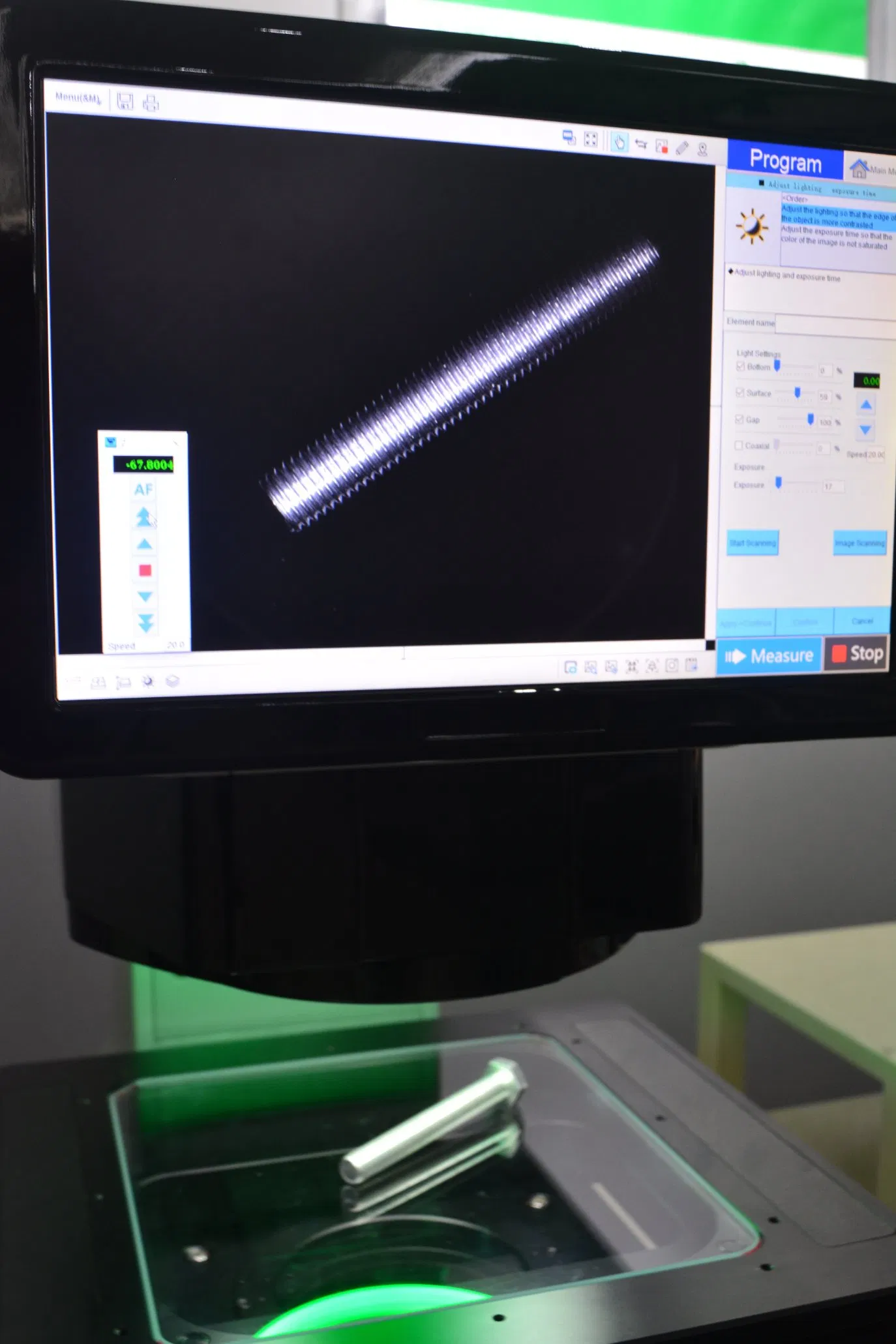

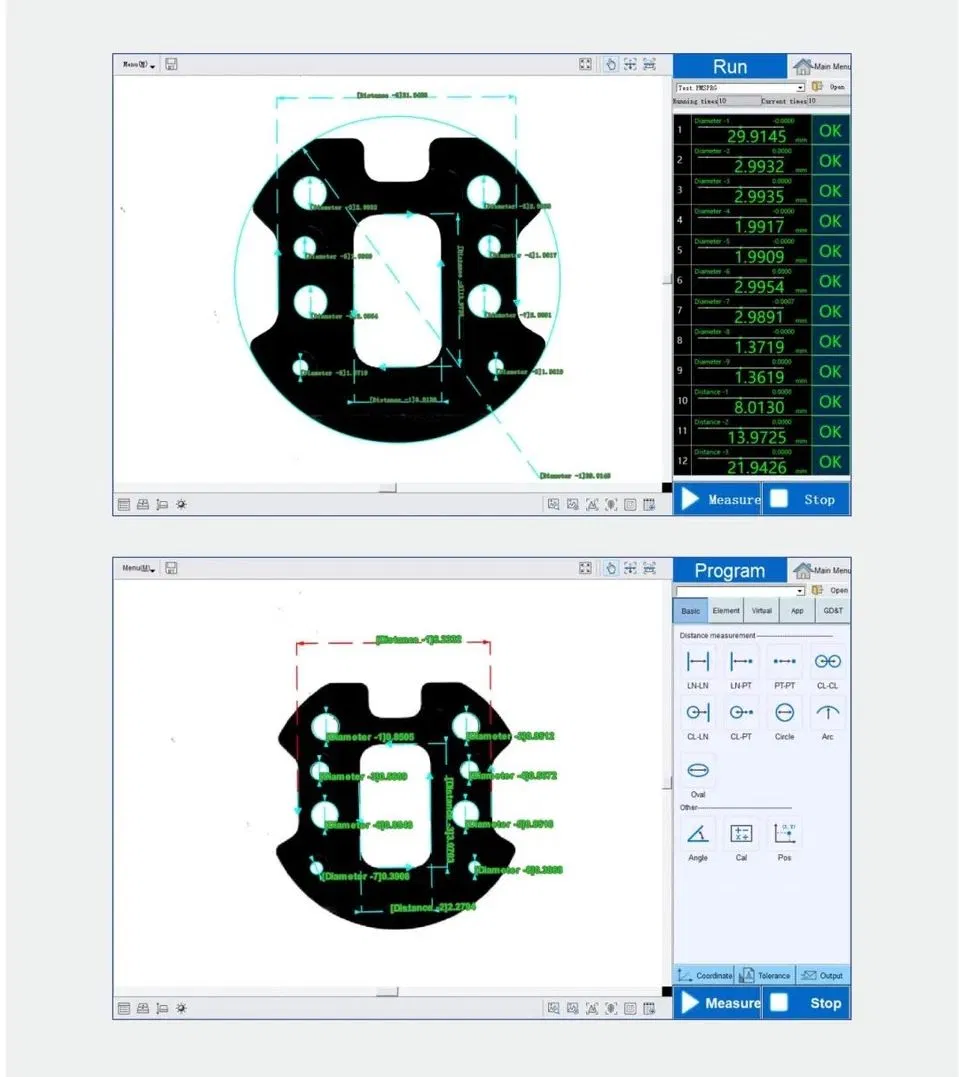

Detailed Photos

🏭

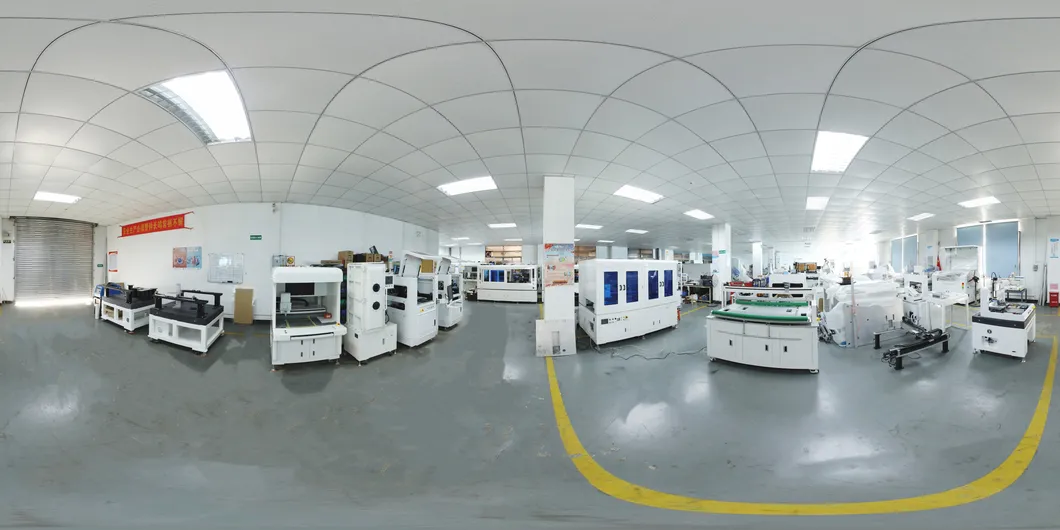

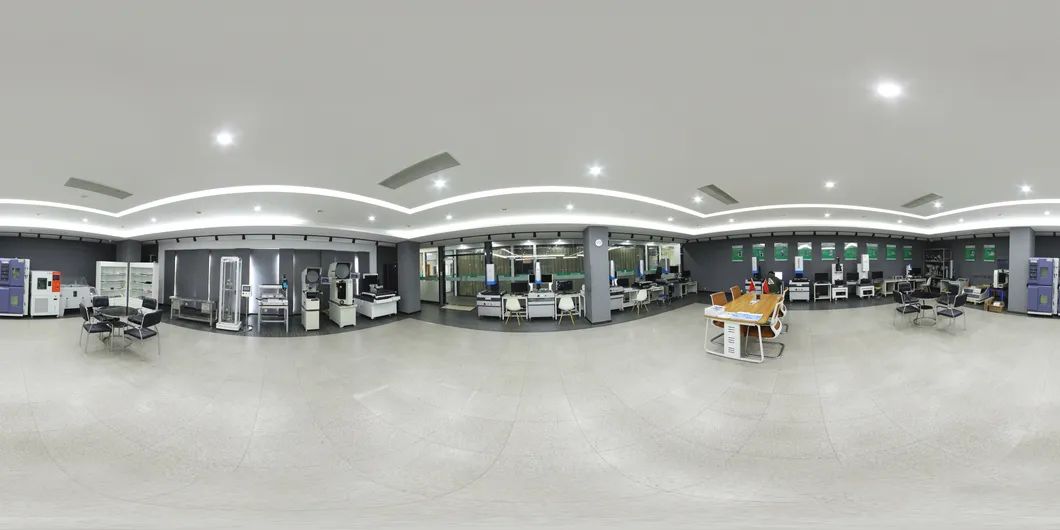

Our Factory & Quality Control

Professional Experience: With 20 years of experience in manufacturing precision measuring instruments, we serve customers in over 50 countries including the USA, Germany, France, and Japan.

📦

Packaging & Shipping

Professional packaging ensures the safety of the instruments during transit.

❓

Frequently Asked Questions

Q: Are you a manufacturer or a trading company?

A: We are a factory with 20 years of experience in manufacturing precision measuring instruments. All products are designed and produced in-house.

Q: What is your company's core strength?

A: Our core strength lies in robust R&D capabilities, holding more than 50 patents, ensuring all products meet global standards like ISO and CE.

Q: Do you support product customization?

A: Yes, we offer tailored solutions based on specific customer needs to ensure the product perfectly fits your application.

Q: What after-sales services do you provide?

A: We provide detailed operation manuals, English instructional videos, and have a dedicated after-sales department. Technical training and engineer support are available if needed.

Q: How fast is the measurement process?

A: Our IM series can measure up to 100 parts in just 1 second, significantly improving quality control efficiency.

Q: What industries do your instruments serve?

A: Our precision measuring instruments are widely used in automotive, aerospace, electronics, and precision machinery industries globally.
