Product Description

📦 Basic Information

Model NO.

Ceramic Plunger-CX-048

Type

Ceramic Plunger

Outside Diameter

18-80mm

Inside Diameter

10-28mm

Length

45-180mm

HRA

>88-91

Production Capacity

10000PCS/Month

Customized

Yes

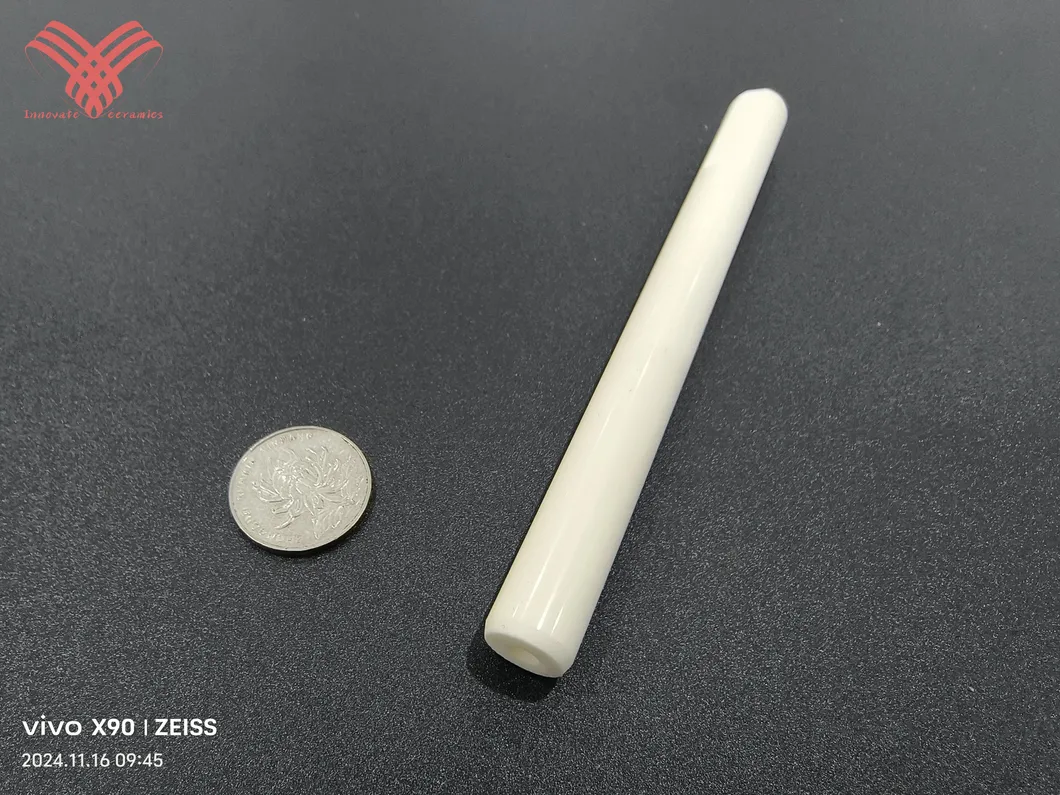

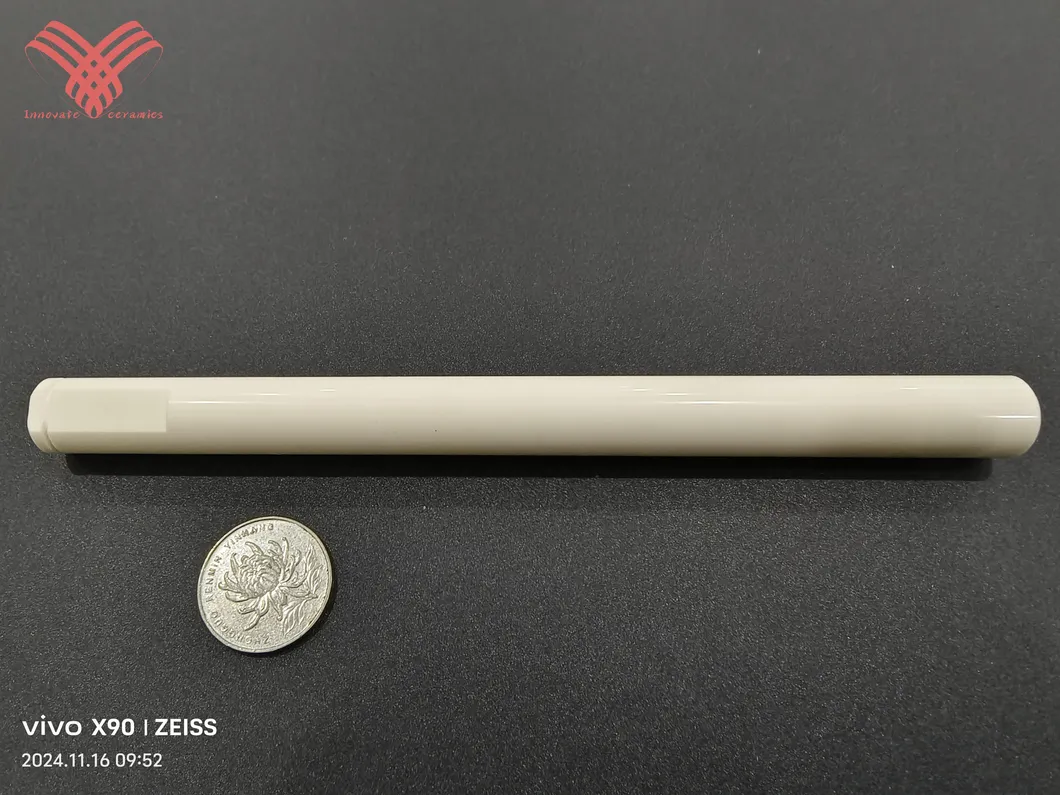

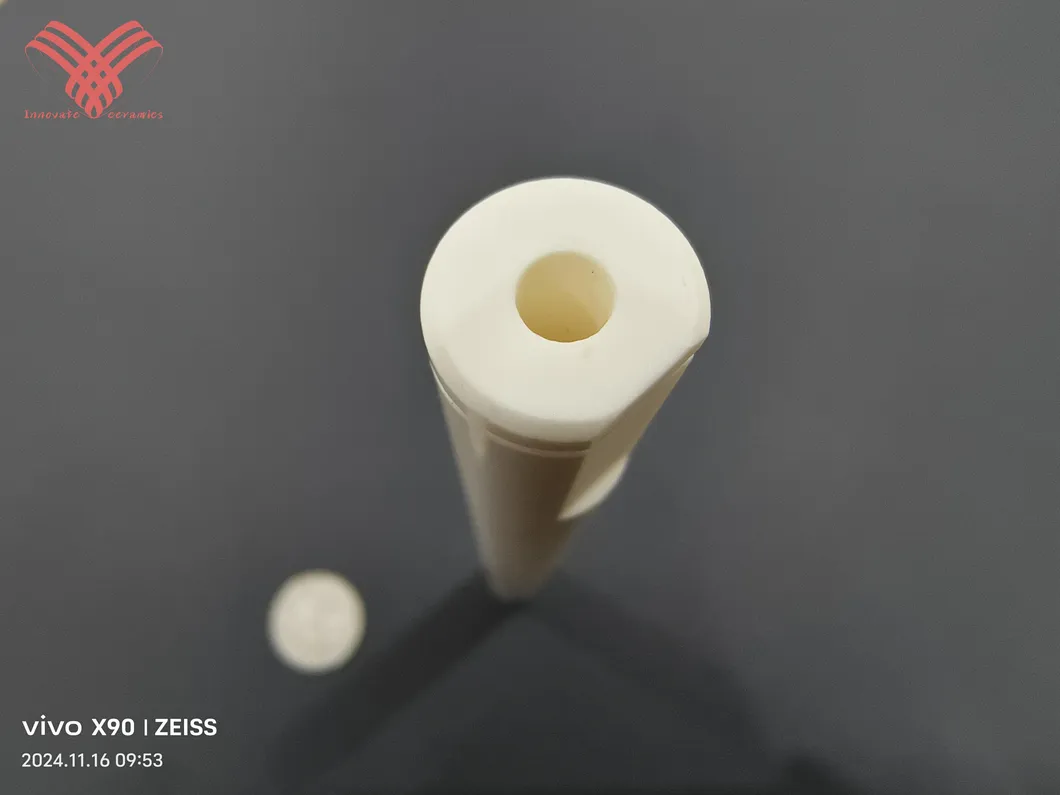

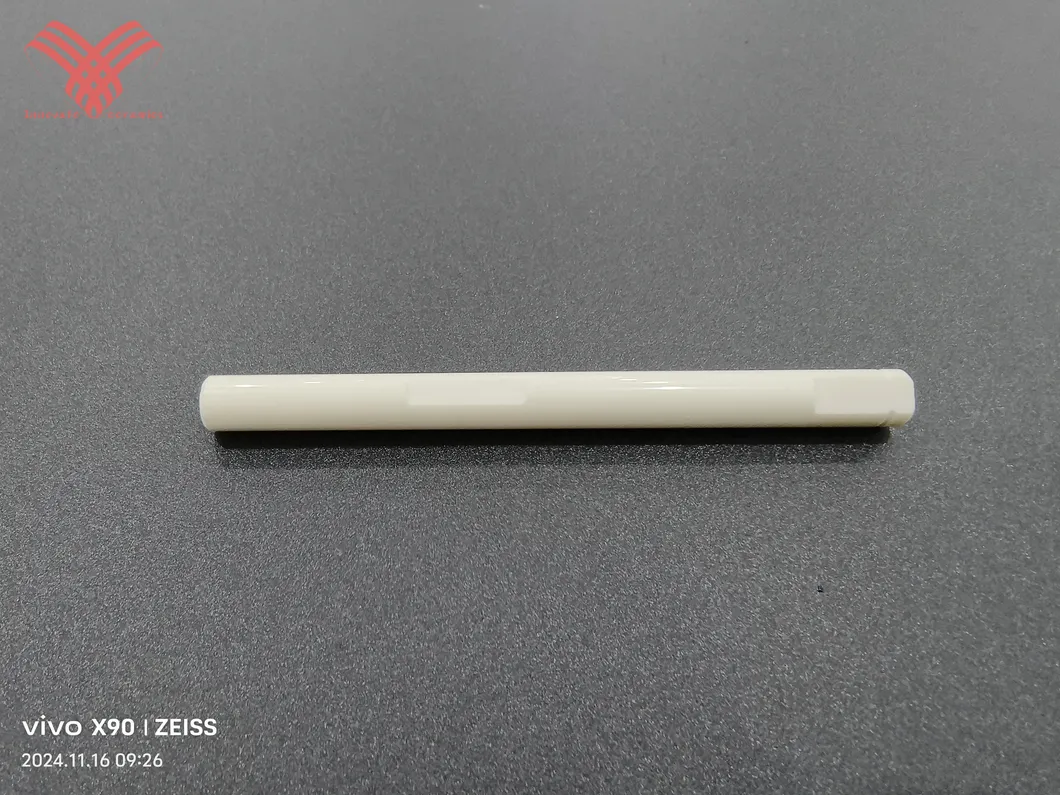

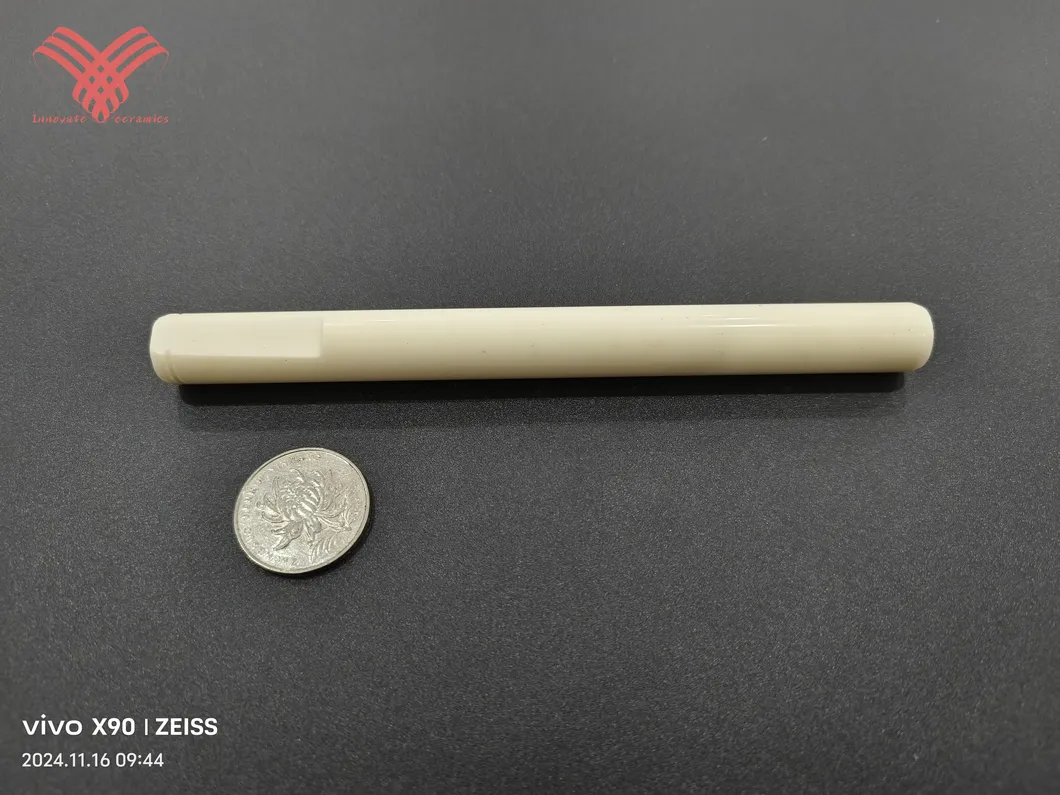

📷 Detailed Photos

📝 Product Description

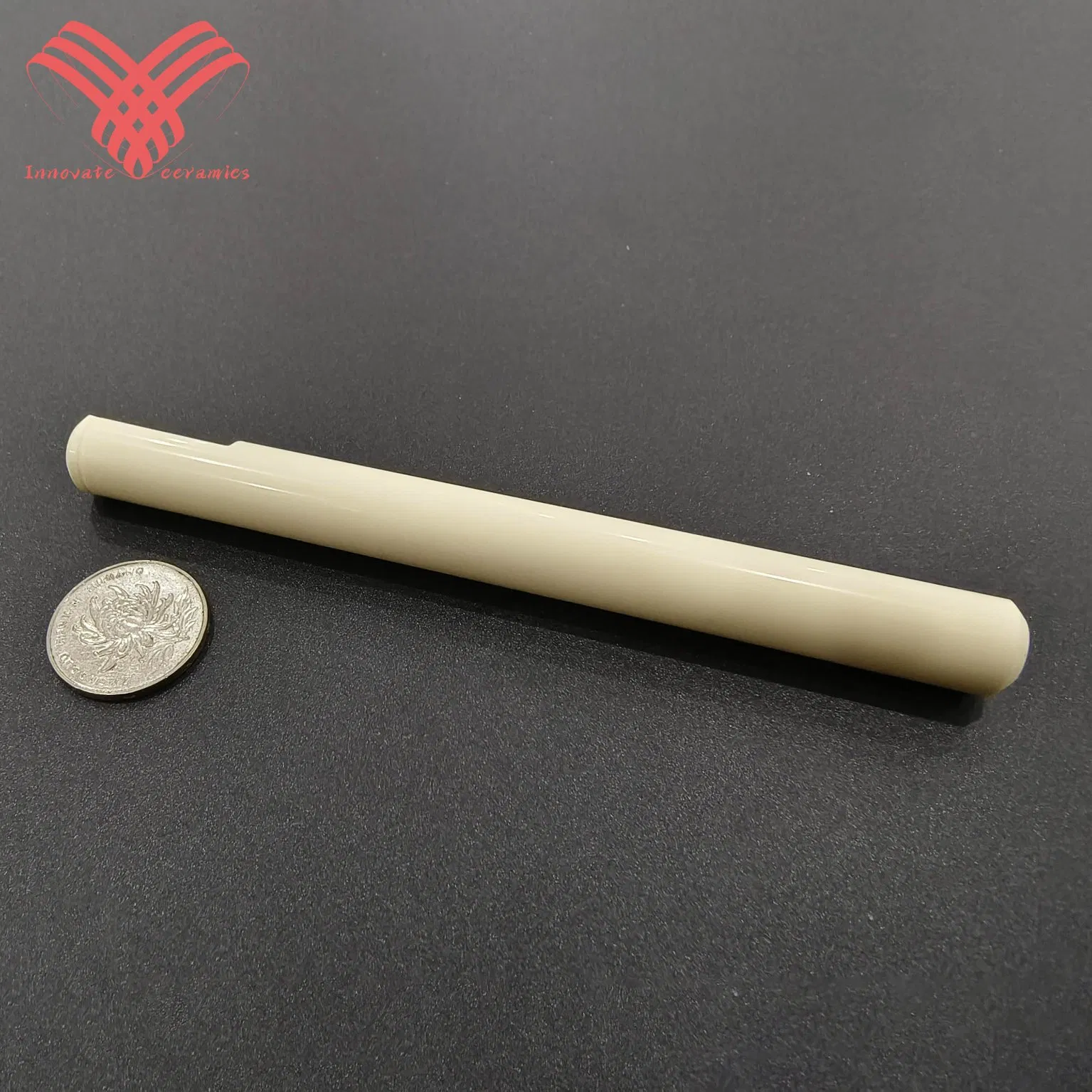

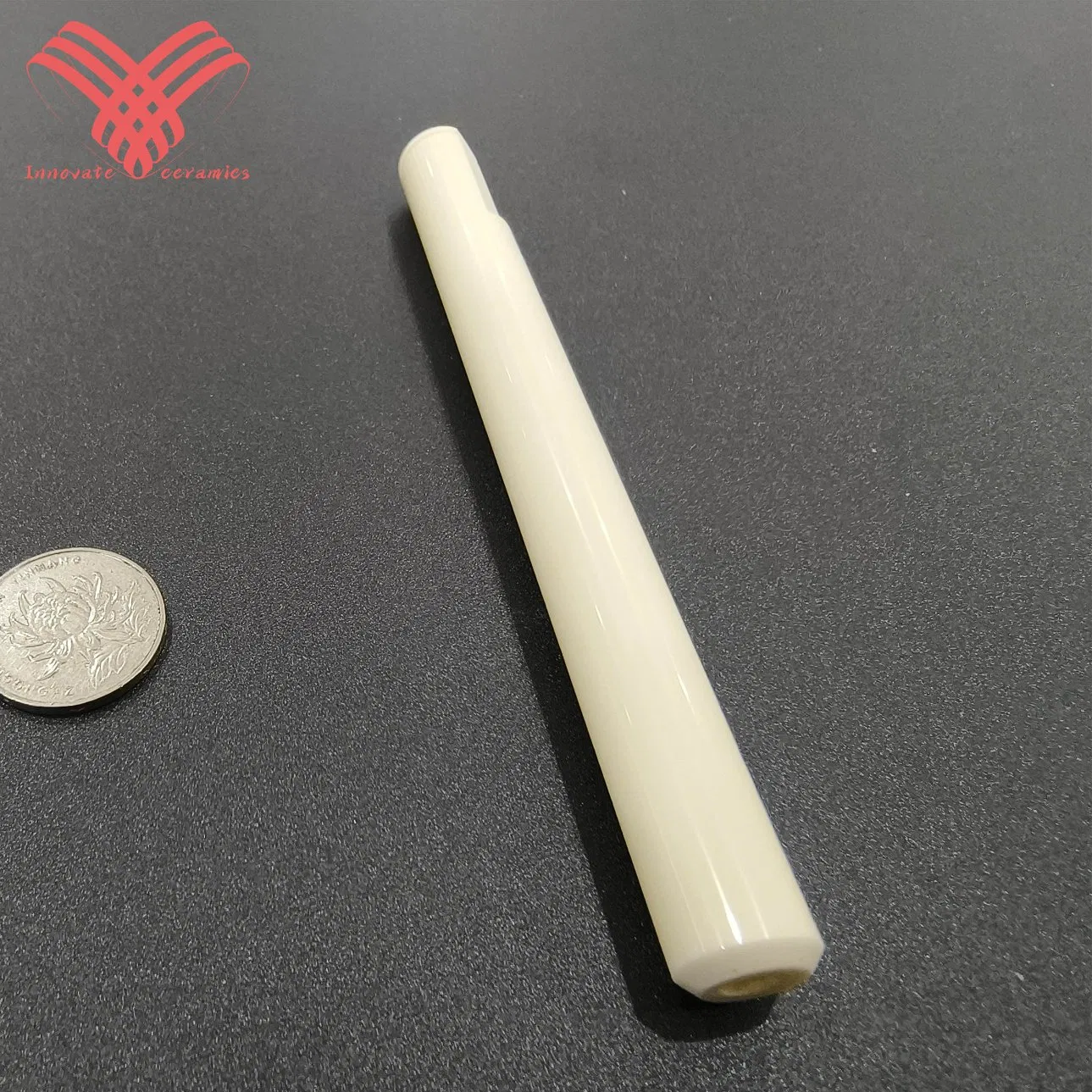

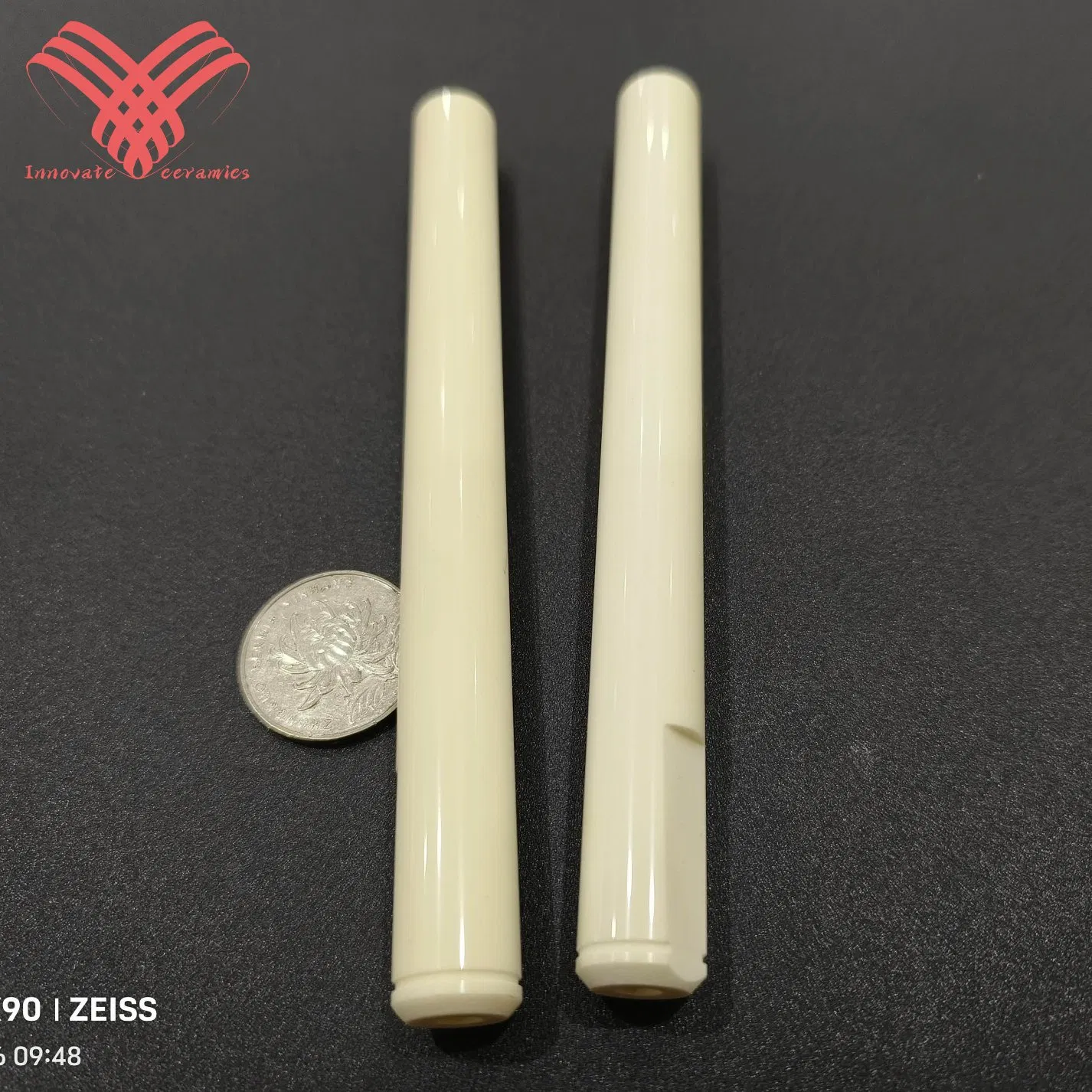

Ceramic Plunger Series

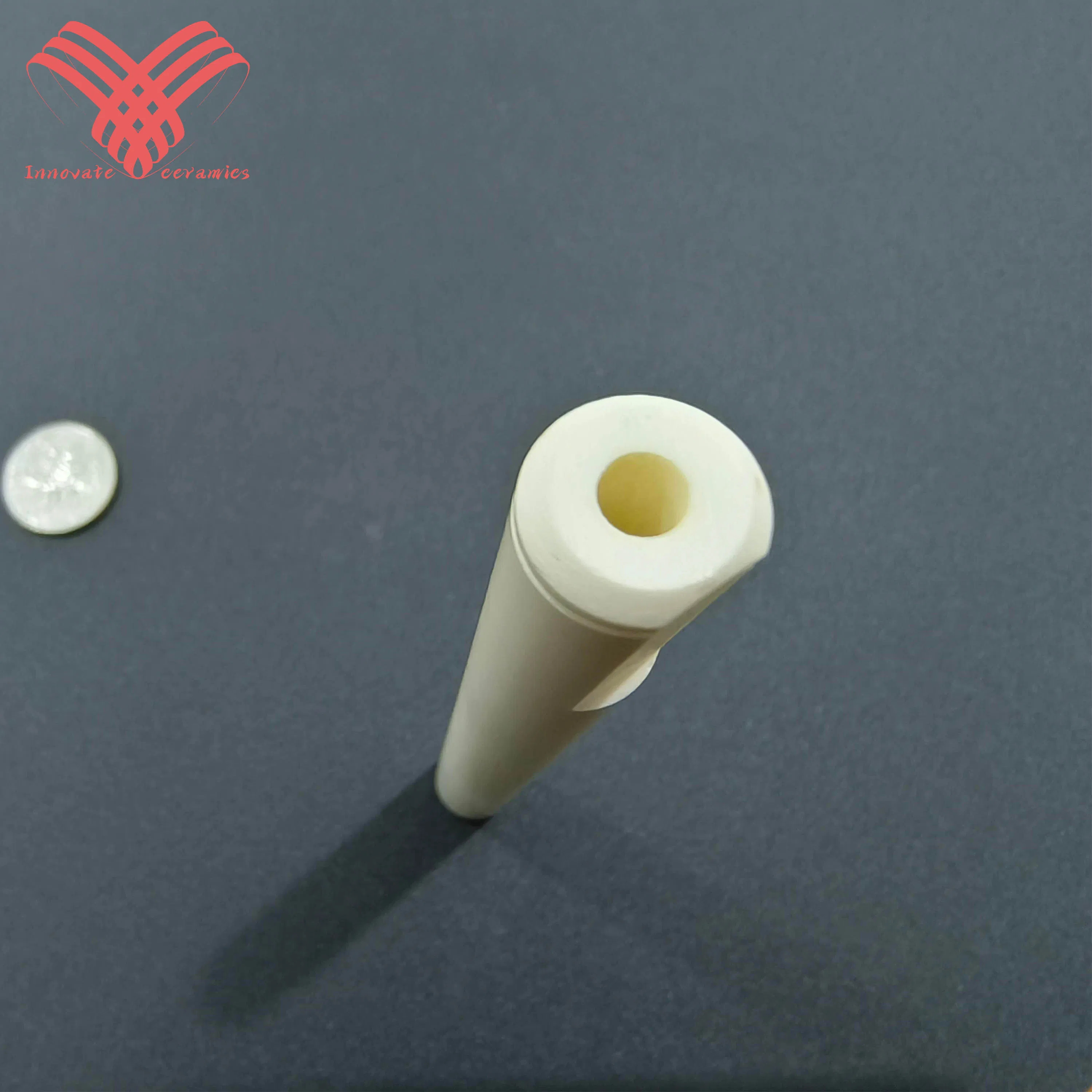

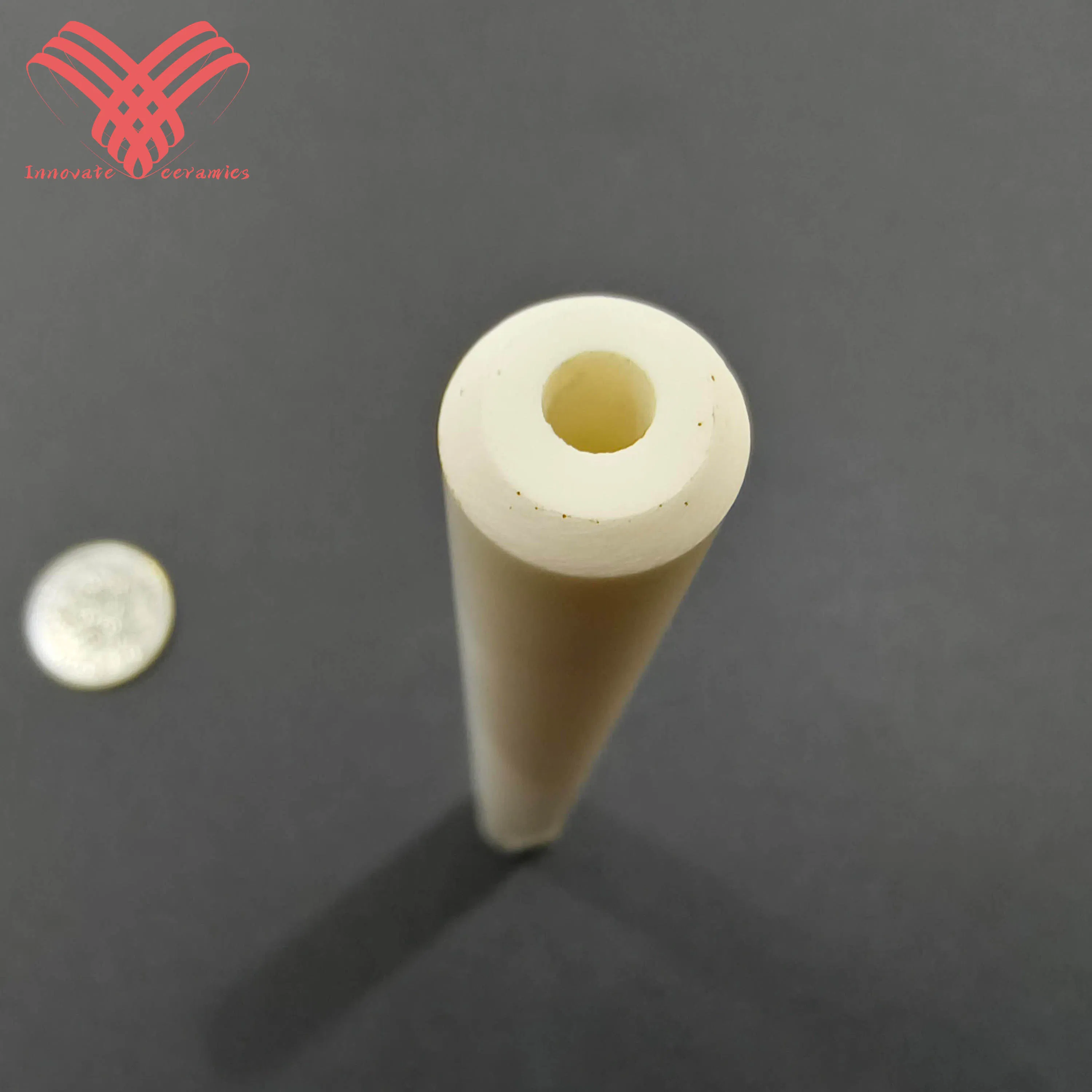

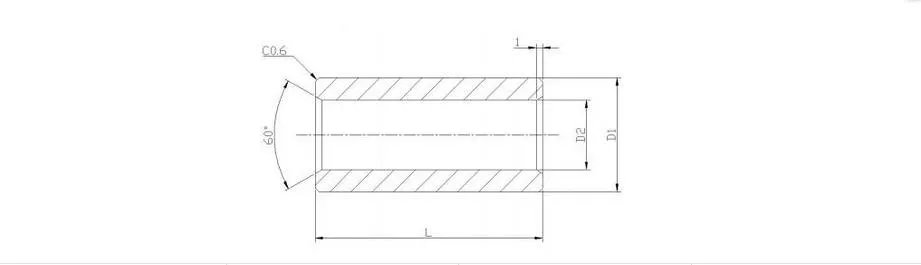

Providing customized size ranges for both through-hole type and sink hole type ceramic plungers. Ideal for high-pressure pump environments.

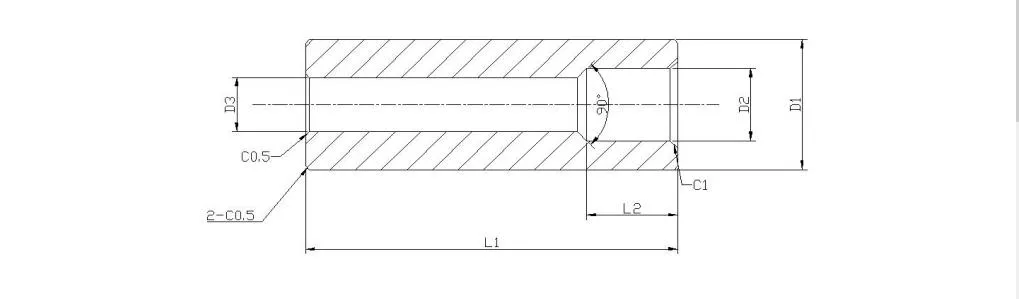

Custom Scope (mm)	Outer Dia (D1)	Inner Dia (D2)	Inner Dia (D3)	Length (L1)	Sinking Depth (L2)
Specifications	Ф18-80	Ф10-28	Ф10-20	45-180	8-20

🔬 Materials Selection & Performance

Code	Material Name	Density (g/cm³)	HRA	Strength (Mpa)	Character
CXA	96% AL2O3 White	≥3.8	≥88	≥330	Stabilize
H01-C	99% AL2O3 White	≥3.9	≥89	≥320	High Density
S01-J	96% AL2O3 Self-lubricating	≥3.8	≥88	≥320	Silent Self-lubricating
Zro2	Zirconia	≥6.0	≥88	≥900	Toughness
ssic	Silicon Carbide	≥3.1	≥91	≥450	Wear resistance

⚙️ Application Industry

Applicable to: High-pressure cleaning pumps

📜 Certifications

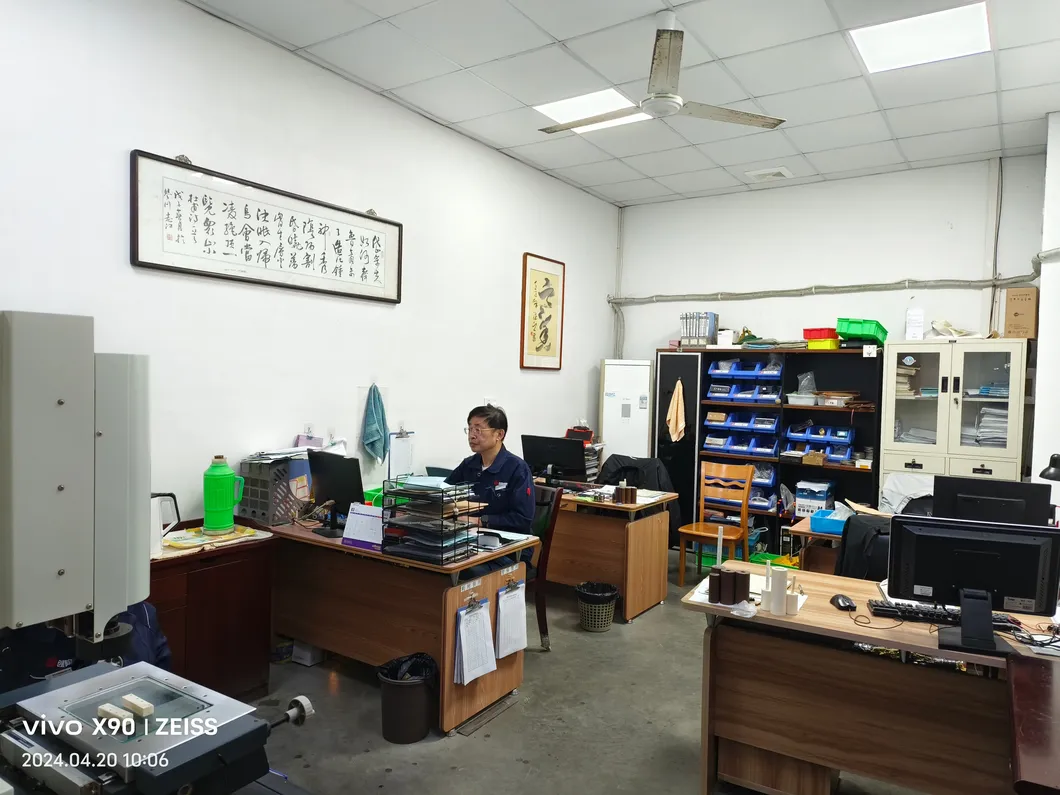

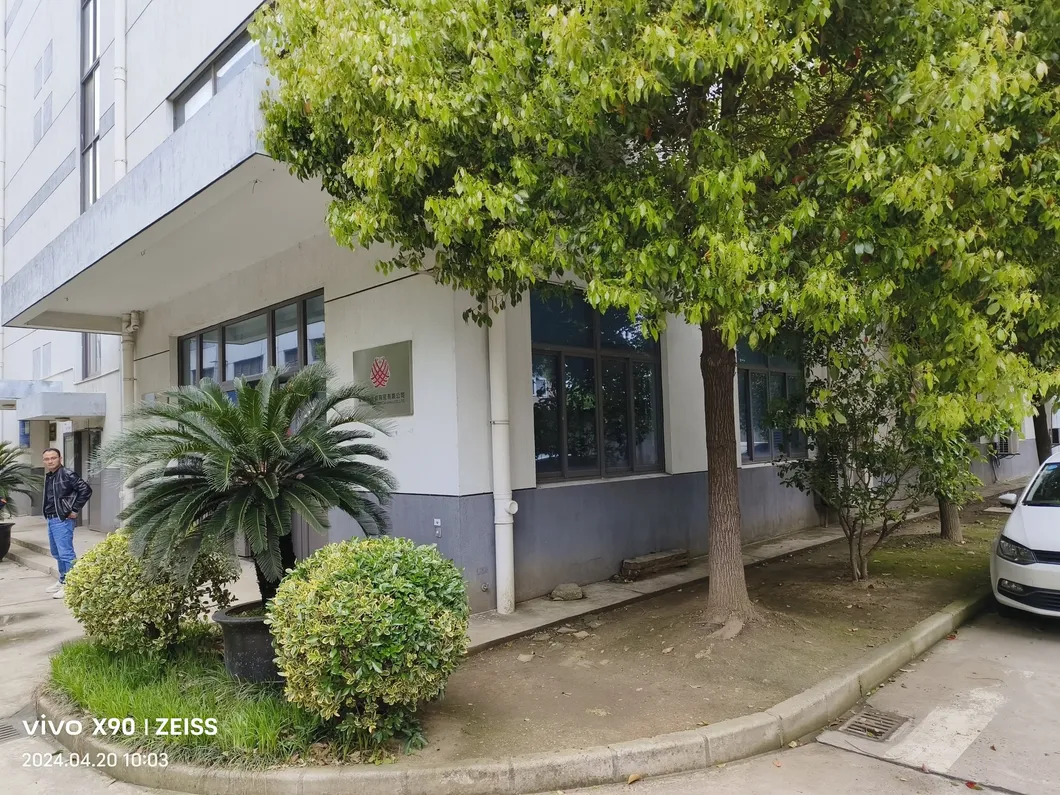

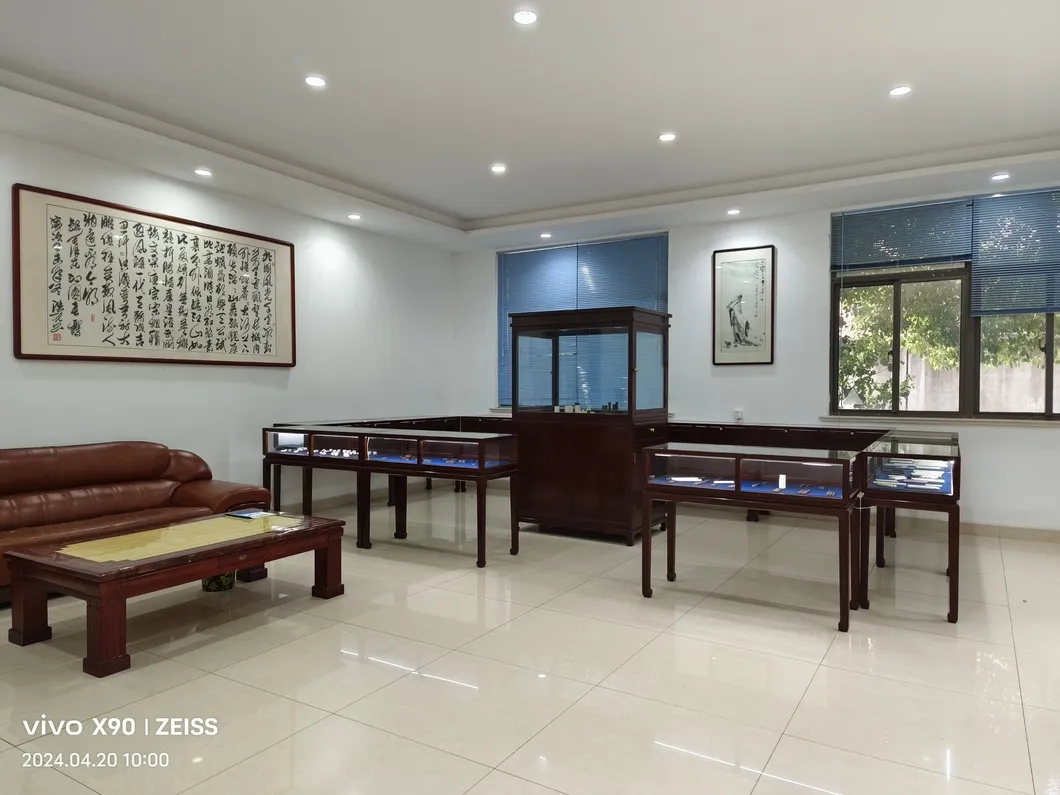

🏢 About Us

Our company is a provincial high-tech enterprise specializing in special ceramic products. We integrate R&D, manufacturing, processing, and sales, holding multiple invention and utility model patents. Our "pump ceramic plunger" and "pump ceramic shaft and sleeve" are recognized as high-tech products.

We produce various specifications of alumina, talc porcelain, toughened porcelain, zirconia, and silicon carbide ceramics. These products are widely used in electrical, chemical, machinery, aerospace, and environmental protection fields, with exports to Southeast Asia, Europe, and North America.

❓ Frequently Asked Questions

Q1: What materials are available for your ceramic plungers?

We offer five main materials: 96% Al2O3, 99% Al2O3, Self-lubricating Brown Alumina, Zirconia (ZrO2), and Pressure-free Sintered Silicon Carbide (SSiC).

Q2: Can I customize the dimensions of the plungers?

Yes, we support customization. Our typical scope includes outer diameters of 18-80mm, inner diameters of 10-28mm, and lengths from 45-180mm.

Q3: What are the main advantages of Zirconia (ZrO2) material?

Zirconia offers exceptional toughness and a high density (≥6.0 g/cm³), making it suitable for high-stress industrial applications.

Q4: In which industries are these ceramic plungers used?

They are primarily used in the high-pressure cleaning pump industry, as well as chemical, textile, and machinery sectors due to their wear and corrosion resistance.

Q5: What is your production capacity for these products?

Our monthly production capacity is approximately 10,000 pieces per month.

Q6: Do you provide support for through-hole and sink hole designs?

Yes, we provide both through-hole type and sink hole type configurations based on your specific engineering requirements.
