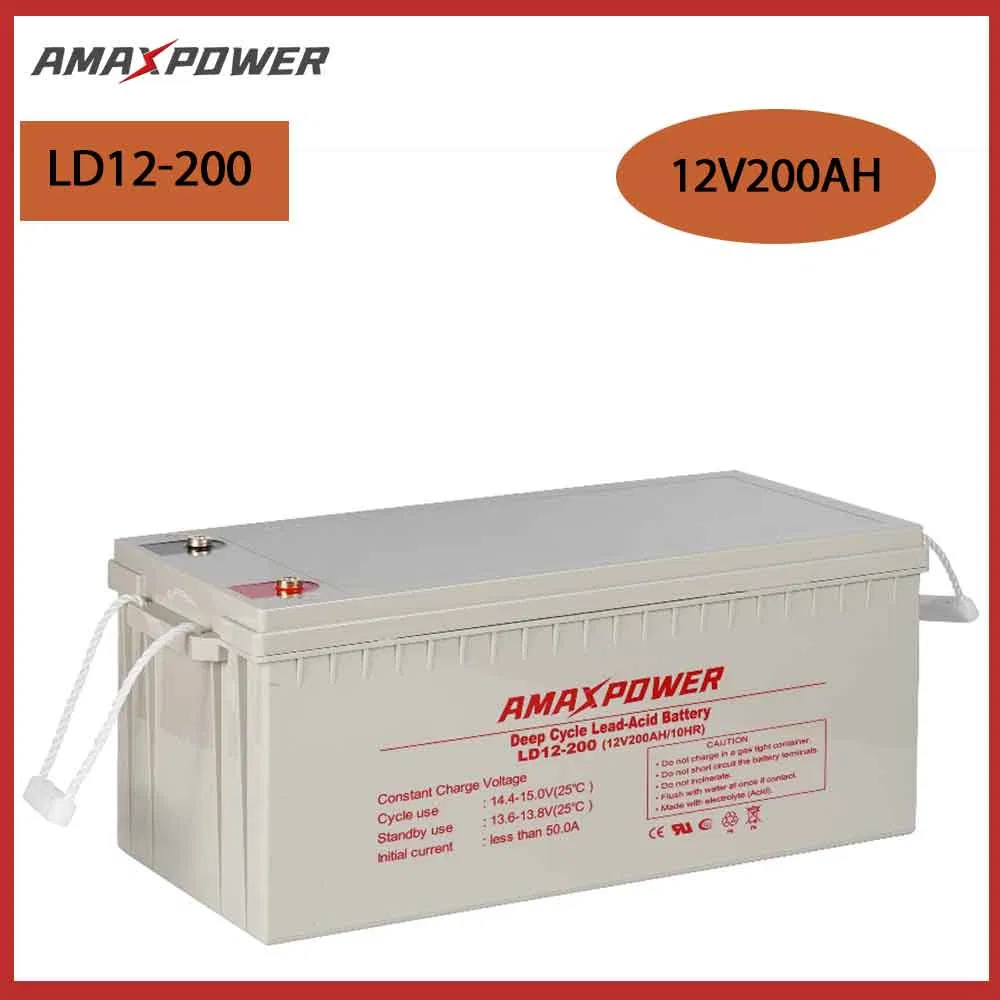

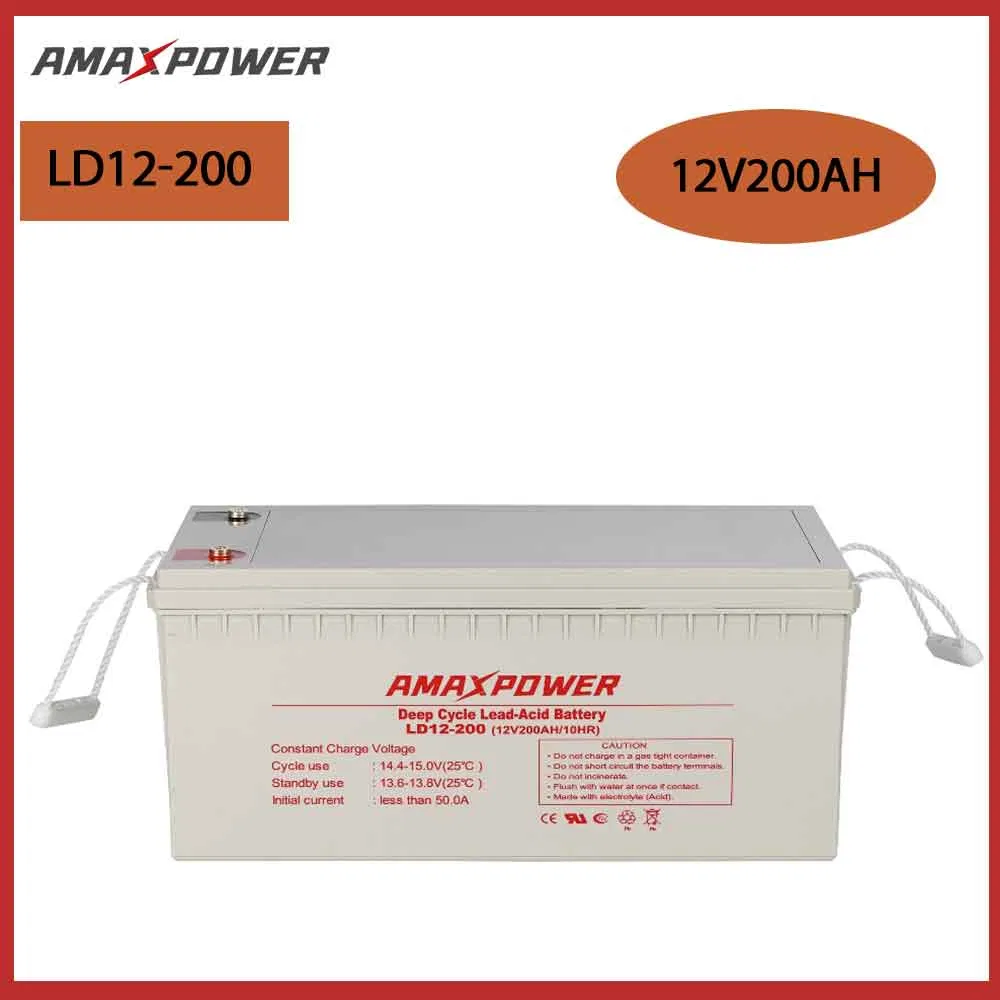

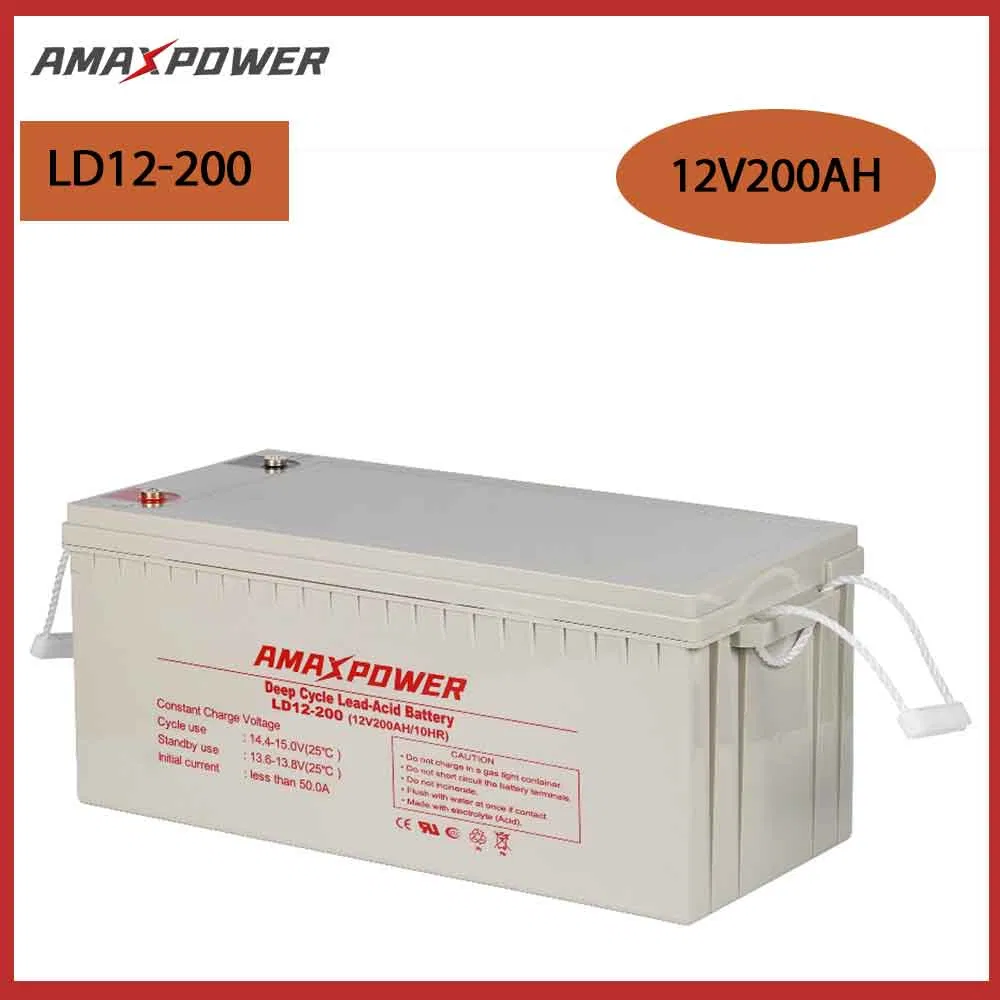

Amaxpower 12V 200ah Deep Cycle VRLA AGM Bateria Power Supply Sealed Lead Acid Storage Battery for UPS/Bts-Stations/Automotive/Pond-Fountain-Pumps/Buggies

1 / 5

Amaxpower 12V 200ah Deep Cycle VRLA AGM Bateria Power Supply Sealed Lead Acid Storage Battery for UPS/Bts-Stations/Automotive/Pond-Fountain-Pumps/Buggies

Customization:	Available
Type:	Deep Cycle AGM Battery
Usage:	UPS, Electric Power, Lighting, Electric Bicycle, Boat, off Grid Solar/Wind, Golf Car, UPS

Send Inquiry

Product Description

Overview

Model NO.

LD12-200

Nominal Voltage

12V / 6V

Capacity

200ah VRLA AGM Battery

Design Life

15-20 years

Material

High Pure Lead 99.9997%

Case Material

ABS Plastic

Self-Discharge

Less Than 3%

Certificates

CE, IEC, ISO

Product Description

LD Series Deep Cycle AGM Battery For UPS System and Solar Storage

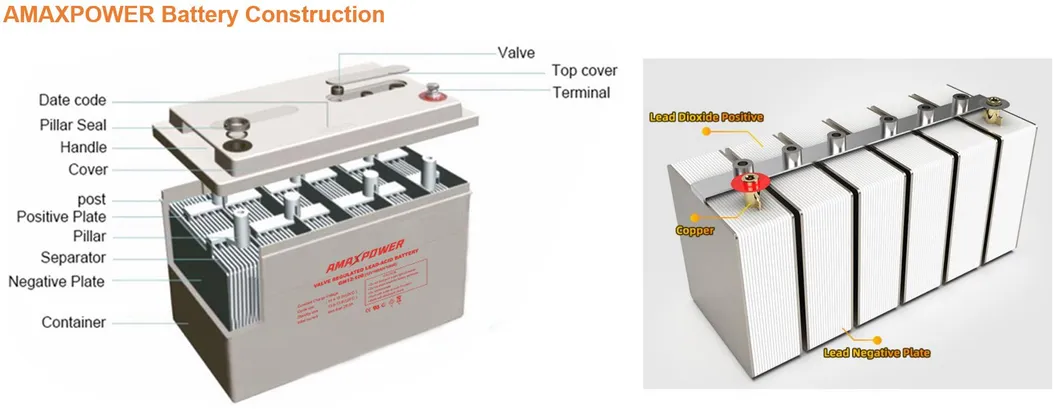

LD Series is valve regulated sealed lead-acid deep cycle AGM battery designed with 12-15 years design life in float service. Unique grid structure, special super corrosion-resistant alloy and unique active material formula, which gives 30% longer life than regular lead-acid AGM battery.

30% Longer life than regular AGM lead-acid battery.
Longer life and higher stability for deep cycle use; Cycle usage: 50% DOD, >1200 cycles.
Use super-C additives lead plates for deep discharge recovery ability.
High efficiency discharge performance and low self-discharge rate.
High purity lead-tin alloy for increased battery service life.

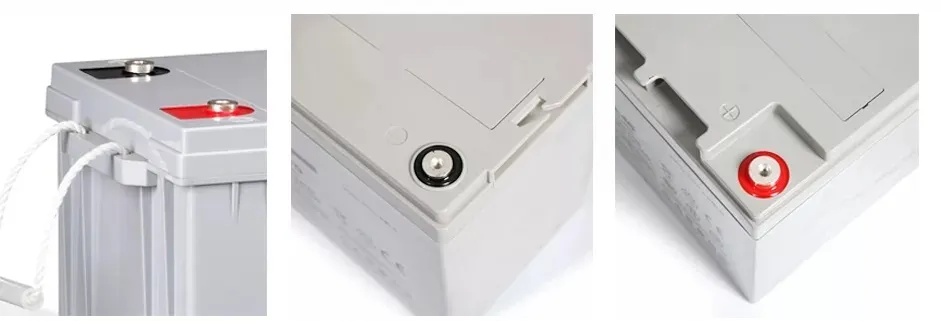

Product Parameters

Parameter	Details
Nominal Voltage	12V (6 cells)
Nominal Capacity	200Ah @ 10 hour-rate
Dimension (LxWxH)	522±2 x 240±2 x 218±2 mm
Weight	Approx. 59kg (130lbs)
Internal Resistance	Full charged at 25ºC: Approx. 3.8mΩ

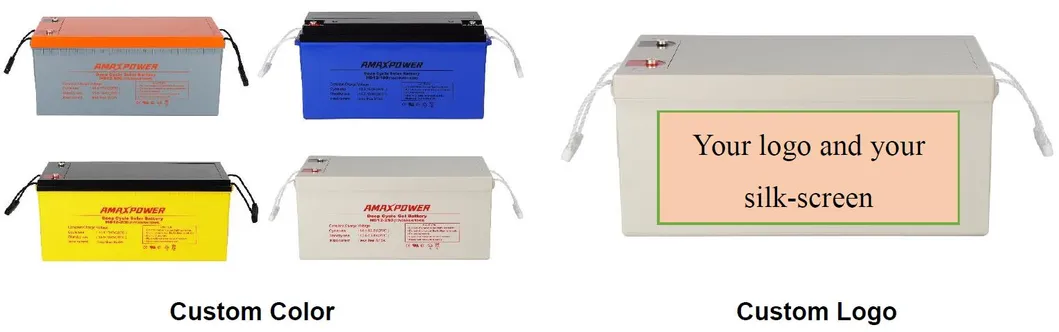

OEM & ODM Service

We provide OEM & ODM service to both domestic and international clients. Our experience in R&D and manufacturing can help you produce best products with your own brand.

Applications

• Solar & Wind energy storage • Solar street lights • Telecom backup system • UPS Systems • Electric vehicles • Medical equipment • Marine equipment

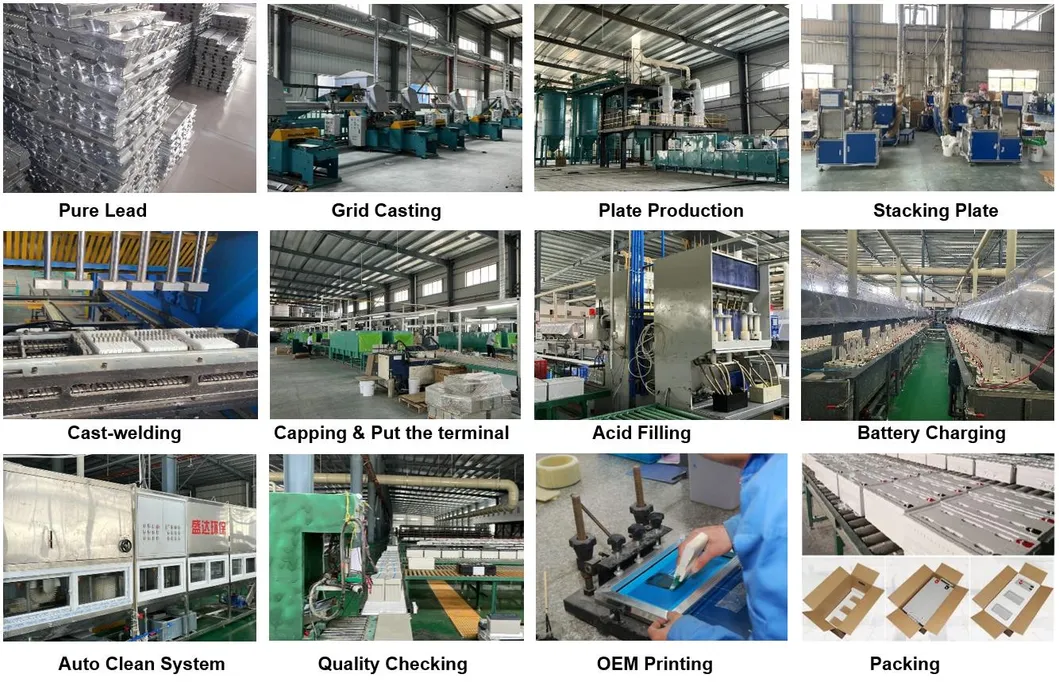

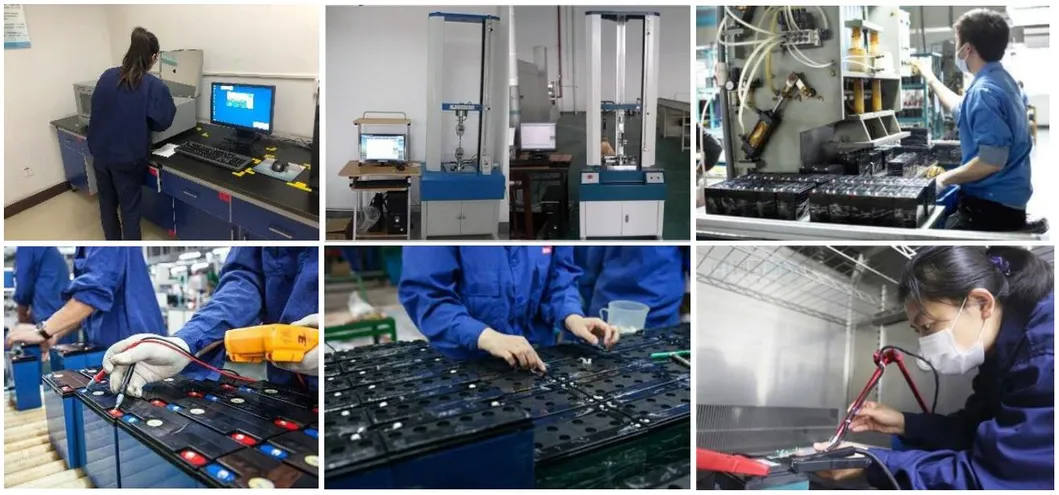

Quality Control & Factory Tour

Lead plate purity 99.9999% to ensure quality.
Anti-impact and burst prevention testing for battery cases.
Precise acid filling to ensure consistency.
100% testing before shipment.

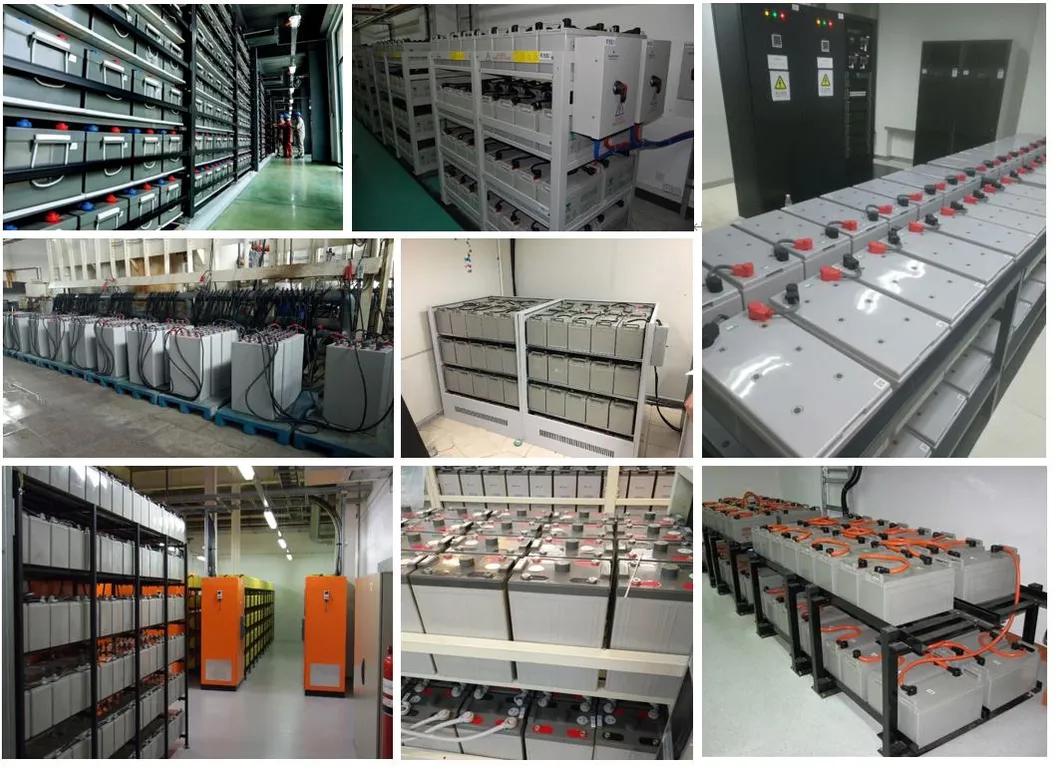

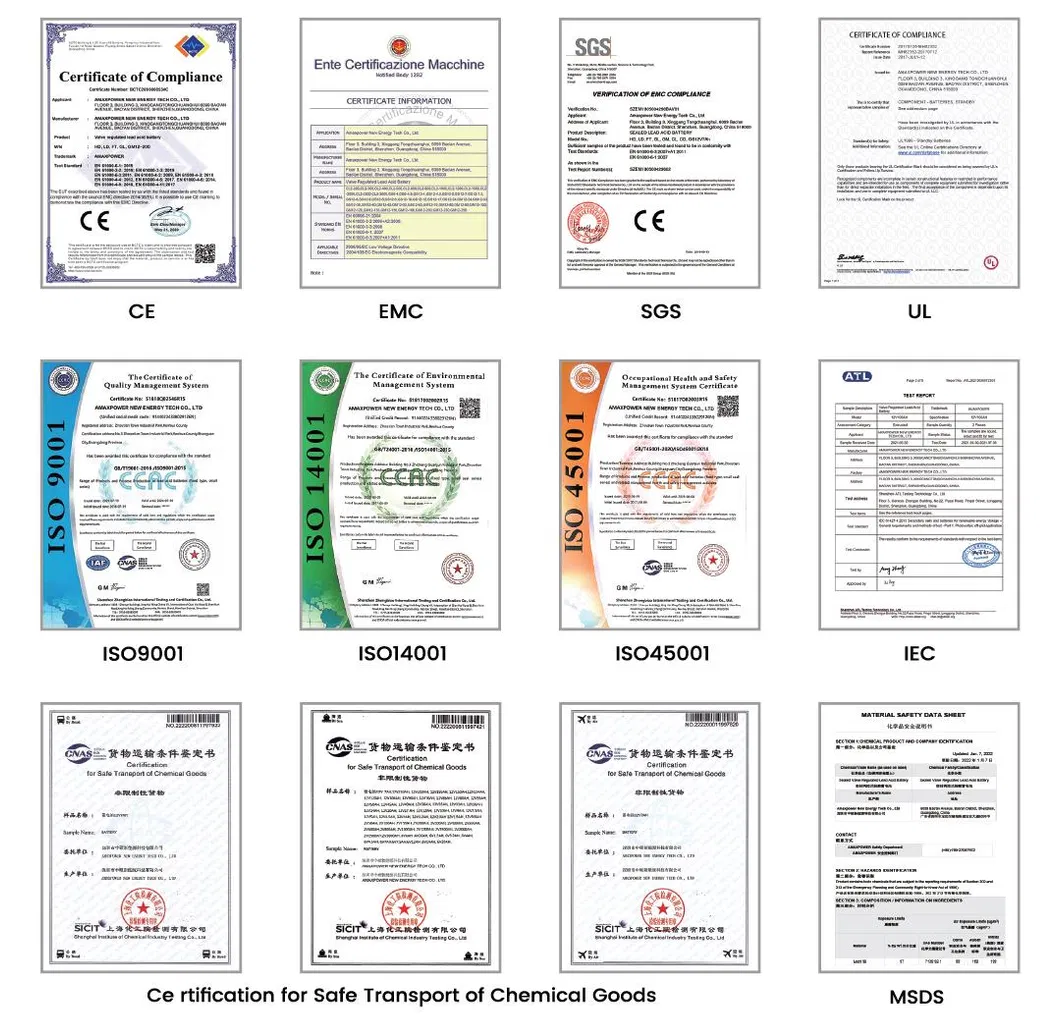

Certifications & Projects

Frequently Asked Questions

Q1: How about the delivery time usually? A: About 7 days for stock products, around 20 days for half container products, and 30 days for 20ft full container products.

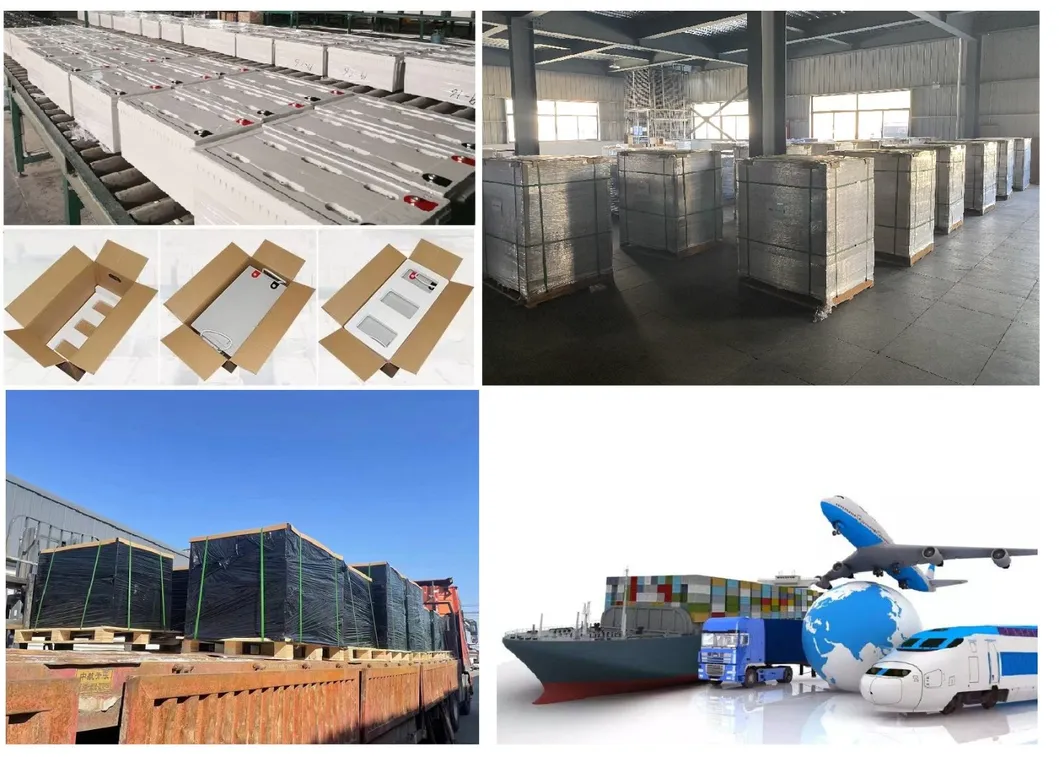

Q2: Can the battery be delivered by sea and air? A: Yes, our batteries can be delivered both by sea and by air. We have MSDS and test reports for safe transport as non-dangerous products.

Q3: How does the factory control the quality? A: We adopt ISO 9001 quality systems. We have IQC for raw materials, PQC for in-process monitoring, and OQC to confirm no defective batteries leave the factory.

Q4: Why does the battery have different capacities at different hour rates? A: The capacity is a dynamic number dependent on discharge current. A lower discharge current (like 20-hr rate) allows the battery to deliver more Ah than a higher discharge current.

Q5: What is the shelf life of a VRLA battery? A: VRLA batteries self-discharge less than 3% per month at 25°C. They should not be stored for more than 6 months without recharging.

Q6: Can I fast charge my battery? A: Fast charging is not recommended as it is harmful for the battery's longevity.
