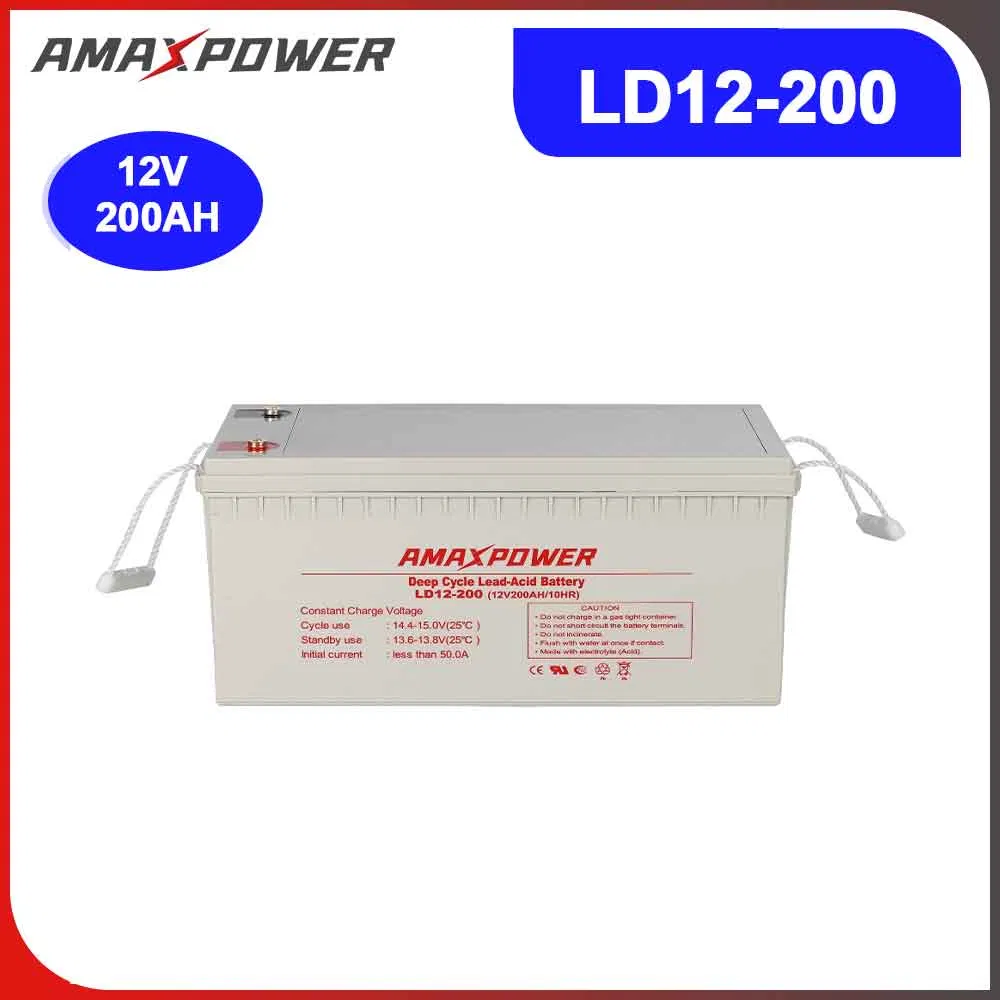

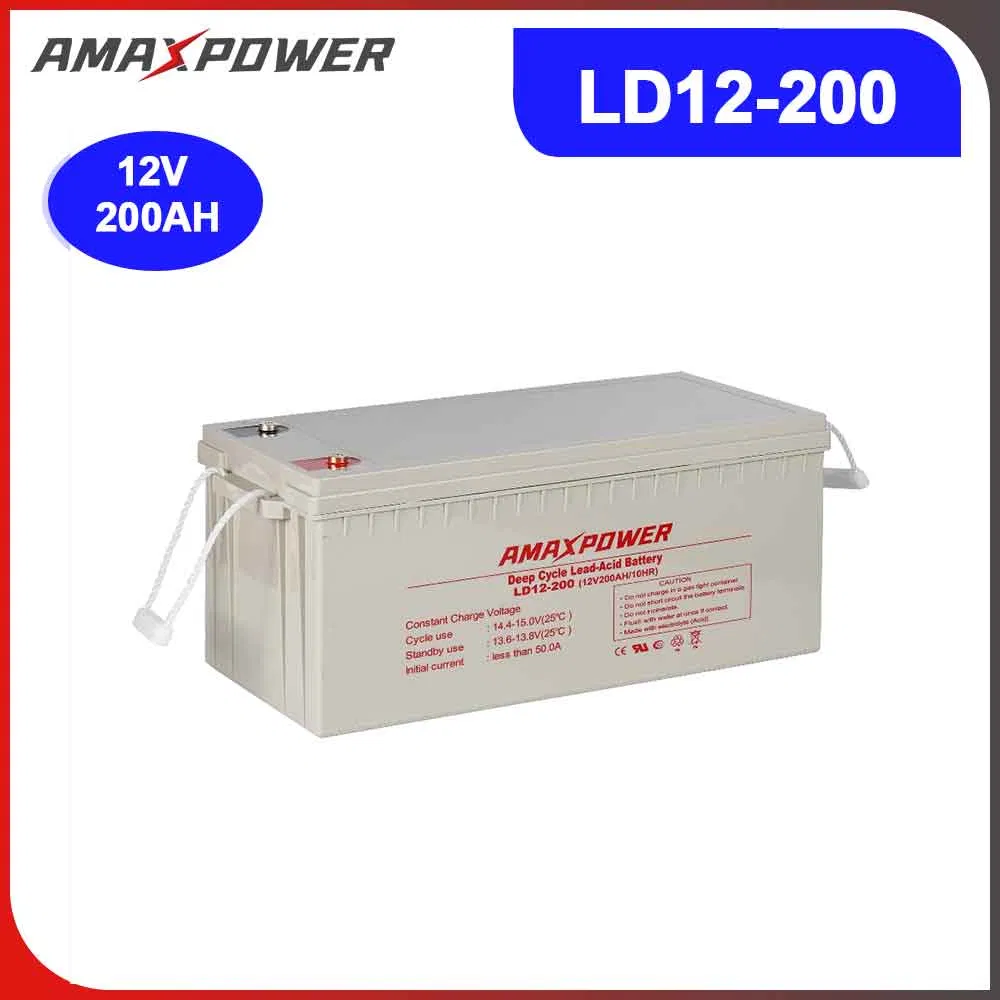

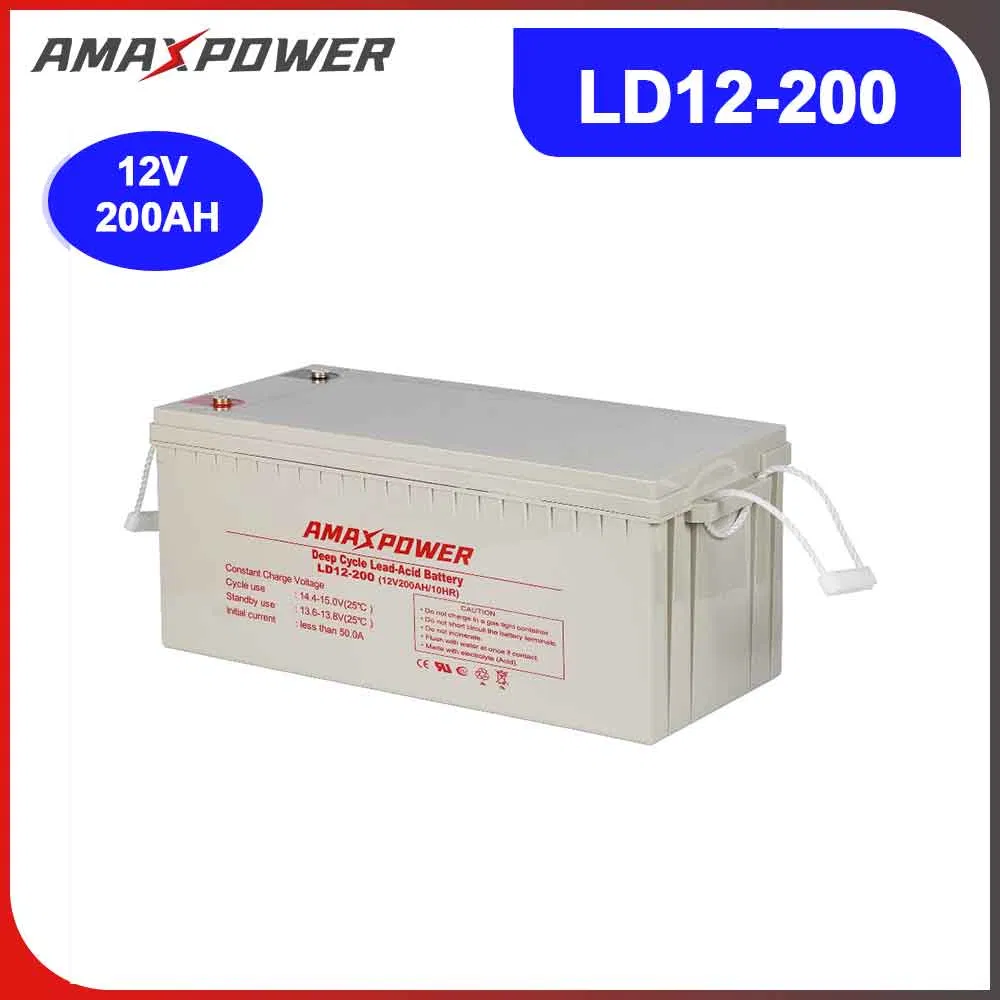

LD Series Deep Cycle AGM Battery For UPS System and Solar Storage

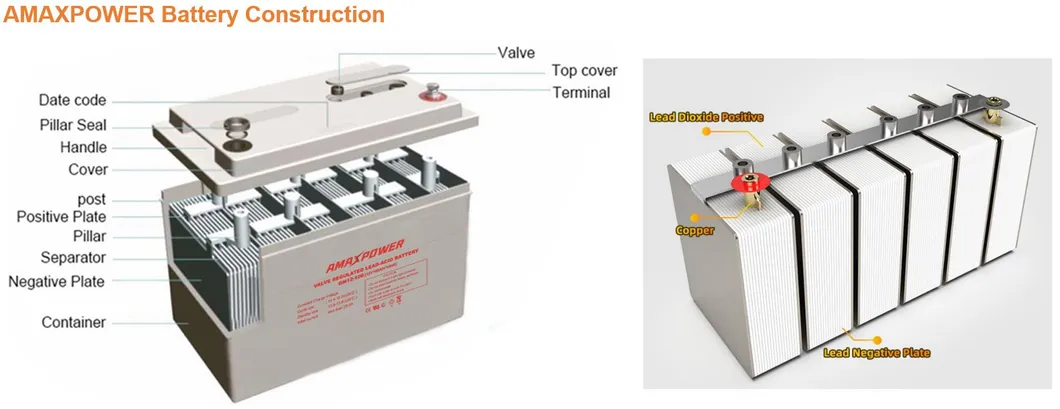

The LD Series is a valve-regulated sealed lead-acid deep cycle AGM battery designed with a 12-15 year design life in float service. Featuring a unique grid structure and special corrosion-resistant alloy, it provides 30% longer life than regular lead-acid AGM batteries. It is the perfect choice for deep cycle use, backup power, and solar cycle applications.
| Parameter | Specifications |
|---|---|
| Nominal Voltage | 12V (6 cells) |
| Nominal Capacity | 200Ah @ 10 hour-rate |
| Dimensions (L*W*H) | 522*240*218 mm |
| Max Discharge Current | 1200A (5S) |
| Internal Resistance | Approx. 3.8mΩ |
| Operating Temp Range | Discharge: -20~50°C | Charge: 0~50°C |

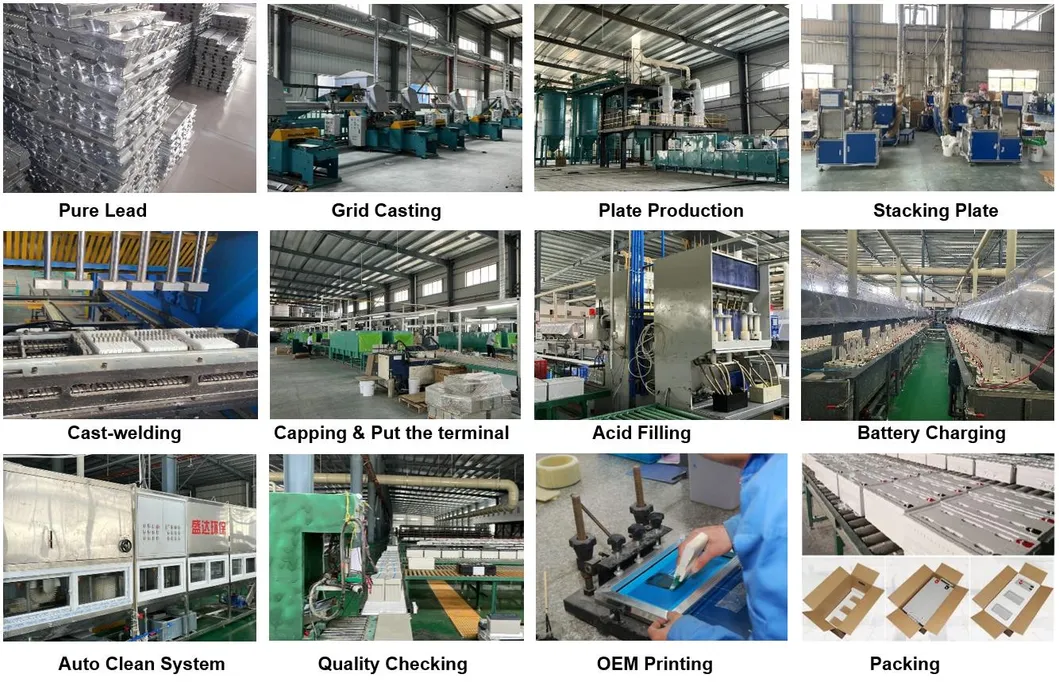

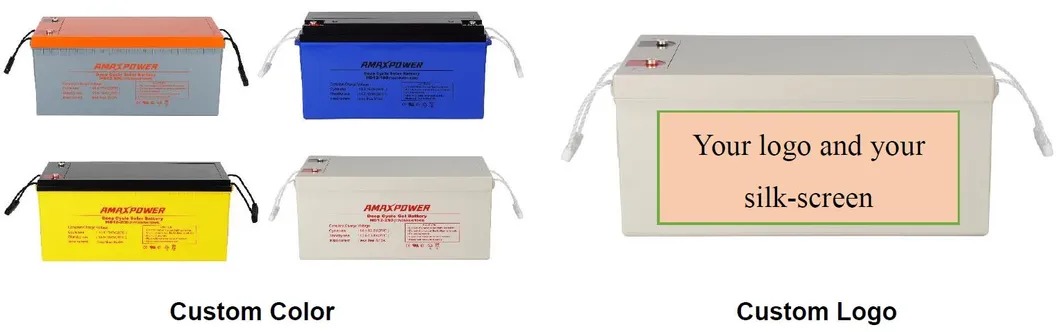

We provide professional OEM & ODM services for domestic and international clients. Our extensive experience in R&D and manufacturing ensures high-quality production under your private brand.

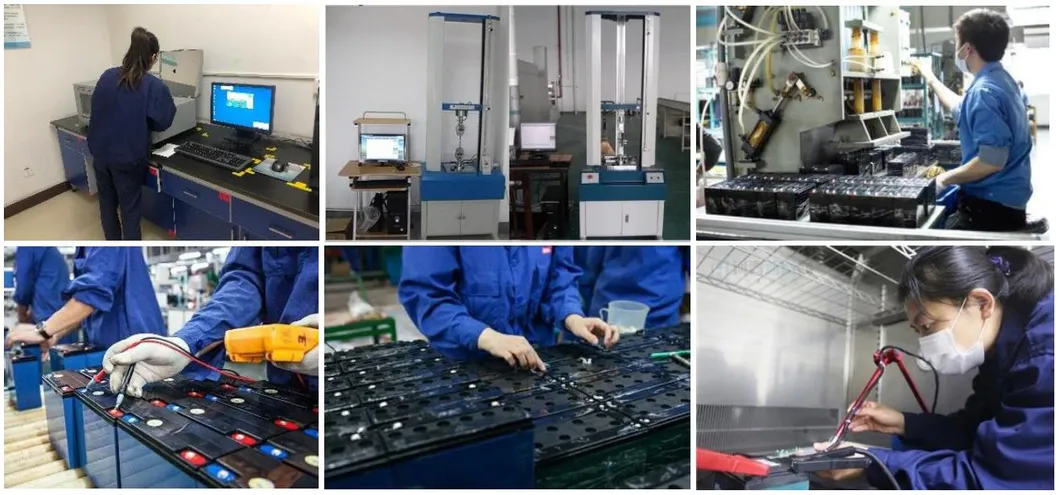

Our quality control process includes: Incoming Quality Control (IQC) for 99.99% pure lead plates, anti-impact case testing, precise acid filling, and 100% pre-shipment testing to ensure a 0% defect rate.
A: Approximately 7 days for stock items, 20 days for partial containers, and 30 days for full 20ft container orders.
A: Yes, OEM logo printing is available for orders reaching 20ft container quantities. Smaller quantities can be negotiated.
A: Small batteries (4AH-17AH) are usually rated at 20HR, while larger industrial batteries (24AH-250AH) are rated at 10HR.

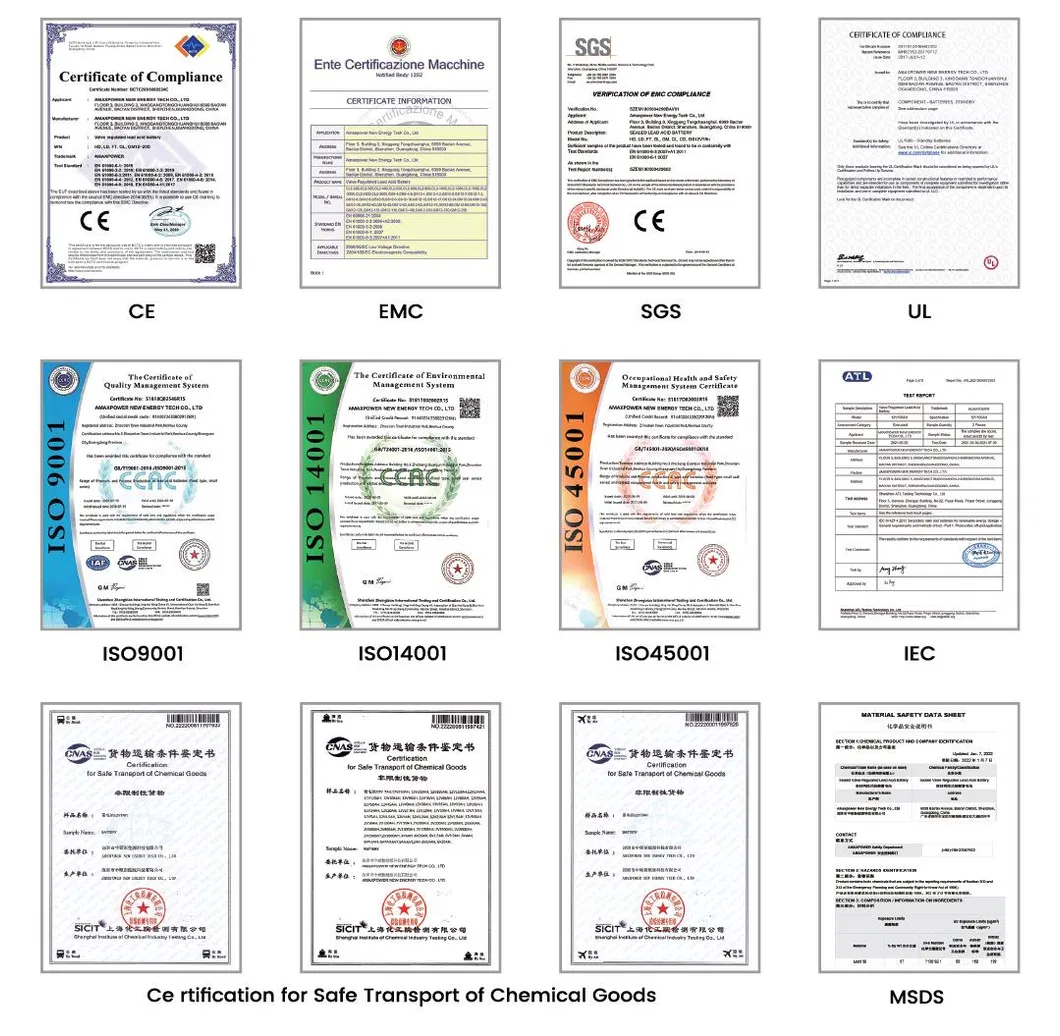

A: Yes, our batteries are certified with MSDS and safe transport reports for both sea and air freight as non-dangerous goods.
A: VRLA batteries have a low self-discharge rate (<3% per month at 25°C). They should be recharged every 6 months if stored at room temperature.
A: We investigate the cause via usage conditions and photos. If it is a manufacturing defect, we provide free replacements in the next shipment.
