Basic Information
| Refrigerant | R404A |
Size | Medium |
| Structure | Assembled |
Use Nature | Production |
| Suitable for | Factory |
Warranty | 1-2 Years |
| Usage | Food, Blood, Medicine, Fruits, Vegetables, Meat, etc |
| Certification | RoHS, UR, ISO, CE, CCC |
| Production Capacity | 50000/Month |
Product Overview

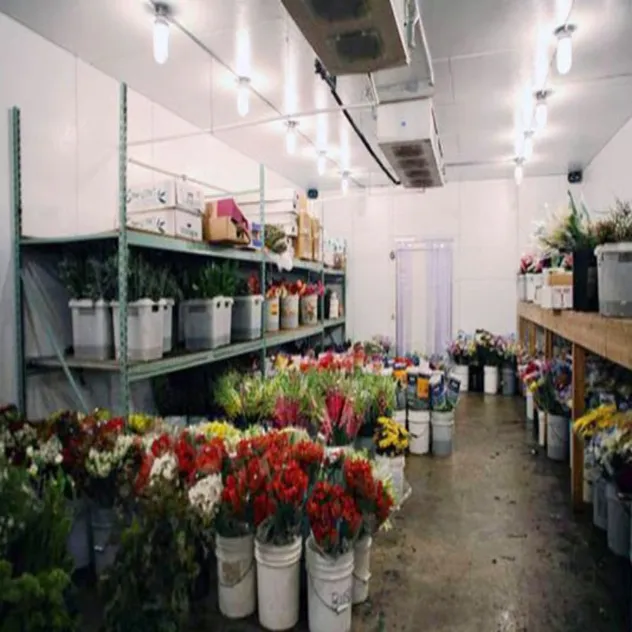

❄️Fruit, Vegetable & Flower Storage: 0ºC~+5ºC mainly used to keep products fresh and dry.
🥩Meat & Seafood Storage: -15ºC~-25ºC for long-term preservation of aquatic and meat products.
Key Applications:
- Chilled Storage (0°C to 4°C): Fresh seafood short-term preservation.
- Frozen Storage (-18°C to -30°C): Blast freezers for long-term texture locking.
- IQF Technology: Individual Quick Freezing for shrimp and fillets.
Technical Specifications
| Room Type |
Temperature |
Application |
Panel Thickness |
| Cooler Room |
-5~5 ºC |
Fruits, vegetables, milk, cheese |
75mm, 100mm |
| Freezer Room |
-18~-25 ºC |
Frozen meat, fish, ice cream |
120mm, 150mm |
| Blast Room |
-30~-40 ºC |
Fresh fish, meat fast freezing |
150mm, 180mm, 200mm |
Panel Parameters
| Panel Type | Polyurethane (PU) Sandwich Panels |
| Material | Painted steel sheet, stainless steel, or aluminum |
| Density | 38-50Kg/m³ |
| Thermal Conductivity | ≤0.024W/m.k |

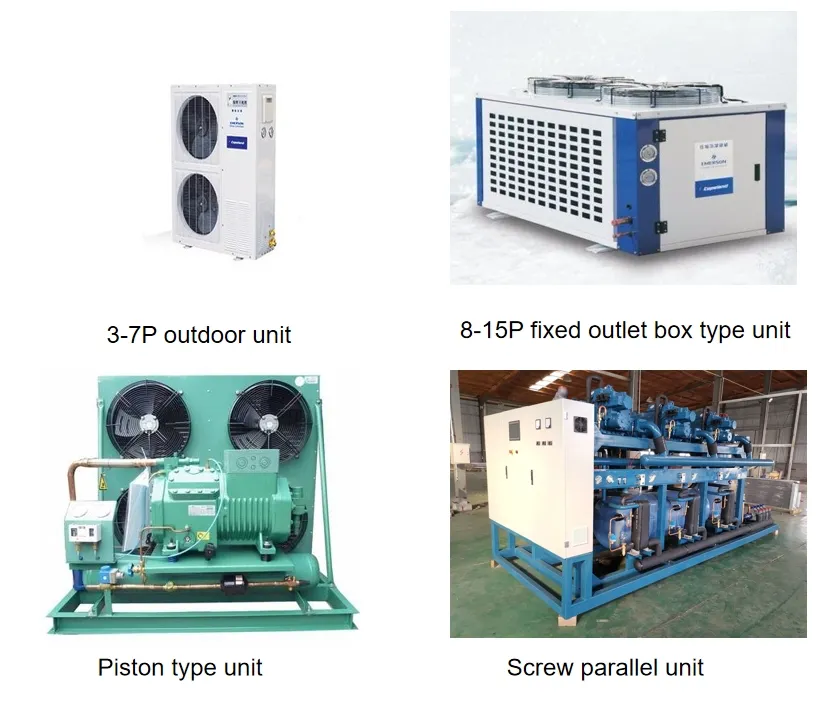

Condensation Cooling Device
Why Choose Us
✔️OEM/ODM capabilities
✔️Competitive pricing & bulk discounts
✔️Fast shipping & customs support
✔️24/7 technical online service
📦Display cabinets for supermarkets
📦Dual temperature storage
📦Ice makers & Air conditioners
Certifications
Frequently Asked Questions
What panel thicknesses are available for the cold rooms?
We offer a range of thicknesses including 50mm, 75mm, 100mm, 150mm, and 200mm to suit different temperature requirements.
What surface materials are used for the panels?
We provide PPGI (Color steel), SS304 stainless steel, and other customized options based on your needs.
Do you provide a complete set of cold room equipment?

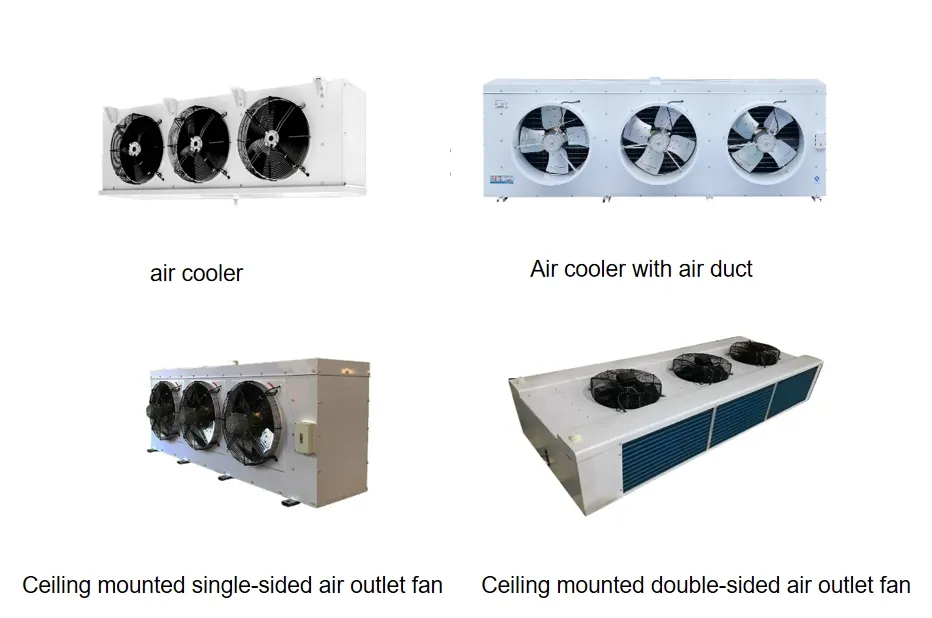

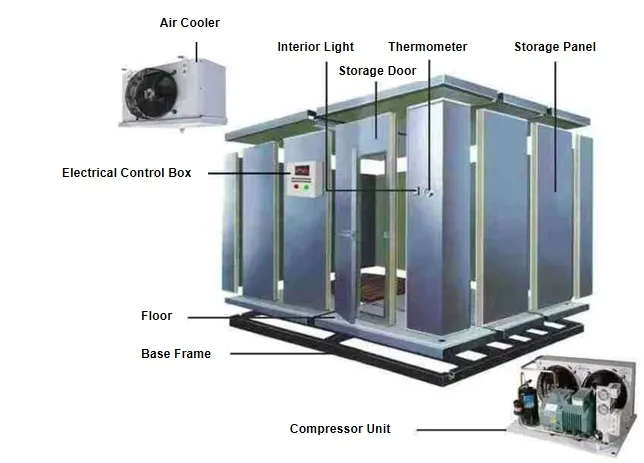

Yes, we provide the whole set including condensing units, evaporators, fittings, and related products like ice machines.
Can the cold room sizes be customized?
Absolutely. OEM & ODM services are available to customize dimensions and configurations according to your specific project needs.
What is the warranty period for your products?
Our standard warranty is 12 months. During this period, we offer 24-hour online technical support and free spare parts for any quality-related issues.
Are the panels fire-resistant?
Yes, our polyurethane panels feature self-extinguishment properties with a fire rating of ≤6 seconds.
