📦 Basic Info.
Traffic Speed
30 Persons/ Min
Specification
SUS 304 stainless steel

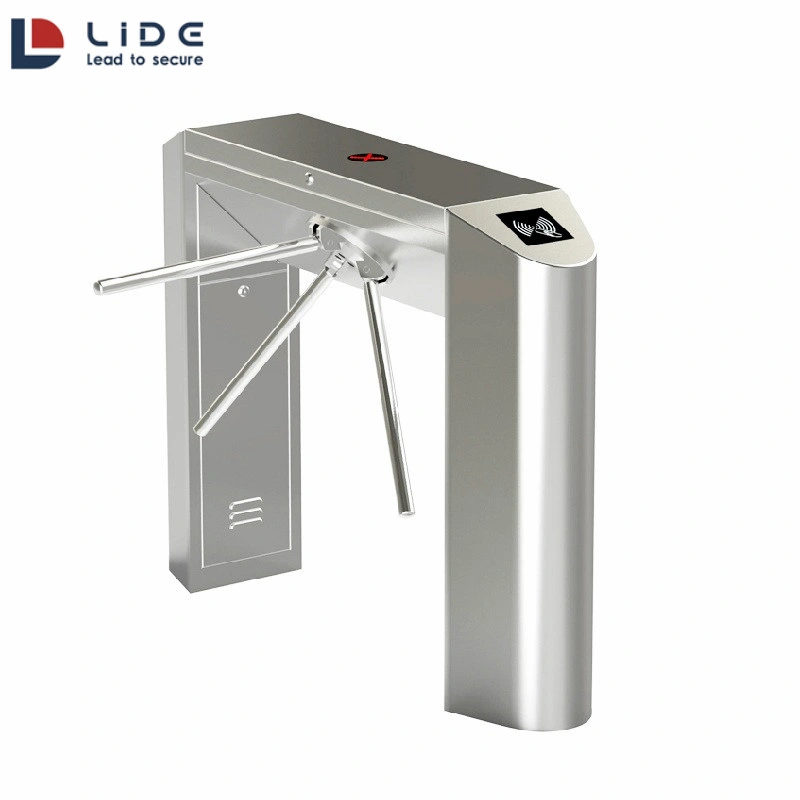

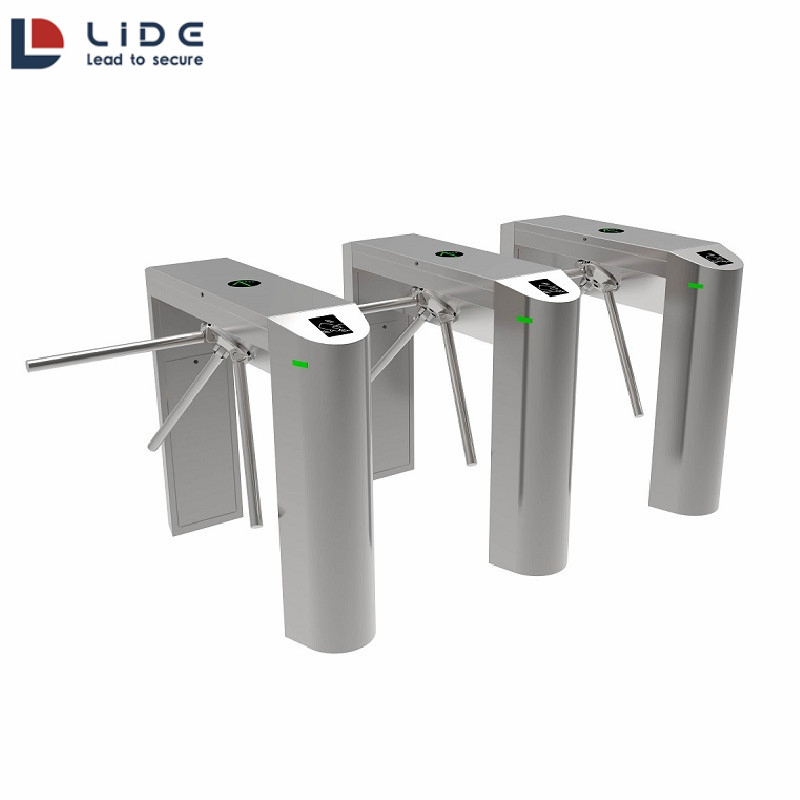

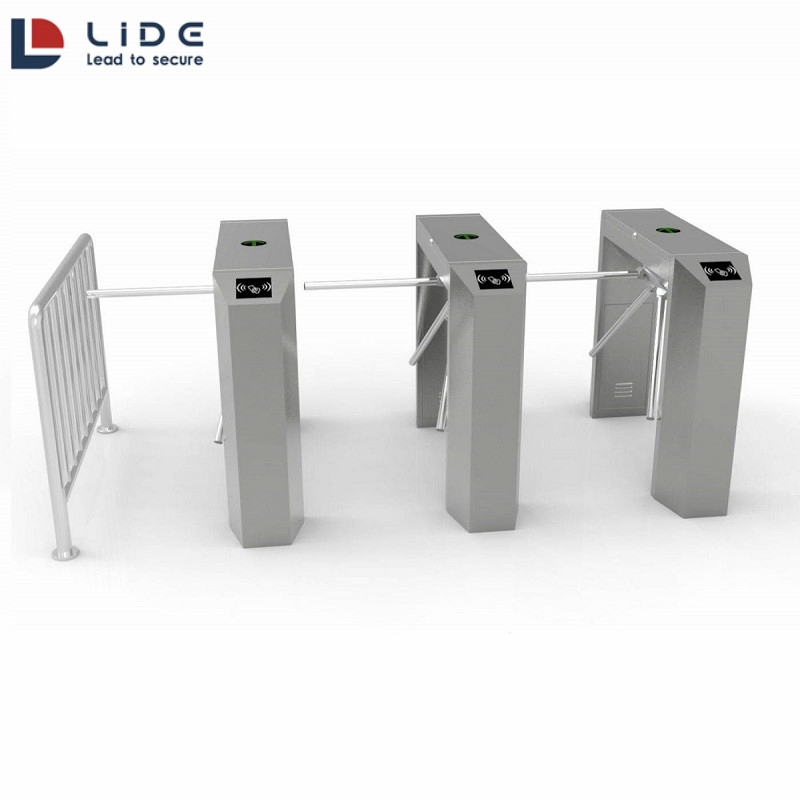

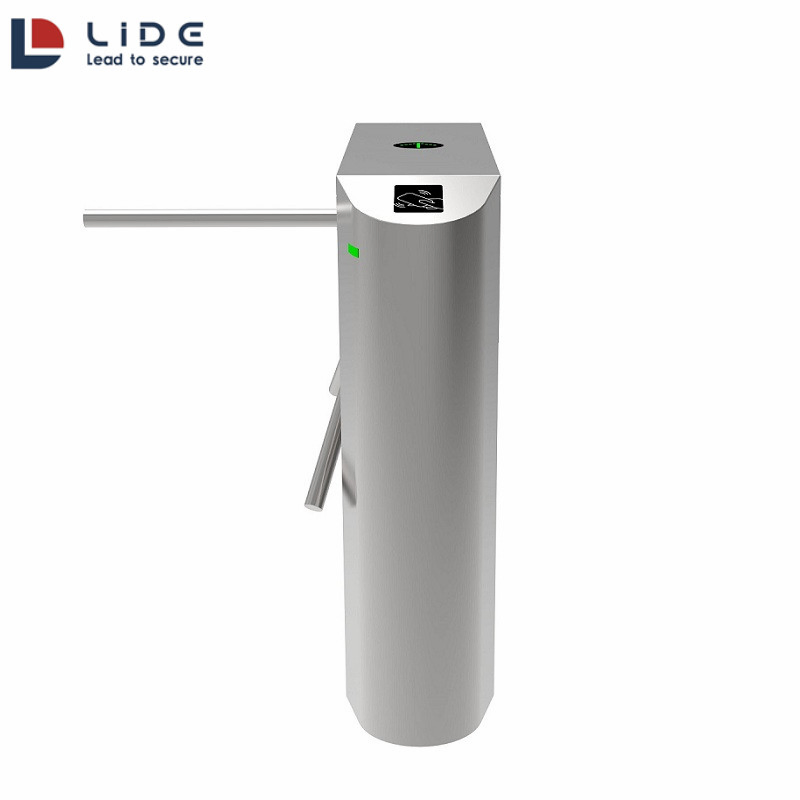

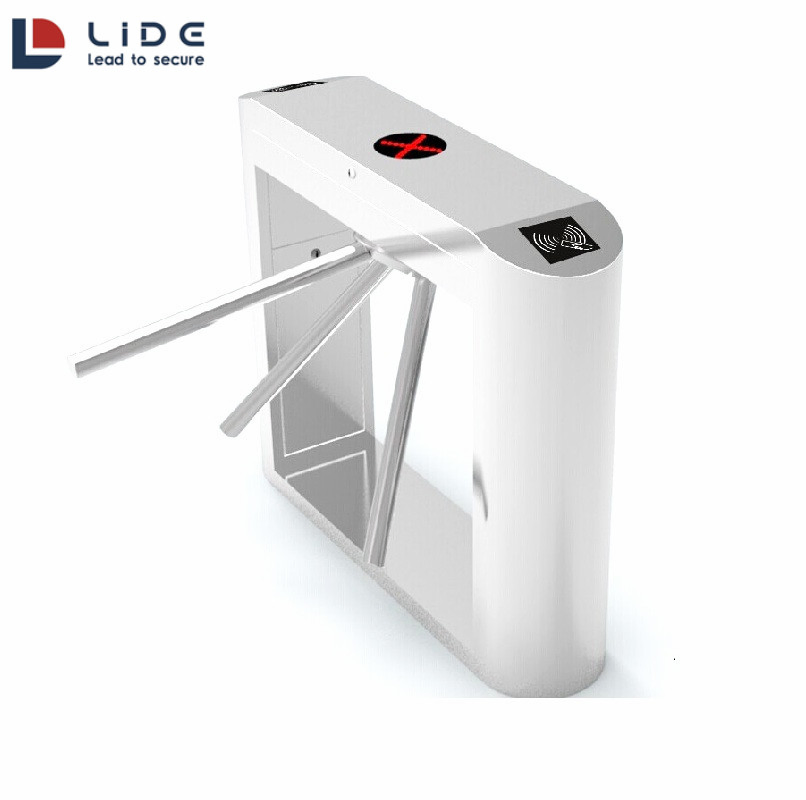

🛡️ 304 Stainless Steel Tripod Turnstile Gate
Bridge-type Tripod turnstile: It is mainly used for the management of the entrance and exit of the passage. It has the characteristics of fast opening, safety and convenience. It is the ideal management and guidance equipment for pedestrians with high-frequency entrance and exit. Widely used in airports, stations, terminals, attractions, parks, shopping malls, office buildings, pedestrian walkways and other places.
| Model No. |
LD-T305 |
Size |
1200*300*980mm |
| Material |
304 stainless steel, acrylic |
Channel Width |
510mm |
| Thickness |
1.0mm-1.2mm |
Traffic Direction |
One-way / Two-way |
| Service Life |
≥ 5 Million Times |
Temperature |
-20 ~ 75ºC |
🚀 Key Functions
- Rotary lever function: Automatic speed adjustment following the passage of the person.
- Homing function: Automatically returns to the initial blocking position after passage.
- Emergency Falling rod: Brake rod automatically falls during power failure for fire protection evacuation.
- Anti-illegal break-in: System alarms and locks the brake lever when an invalid card is used.
- Anti-collision: Withstands impact force in a safe range when locked.
- LED Passing Instruction: High-visibility indicator for passing state and direction.

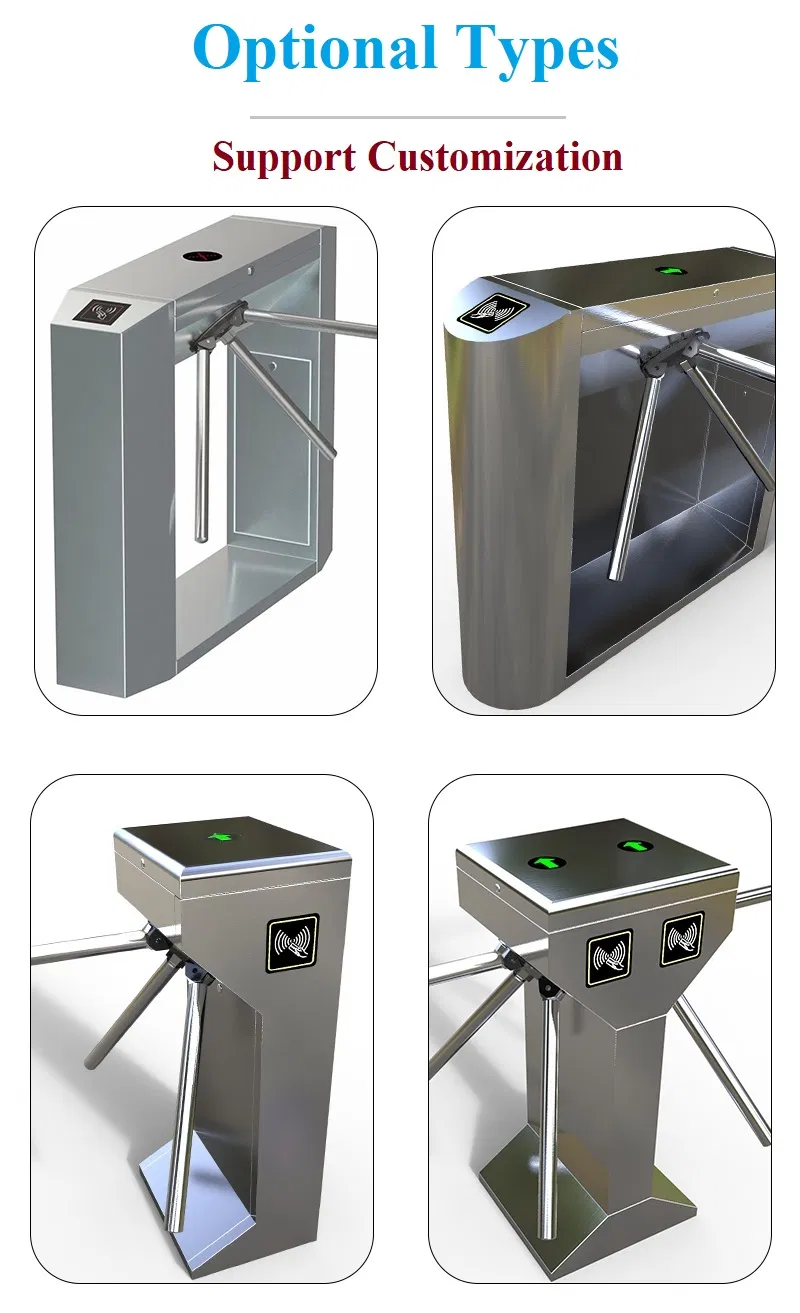

🛠️ Customizable Options
1. Counting and alarm functions
2. Case thickness up to 1.5mm
3. Remote control switch
4. Dynamic face recognition
5. Fingerprint & QR code access
6. Emergency escape button

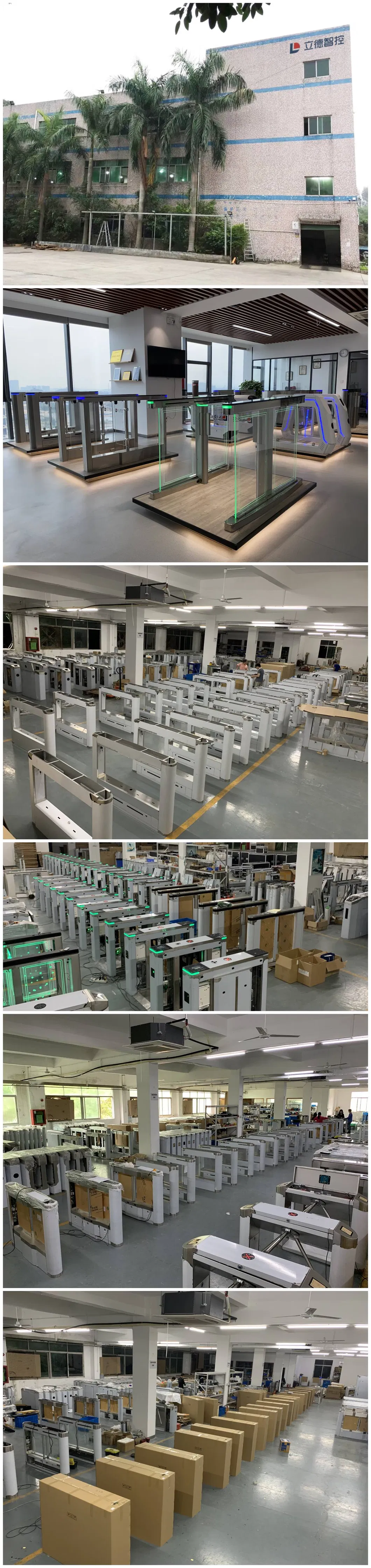

📐 Factory & Production
🔧 After-Sales Support
- 18-month warranty for all products with additional spare parts.
- 18/7 online technical support with 1-hour email response time.
- Multi-lingual engineers (English, Spanish, Arabic) for direct communication.
- On-site engineer services available for complex installations worldwide.
❓ Frequently Asked Questions

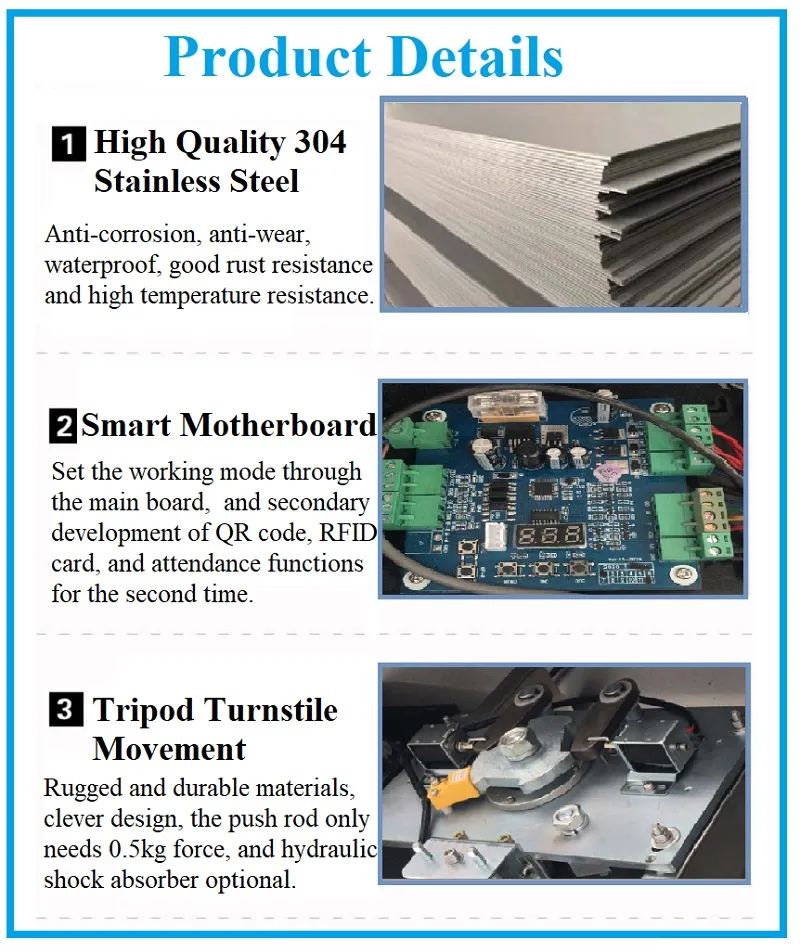

What materials are used in your tripod turnstiles?
We use international standard 304 stainless steel (China-Japan Baoxin), high-quality electric suppliers from Taiwan, and belts imported from Germany to ensure maximum durability.
What is the standard lead time for orders?
Standard products generally take 7-10 working days. For customized solutions requiring specific modifications, the lead time is approximately 15-20 working days.
How long is the warranty period for the turnstile gates?
We provide an 18-month warranty period along with life-time technical support and spare parts availability.

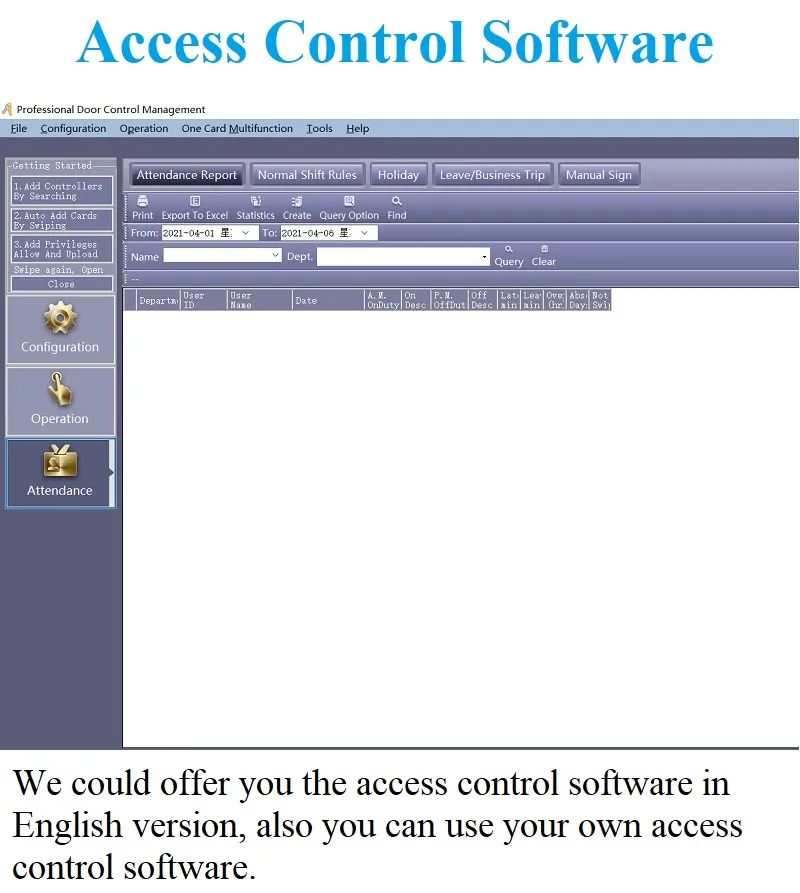

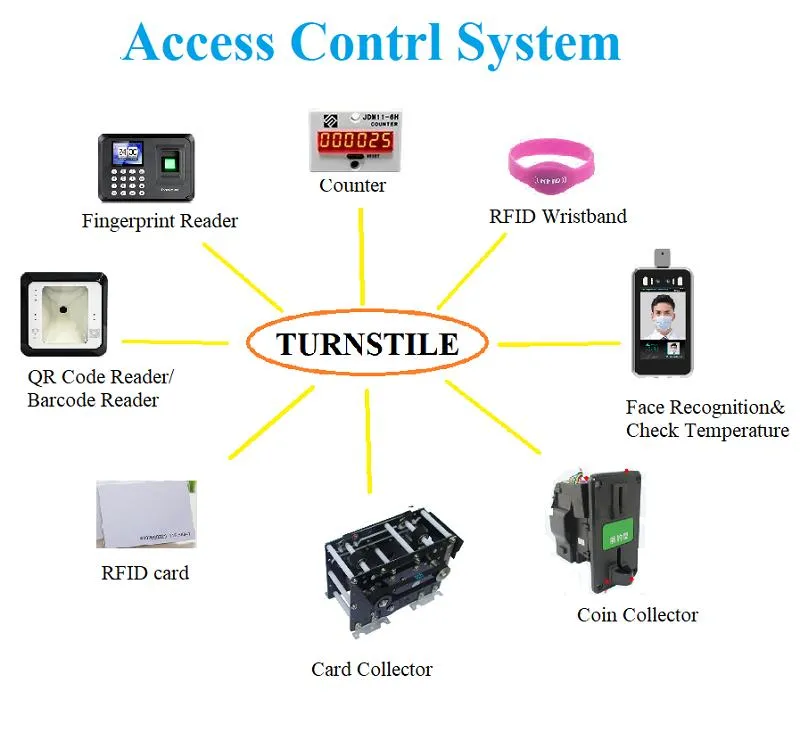

Can the turnstiles be integrated with third-party systems?
Yes, our gates support various opening signals like dry contact and can be integrated with RFID, biometric, QR code, and face recognition systems.
What kind of packaging is used for international shipping?
Exported products are packed in inspection-exempt wooden cases with pearl wool and plastic wrap to ensure safety during transit.
What happens to the turnstile during a power failure?
The gate features an automatic "falling rod" function where the barrier arm drops to allow free passage for emergency evacuation.
