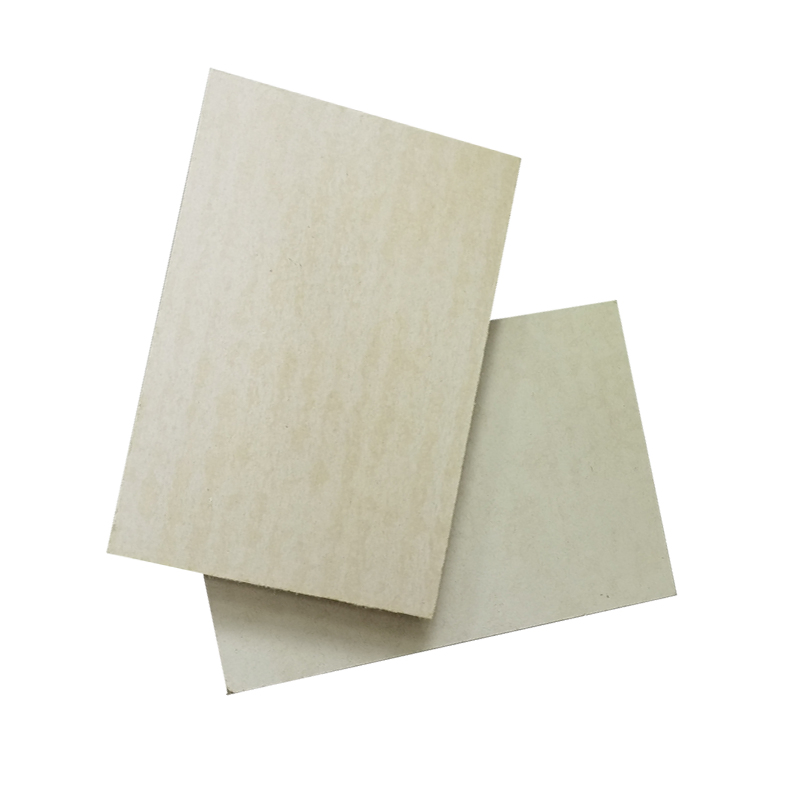

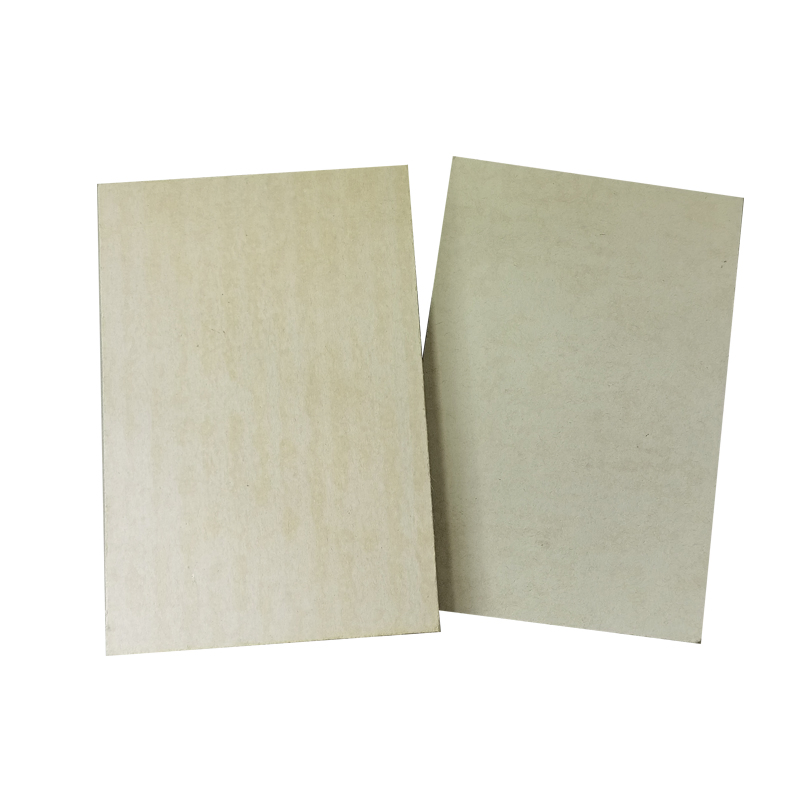

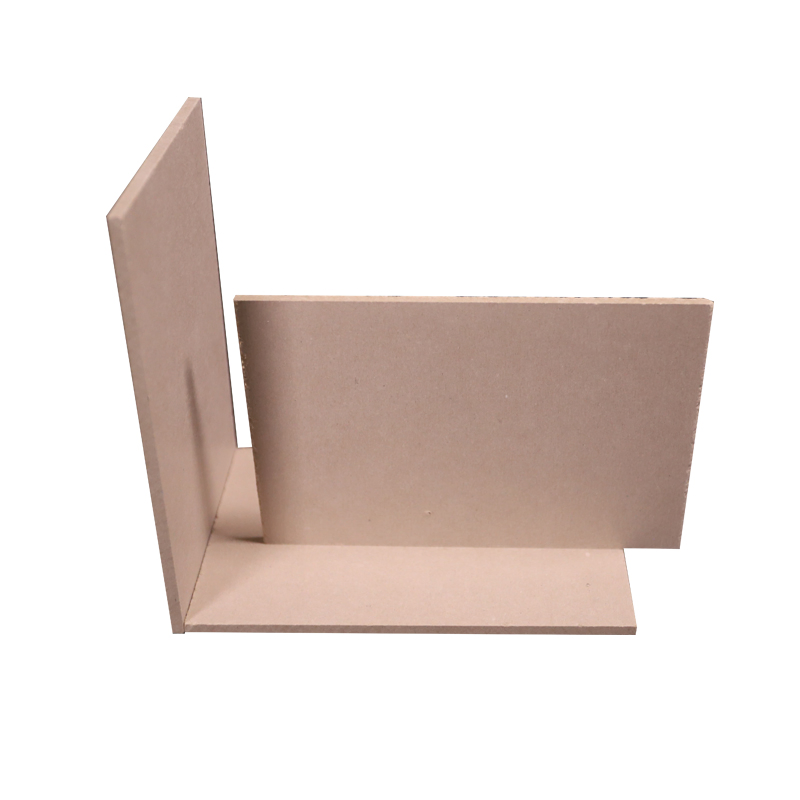

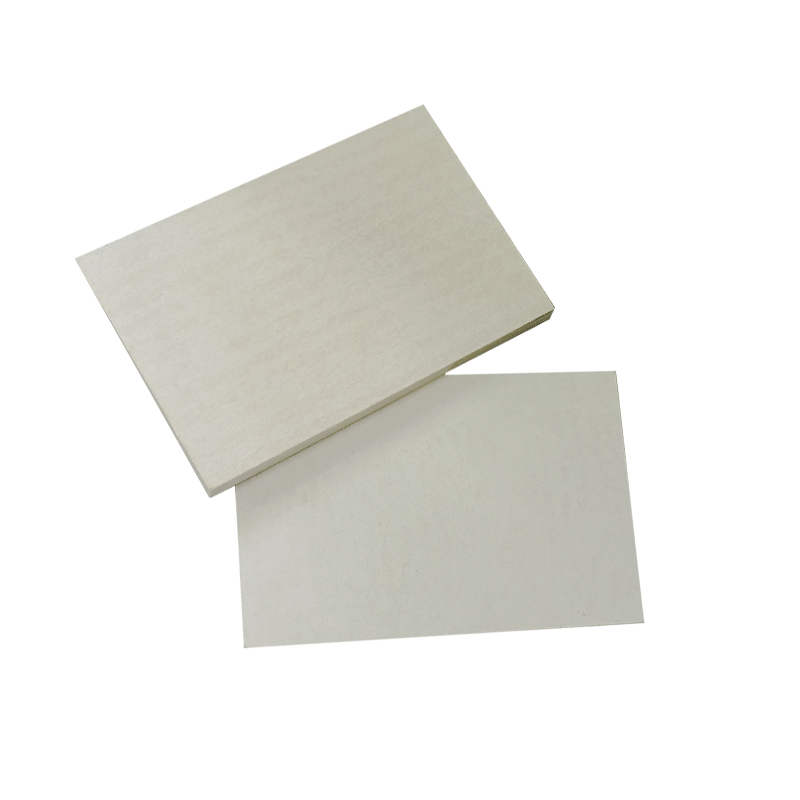

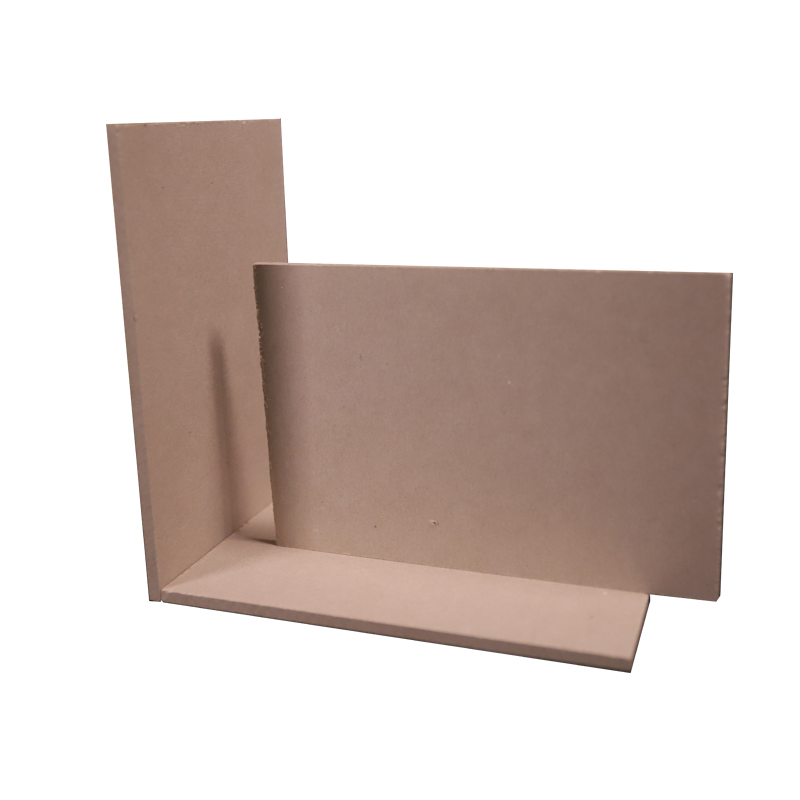

4mm 6mm Base Board Calcium Silicate Board for Ceiling Panel

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Density:1.2-1.6g/cm3
Non-Combustibility:Class A
Feature:Environment Friendly, High Strength, Fireproof
Grade:Grade A
Appearance:Panel
Color:White
Type:Fibre Board
Surface Finishing:Glossy
Edge:Square
Thickness:4mm-30mm
Specification:1220x2440mm
Production Capacity:250000 Square Meter Per Month
Product Description

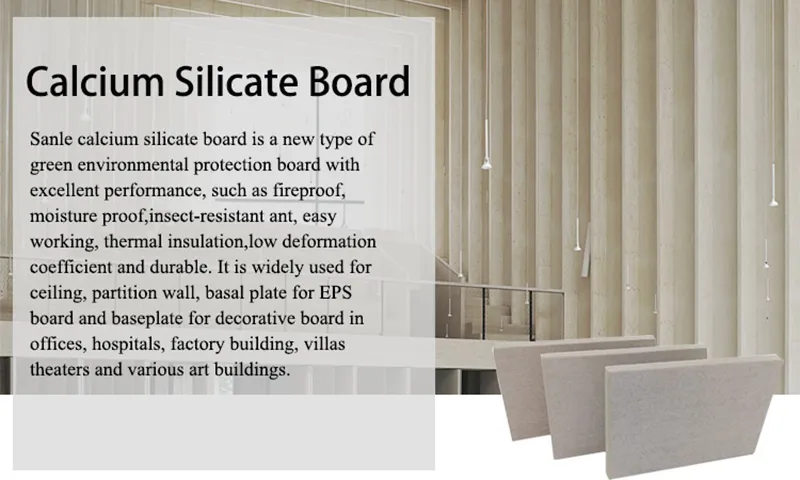

Calcium Silicate Board

Calcium silicate board is a new type of green environmental protection board with excellent performance, such as fireproof, moisture proof, insect-resistant ant, easy working, thermal insulation, low deformation coefficient and durable. It is widely used for ceiling, partition wall, basal plate for EPS board and baseplate for decorative board in offices, hospitals, factory building, villas, theaters and various art buildings.

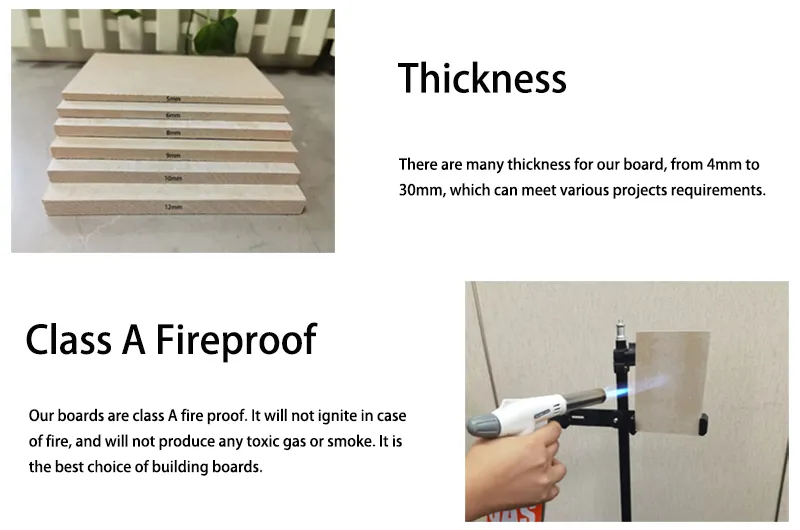

Details 1
Details 2
Details 3
Technical Specifications
Specification:
Thickness(mm): 4-30Width(mm): 1220Length(mm): 2440
Physical properties:
Density1.2-1.6g/cm3
Thermal conductivity≤0.29 W/(m.k)
Water absorption≤40%
Bending strength (average)>12 Mpa
Non-combustibilityClass A
Installation Guidelines

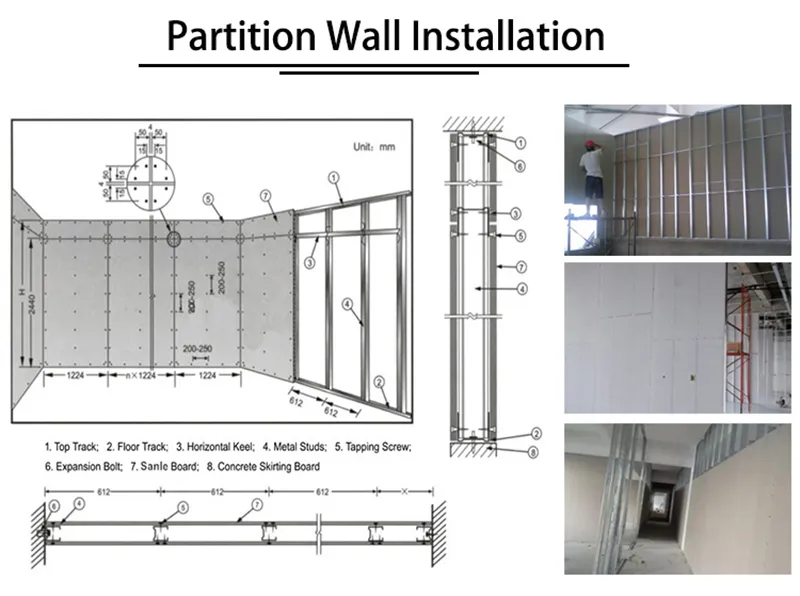

Installation
Fixed top and bottom keels with expansion bolts.
Align vertical keels (generally 612 mm) with lateral supports.
Cut board material (about 10mm lower than wall height).
Fix board on keel with tapping screws (interval 200~250mm).
Keep expansion seam of about 4mm between boards.

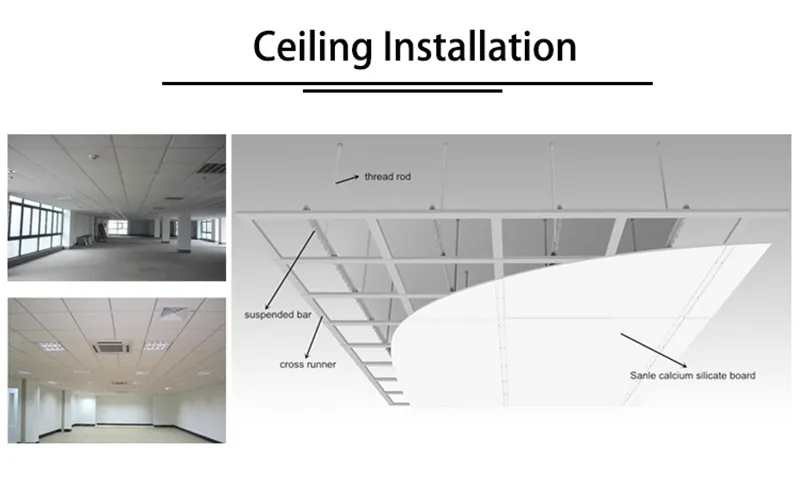

Ceiling Application
Ceiling 1
Ceiling 2
Determine ceiling position, boom central range is 1200mm.
Connect boom and main keel with hanging pieces for leveling.
Fix sub-keel to main keel (axis range 612mm).
Install lateral supporting keel (central range 1224mm).
Company Overview

Our group is one of the largest building materials groups in China, established in 1998. We are a professional comprehensive building materials group engaging in R&D, production, and sales of fiber cement board, calcium silicate board, EPS cement panel, and decorative panels. Our team has more than 20 years of experience with 4 production bases in China.

Factory
Warehouse
Main Products

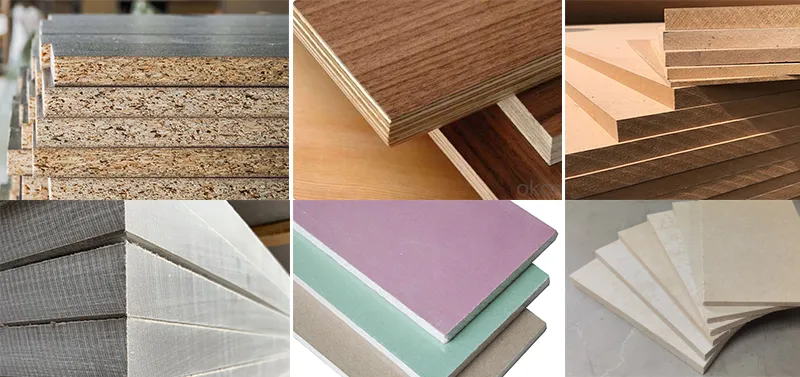

Plywood, MDF board, Particle board, Chip board, Gypsum board, Fiber cement siding board, Non-asbestos cement board, Calcium Silicate Board etc.

Product Range 1
Product Range 2
FAQ
What is your terms of packing?

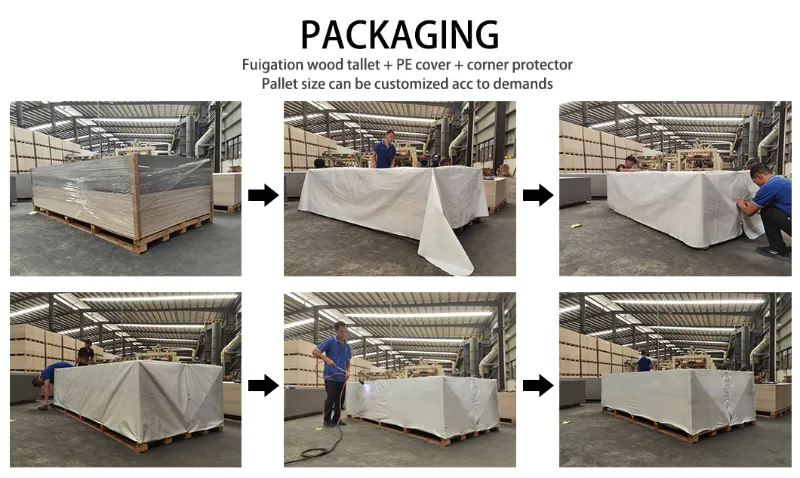

Generally, we pack our goods in bundles or wood pallets. We can also customize the package according to customer's request.
What is your terms of payment?
We accept 30% T/T in advance, 70% during the period of shipment, or L/C at sight.
What are your terms of delivery?
Our delivery terms include EXW, FOB, CFR, and CIF.
How about your delivery time?
For stock items, we can ship within 15 days. For production orders, it usually takes 20-25 days after receiving the deposit.
Can you produce according to samples?
Yes, we can produce based on your samples or technical drawings. We can also build the necessary molds and fixtures.
Do you provide samples for free?
We provide samples free of charge, but the shipping cost must be covered by the customer.
