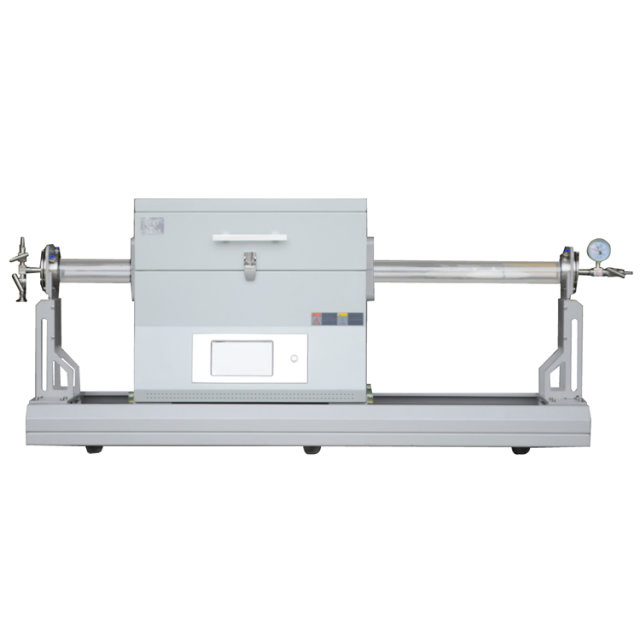

Ce Certified Graphene Growth CVD Furnace Machine
Ce Certified Graphene Growth CVD Furnace Machine
Ce Certified Graphene Growth CVD Furnace Machine
Ce Certified Graphene Growth CVD Furnace Machine
Ce Certified Graphene Growth CVD Furnace Machine
1 / 5
Ce Certified Graphene Growth CVD Furnace Machine
Ce Certified Graphene Growth CVD Furnace Machine
Ce Certified Graphene Growth CVD Furnace Machine
Ce Certified Graphene Growth CVD Furnace Machine
Ce Certified Graphene Growth CVD Furnace Machine

Ce Certified Graphene Growth CVD Furnace Machine

Customization: Available
Warranty: One Year
Application: School, Lab
Send Inquiry

Product Description

Basic Specifications
Model NO.
CY-O1200-80IIC 2Z
Certification
CE, TUV
Structure
Desktop
Material
Steel
Type
Tubular Furnace
HS Code
85143090
Product Overview

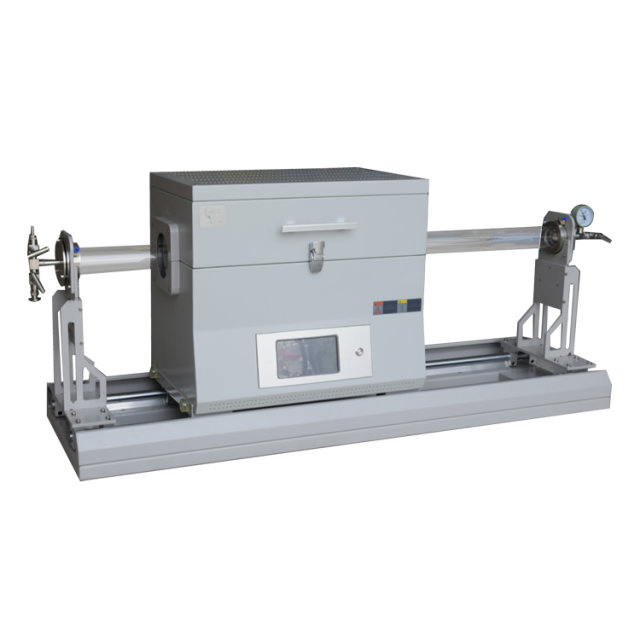

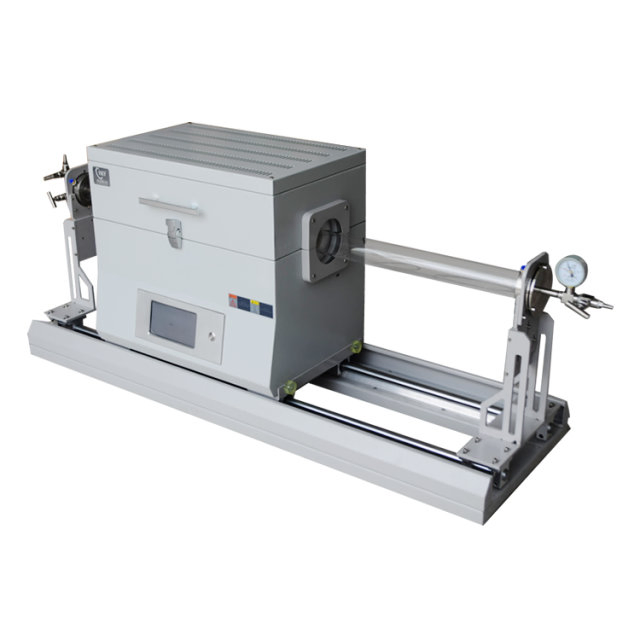

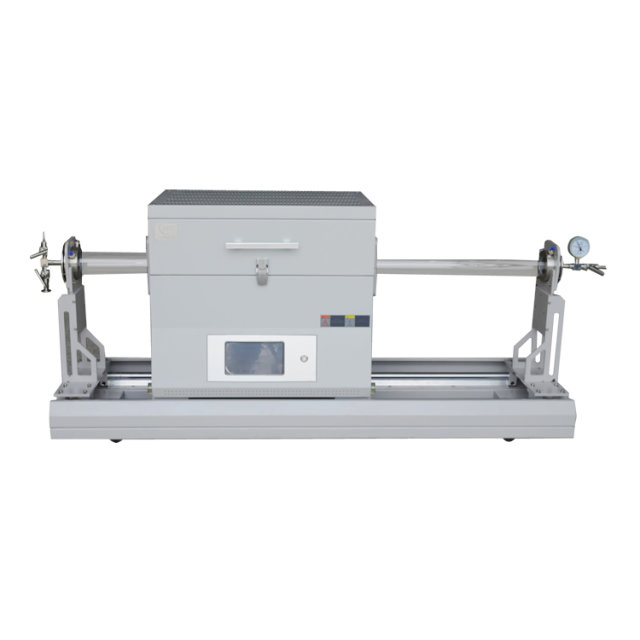

CE certified Graphene Growth CVD furnace machine

This professional equipment is designed for high-precision thermal processes including CVD experiments, preparation of carbon nanotubes, and graphene growth.

Key Features
  • Upper and lower sub-structure for easy tube handling
  • High purity quartz tube (Resistant up to 1200 ºC)
  • Programmable PID automatic control system
  • Double liner structure with gap isolation (Surface remains safe to touch)
  • Imported energy-saving chamber material
  • Real-time current and voltage monitoring
Technical Parameters
ModelCY-O1200-80IIC-2Z
Limiting Temperature1200ºC
Working Temperature≤1150ºC
Heating RateSuggestion 0~20ºC/min
Temperature Accuracy±1ºC
Chamber SizeΦ80×1400(mm)
Heating ElementImported alloy heating wire
Temperature ControlPID automatic control via SCR power control
Heating Curves30 steps programmable
Sealing TypeStainless steel vacuum flange
Gas System3 gas channels (CO2, Ar, H2)
Main Power4.5kw
Product Gallery

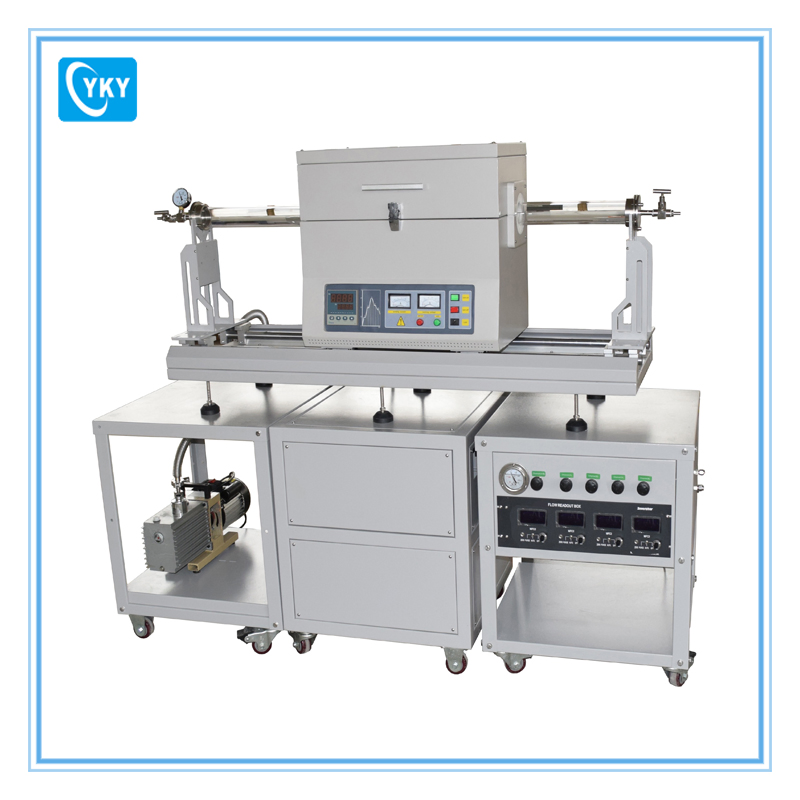

Graphene Growth CVD Furnace

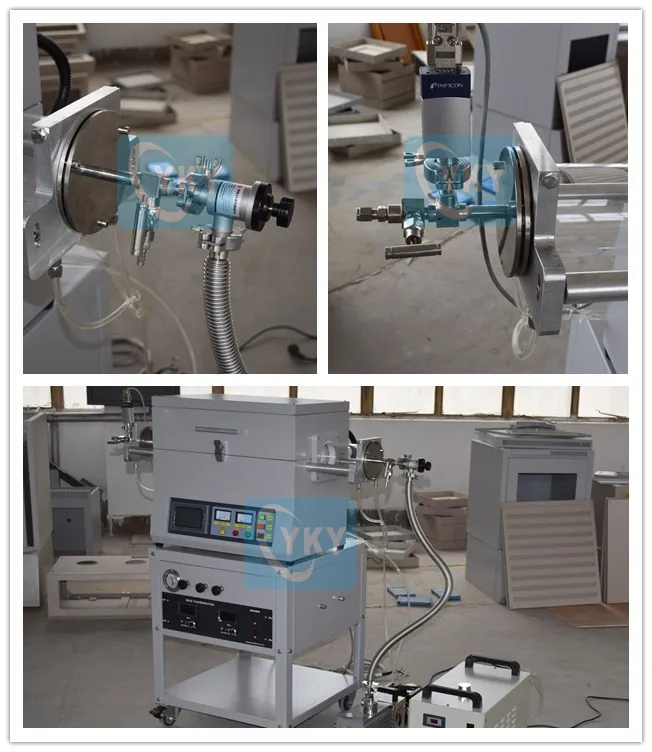

CVD Furnace Detail

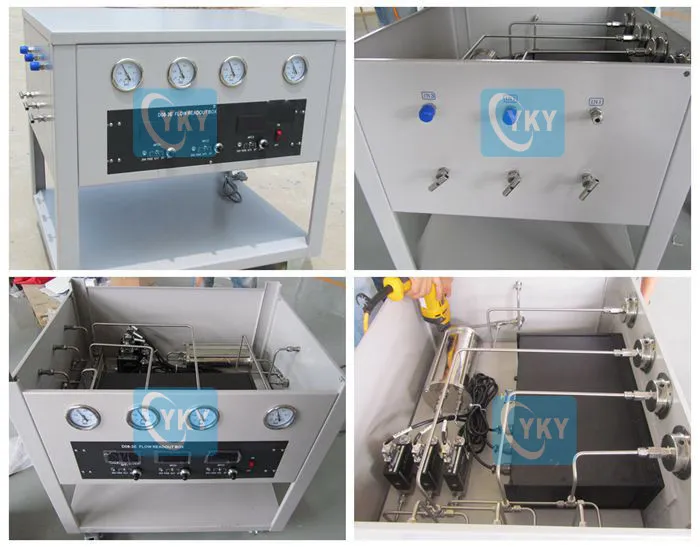

CVD Furnace Interior
Packaging & Services
Package Size
180.00cm * 100.00cm * 160.00cm
Gross Weight
250.000kg
Warranty
15 months (excluding wearing parts)
Payment
T/T, L/C, Western Union, PayPal

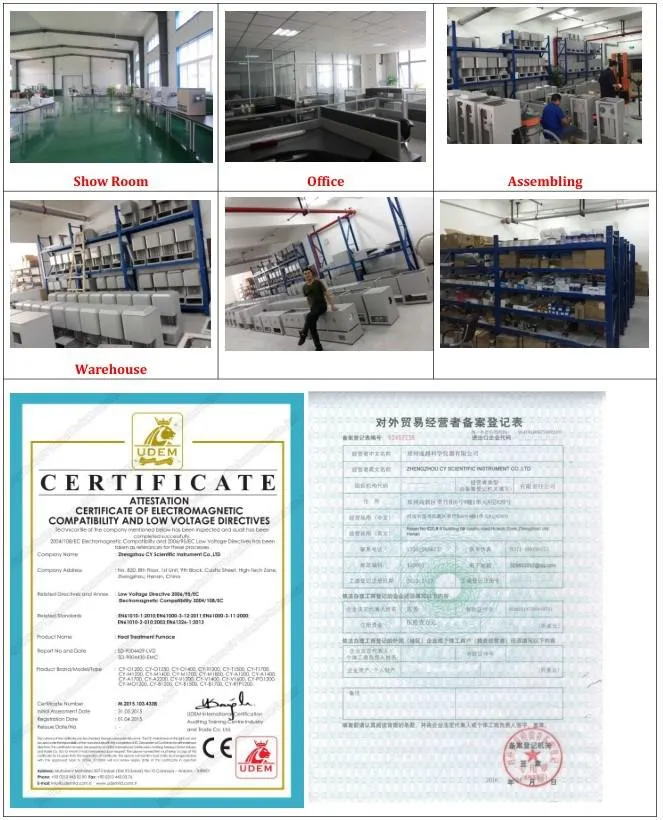

Manufacturing Facility
Showroom
Production Line
Factory Environment
Frequently Asked Questions
Q1: What is the maximum operating temperature of this CVD furnace?
The limiting temperature is 1200ºC, with a recommended continuous working temperature of ≤1150ºC.
Q2: Can the heating process be customized?
Yes, the system features PID automatic control and is programmable with up to 30 steps for precise heating curves.
Q3: How many gas channels are available for experiments?
The system supports 3 gas channels typically used for CO2, Ar, and H2, each controlled via proton flowmeters.
Q4: Is the furnace exterior safe during high-temperature operation?
Yes, the furnace uses a double liner structure with gap isolation. Even at 1000ºC internally, the surface remains safe to touch.
Q5: What certifications does the equipment hold?
The equipment is fully CE and TUV certified, meeting international safety and quality standards.
Q6: What is the standard warranty period?
We provide a 15-month warranty for the main product, excluding standard wearing parts.
