📊 Basic Information
Usage
Food, Blood, Medicine, Fruits, Vegetables, Meat, etc
Certification
RoHS, UR, ISO, CE, CCC
Compressor
Brand Name Compressor Condensing
❄️ Product Application & Features

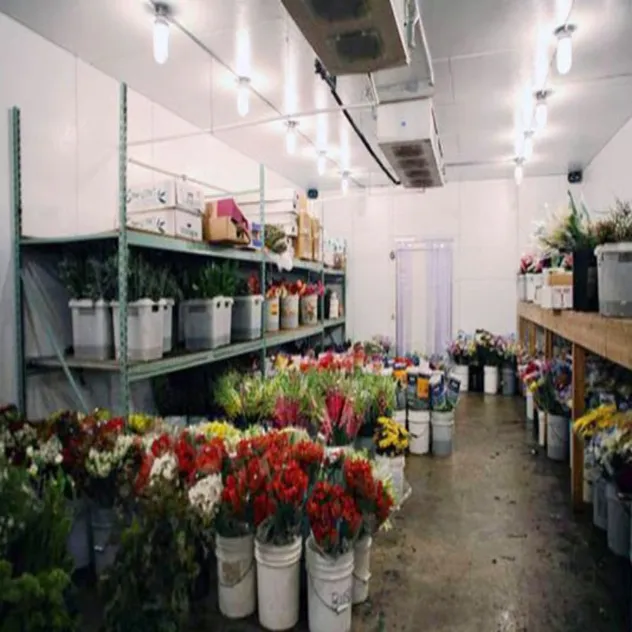

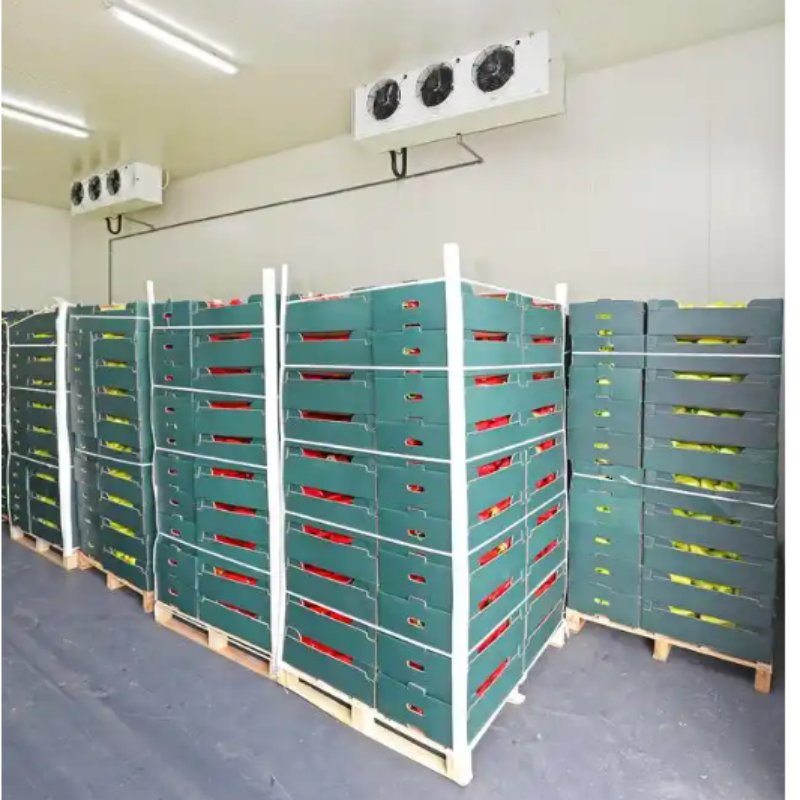

Fruit, Vegetable, Flower Cold Storage: 0ºC~+5ºC is mainly used to store fruits and vegetables, eggs, medicinal materials fresh and dry.
Meat Cold Storage: -15ºC~-25ºC is mainly used for the storage of meat, aquatic products, and products suitable for this temperature range.
Key Features:
- Blast Freezing: Rapidly lowers temperature to -18°C or below.
- Advanced Technologies: Controlled Atmosphere (CA) and IQF support.
- Hygiene: Stainless steel surfaces with antimicrobial coatings.
⚙️ Technical Specifications
| Type |
Temperature |
Applications |
Panel Thickness |
| Cooler Room | -5~5 ºC | Fruits, vegetables, milk, cheese | 75mm, 100mm |
| Freezer Room | -18~-25 ºC | Frozen meat, fish, seafood, ice cream | 120mm, 150mm |
| Blast Room | -30~-40 ºC | Fresh fish, meat fast freezer | 150mm - 200mm |
| Panel Material |
Polyurethane (PU) Sandwich Panels with Painted steel, stainless steel, or aluminum |
| Density |
38-50Kg/m³ |
| Compressive Strength |
≥160kpa |
| Features |
Scientific design, easy disassembly, internal eccentric hooks for flat surface sealing. |

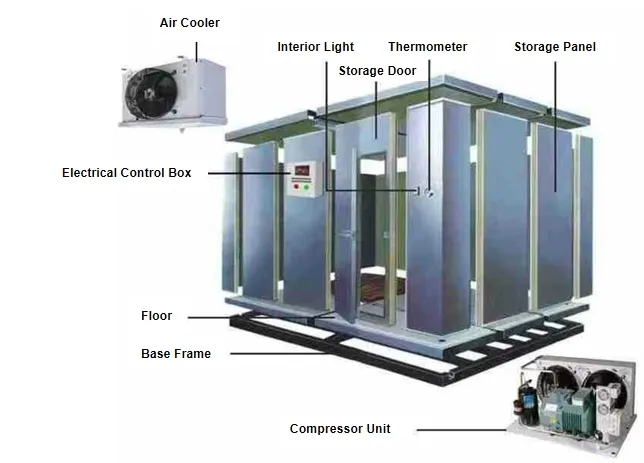

🔧 Condensation & Cooling Device

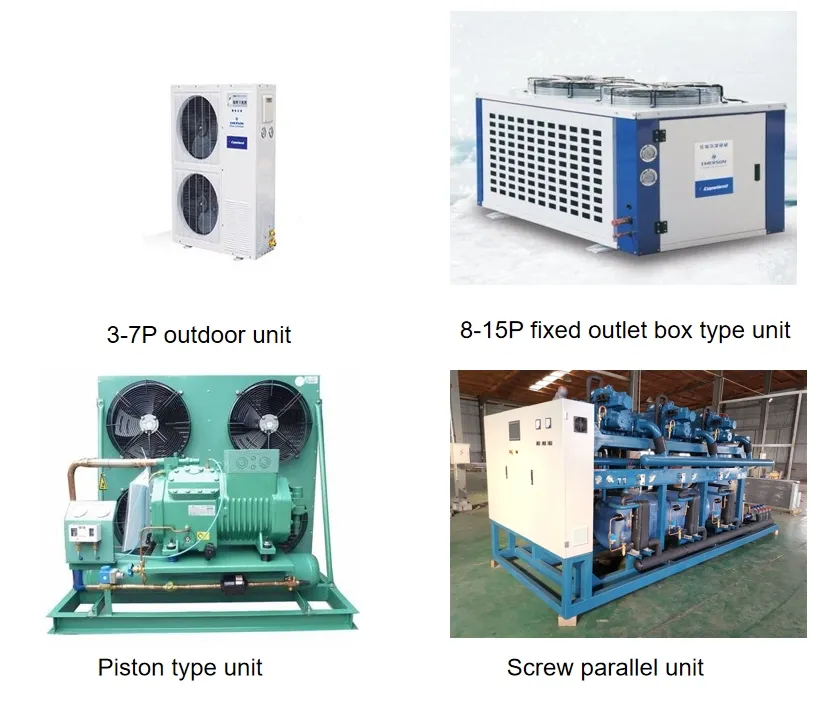

Compressor Options:
- Semi-enclosed or screw type (2HP-50HP)
- Air-cooled or water-cooled condensers
- Cryogen: R22/R404a/R410a

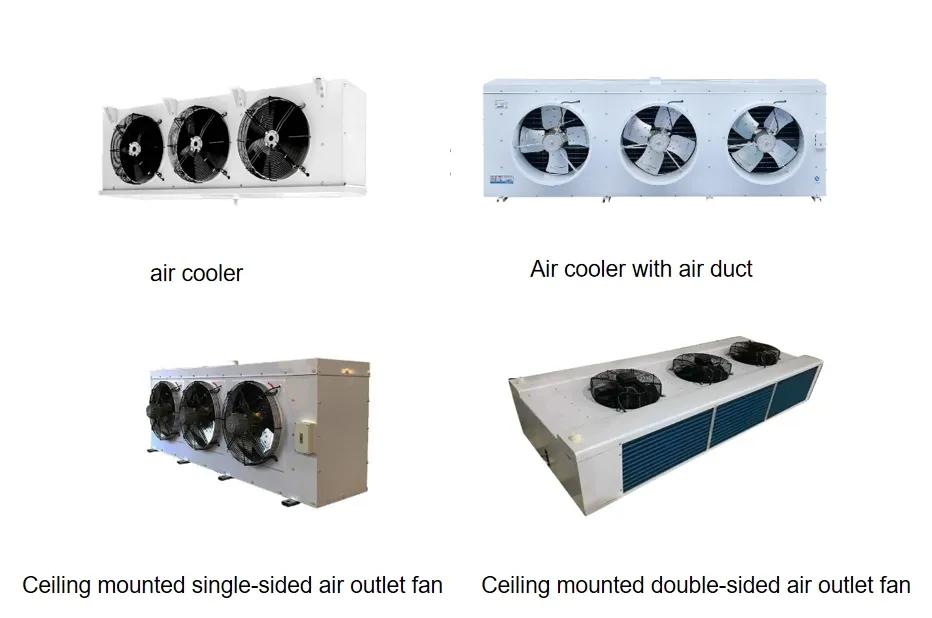

Fan Options:
- DL, DD, and DJ types for different temperatures
- Compact structure, uniform temperature, high efficiency
🏆 Quality Assurance
❓ Frequently Asked Questions
Q1: What panel thicknesses are available?
A1: We provide 50mm, 75mm, 100mm, 150mm, and 200mm thicknesses depending on your temperature requirements.
Q2: What materials are used for the panel surfaces?
A2: We offer PPGI (Color steel), SS304 stainless steel, and other customized options.
Q3: Do you provide a complete set for the cold room?
A3: Yes, we provide the full system including condensing units, evaporators, fittings, and related products like ice machines or air conditioners.
Q4: Can the size of the cold room be customized?
A4: Absolutely. OEM and ODM services are available to meet your specific space and storage needs.
Q5: What is the standard warranty period?
A5: Our standard warranty is 12 months. During this time, we provide 24-hour online support and free spare parts if needed.
Q6: What are the main applications for your cold storage?
A6: Our systems are widely used in food processing, supermarkets, chemical industries, pharmaceutical sectors, and for seafood or vegetable distribution.
