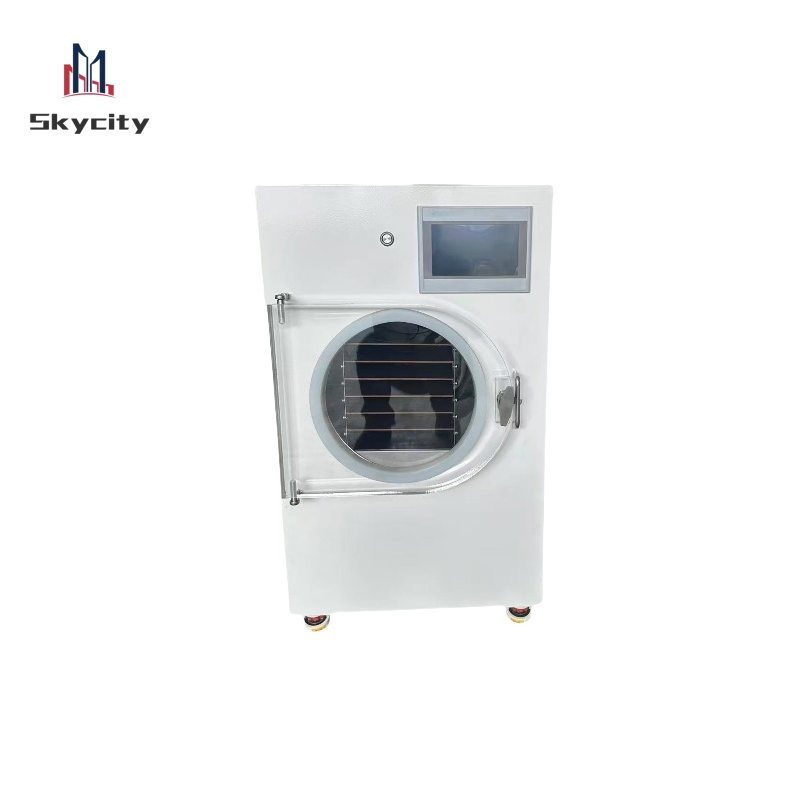

Commercial Home Household Vacuum Freeze Dryer for Food Processing

1 / 5

Commercial Home Household Vacuum Freeze Dryer for Food Processing

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

TC-FD-06

Type

Dryer

Voltage

220V

Power

1850W

Name

Home Freeze Dryer

Application

Food, Fruit and Veggie, Pet Food etc

Freeze Dried Area

0.5-0.62 Square Meters

Capacity

6-9kg

Tray Size

250X500X20mm

Tray Quantity

4-5PCS

Vacuum Degree

1-20PA

Weight

160kg

Packaging & Delivery

Package Size

960.00cm * 680.00cm * 1070.00cm

Gross Weight

190.000kg

Equipment Characteristics & Functions

Uniform refrigeration cold trap wall temperature with professional gas diversion technology.
Internationally renowned compressors: Danfoss, Panasonic, Tecumseh, and Embraco.
Integrated quick freezing and drying function; no external ultra-low temperature refrigerator needed.
7-inch color LCD touch screen with human-computer interaction interface.
Real-time display of cold trap temperature, vacuum degree, and sample temperature.
Automatic data saving with USB export support for freeze-drying data.
Formula function to store multiple product settings.
Equipped with vacuum alarm and electric heating defrost functions.

Technical Parameters

Model	TC-FD04	TC-FD06	TC-FD10	TC-FD15
Freeze dried area	0.32-0.4㎡	0.5-0.62㎡	1.05㎡	1.5㎡
Capacity	4-6kg	6-9kg	10-15kg	15-22kg
Tray Size	20040020mm	25050020mm	27065020mm	27079820mm
Power	1320w	1850w	2420w	3550w

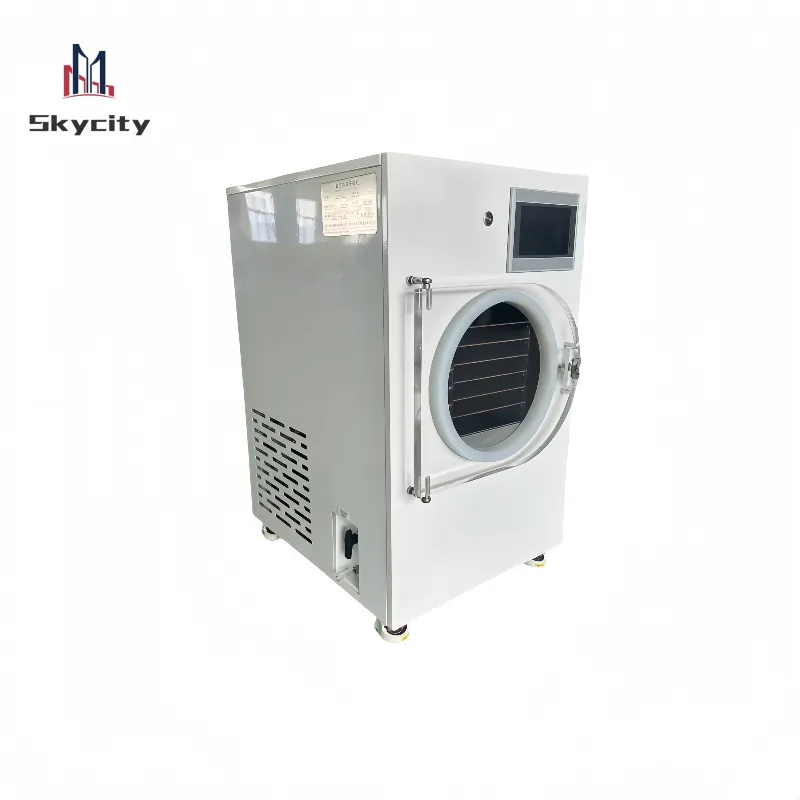

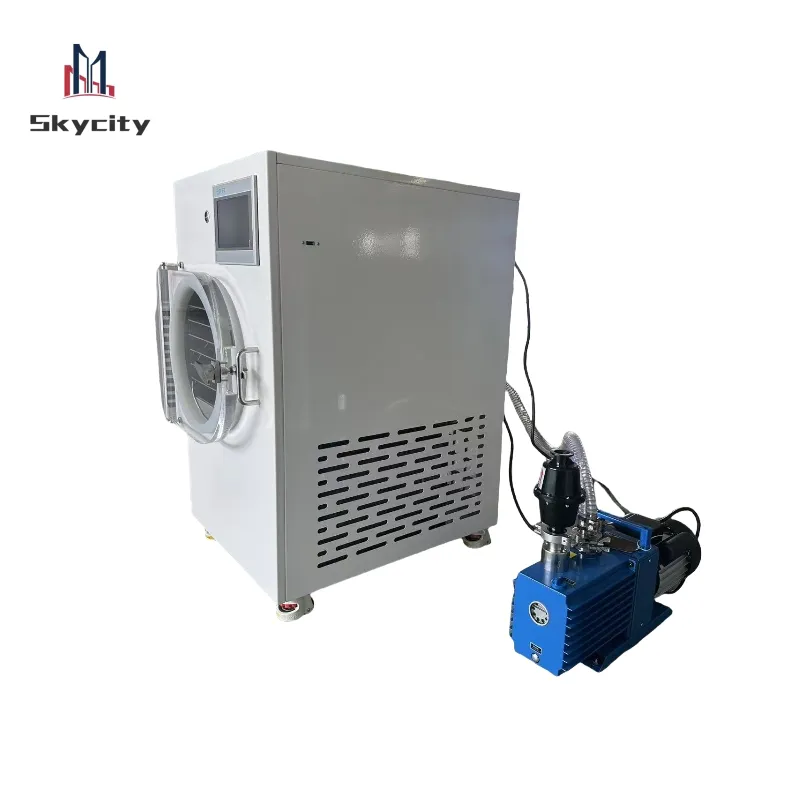

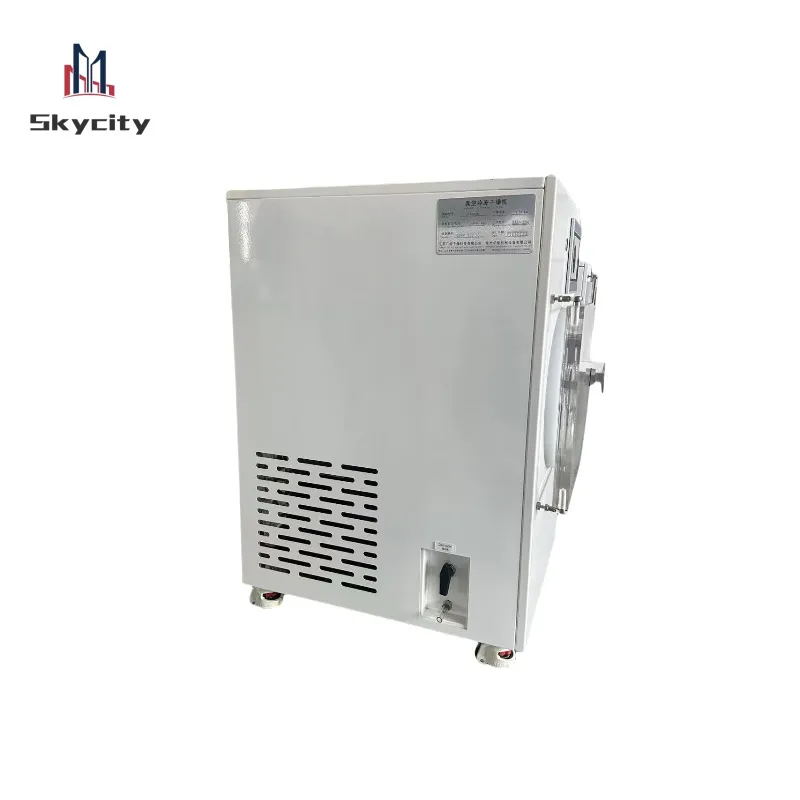

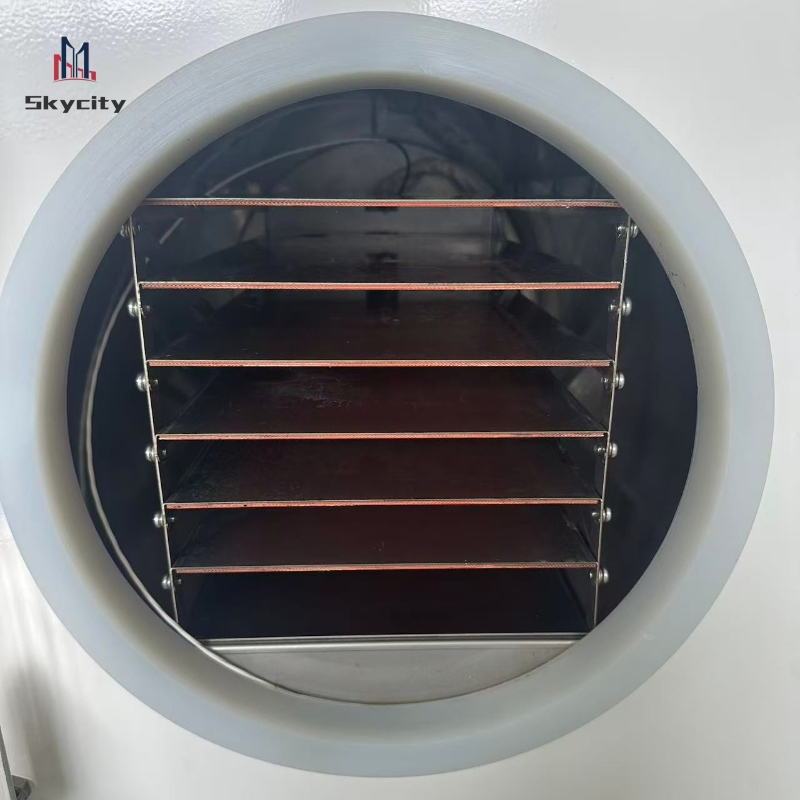

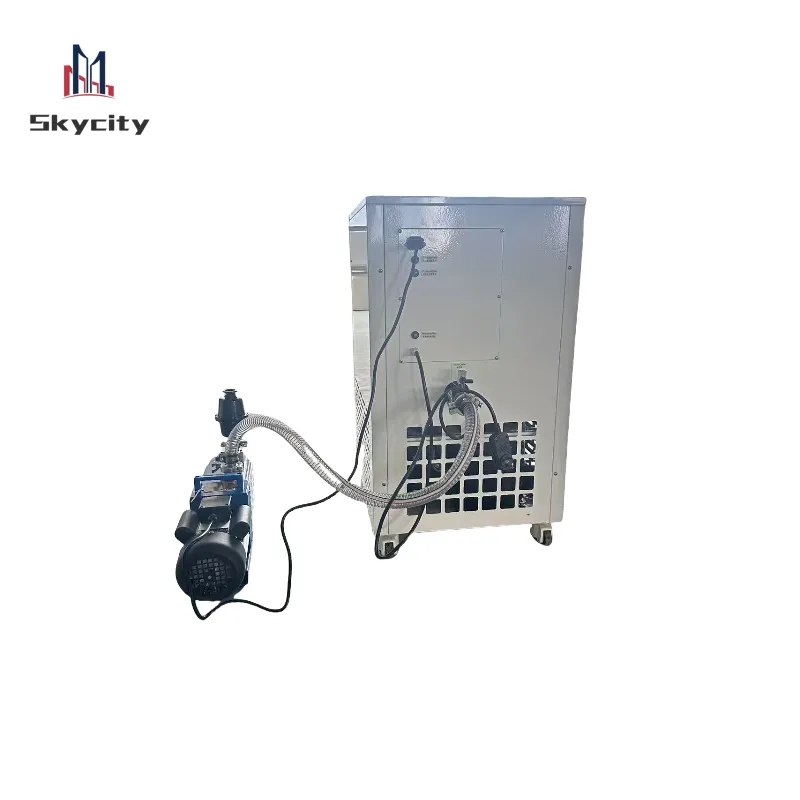

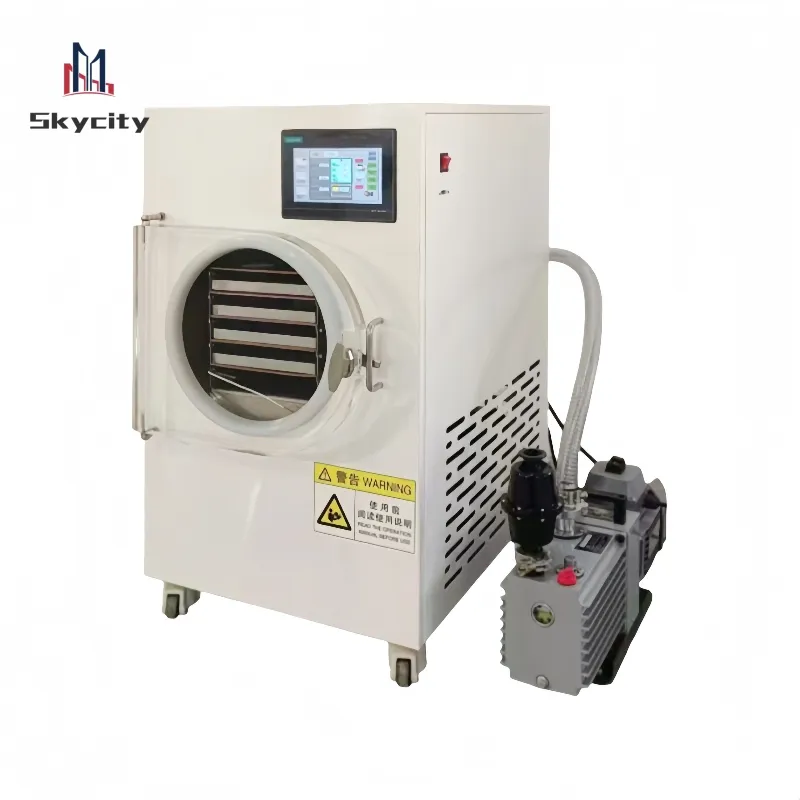

Detailed Photos

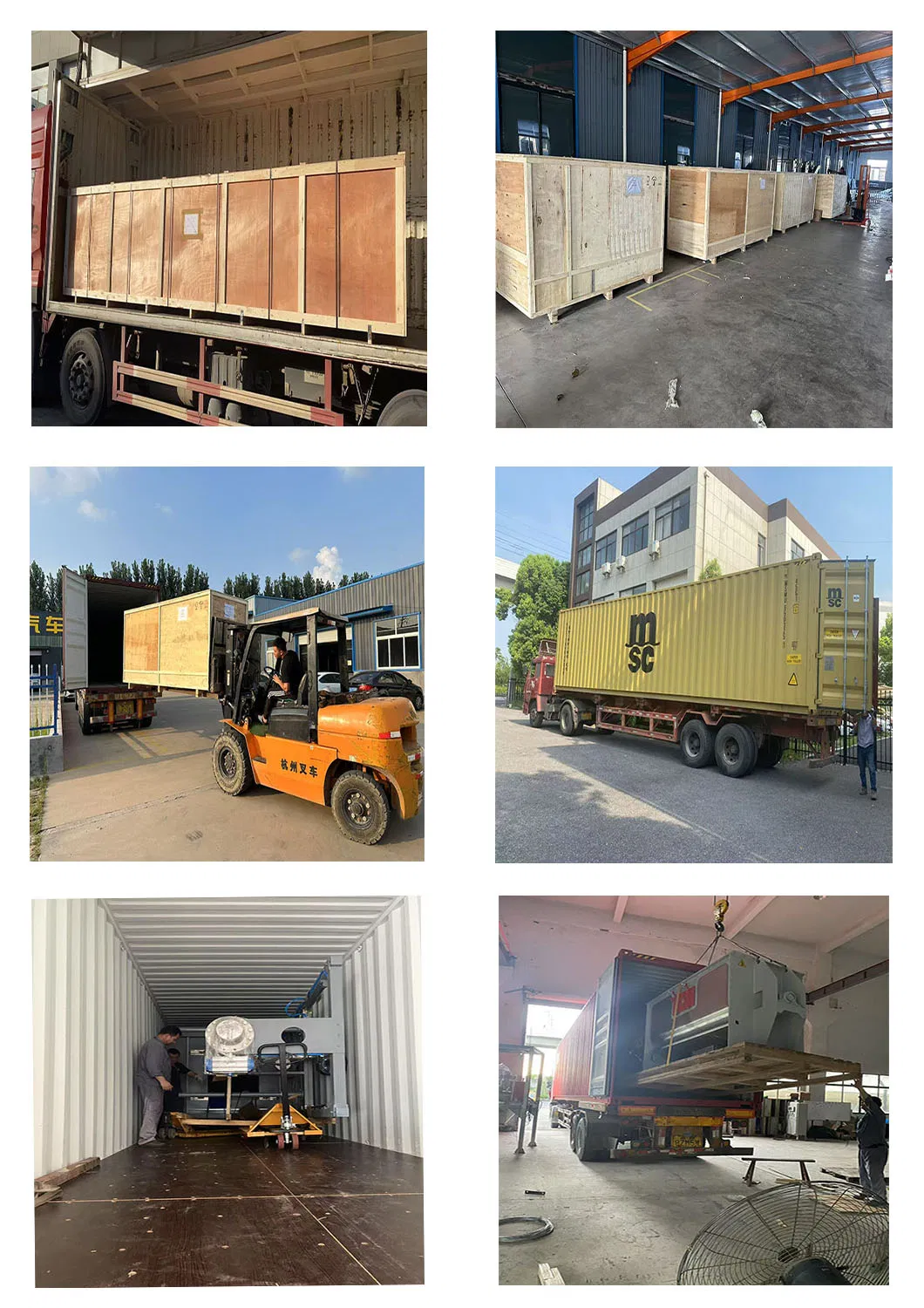

Packaging & Shipping

Our Advantages

Professional export-oriented enterprise dedicated to food processing machinery. Our products are widely used in central kitchens and food processing plants, providing users with technical support to achieve cost savings and maximize equipment utilization.

Frequently Asked Questions

What materials can be processed with this freeze dryer?

The machine is suitable for food, fruits, vegetables, pet food, coffee, medicine, herbs, and biological products.

Does it require a separate freezer for pre-freezing?

No, this is an integrated machine where raw materials can be pre-frozen directly inside the freeze-drying chamber.

What brands of compressors are used?

We use internationally recognized brands such as Panasonic, Danfoss (SECOP), Tecumseh, and Embraco.

Can I monitor the process remotely?

Yes, the 7-inch touch screen control system supports mobile app remote monitoring functions.

How is the data handled?

Freeze-dried data is automatically saved to prevent loss and can be exported via USB for further analysis.

What is the vacuum degree performance?

The equipment maintains a high vacuum degree between 1pa and 20pa under no-load conditions.
