📋 Basic Info.
Machining Process
Hydraulic
Vertical Conveying Distance
20-30m
Horizontal Conveying Distance
80-100m
Delivery Pipe Diameter
80-100mm
Overall Machine Weight
600kg
Unique Selling Point
High Power Engine

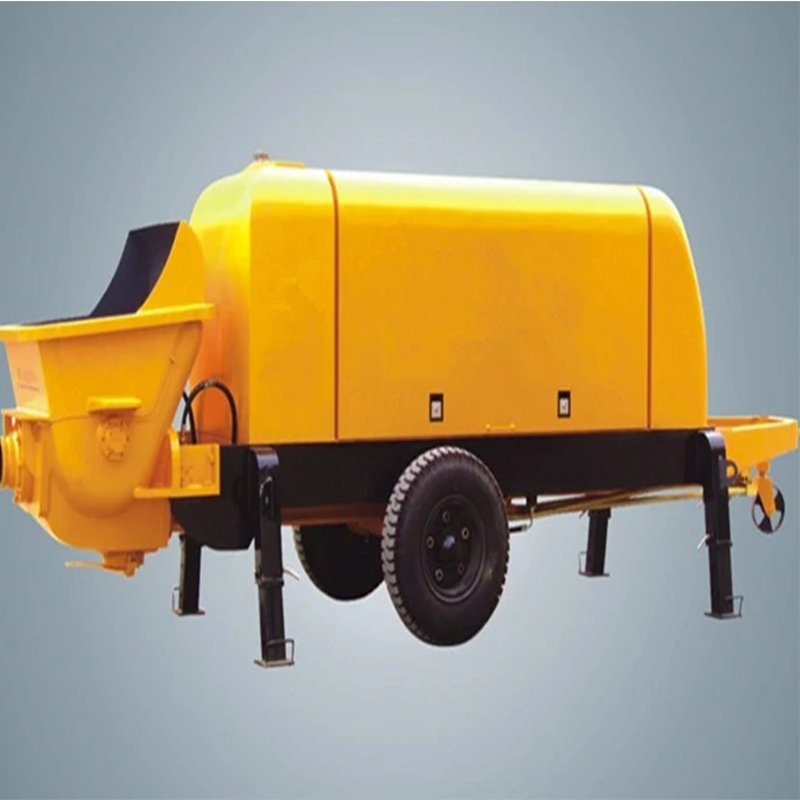

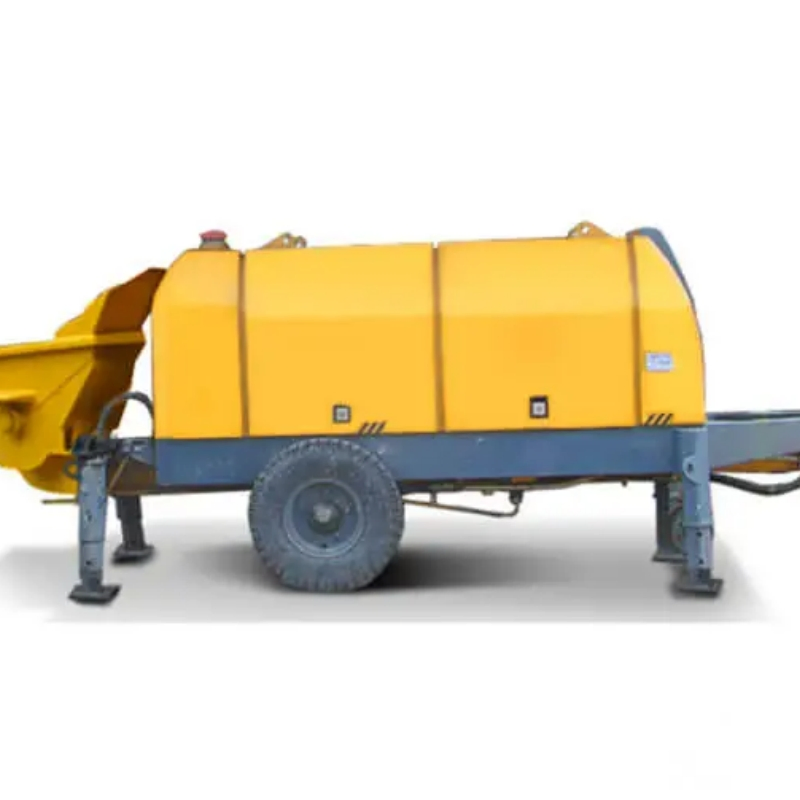

💡 Product Overview

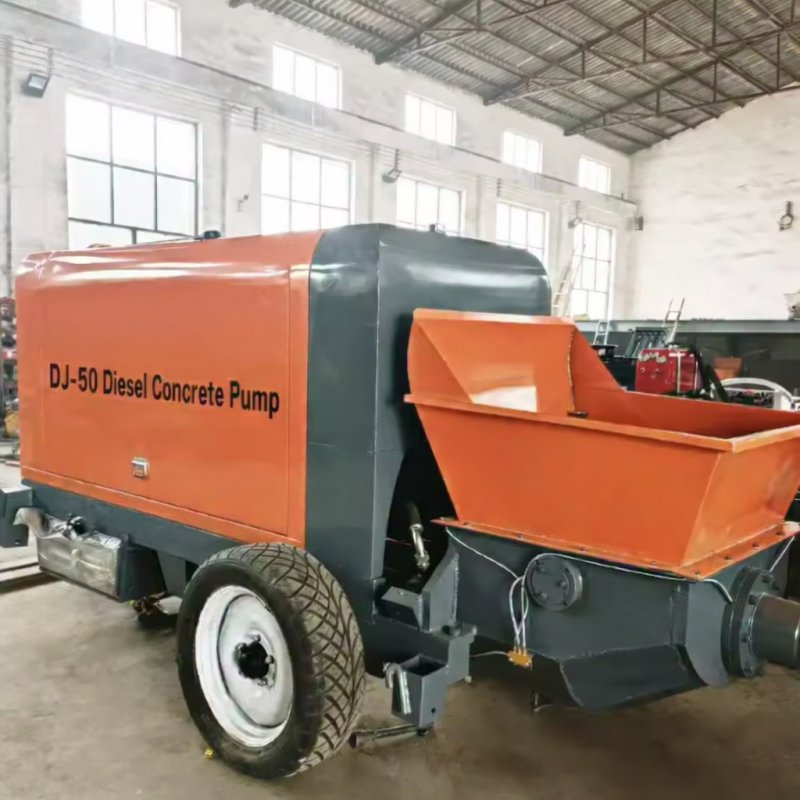

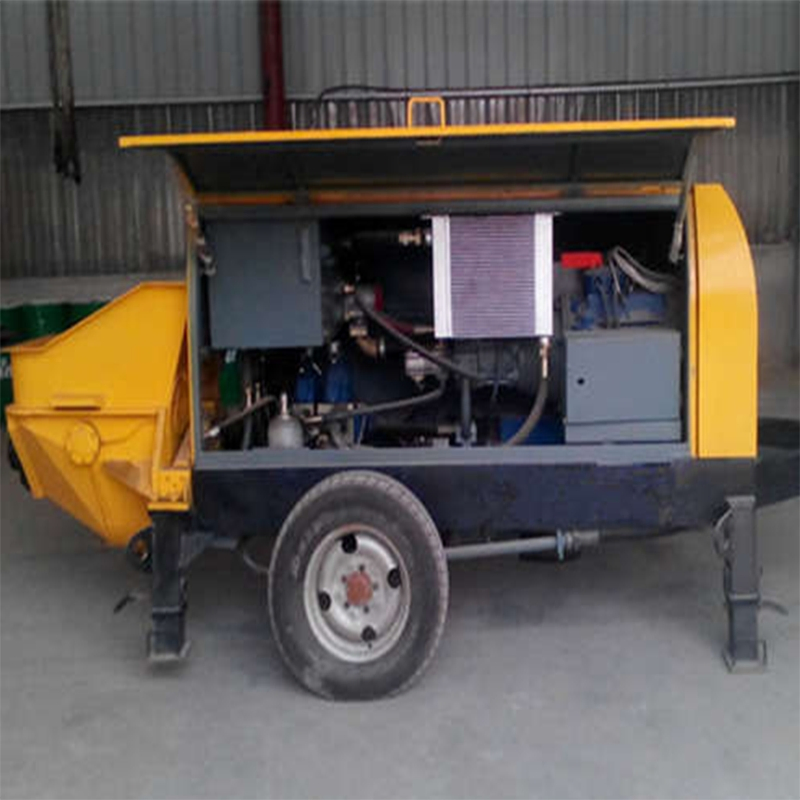

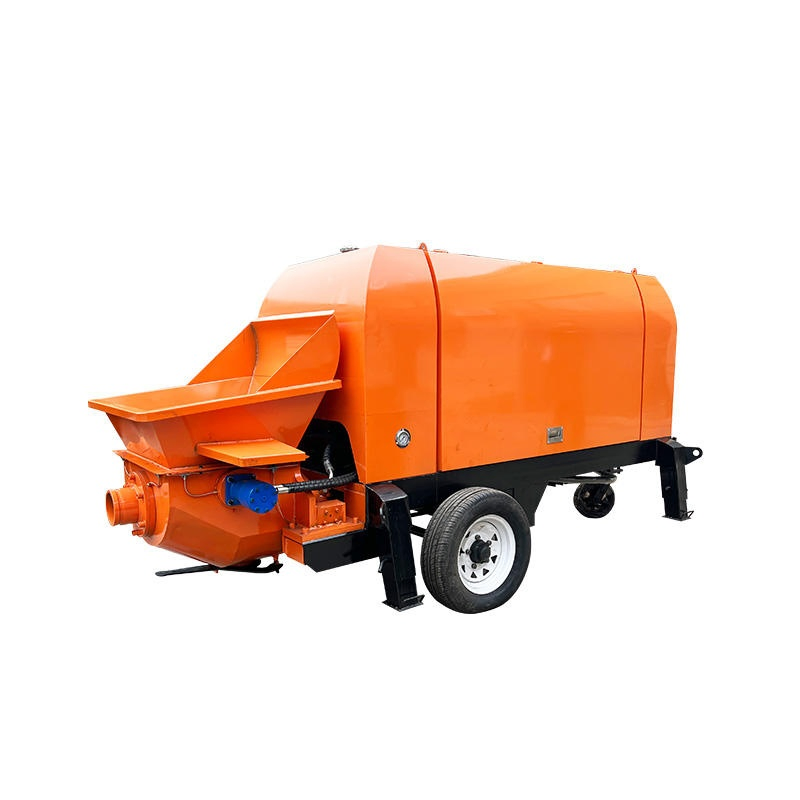

Concrete pumps, also known as secondary structural column pouring pumps, are specifically designed for transporting fine stone concrete in high-rise buildings and constrained construction environments. These compact units are high-tech solutions for narrow spaces where traditional equipment fails to meet construction progress requirements.
Primarily utilized in house construction, bridges, and tunnels, the system features a dual-pump, dual-circuit open hydraulic design. This enhances component longevity, ensures high reliability, and simplifies fault diagnostics.

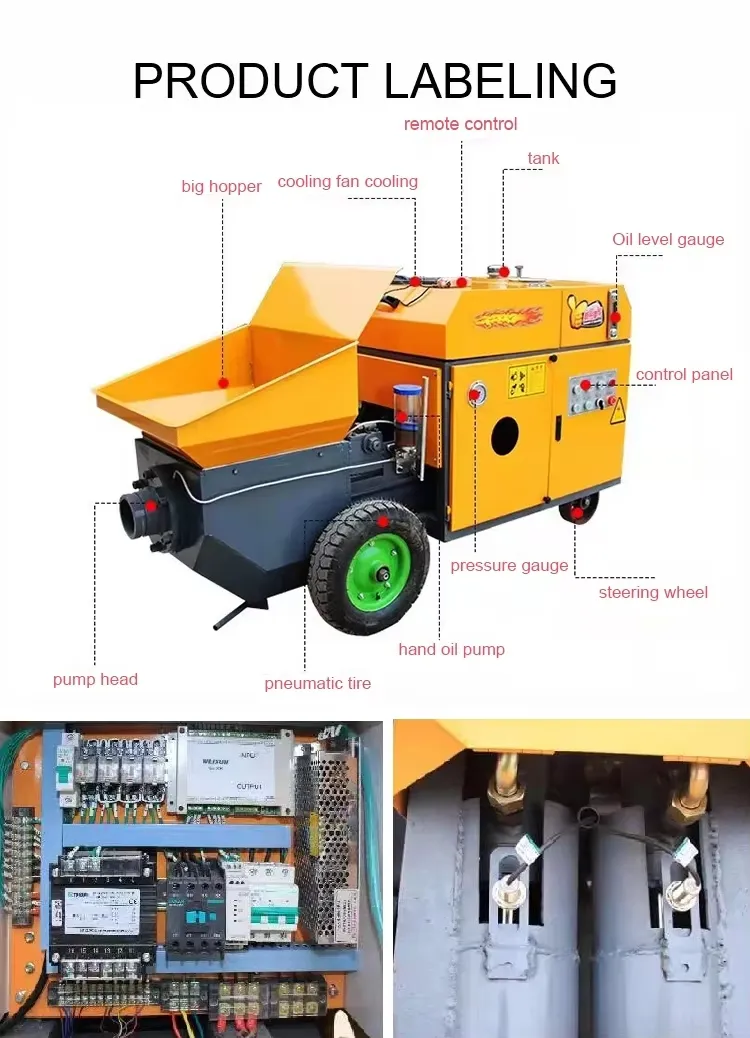

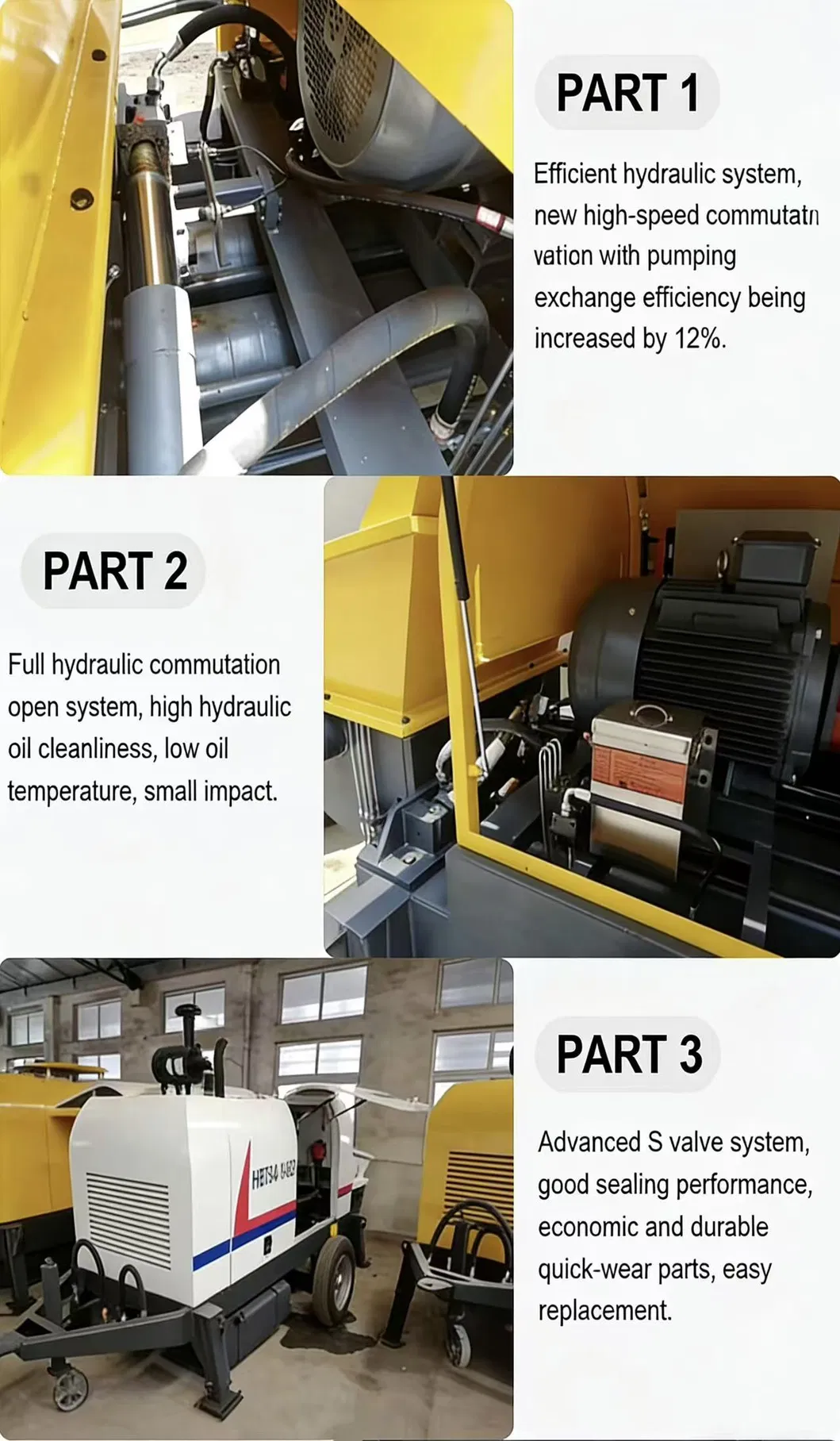

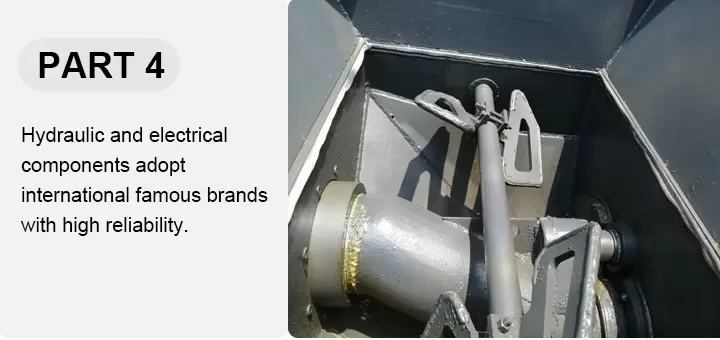

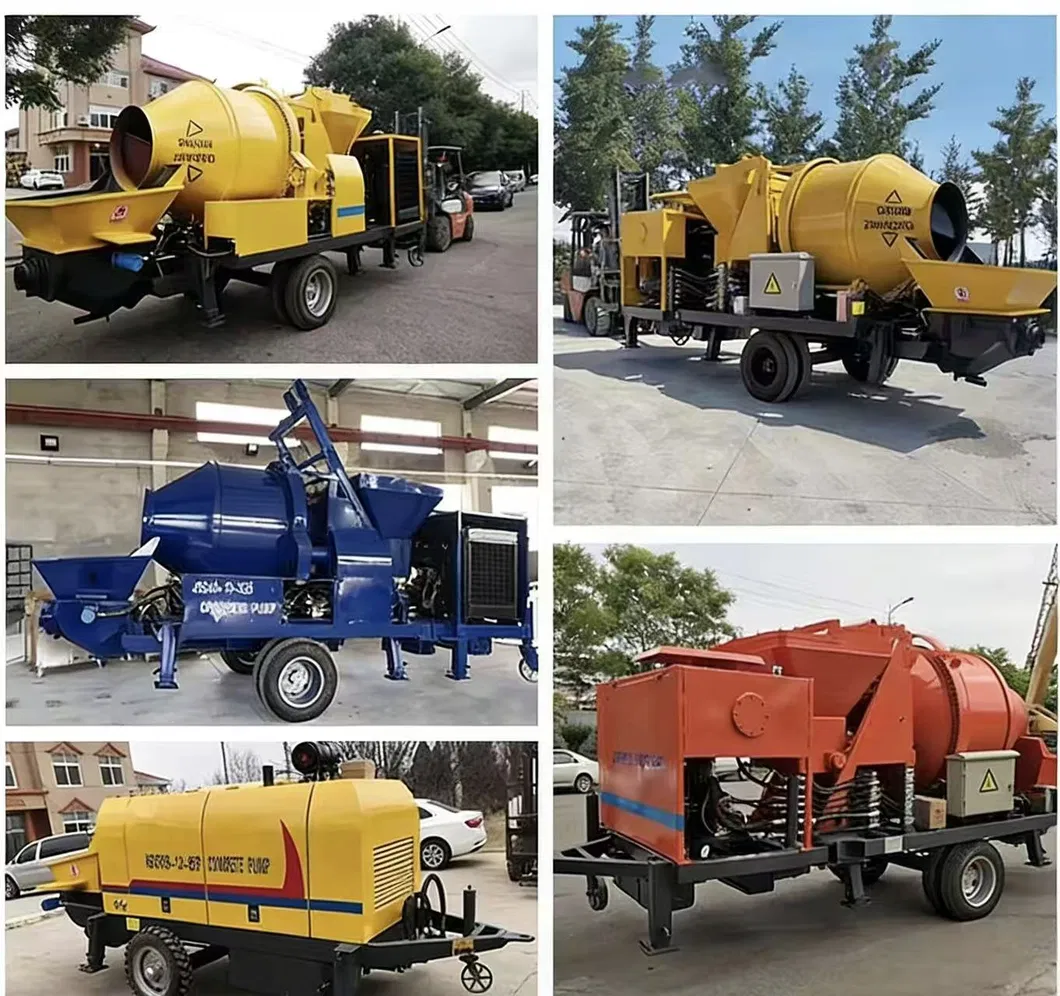

⚙️ Product Structure & Configuration
📊 Product Specifications
| Model |
DJ-10 |
DJ-20 |
DJ-30 |
DJ-40 |
| Motor power |
15KW |
22kw |
37kw |
45kw |
| Work efficiency |
8-10m³/h |
8-12m³/h |
13-15m³/h |
20-25m³/h |
| Work pressure |
10mpa |
15mpa |
20mpa |
23mpa |
| Aggregate size |
0-3cm |
0-2cm |
0-3cm |
0-4cm |
| Vertical distance |
20-30m |
40-50m |
20-60m |
30-130m |
| Horizontal distance |
50-80m |
80-100m |
50-150m |
50-350m |
| Machine weight |
600kg |
900kg |
1500-2000kg |
2200kg |
📦 Shipping & Packaging
🛠️ Our Services
✓ Minimized Downtime: Quick response times to address design, production, and export needs.
✓ Expert Technical Guidance: Access to skilled specialists for real-time assistance and solutions.
✓ Peace of Mind: Reliable support ensuring your project is well-maintained and efficiently managed.

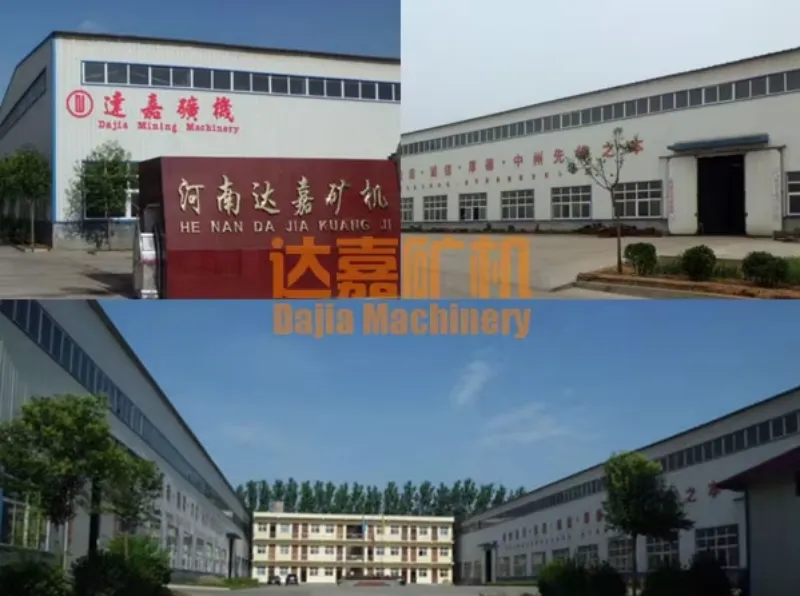

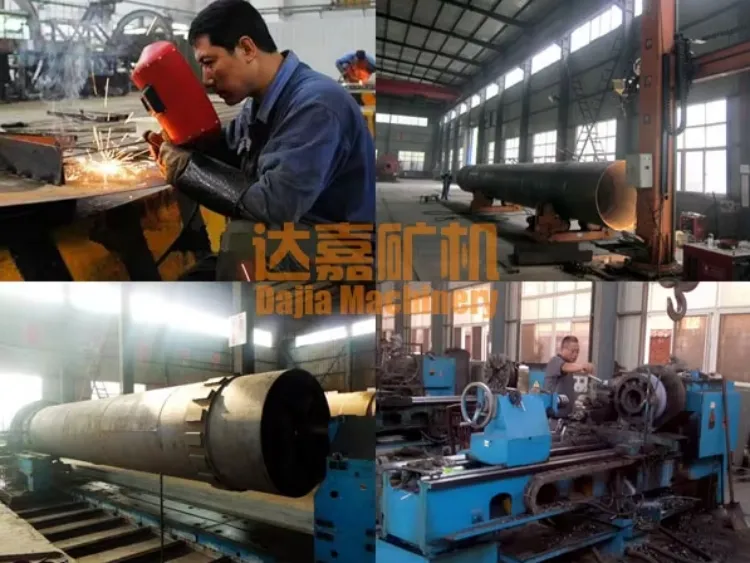

🏢 Facility & Production
❓ FAQ
1. Are you a trading company or a manufacturer?
We are an original equipment manufacturer.
2. How long is the delivery time?
It depends on the model and quantity. Generally, it takes 3-5 days if machines are in stock, and 15-30 days for customized orders.
3. Do you provide samples?
Yes, we can offer a sample machine, but it is not free. You will need to pay for the sample and the freight cost.
4. What are your terms of payment?
We accept T/T, Western Union, Money Gram, and Paypal. For amounts ≤ USD 10,000, 100% in advance. For amounts > USD 10,000, 50% T/T in advance with the balance due before shipment.
5. What materials can these pumps handle?
They are designed for transporting fine stone concrete, ideally suited for aggregate sizes ranging from 0-4cm depending on the specific model.
6. Is technical support available for international clients?
Yes, we provide both remote and site-based technical support through our team of skilled specialists to ensure operation runs smoothly.
