Overview
Usage
Food, Blood, Medicine, Fruits, Vegetables, Meat, etc
Certification
RoHS, UR, ISO, CE, CCC
Production Capacity
50000/Month

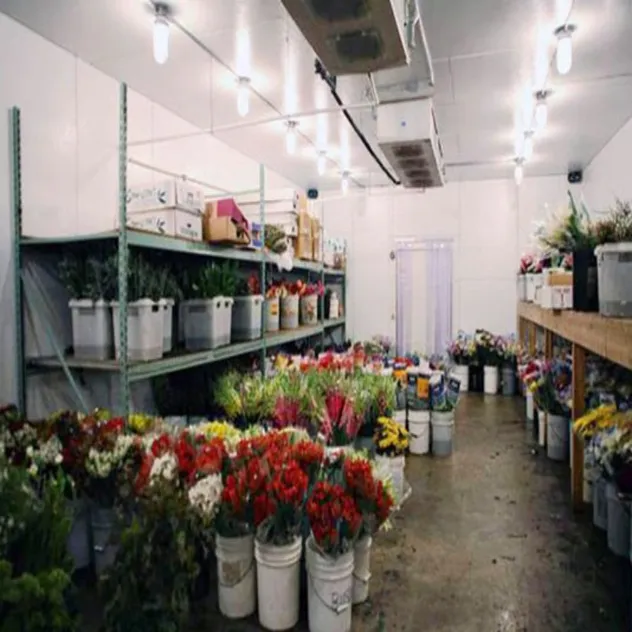

Fruit, Vegetable, Flower Cold Storage
0ºC~+5ºC is mainly used to store fruits and vegetables, eggs, medicinal materials fresh and dry. Food can be kept as fresh as possible. For meat and aquatic products, -15ºC~-25ºC storage is utilized.
Specification
Applications & Features
- Chilled Storage (0°C to 4°C): Short-term preservation for fresh seafood.
- Frozen Storage (-18°C to -30°C): Long-term storage using blast freezers.
- Advanced Technology: Individual Quick Freezing (IQF) and Controlled Atmosphere (CA).
- Hygiene: Stainless steel surfaces and antimicrobial coatings meeting international standards.
| Different Types of Cold Room Parameters |
| Cooler Room |
-5~5 ºC |
Fruits, vegetables, milk, cheese |
75mm, 100mm panels |
| Freezer Room |
-18~-25 ºC |
Frozen meat, fish, seafood, ice cream |
120mm, 150mm panels |
| Blast Room |
-30~-40 ºC |
Fresh fish, meat, fast freezer |
150mm, 180mm, 200mm panels |

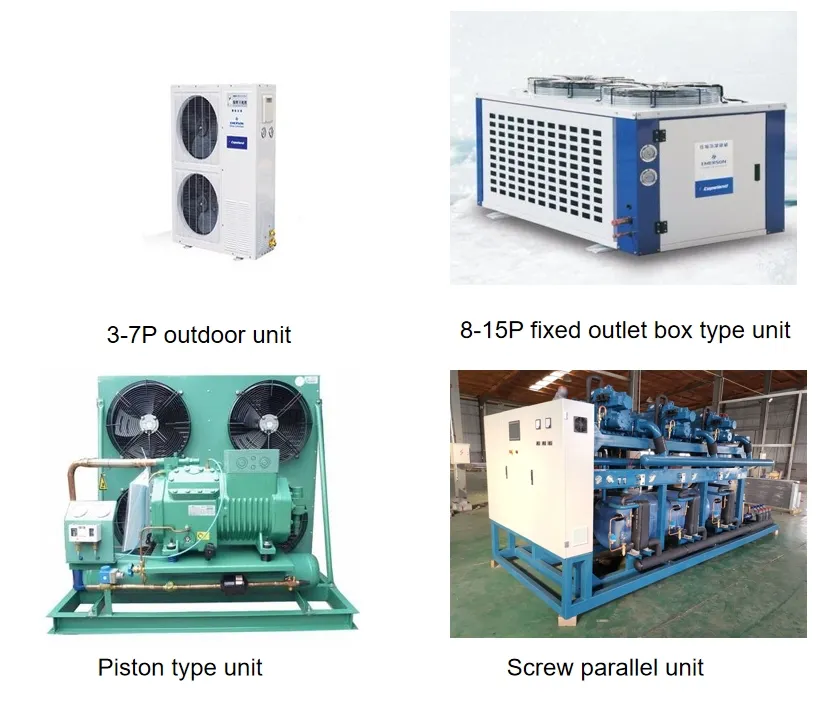

Condensation Cooling Device
Compressors:
Semi-enclosed or screw type, 2HP-50HP. Air or water cooled.

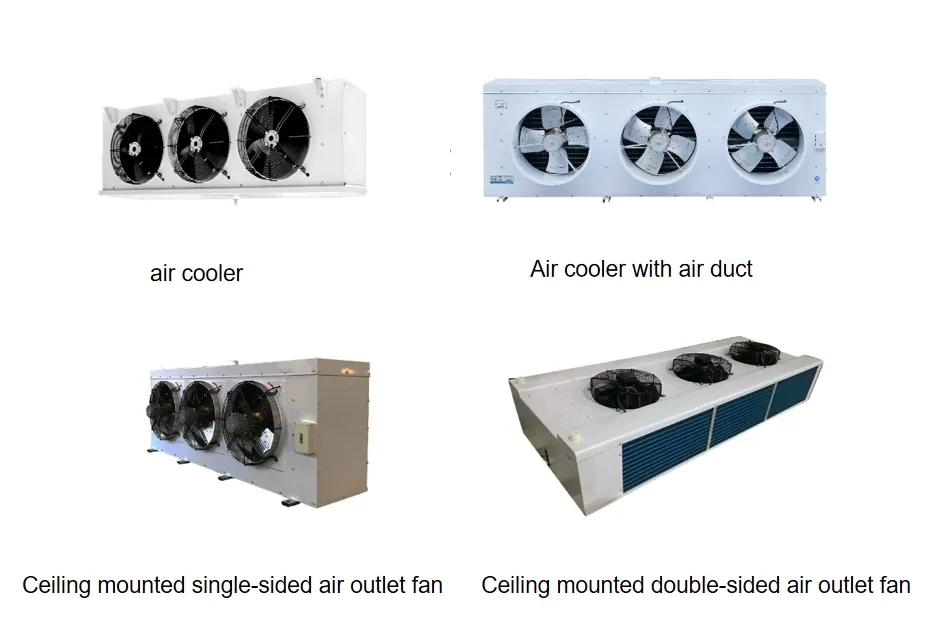

Evaporators:
DL, DD, and DJ types for various temperature requirements.
Certifications
Frequently Asked Questions
What panel thicknesses are available for selection?
We provide various thicknesses including 50mm, 75mm, 100mm, 120mm, 150mm, and 200mm to suit different temperature requirements.
What materials are used for the panel surfaces?
Surface materials include PPGI (Color steel), SS304 Stainless Steel, and aluminum sheets.
Do you provide a complete set for the cold room?

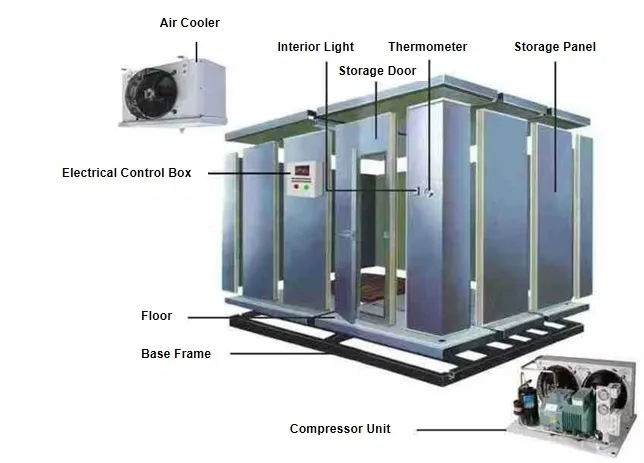

Yes, we provide a full solution including condensing units, evaporators, panels, and all necessary fittings.
Can the cold room size be customized?
Absolutely. We offer OEM & ODM services to customize the dimensions according to your specific project needs.
What is the standard warranty period for your products?
Our standard warranty is 12 months, during which we provide 24-hour online technical support and free spare parts for any verified issues.
Which refrigerants are compatible with your systems?
Our systems typically use R404A, R22, or R410A depending on the cooling requirements and local regulations.
