📦 Basic Information
Structure
Single-stage Pump
Type
Mini DC Brushless Pumps 12V
Lifetime
20000-25000 hours
🌟 Core Advantages
- Double certified enterprise by German TUV IATF16949 & ISO9001.
- 16 years of industry experience with multiple invention patents.
- Annual production capacity of 3,008,000 pieces.
- 4 laboratories meeting CNAS certification standards.
- 80% of products exported to high-end European and American markets.

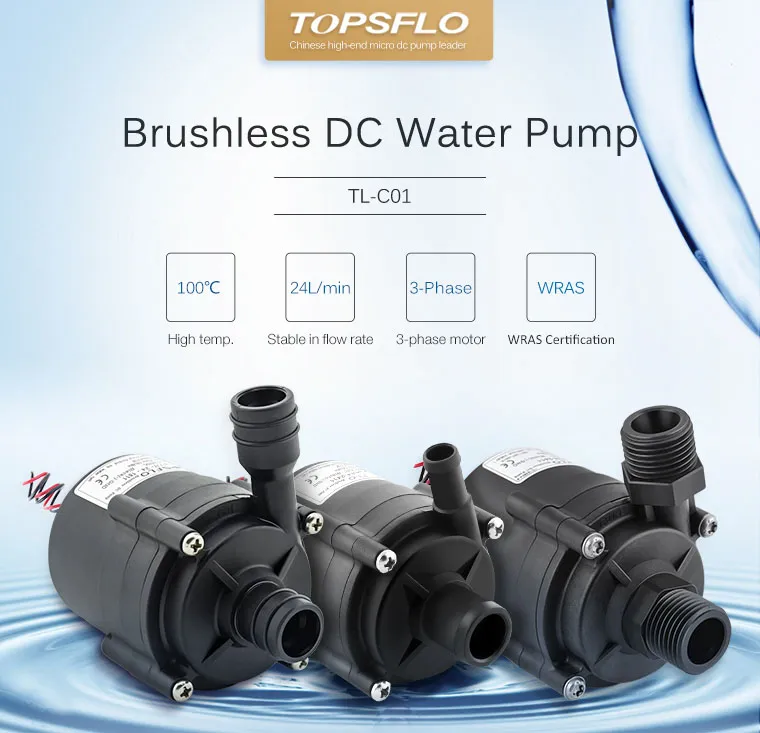

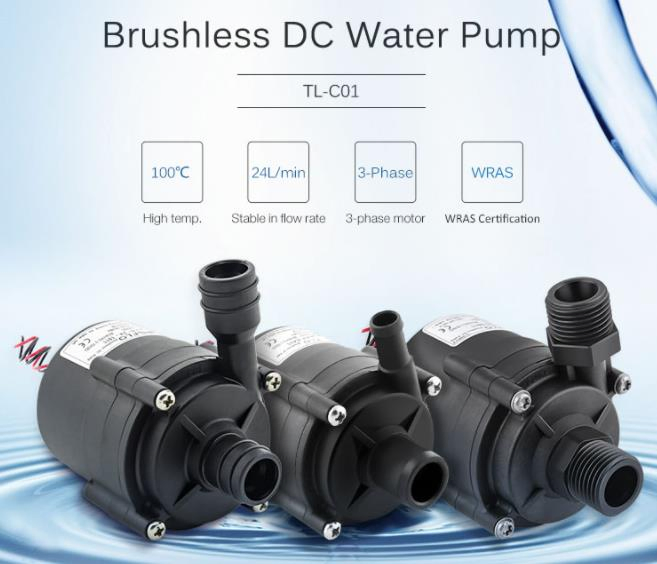

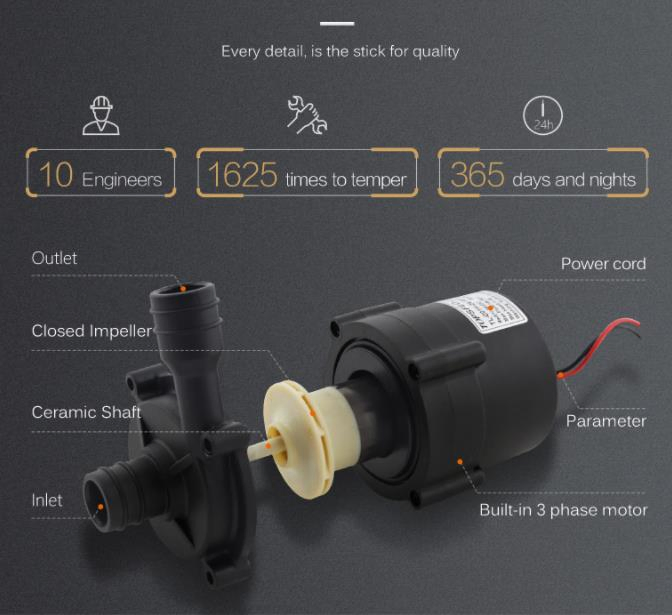

📸 Product Display
🛠️ Technical Features
- Advanced magnetic driving technology for static-seal, no leakage forever.
- Heavy duty work, sustains continuous 24 hours operation.

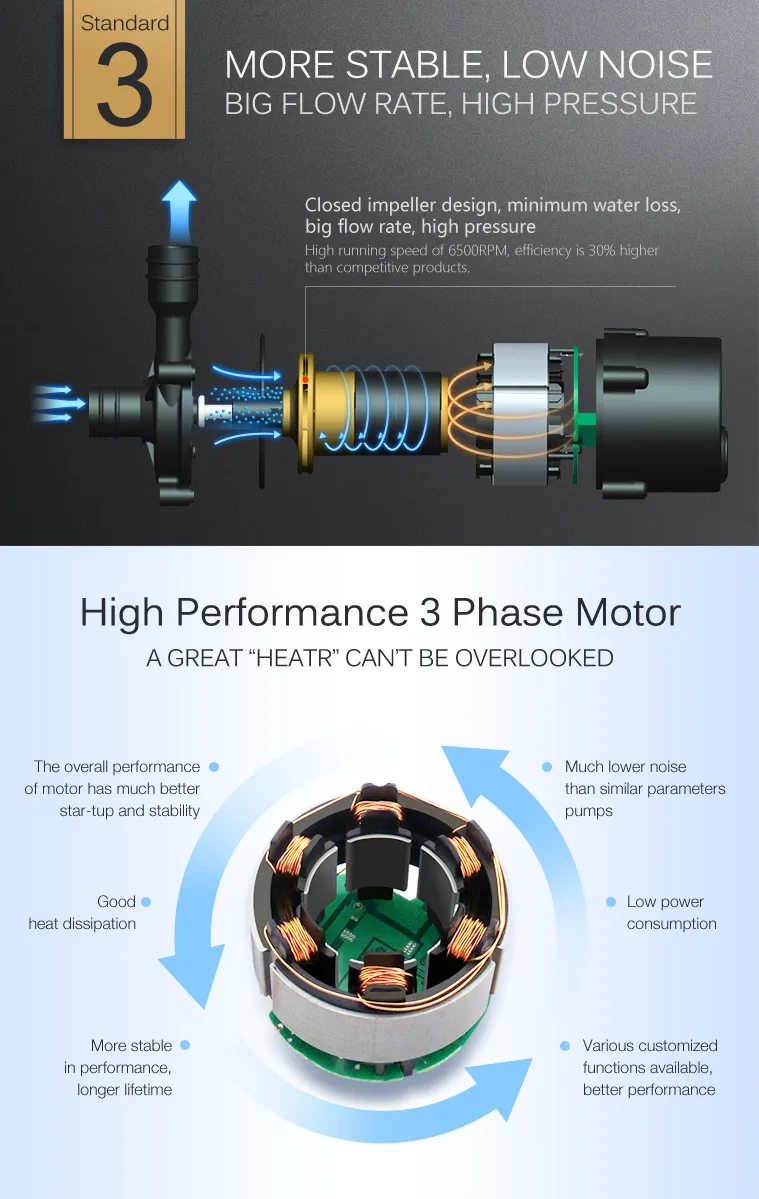

- High efficiency ECM brushless DC motor.
- 3-phase motor for lower power consumption and heat.
- Japan XYRON PPE material, certificated by WRAS.
- Food grade materials available for liquid temperature ≥100°C.
📊 Specifications Data
| Model |
Max Flow (L/Min) |
Voltage (DC) |
Current (A) |
Max Head (M) |
Power (W) |
| TL-C01-A12 | 17-20 | 12V | 2.0-2.8 | 6-8 | 24-33.6 |
| TL-C01-B24 | 18-22 | 24V | 1.33-2.0 | 8-11 | 31.9-48 |
Customized Functions: PWM/0-5V Speed Control, Submersible Capability, Solar Panel Direct Drive, FG (RPM) Signal Wire.
🚀 Main Applications
- Electronics Cooling Water Circulation & Chiller Systems.
- Hot water circulating systems and instant electric water heaters.
- Food and beverage processing, vending machines.
- Electric vehicle radiators and heaters.
- Purification and water treatment equipment.
❓ Frequently Asked Questions
1. Can this pump run continuously for 24 hours?
Yes, the TL-C01 series is designed for heavy-duty work and can sustain continuous 24-hour operation thanks to its advanced brushless DC motor technology.
2. Is the pump safe for food and beverage applications?
Absolutely. The pump is constructed with food-grade materials and uses imported Japan XYRON PPE material, which is WRAS certified.
3. What is the expected lifetime of the TL-C01 pump?
The pump features a high-efficiency ECM brushless motor that provides a long service life of approximately 20,000 to 25,000 hours.
4. Does the pump support speed control?
Yes, we offer customized functions including PWM and 0~5V speed control to meet specific application requirements.
5. Can the pump be driven directly by solar panels?
Yes, one of our customized options allows the pump to be driven directly by solar panels, making it ideal for irrigation and solar circulating systems.
6. Is this pump self-priming?
No, this is a centrifugal pump and is not self-priming. It should not be run dry to avoid damage to the internal components.
