Basic Information
Multiple Sizes
10FT / 20FT / 40FT
Transport Package
Wooden Box

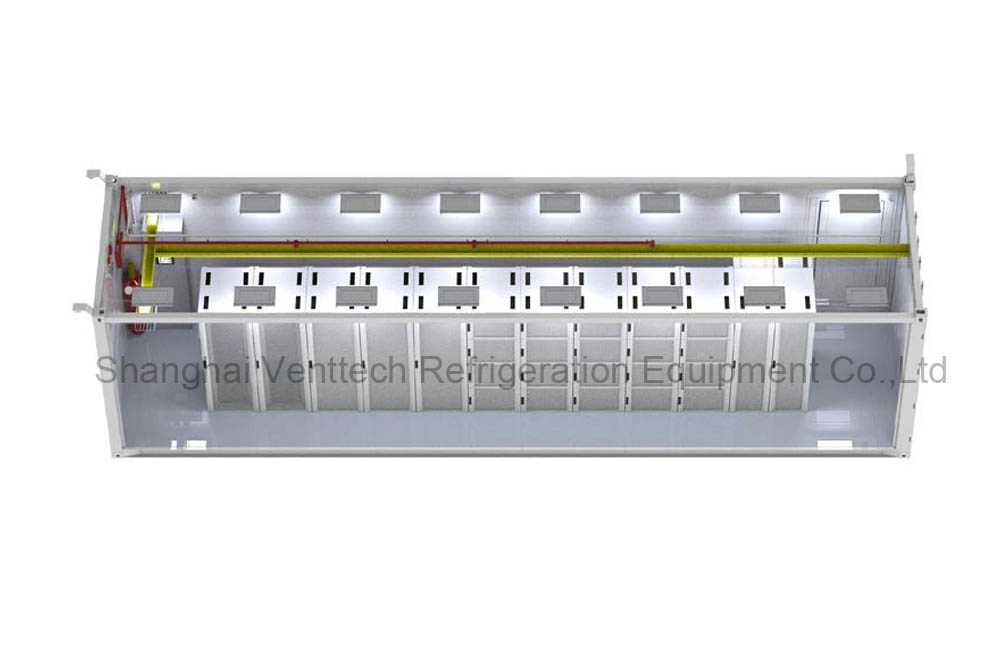

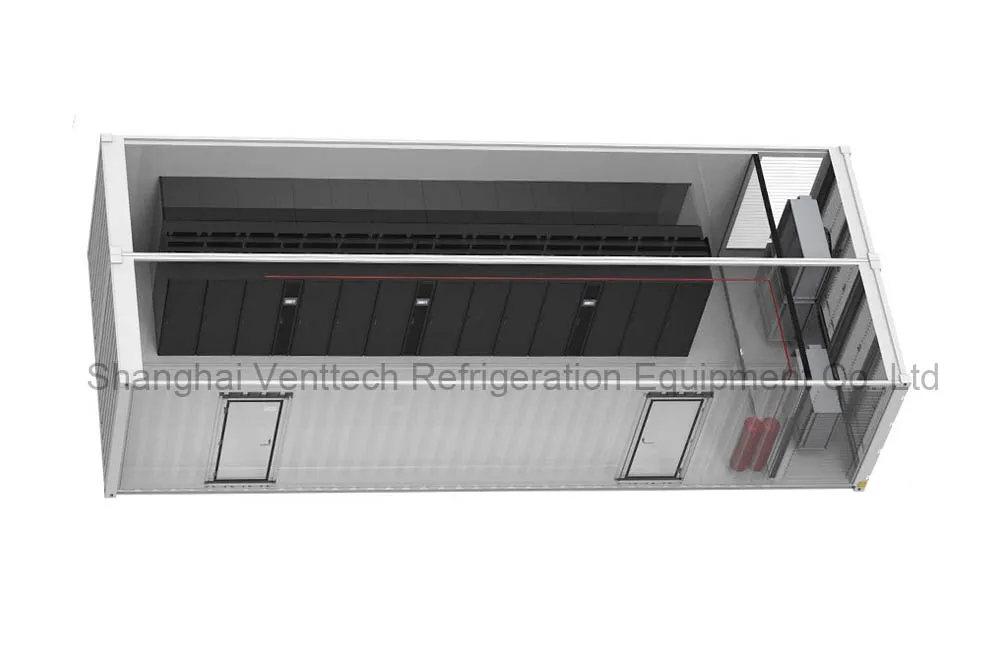

Container Data Center Introduction

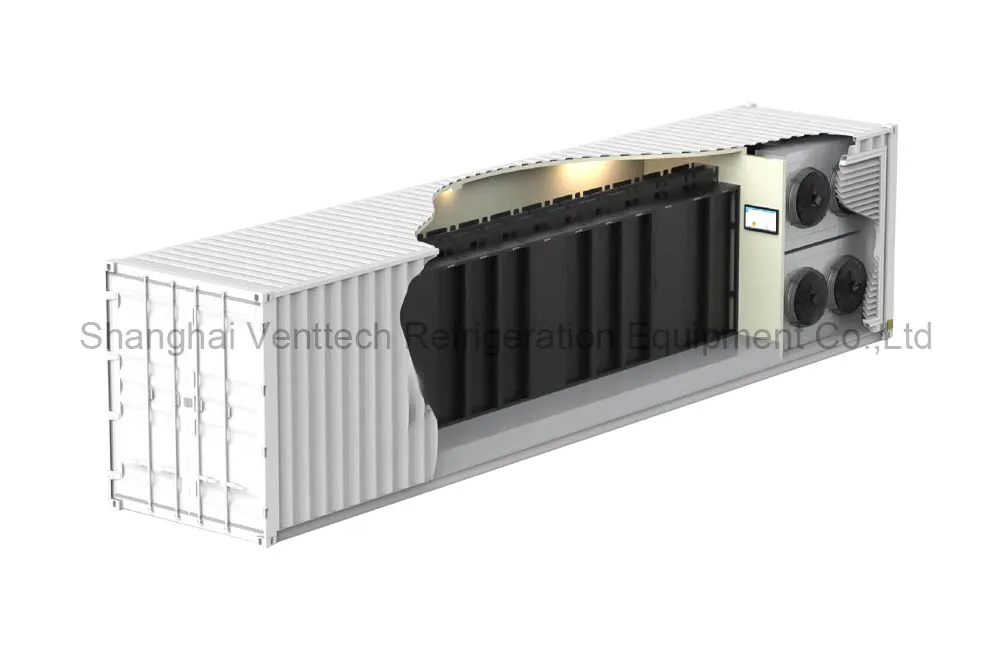

The container data center solution adopts a prefabricated model, using the container as the shell to house the data center. Key infrastructure such as IT racks, UPS, precision air conditioning, power distribution, monitoring, and wiring are pre-integrated in the factory, offering one-stop delivery. This simplifies on-site engineering and enables rapid business deployment.
It supports deep customization for clients and is suitable for various specific application scenarios.
Key Features
Tailored Customization
With professional research, development, and manufacturing capabilities, we provide customized container data centers including system availability, protection capabilities, container size, cooling types, and other special requirements.
Rapid Deployment
Pre-integrated with all necessary infrastructure. All components are tested and configured in the factory, allowing for simple installation on-site with delivery as fast as 40 days.
Safe and Reliable
Meets IP55 protection level (customizable to IP65). Features corrosion resistance, fire resistance, and explosion-proof capabilities. Equipped with fire protection and video surveillance.
Continuous Operation
High availability power distribution and cooling system designs ensure continuous online operation of client business.

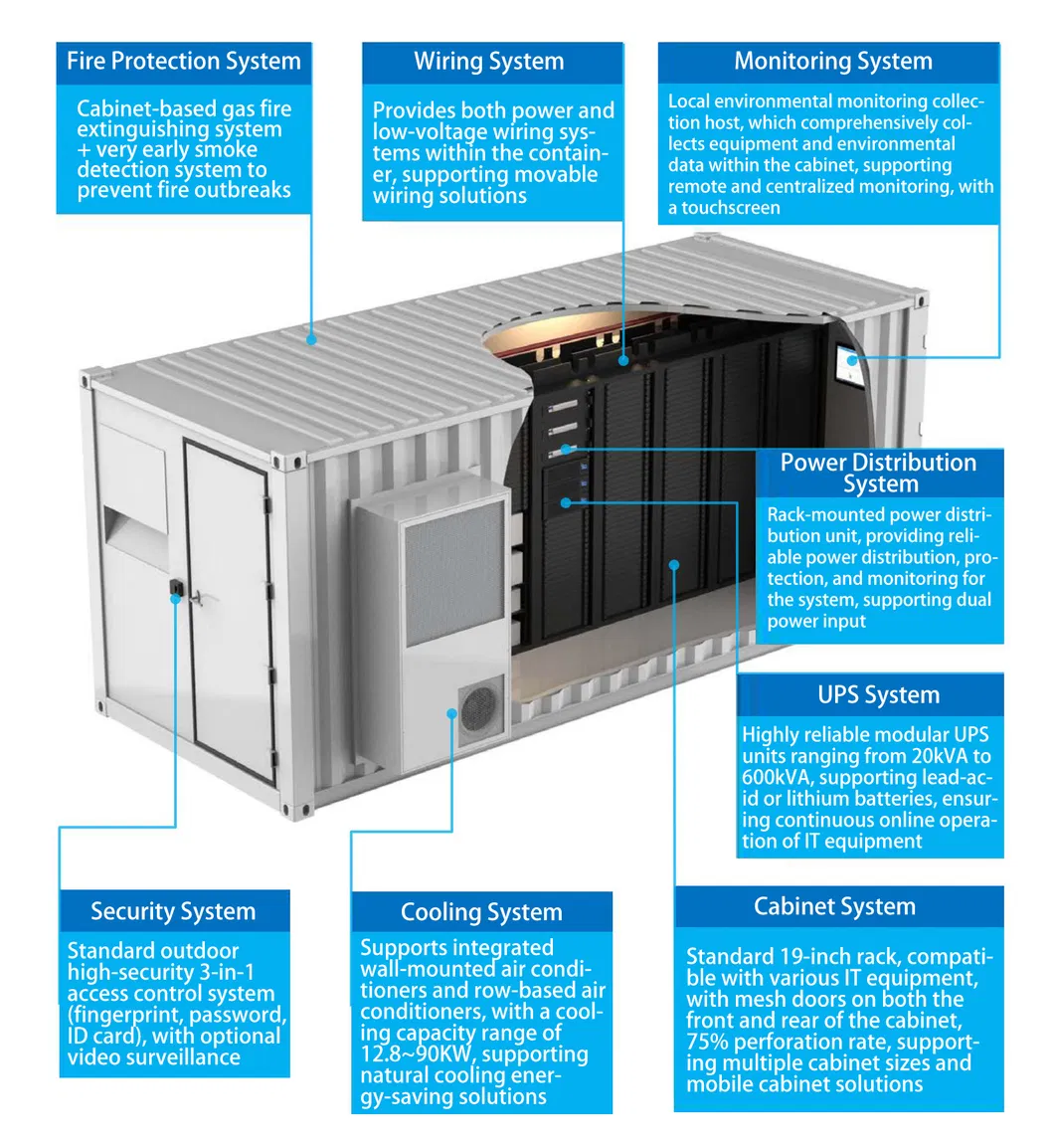

System Components
1. Container Construction
- Build from scratch with ISO container standard.
- Salt spray standard: 750h.
- Thermal protected with rock wool.
- Withstand 30 m/s wind speed under working condition.
- IP55 water/dust protection (C5M High Corrosion options available).
- Operating temperature: -40ºC ~ 55ºC.
2. Precision Cooling System

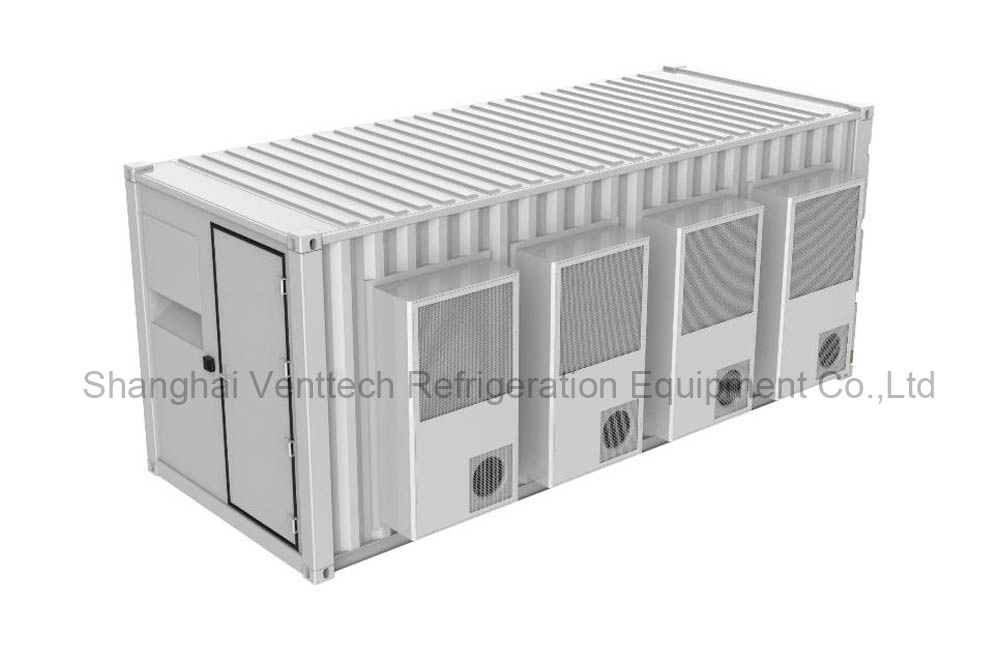

- 5.5-31.5kW wall mount cooling as standard.
- 5.6-90kW Inrow cooling options.
- 5.5-122.9kW Room cooling options.
- All types of free cooling options.

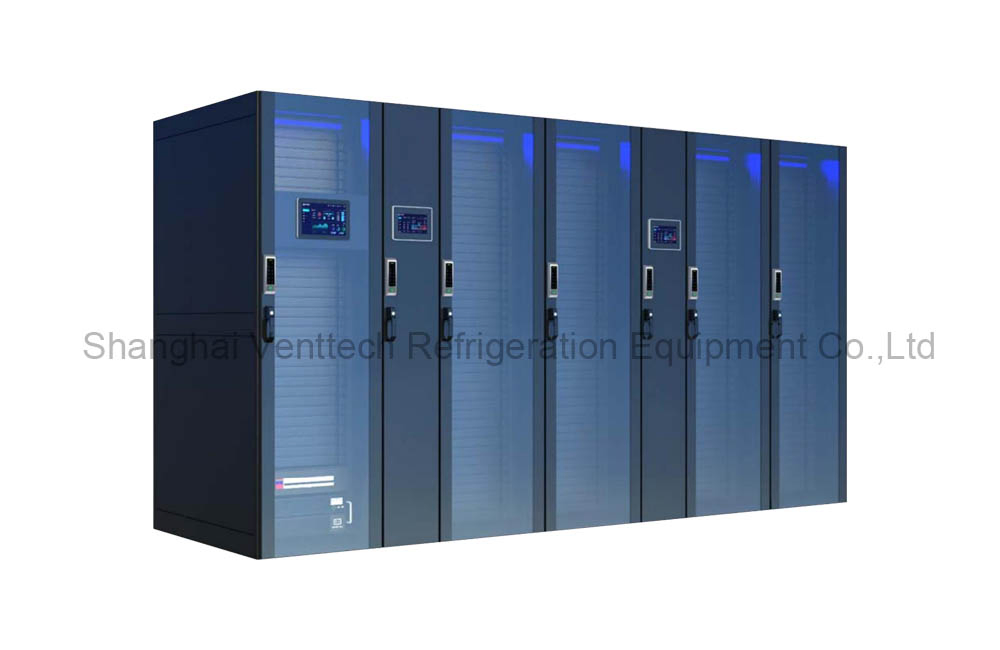

3. IT Rack System
- 1800kg static loading capacity IT racks.
- Various width/depth options (600/800mm, 1100/1200mm).
- Optional with cold/hot aisle containment.
- Sliding in front/rear direction for easier service.
4. UPS Power System
- 3-60kVA rack UPS / 60-600kVA modular UPS options.
- VRLA or Lithium battery configurations.
- Configurable to T1~T4 uptime levels.
5. DCIM & Security Systems
- Full communication to UPS, cooling, and sensors.
- Integrated access control (pin/password/fingerprint).
- Early fire detection (Novec1230/FM200).
- Remote accessible via web, SMS, Email, and Modbus-TCP.
Frequently Asked Questions
What sizes are available for the container data center?
We offer standard ISO sizes including 10FT, 20FT, and 40FT configurations, all of which can be customized based on specific project requirements.
How fast can a container data center be deployed?
Since all components are pre-integrated and tested in the factory, on-site installation is rapid. Delivery can be achieved in as fast as 40 days.
What is the protection level of these containers?
Standard units meet IP55 protection. We also offer customization up to IP65, including C5M high corrosion protection for coastal environments.
Can the cooling system handle extreme temperatures?
Yes, our precision cooling systems are designed to operate efficiently in ambient temperatures ranging from -40ºC to 55ºC.
What fire suppression systems are used?
We integrate early fire detection systems paired with clean agent suppression options like Novec1230 or FM200 for maximum safety.
Is remote monitoring available?
Yes, the integrated DCIM system allows for remote access via Web, SMS, Email, and Modbus-TCP to monitor UPS, cooling, and security sensors.
