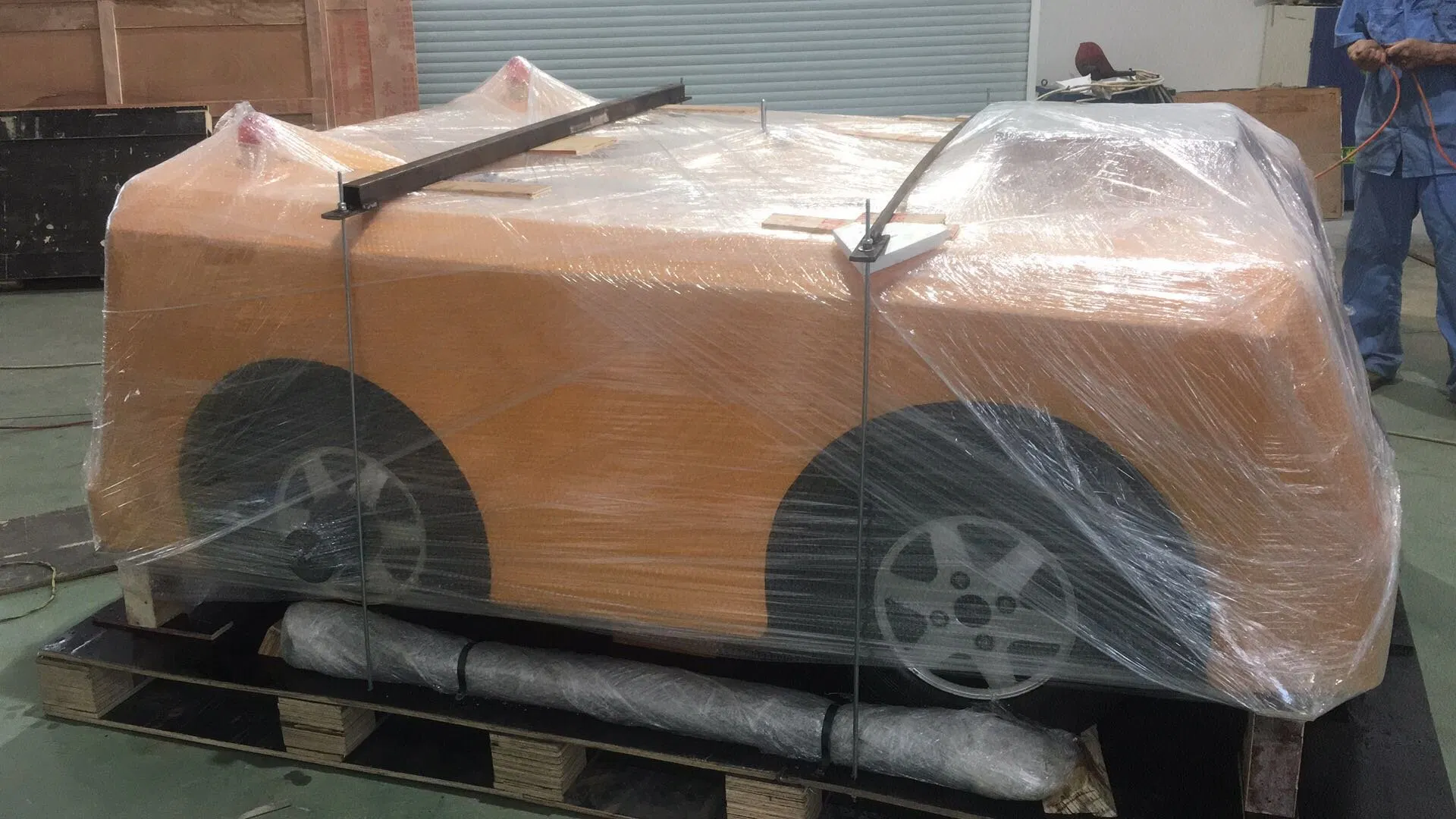

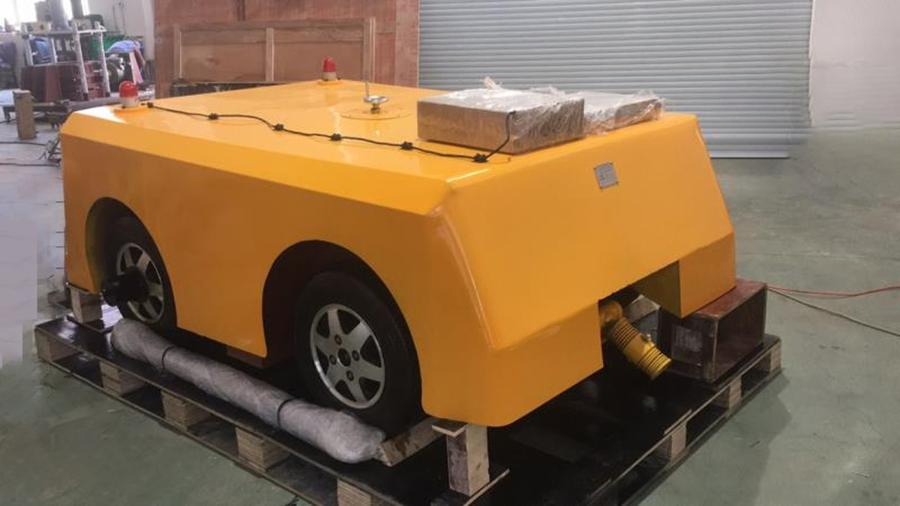

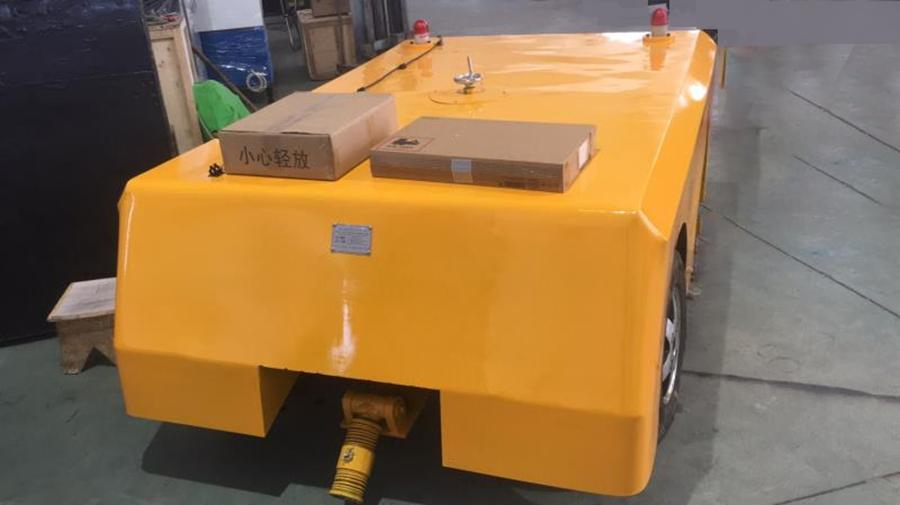

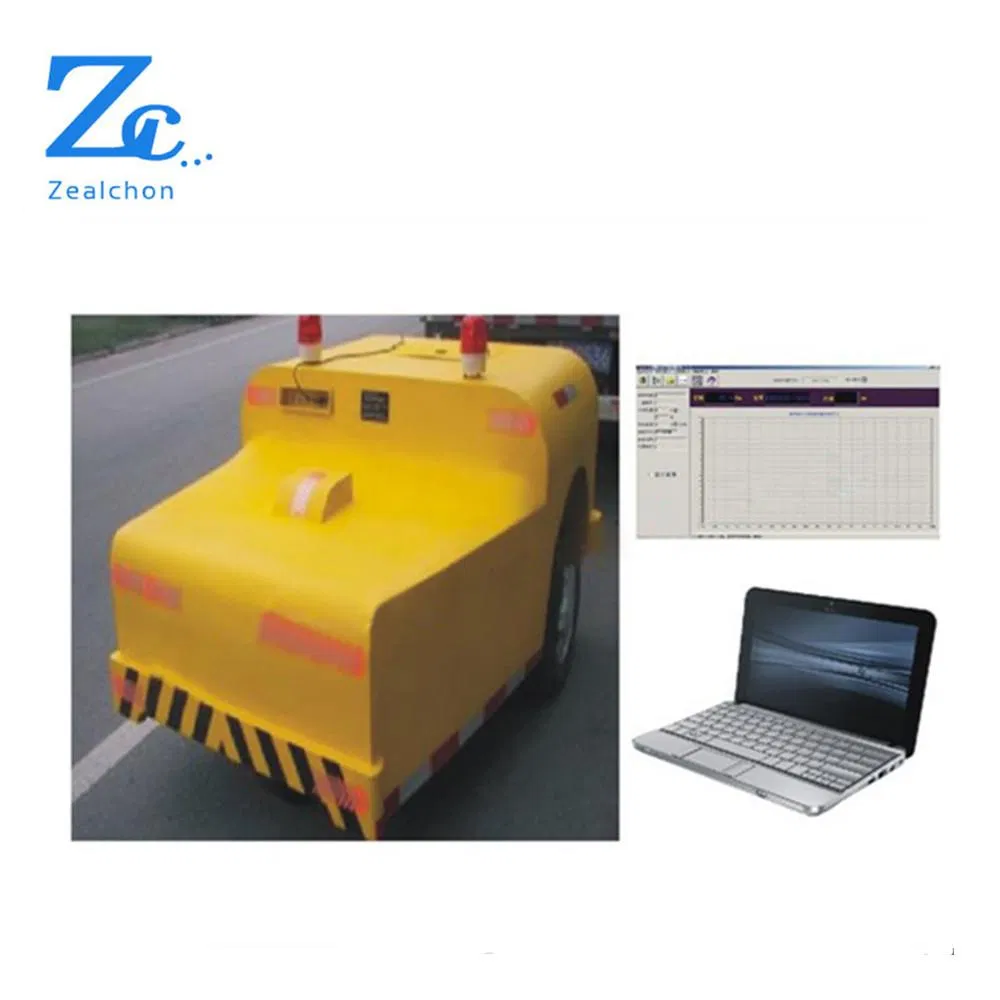

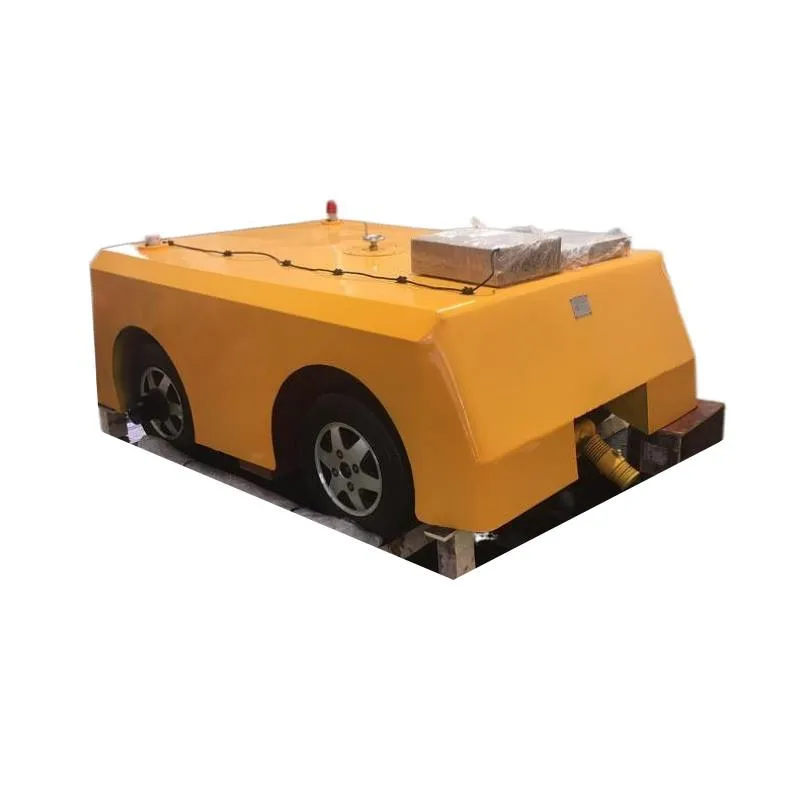

Pavement Monitoring Digital Laser Profiler
Application:
Vehicular laser road surface profilometer for IRI index test is a new type of road testing instrument developed according to National standard T0934-2008. It is designed for quality acceptance of building, rebuilding, and pavement engineering. It accurately detects surface roughness without interference from normal traffic, provided there are no serious potholes or standing water/snow.
Precision can be up to 0.01 mm for measuring surface smoothness. The system supports high-speed data transmission to computers via specialized software for Windows XP, enabling data acquisition, storage, and automated report generation with waveform figures.
Technical Parameters & Performance
- Measurable Indicators: International Roughness Index (IRI), Flatness sigma.
- Output: Data curves, original data, and classification reports.
- Detection Speed: 20 km/h - 100 km/h.
- Sampling Interval: Minimum 10 mm.
- Operating Temperature: 0 ºC to 50 ºC.
Manufacturing & Quality
With more than 15 years of civil engineering background, we specialize in manufacturing qualitative research and laboratory testing equipment. Our range includes soil, bitumen, cement, and concrete testing instruments used worldwide by government agencies and commercial laboratories.
Service & Support
1. Quality Warranty: 12 months starting from the date of final acceptance.
2. Technical Training: Comprehensive operating manuals provided.
3. After-Sale Service: Includes Internet repair, phone instruction, and on-site repair within 72 hours if necessary.
Frequently Asked Questions (FAQ)
What is the maximum detection speed of the laser profiler?
The device supports a wide detection speed range from 20 km/h up to 100 km/h, suitable for various road conditions.
How accurate is the International Roughness Index (IRI) measurement?
The sensor precision is 0.1 mm, and the system can measure surface smoothness with a precision up to 0.01 mm.
What is the warranty period for this testing equipment?
The standard warranty is 12 months from the date of final acceptance or commissioning of the machine.
Can the data be processed on modern computers?
Yes, the software supports data acquisition, storage, and processing, designed to run on Windows systems to generate reports and waveform figures.
What kind of power supply does the system require?
The system operates on a DC 12 V power supply, making it compatible with most vehicular power systems.
What happens if the equipment needs repair after the warranty expires?
We offer lifelong out-of-warranty service. Customers who maintain their instruments regularly are entitled to preferential prices on replacement components.
