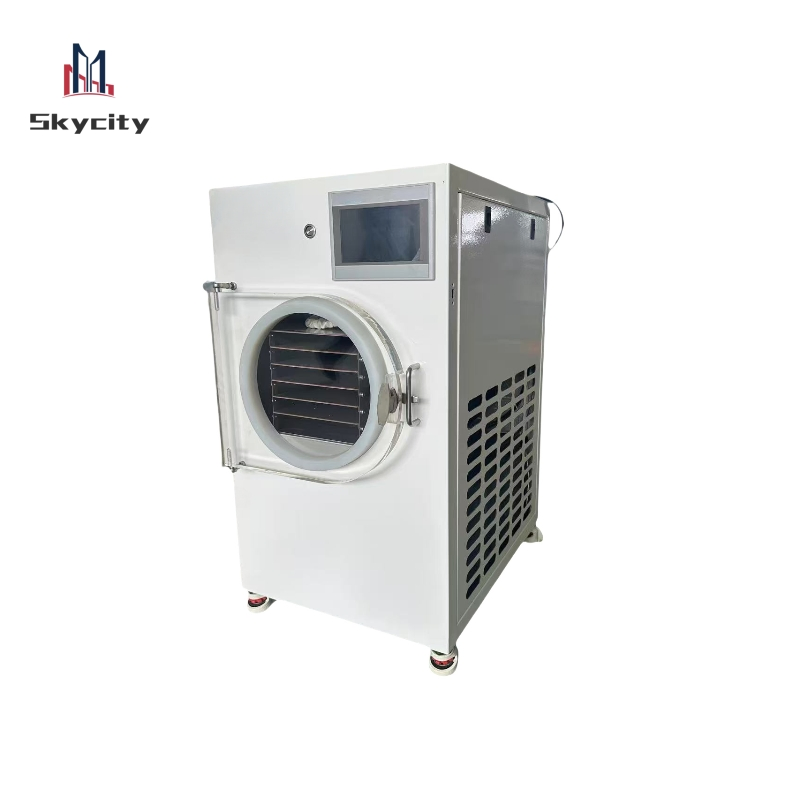

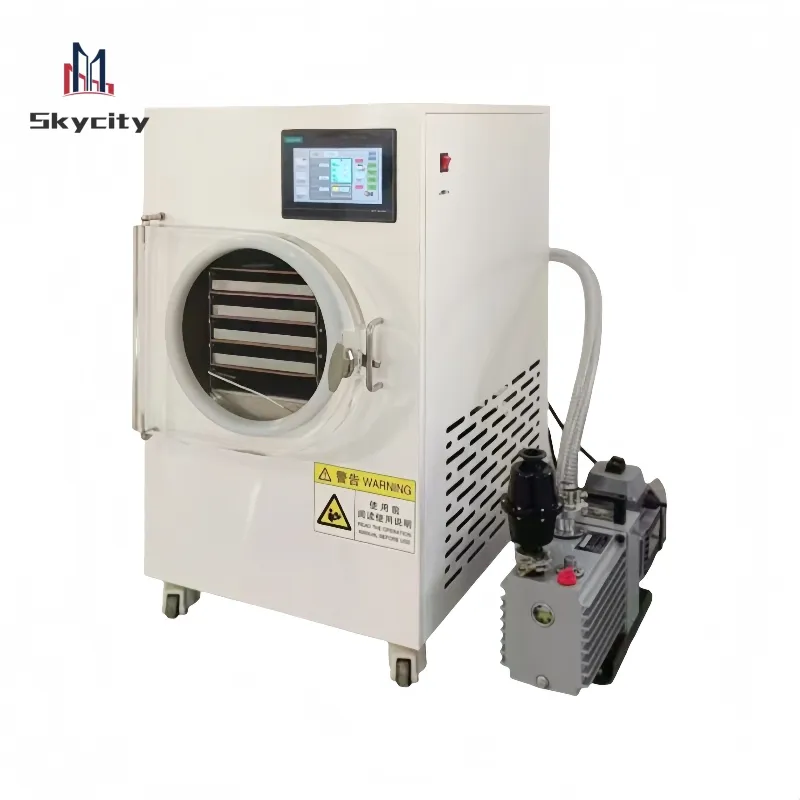

Commercial or Home Use Food Fruit Freeze Dryers for Home

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Information
Model NO.
TC-FD04
Type
Dryer
Voltage
220V
Power
1320W
Capacity
4-6kg
Tray Size
200X400X20mm
Vacuum Degree
1-20PA
Weight
110kg
⚙️ Equipment Characteristics
  • Uniform refrigeration cold trap inner wall temperature with professional gas diversion technology.
  • Internationally renowned compressor brands: Danfoss, Panasonic, Tecumseh, and Embraco.
  • Quick freezing and drying integrated machine; no need for ultra-low temperature refrigerators.
  • 7-inch color LCD touch screen with human-computer friendly interaction.
  • Real-time display of cold trap temperature, vacuum degree, and running time.
  • Automatic saving of freeze-drying data with USB export support.
  • Equipped with formula function for multiple product settings.
  • Includes vacuum alarm and electric heating defrost functions.
📋 Technical Parameters
Model TC-FD04 TC-FD06 TC-FD10 TC-FD15
Freeze dried area 0.32-0.4 m² 0.5-0.62 m² 1.05 m² 1.5 m²
Capacity 4-6kg 6-9kg 10-15kg 15-22kg
Tray Quantity 4-5pcs 4-5pcs 6pcs 7pcs
Power 1320w 1850w 2420w 3550w
🛠️ Configuration List
Chamber / Shelf304 SUS304 Stainless Steel
Cold trapCopper tube
DoorHigh-quality Acrylic
Control System7-inch touch screen, PLC fully automated control

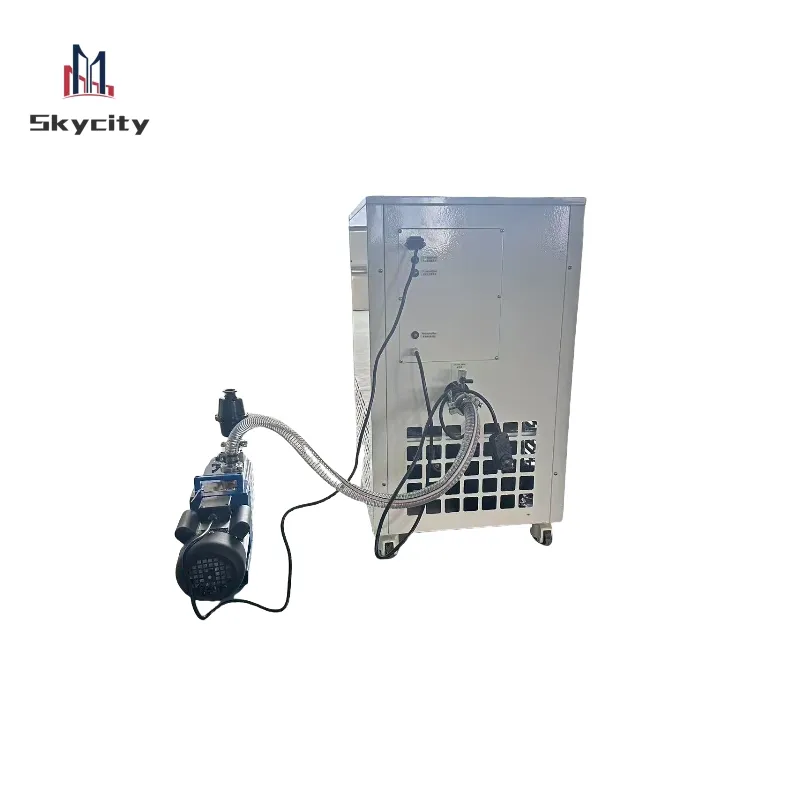

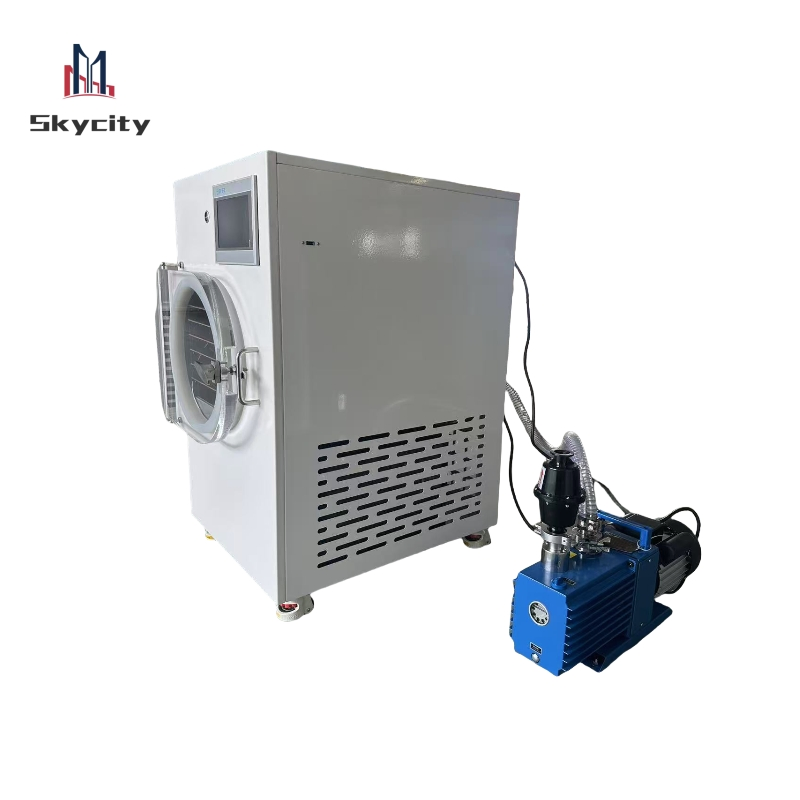

Vacuum PumpDouble stage rotary vane pump

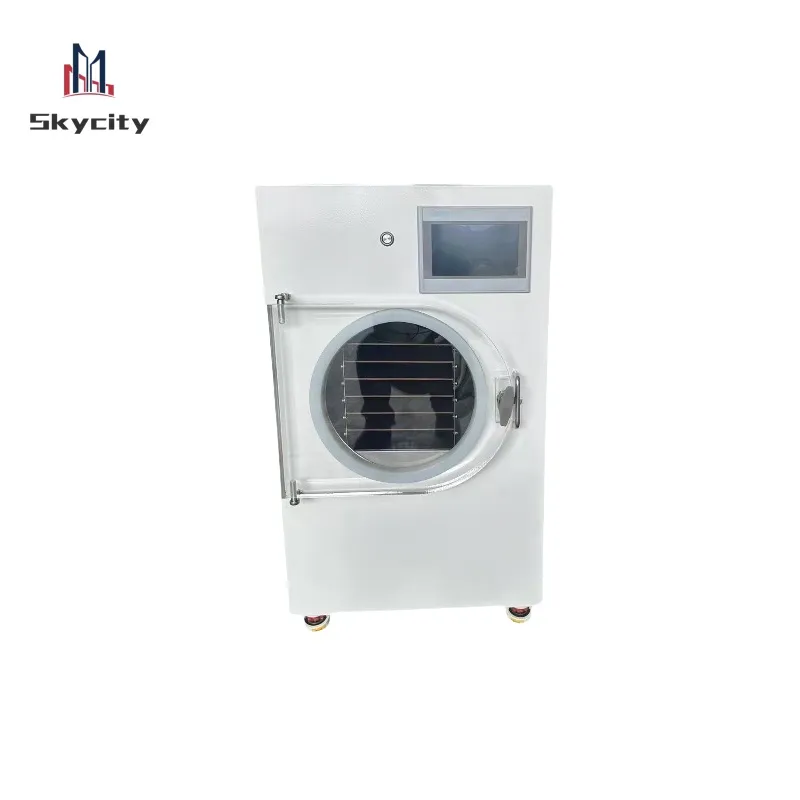

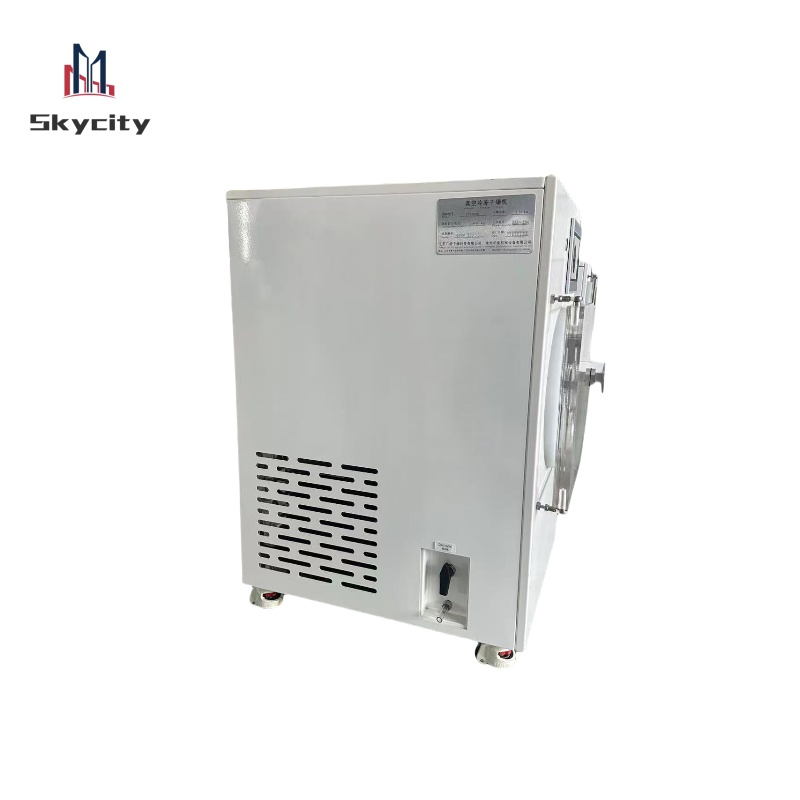

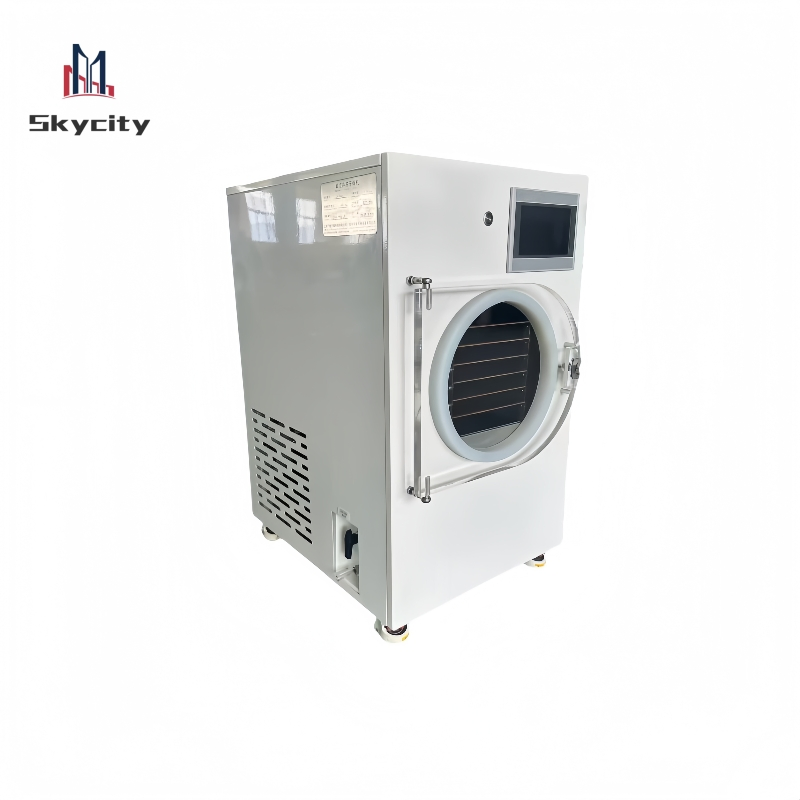

📷 Detailed Photos
📦 Packaging & Shipping
🌟 Our Advantages
Frequently Asked Questions
What materials can be processed with this freeze dryer?
It is suitable for food, fruit and vegetables, pet food, coffee liquid, medicine, herbs, biological products, and health products.
Does it require a separate refrigerator for pre-freezing?
No, this is an integrated machine with a pre-freezing function, so no additional ultra-low temperature refrigerator is needed.
What is the temperature range of the cold trap?
The default is -45ºC, but it can be customized to -60ºC, -80ºC, -100ºC, or -120ºC depending on your needs.
Can I monitor the process remotely?
Yes, the machine is equipped with a mobile app remote monitoring function via the PLC control system.
Is the data safe if there is a power interruption?
Freeze-dried data is automatically saved to prevent loss, and the system supports viewing and exporting historical data via USB.
What is the material of the drying chamber?
The chamber and shelves are made of high-grade 304 SUS304 stainless steel for food safety and durability.
