📋 Basic Info.
Model NO.DPH1K/2K/3K-A
ProtectionOvervoltage
ApplicationDefence
ClassificationLighting/Power
Standby TimeStandard Machine
Standby UPSSine Wave Output UPS
Output CapacityLarge Type
Equipment ModeCentralized Model
Input Frequency40~70Hz
Line-Bat Transfer0ms
Power Factor0.99 @100% Load
Weight9.8kg/17kg/27.6kg
⚡ Product Description

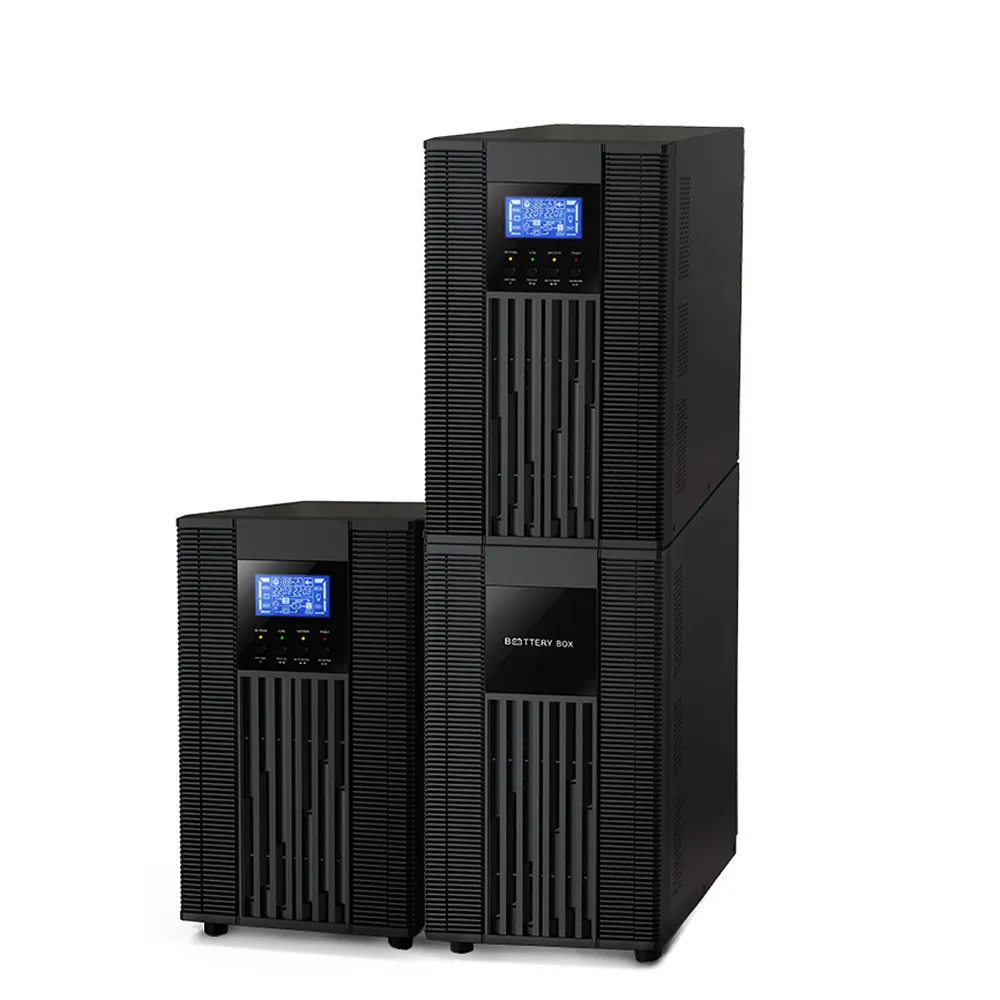

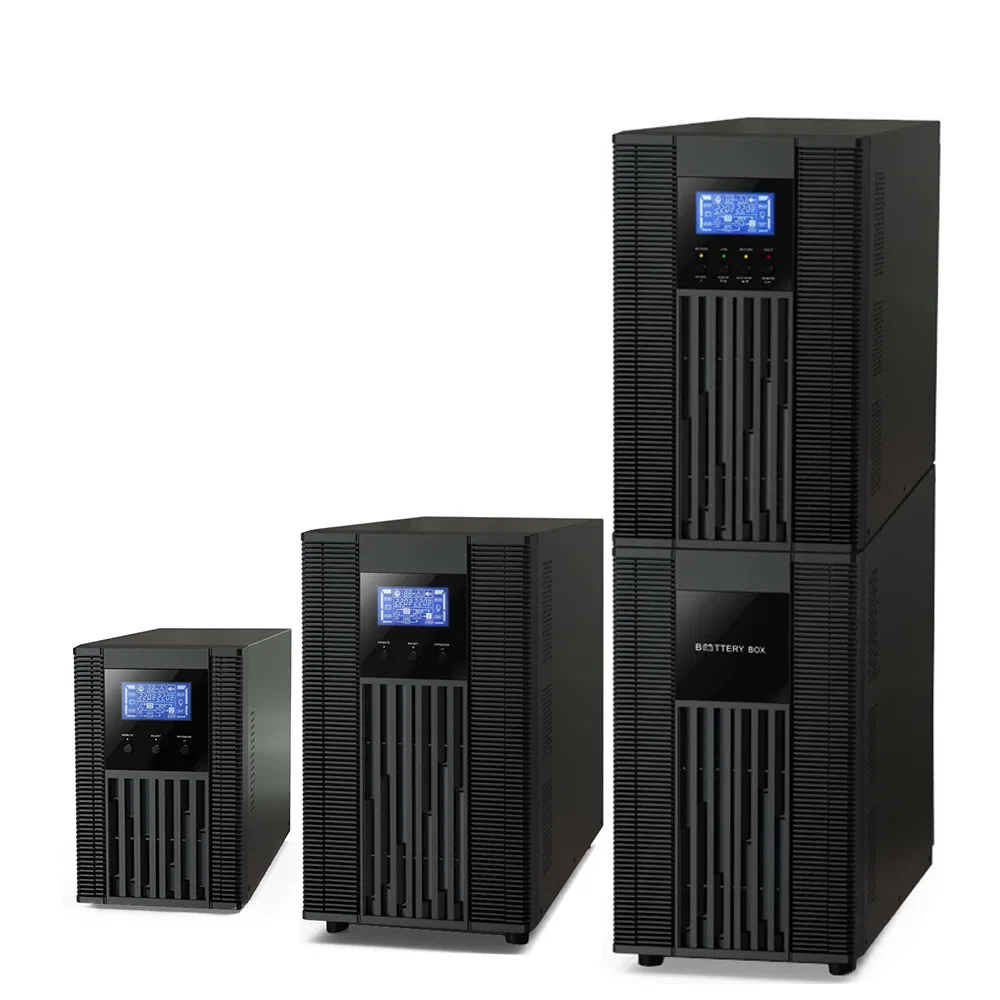

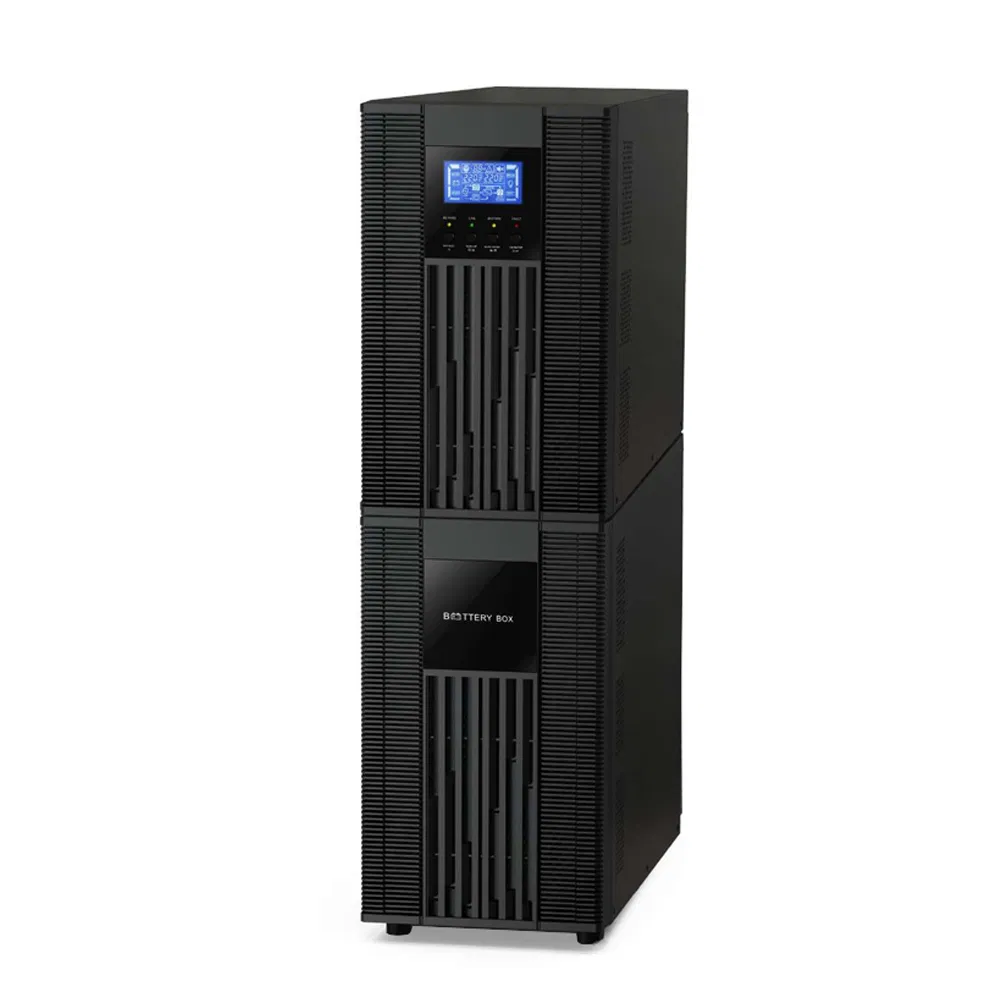

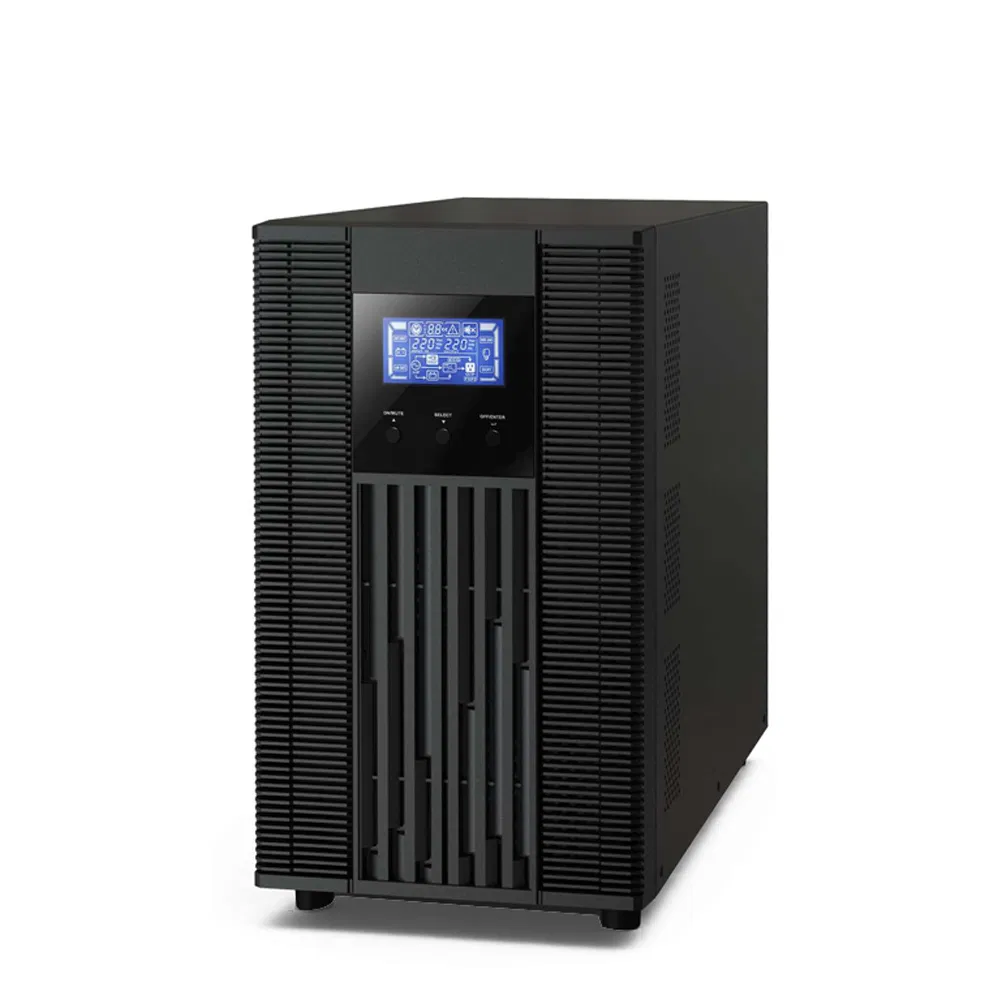

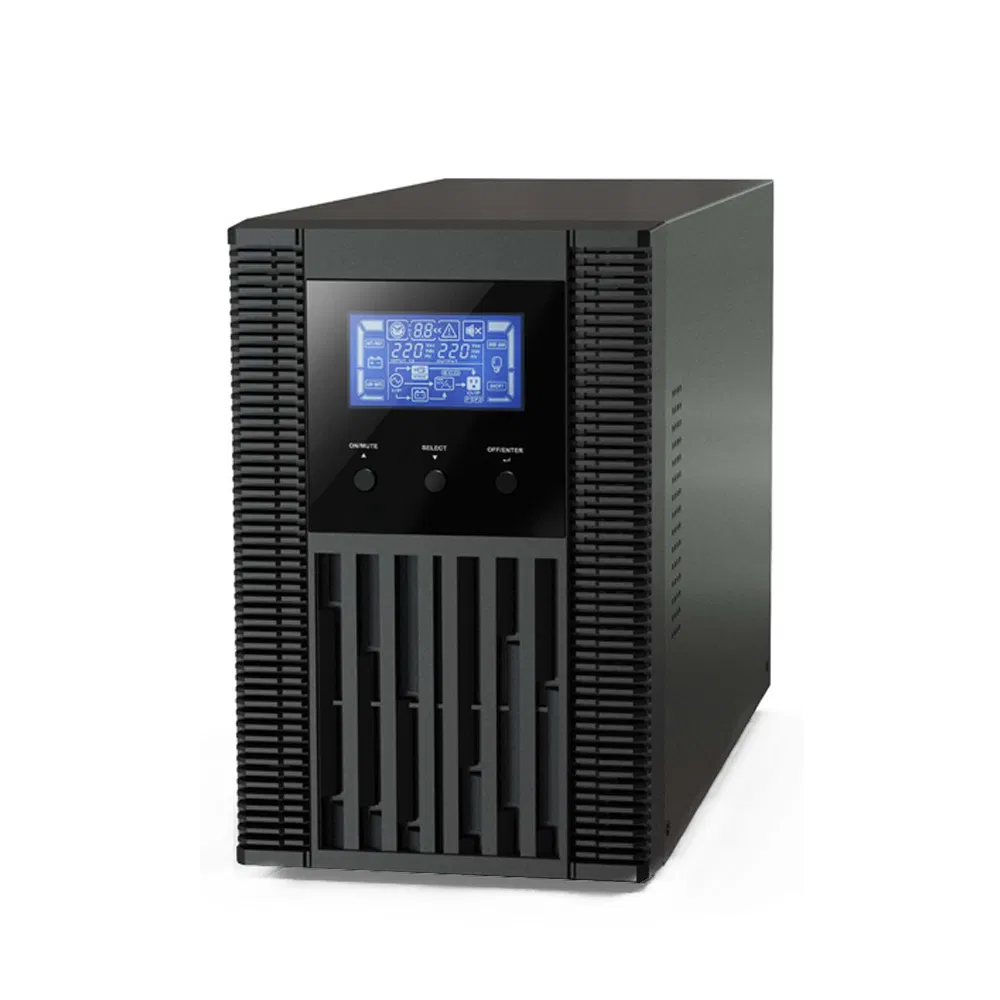

Single Phase 1KVA 200KVA High Frequency Online UPS Power Supply Double Conversion Offline UPS for IT/Factory/Telcom/Medical/Solar Panel/Solar Power System
Main Features
- Double conversion topology technology, pure sine wave output.
- Advanced DSP digital control technology.
- Environmental Friendly and energy saving, as the input power factor is up to 0.99.
- Wide input voltage and frequency range, 110 VAC --300 VAC, 40 -- 70 Hz.
- 0ms Line-Bat transfer, ensure the safety and reliability of load.
- ECO mode optional, reduce the UPS power consumption.
- Low audible noise (below 50 dB), will not affect your daily life.
📊 Specifications
| Rate capacity |
1KVA/800W |
2KVA/1.6KW |
3KVA/2.4KW |
6KVA/4.8KW |
10KVA/8KW |
| Rate voltage |
110-127VAC or 220-240VAC |
220/230/240VAC |
| Frequency range |
40~70Hz |
46~54Hz or 56~64Hz |
| Voltage regulation |
±1% |
| Line-Bat transfer |
0ms |
| Line mode |
> 88% |
> 88% |
> 90% |
> 92% |
> 93% |
| Weight (Stand UPS) |
9.8kg |
17kg |
27.6kg |
61/74kg |
66/76kg |
❓ Frequently Asked Questions
Q1: What is the transfer time between line mode and battery mode?
The transfer time is 0ms, which ensures zero interruption for your connected equipment, providing maximum reliability.
Q2: Can I use this UPS for medical or telecommunication equipment?
Yes, this high-frequency online UPS is specifically designed for sensitive applications including IT, medical devices, telecommunications, and industrial factories.
Q3: How noisy is the UPS during operation?
The audible noise is kept below 50dB for standard models, ensuring it does not disturb your daily work or living environment.
Q4: Does it support ECO mode?
Yes, ECO mode is optional. This mode helps in reducing power consumption and improving overall system efficiency when the grid is stable.
Q5: What is the input voltage range for this UPS?
It features a wide input voltage range from 110 VAC to 300 VAC, making it highly adaptable to various power conditions.
Q6: What communication interfaces are available?
The UPS supports RS-232, USB, and optional SNMP card interfaces for remote monitoring and management.
