📊 Basic Info
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Decentralized
Production Capacity
600,000PCS/Year

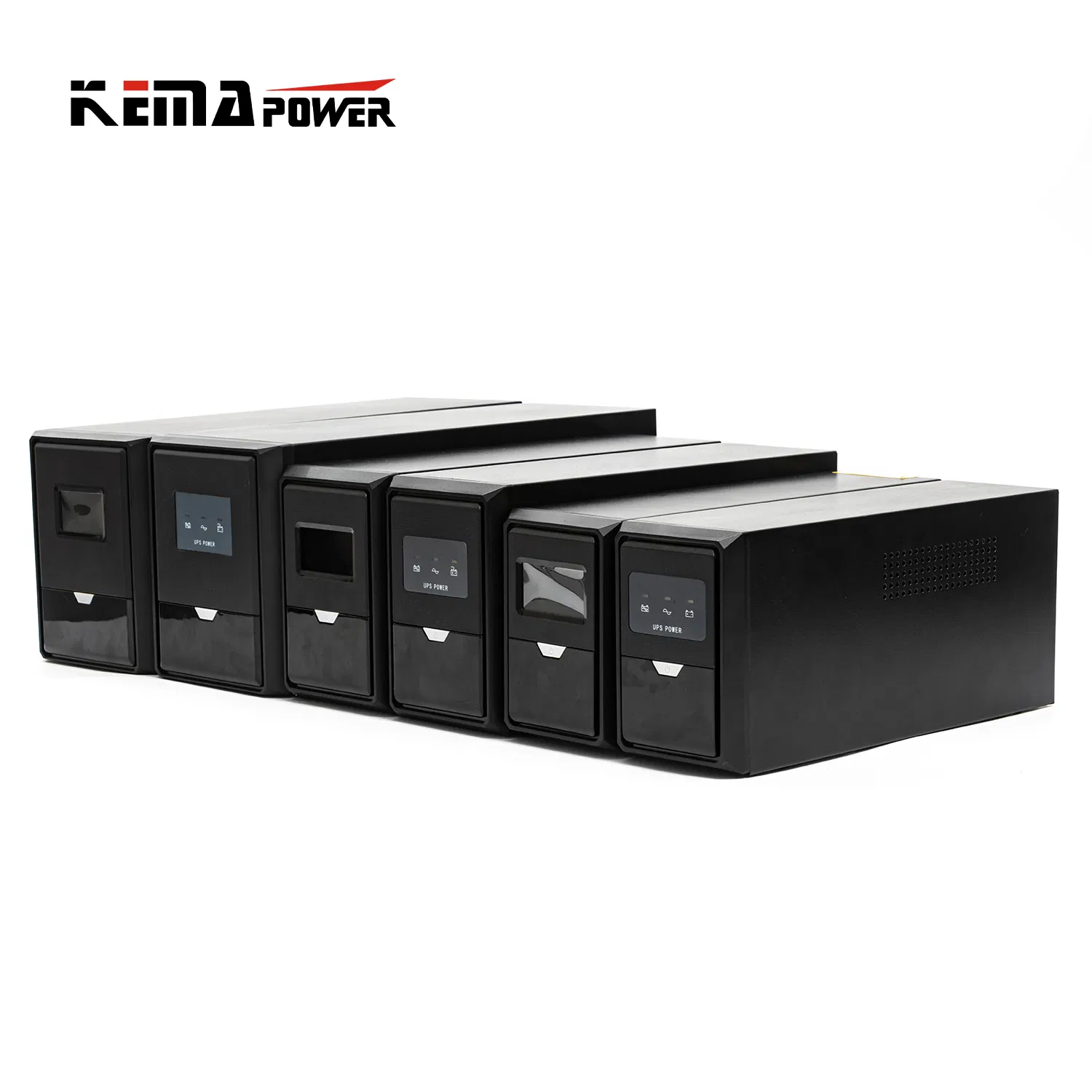

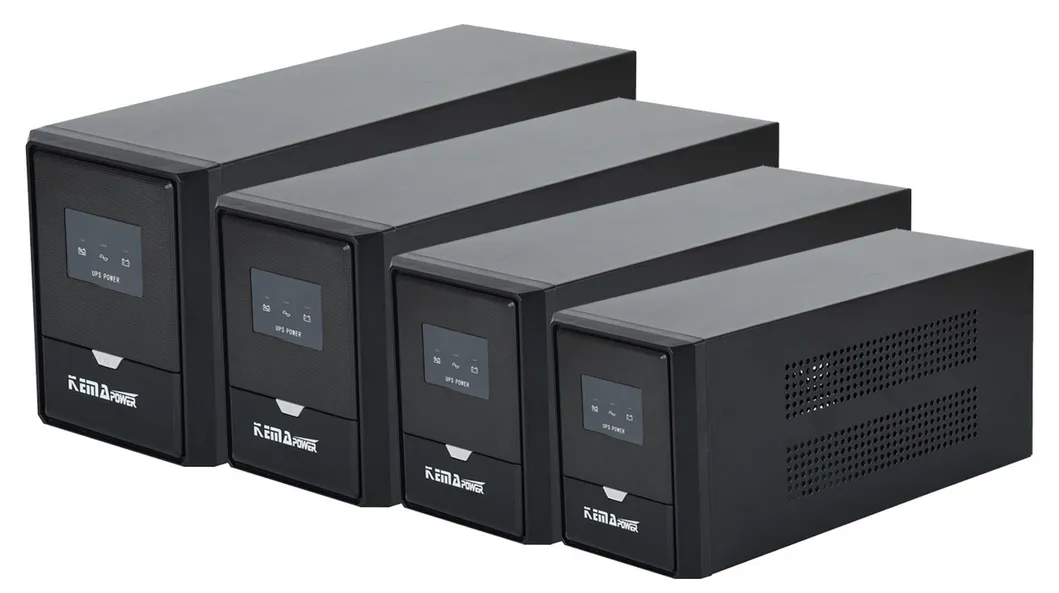

Line Interactive offline UPS
AD500-3000VA
💡 Key Features
SMT Technology, Line interactive UPS 500VA-3KVA
Metal Case, with AVR Protection
Short circuit, overload and battery low voltage protection
LED indication and audible alarm function
Silence Setup and Smart battery management
AUTO Restart function when AC recovers
Off charge and Cold Start function
RJ45, USB and LCD display (Options)
🛠 Technical Specifications
| MODEL |
AD-500 |
AD-600 |
AD-800 |
AD1000 |
AD-1500 |
AD-2000 |
AD-3000 |
| Capacity |
500VA/300W |
600VA/360W |
800VA/480W |
1000VA/600W |
1500VA/900W |
2000VA/1200W |
3000VA/1800W |
| INPUT |
| Voltage |
110/120 VAC or 220/230/240 VAC |
| Frequency |
60/50 Hz (Auto sensing) |
| OUTPUT |
| Transfer Time |
4-6ms |
| Wave Form |
Simulated sine wave |
| BATTERY |
| Battery Voltage |
12VDC |
12VDC |
12VDC |
12VDC |
24VDC |
24VDC |
48VDC |
| ENVIRONMENT |
| Noise Level |
Less than 40dB |
📸 Product Display

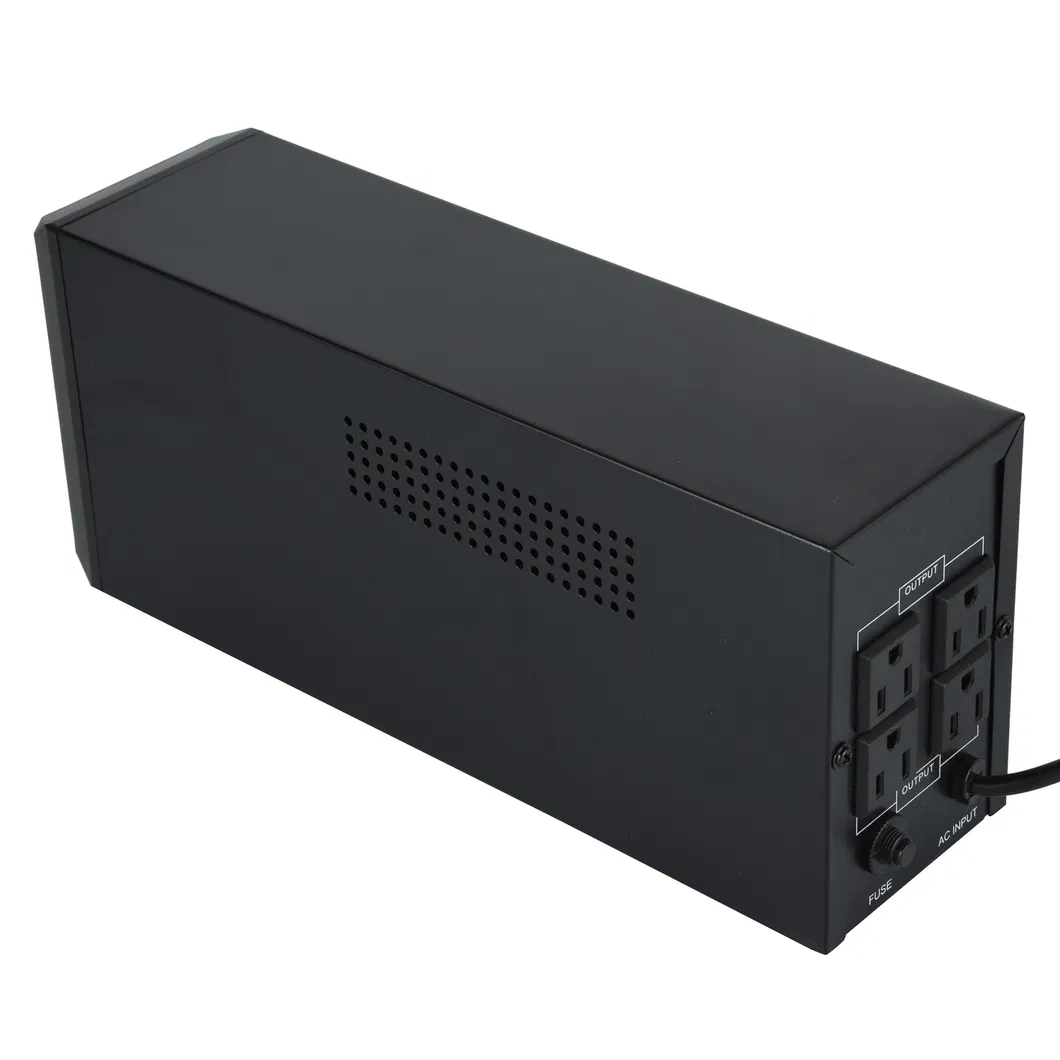

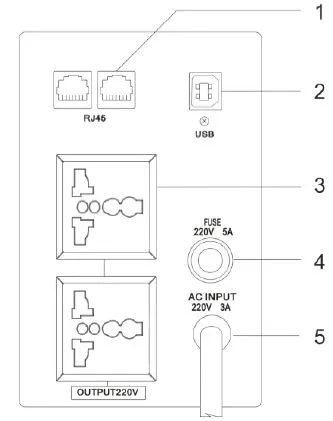

600VA UPS BACK BOARD
- 1. RJ45 Port (Option)
- 2. USB Port (Option)
- 3. Socket (Selectable)
- 4. Fuse/Breaker
- 5. AC Input

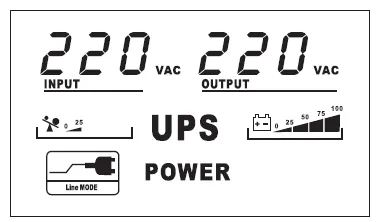

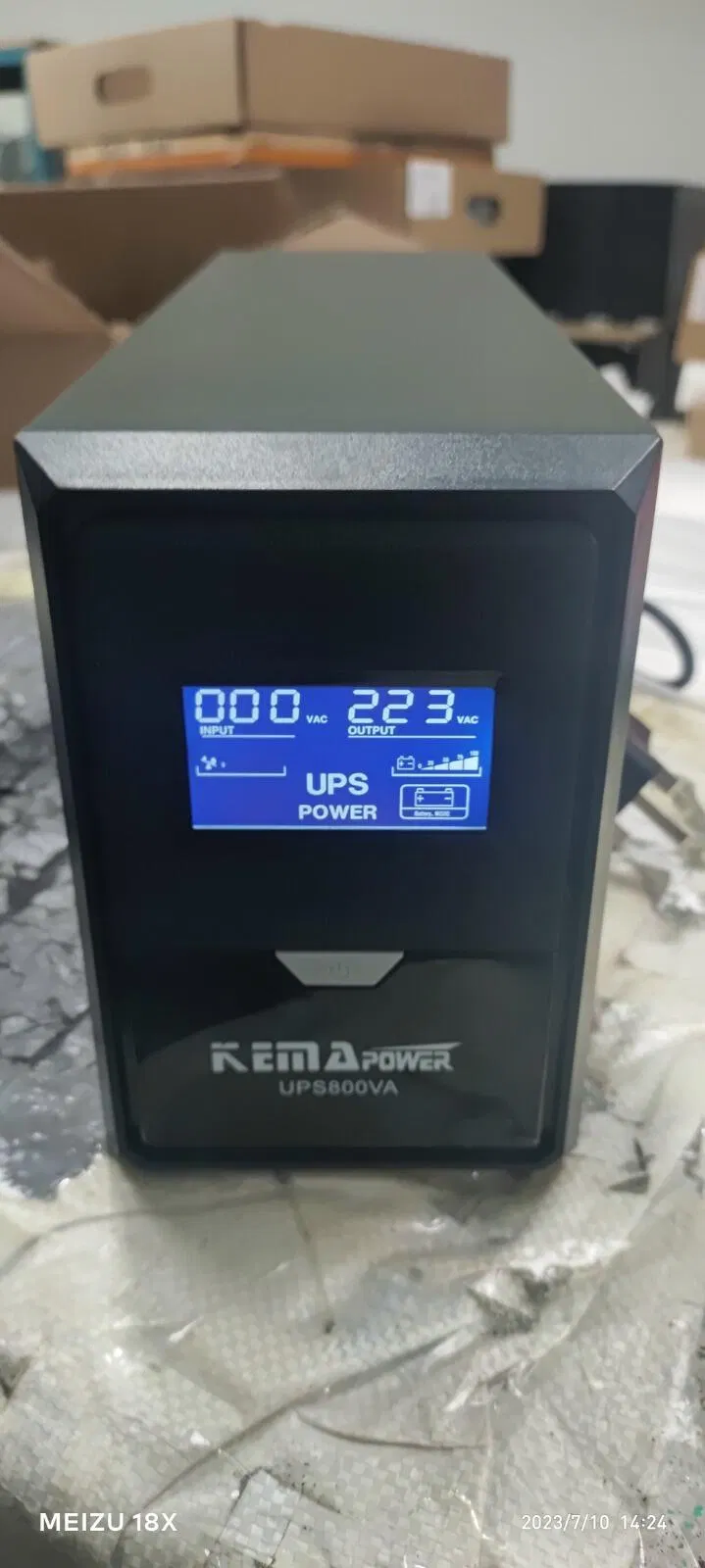

LCD MONITOR (Option)
❓ Frequently Asked Questions
What is the transfer time of this offline UPS?
The transfer time is between 4-6ms, ensuring a quick switch to battery power during outages.
Does this UPS support automatic restart?
Yes, it features an AUTO Restart function that automatically reboots the system when AC power recovers.
Can I customize the display and ports?
Yes, LCD displays, USB/RJ45 ports, and SNMP management are optional features available based on your requirements.
What kind of protection does the AD series provide?
It provides full protection against over-discharge, short circuits, and overloads.
What is the difference between AD and AD-S models?
The AD model is the standard type with an internal battery, while the AD-S is the long backup type designed for use with external batteries.

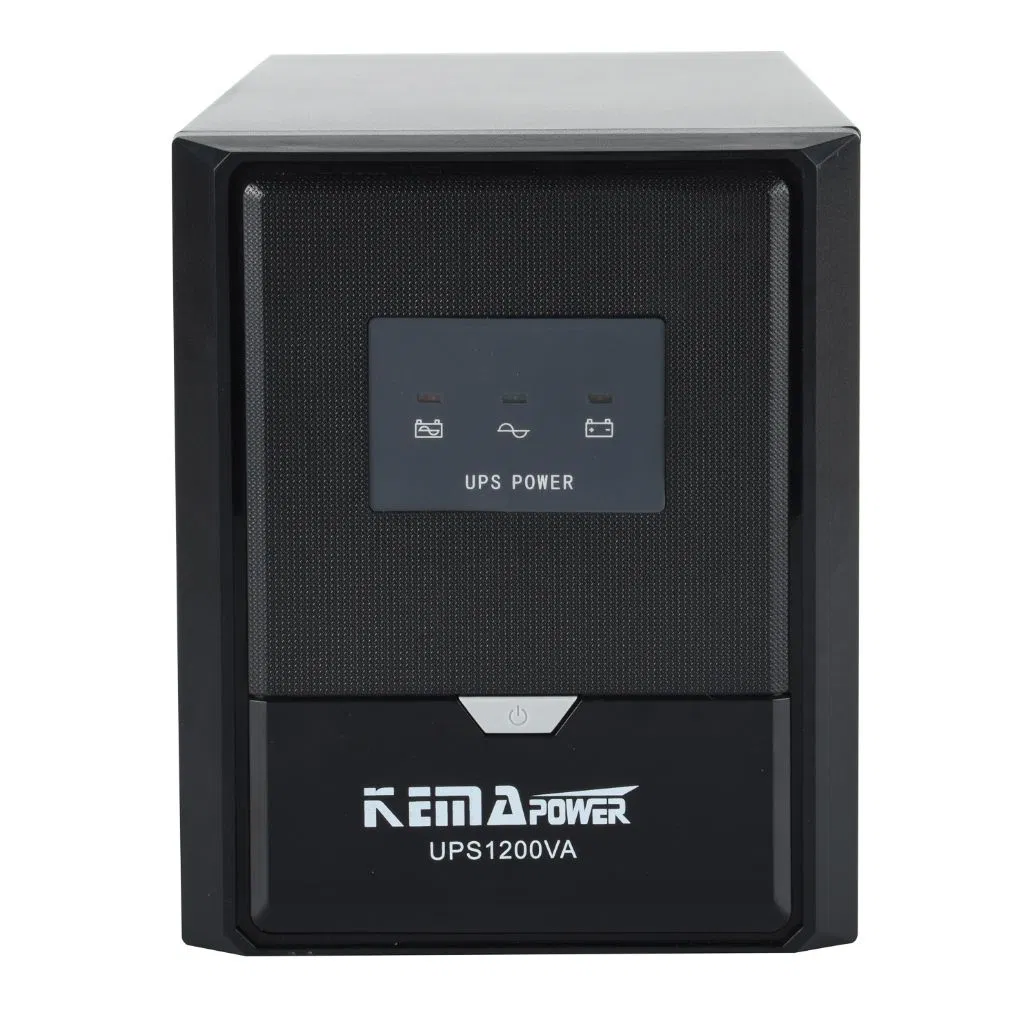

How do the LED indicators work?
Green light indicates Line mode, Red light indicates Battery mode, and Yellow light indicates Battery charging mode.
