Basic Information
Output Signal
Digital Type
Application
Barrier/Automatic/Sliding Gate

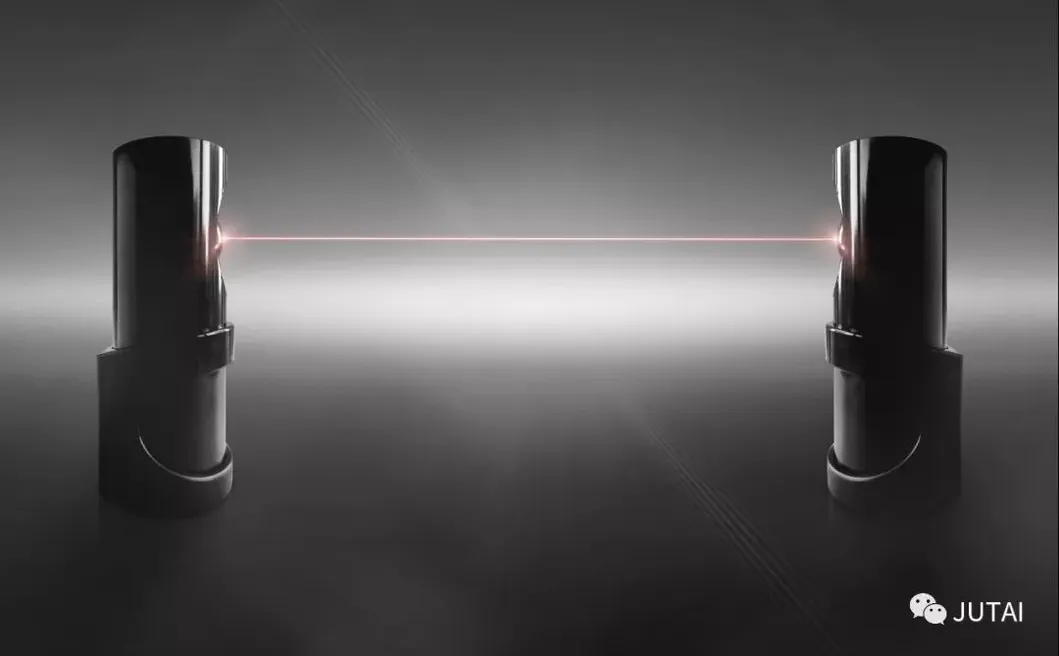

External Rotation Wireless Infrared Beam Sensor
The IS-30R Wireless Photocell Sensor features an external rotation infrared gate safety beam with a wireless transmitter. There's no need to tunnel under the driveway. With external rotation of 180 degrees, it allows for simple rotational alignment, making door automation more convenient and safer!

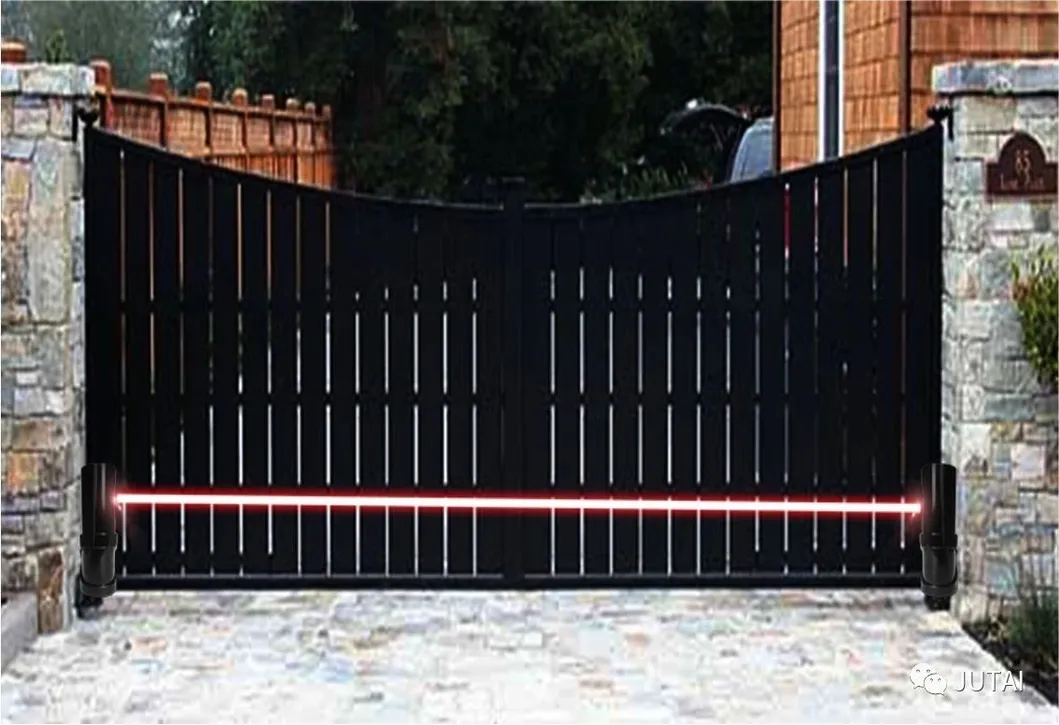

🚀 Main Features

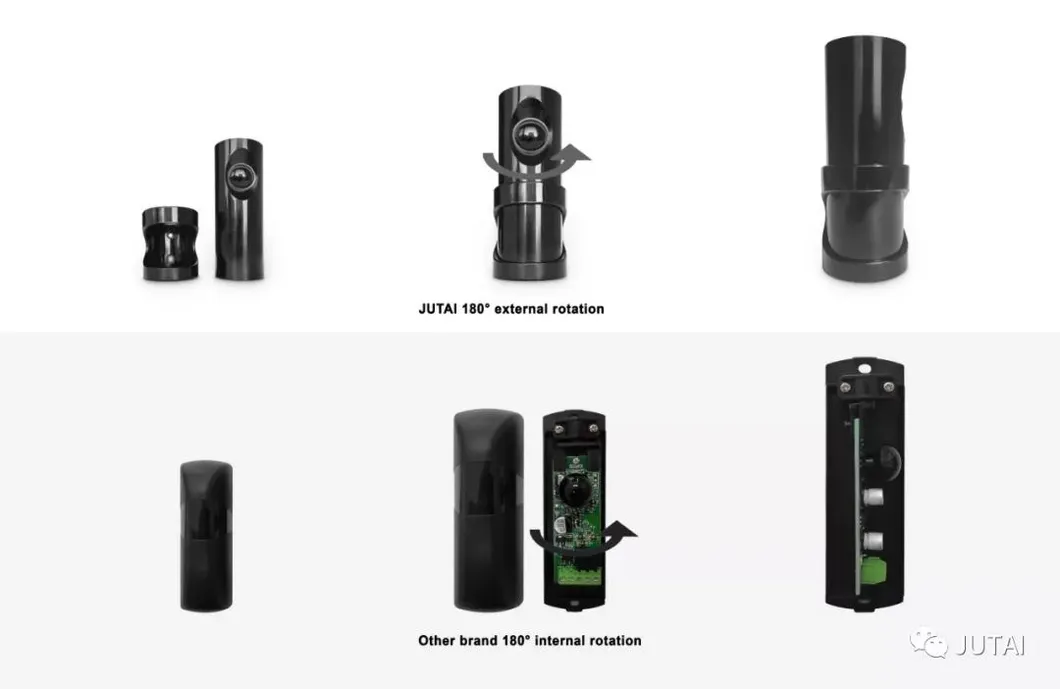

- 180° External Rotation: Simple rotational alignment saves labor and installation costs.
- Wireless Transmitter: Battery-operated (2x AA) saving time and infrastructure costs.
- 30m Operating Range: Ideal for almost any entrance width.

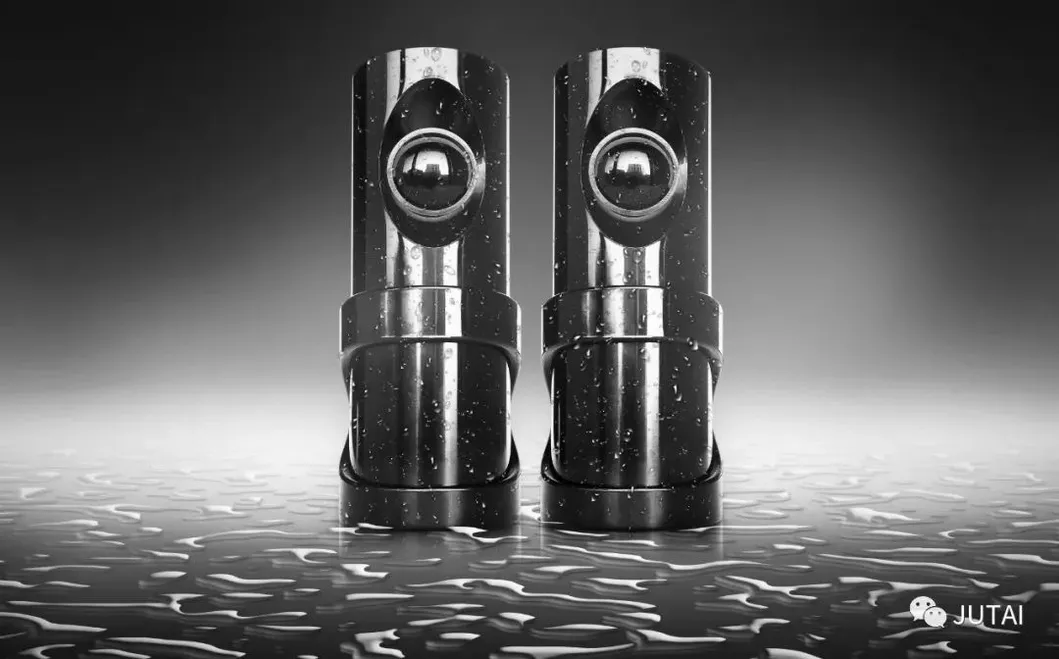

- Weatherproof: Fully ant-proof and weather-resistant enclosure for greater reliability.
- Audible Feedback: Provides setup guidance and battery-low indication.
- Universal Compatibility: Works with 12V to 30V DC systems and any brand gate operator.
Advanced Applications

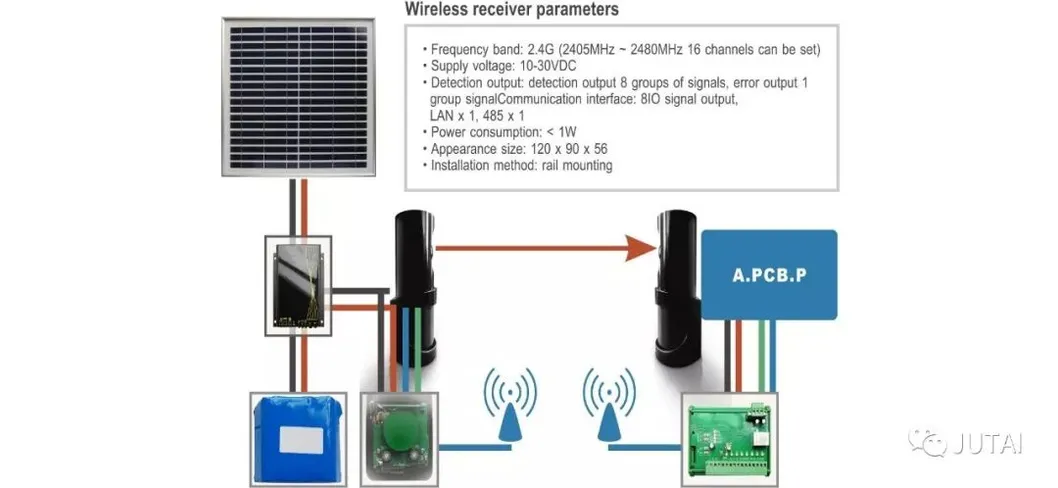

Innovative Application Solution Reference Combined with Solar Energy System: The solar panel collects light energy, stored in a battery via a controller. The system supports wireless receiving ends without damaging road surfaces or laying underground cables.

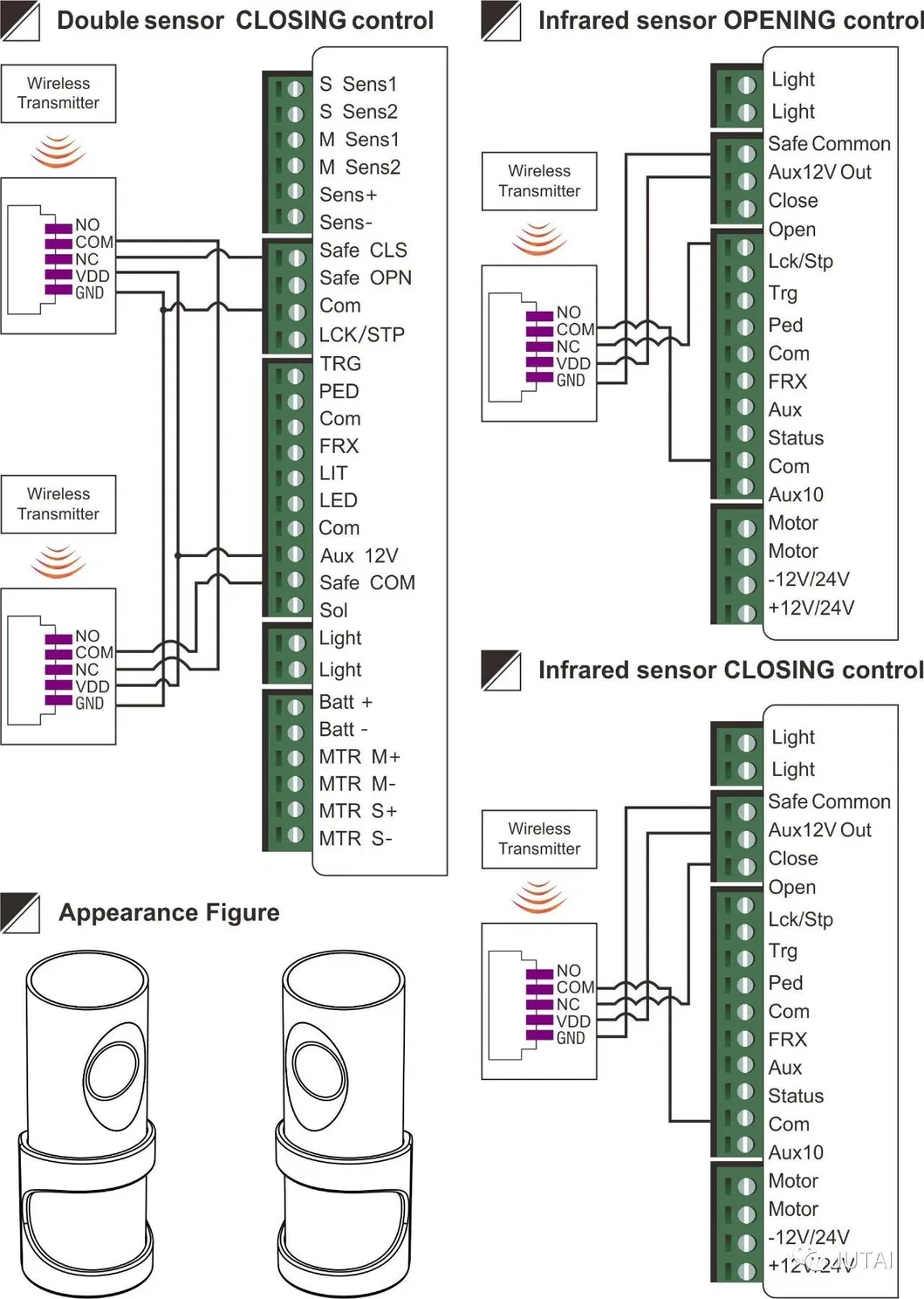

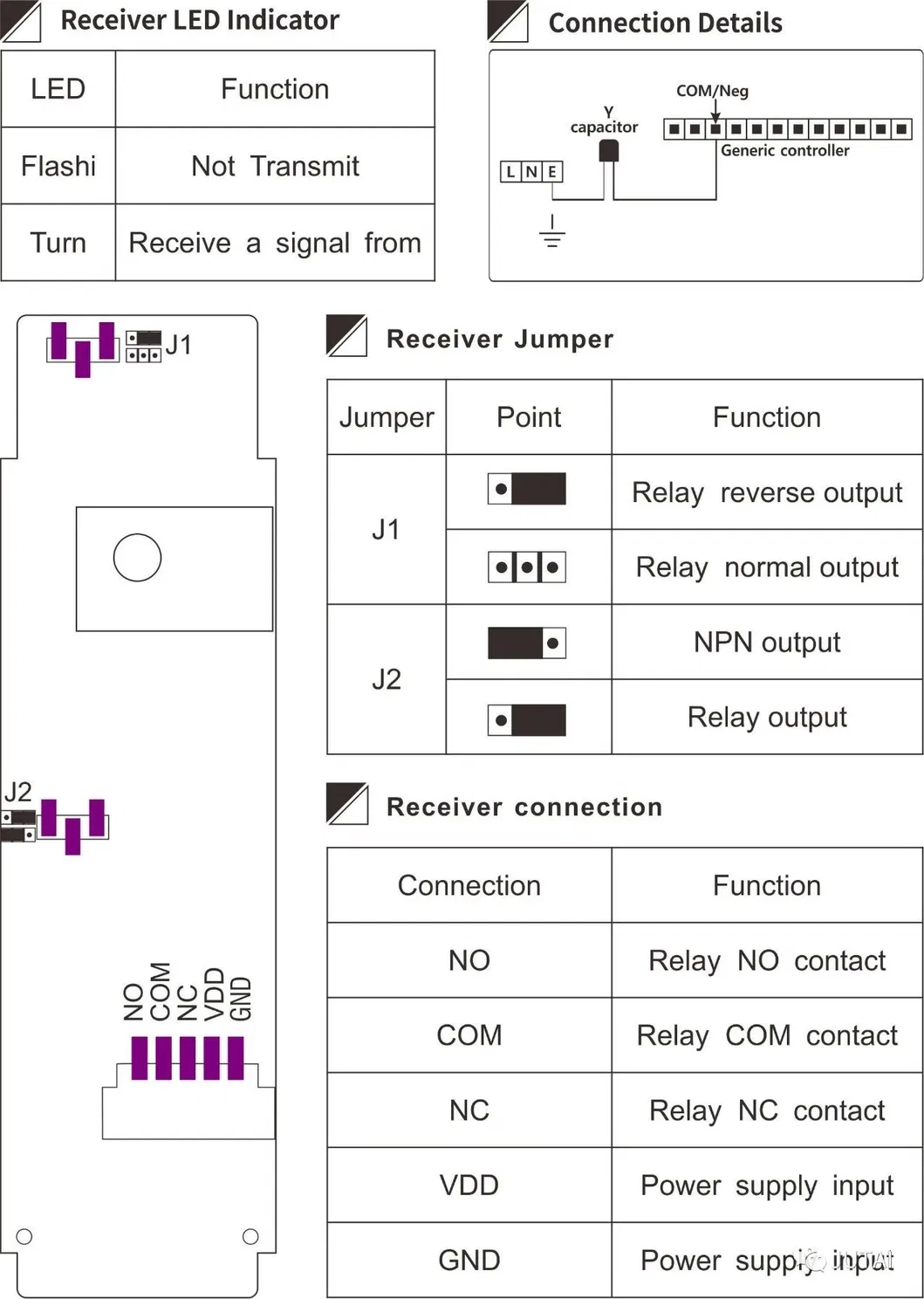

Connection & Installation
Installation Steps:
- Align the two holes in the case and lock two screws.
- Insert batteries (Transmitter) / Lead cables out (Receiver).
- Fix the screw.
- Rotate the angle as required and fix the bottom screw.
Frequently Asked Questions
How long does the battery last in the wireless transmitter?
The wireless transmitter requires two AA batteries which can provide up to two years of reliable operation thanks to the low power consumption design.
What is the maximum sensing distance for the IS-30R?
The IS-30R has an impressive operating range of up to 30 meters, making it suitable for even very wide industrial or residential entrances.
Is this sensor compatible with other brands of gate openers?
Yes, it is compatible with supply voltages from 12V to 30V DC and can be used with almost any brand of gate operator or access automation equipment on the market.
Does the installation require digging or trenching?
No, because the transmitter is wireless, there is no need to cut driveways or run cables under the ground, making it perfect for retrofitting on existing installations.
What does the 180-degree external rotation feature do?
It allows you to adjust the alignment of the beam externally by up to 180 degrees, which simplifies the setup process on complex or non-parallel project sites.
Is the device protected against outdoor elements?
Yes, the IS-30R features a fully weatherproof and ant-proof enclosure with an IP65 rating to ensure long-term durability in outdoor environments.
