Overview & Basic Info
Comm. Interface
Wiegand 26 & WiFi
Fingerprint Capacity
10000
Material
Metal Case, Anti-Vandal
Product Description

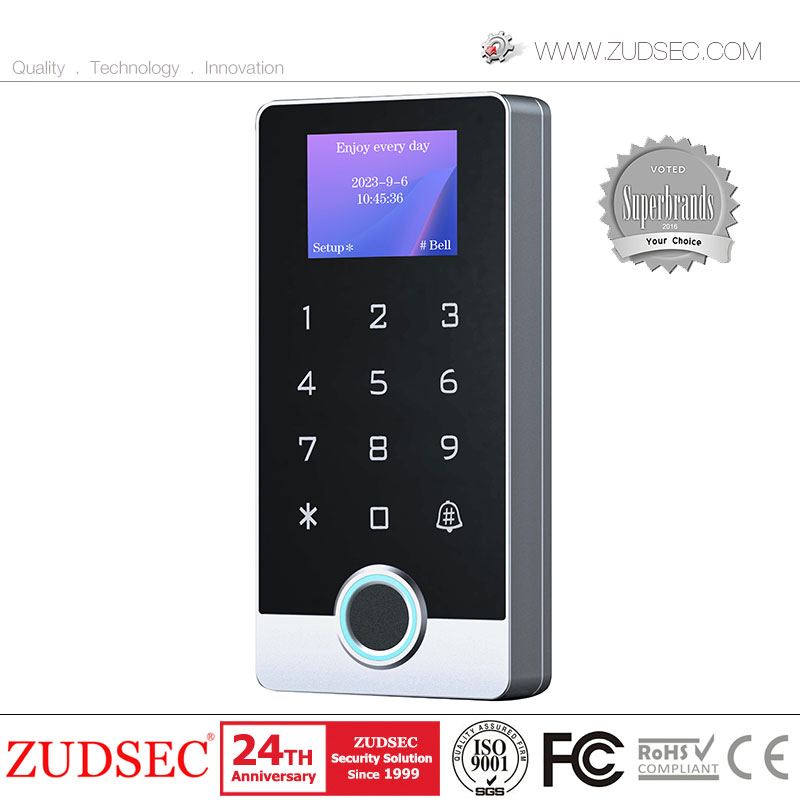

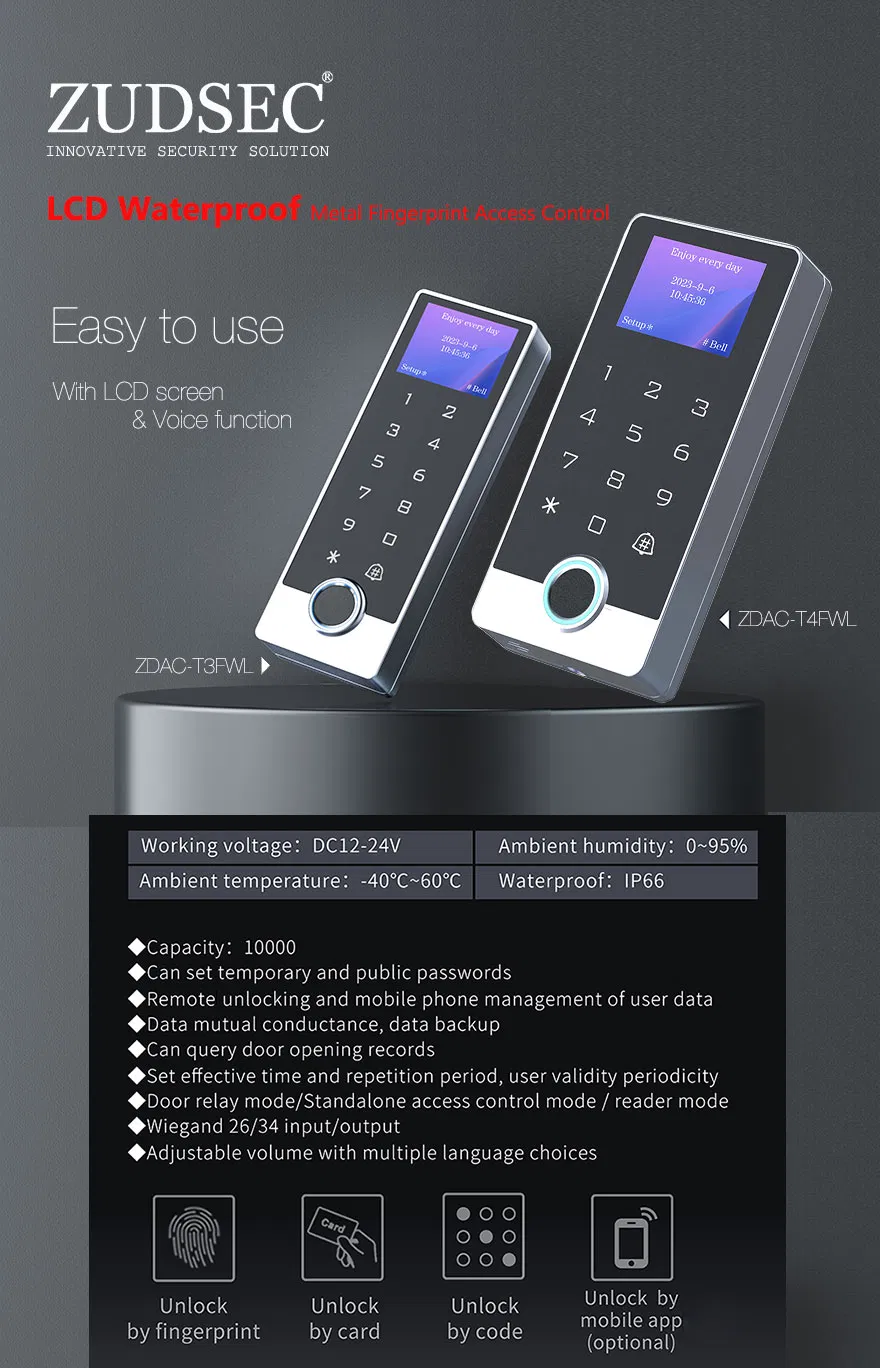

LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control
LCD screen & Voice function, Touch Keypad, Metal case, App Control (Optional) Anti-vandal, Multi-function standalone access controller and reader. It adopts new ARM core 32-bit microprocessor design, which is powerful, stable and reliable. Widely applied to office, residential communities, villa, bank and more.
Optional Models:
• ZDAC-T4FWL (Metal shell with IP68 Waterproof)
• ZDAC-T4FWL-WiFi (Metal shell with WiFi + IP68 Waterproof)
Key Features
- Full message LCD menu configuration & voice function for easy setting
- Touch Keypad, Supporting fingerprint, ID card and password
- 300 Fingerprint users, 10000 RFID users & PIN
- Wiegand 26 output and input interface
- Metal shell, anti-vandal design and anti-magnetic
- Lock output current short protect
- Searching speed < 0.1 S
- Supports connecting external card readers (HID, Mifare, EM)
Product Parameters
Access Ways
Fingerprint, Card, Code, App
Card Type
125KHz / 13.56MHz Mifare
Operating Voltage
DC12-24V
Working Temp
-40ºC to 60ºC

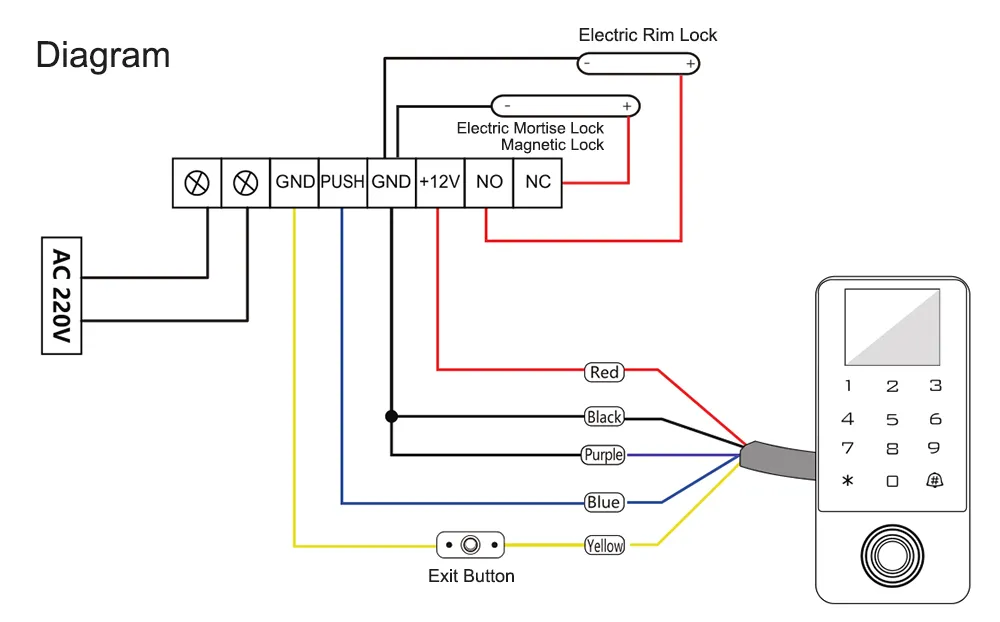

Unlock Signal
NO, NC, COM relay

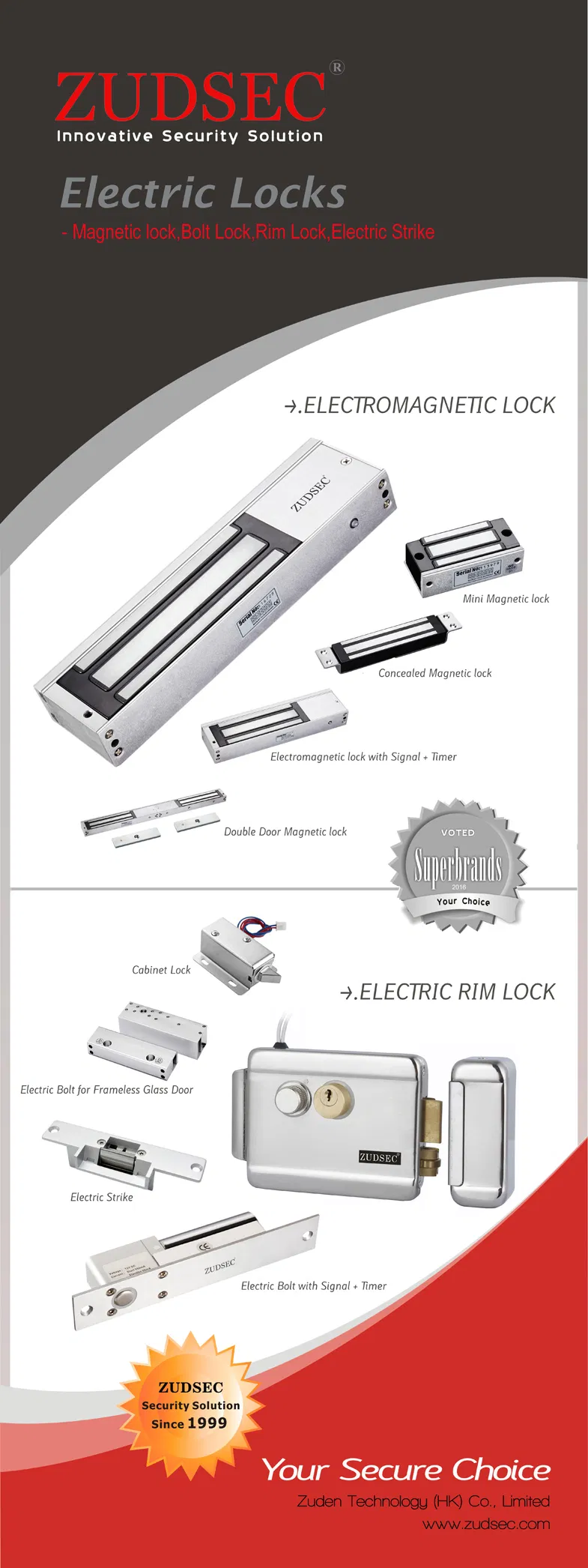

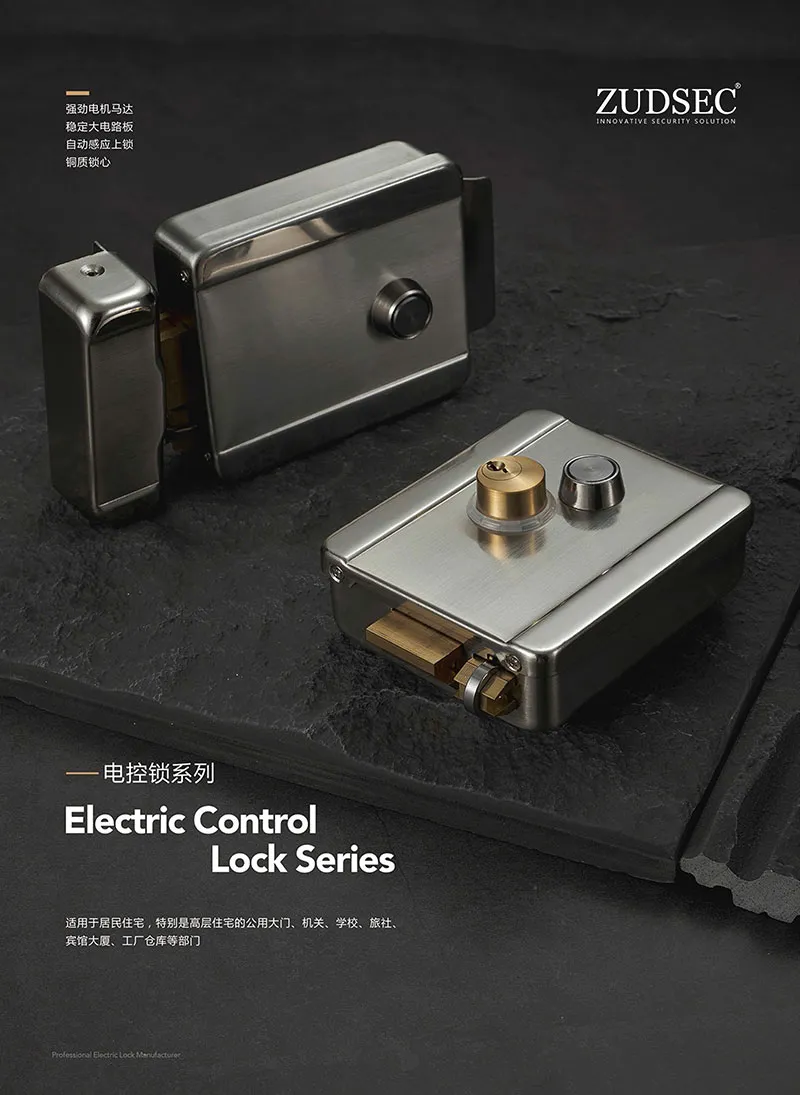

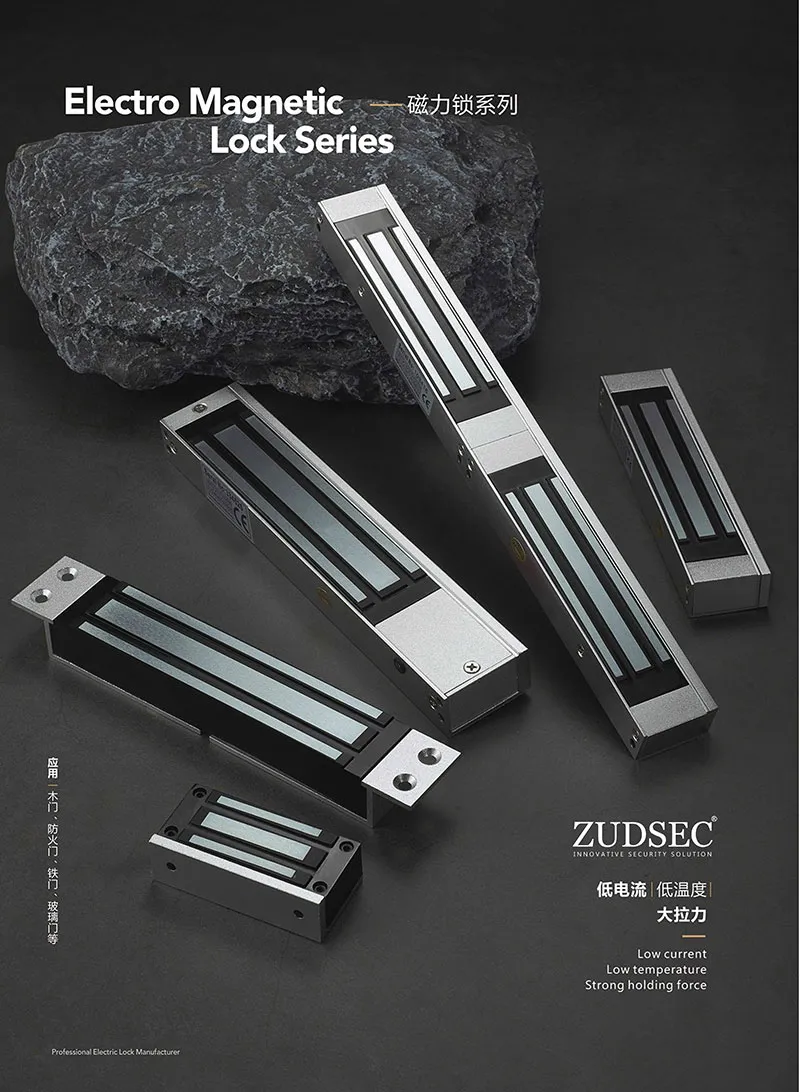

Related Products
Frequently Asked Questions
1. Is this device waterproof for outdoor installation?
Yes, the device features an IP68 waterproof rating and a metal anti-vandal shell, making it suitable for harsh outdoor environments.
2. Can I control the door access via my smartphone?
The WiFi version (ZDAC-T4FWL-WiFi) supports Tuya APP integration, allowing you to manage access remotely via your smartphone.
3. How many users can this system store?
The system supports up to 10,000 RFID card/PIN users and up to 300 fingerprint users.
4. What types of RFID cards are compatible?

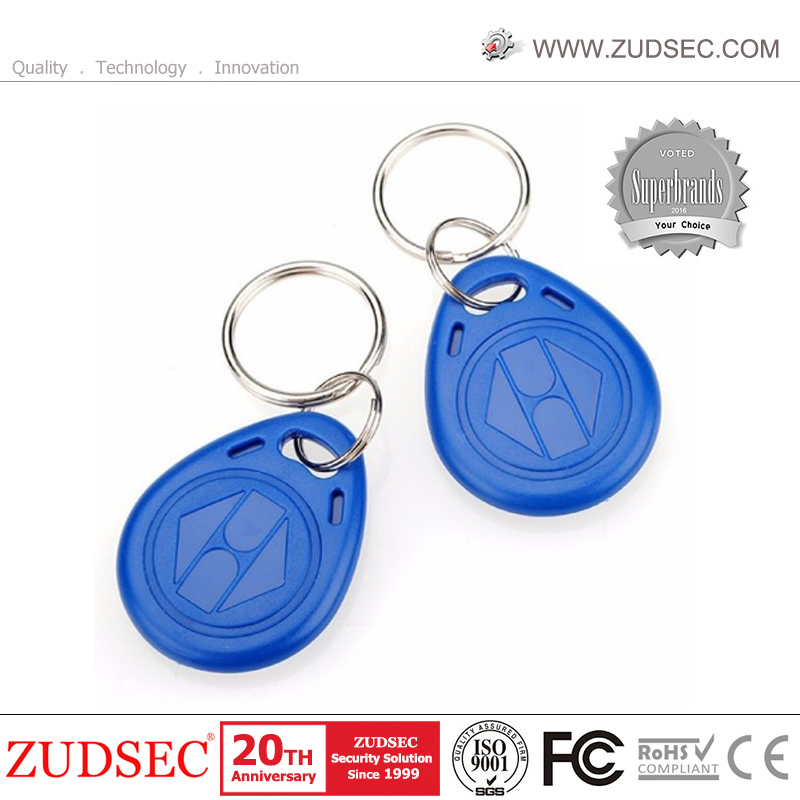

It is compatible with 125KHz EM ID cards and optional 13.56MHz Mifare cards.
5. Does it support Wiegand interface connection?
Yes, it features a Wiegand 26 interface, allowing it to work as a standalone controller or as a slave reader for other controllers.
6. How fast is the fingerprint recognition?
The device uses a high-speed ARM 32-bit microprocessor, achieving a searching speed of less than 0.1 seconds.
