Marya China Pharmacy Negative Isolator Isolation System for Laboratory Usage

1 / 5

Marya China Pharmacy Negative Isolator Isolation System for Laboratory Usage

Customization:	Available
Certification:	ISO9001, RoHS, CE
Salt Rejection Rate:	99.5%

Send Inquiry

Product Description

Basic Info.

Model NO.:MY-01

Application:Industry

Capacity:400 Gallon

Function:Inspection

Material:304/316 Stainless Steel

Voltage:220V-380V

Origin:China

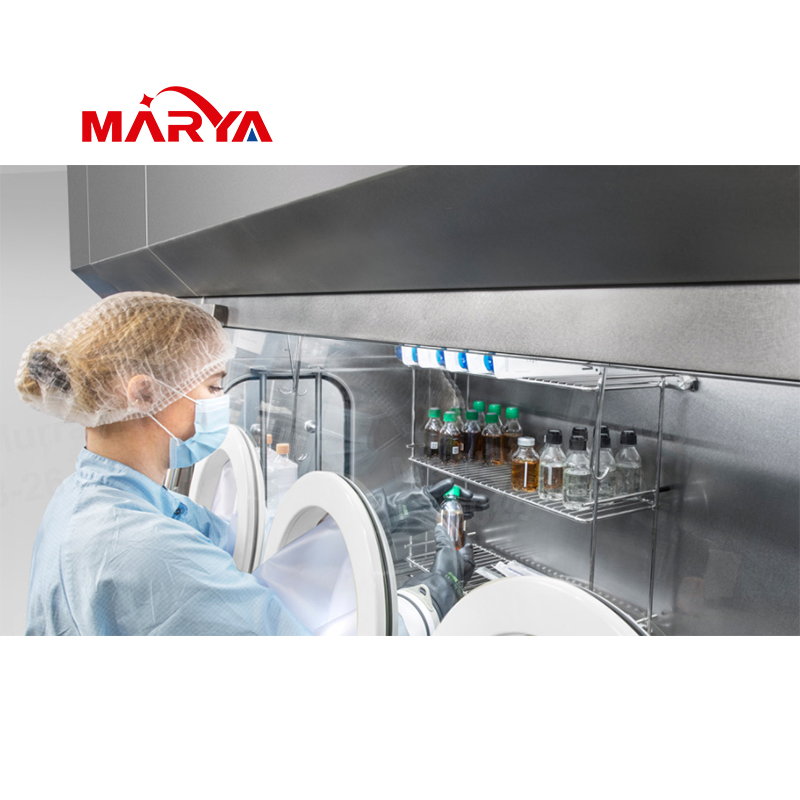

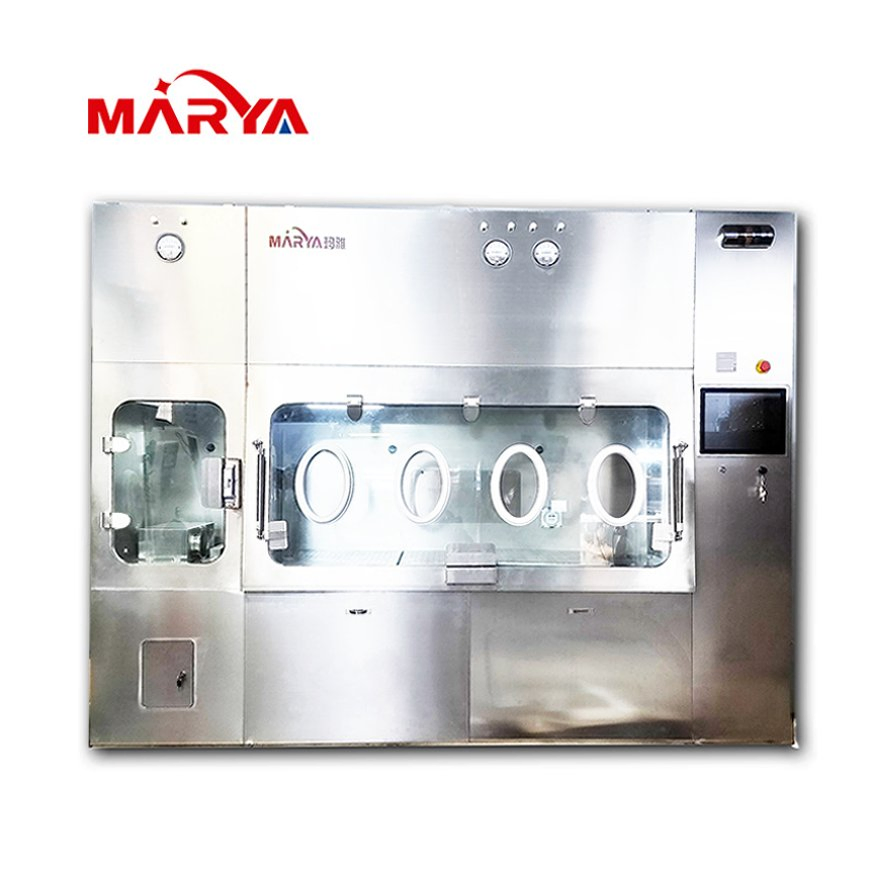

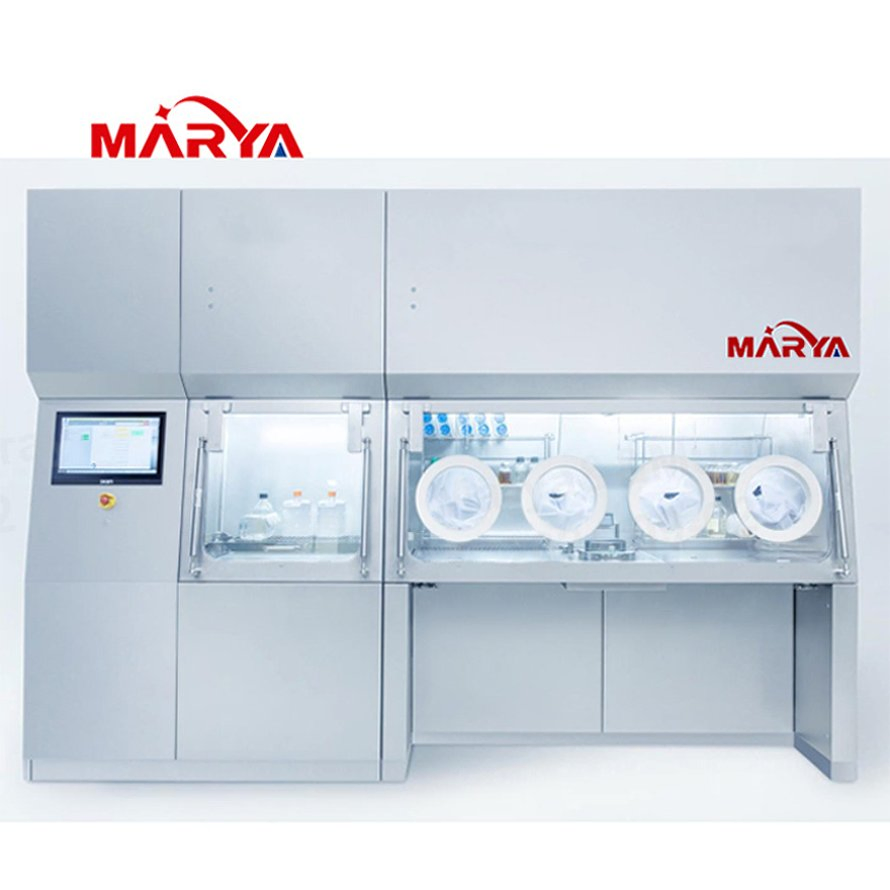

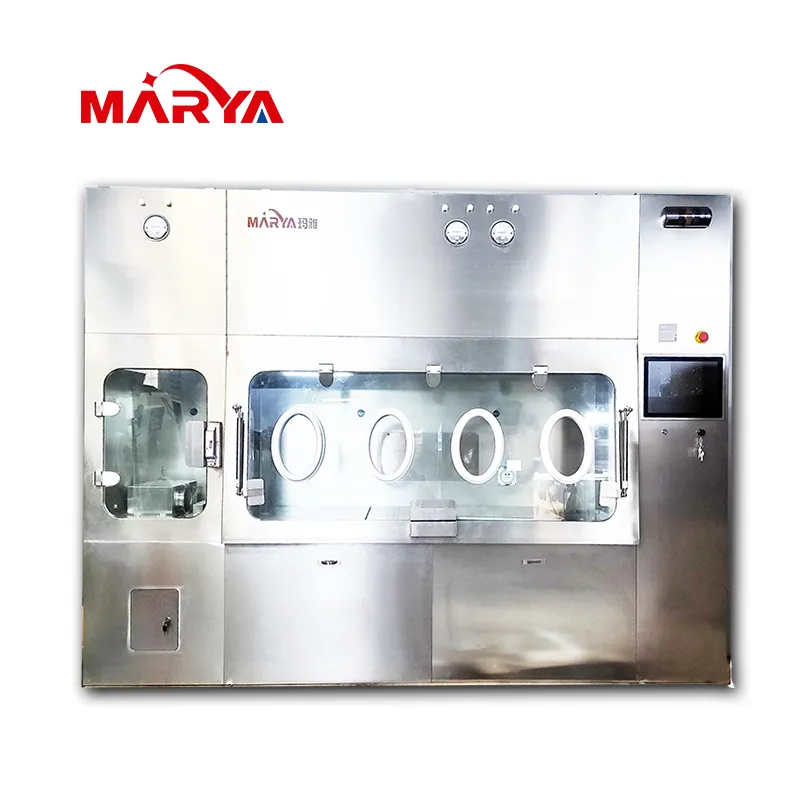

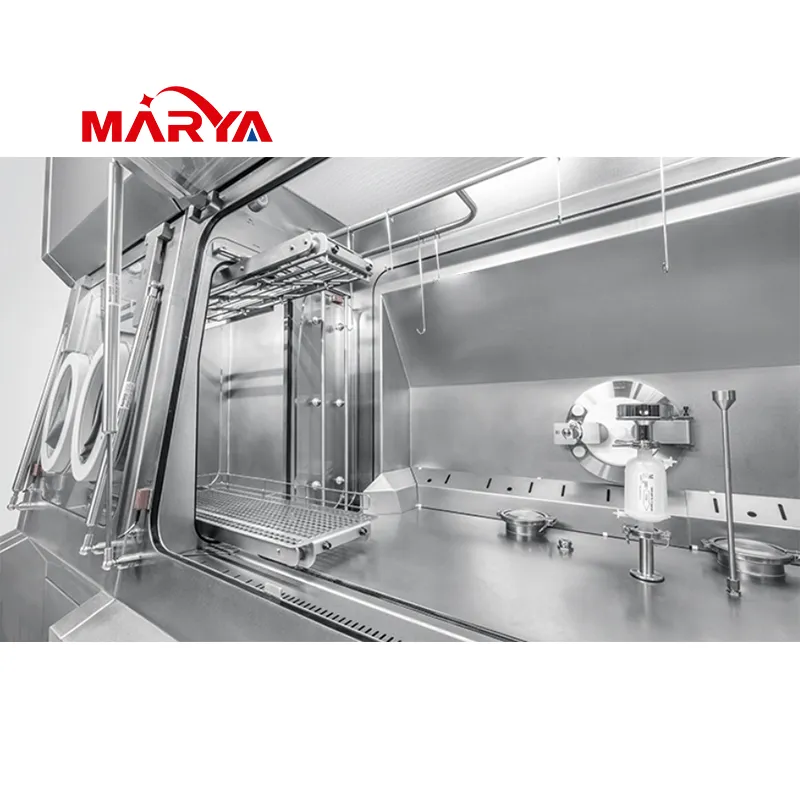

Sterile Isolator System

As a decontamination equipment separating operators and machines and complying with the requirements of Class A environment, the sterile isolator is mainly used for the protection of sterile testing, sterile product dispensing and other key process. It improves the reliability of inspection results and meets international standards including GMP, FDA, and cGMP.

Characteristic & Performance

New VHPS technology: Control H2O2 concentration and saturation for superior sterilization reproducibility.

Modular design: Easy installation of transfer and operation chambers.

Intelligent control: Siemens PLC+IPC system with intelligent parameter monitoring.

Energy saving: Optimized airflow reduces energy consumption by 20%.

High-quality materials: 316L inner chamber with 0.4μm~0.6μm polishing.

Technical Data

MOC	316 stainless steel wire drawing board
Sealing	Leakage rate < 5% within 10min @ 500Pa
Wind speed	0.35~0.65m/s (adjustable)
Cleanliness Degree	Class A
Power source	AC220V±22V, 50Hz±1Hz
Size	Standard inner: 1800710850mm (Customizable)

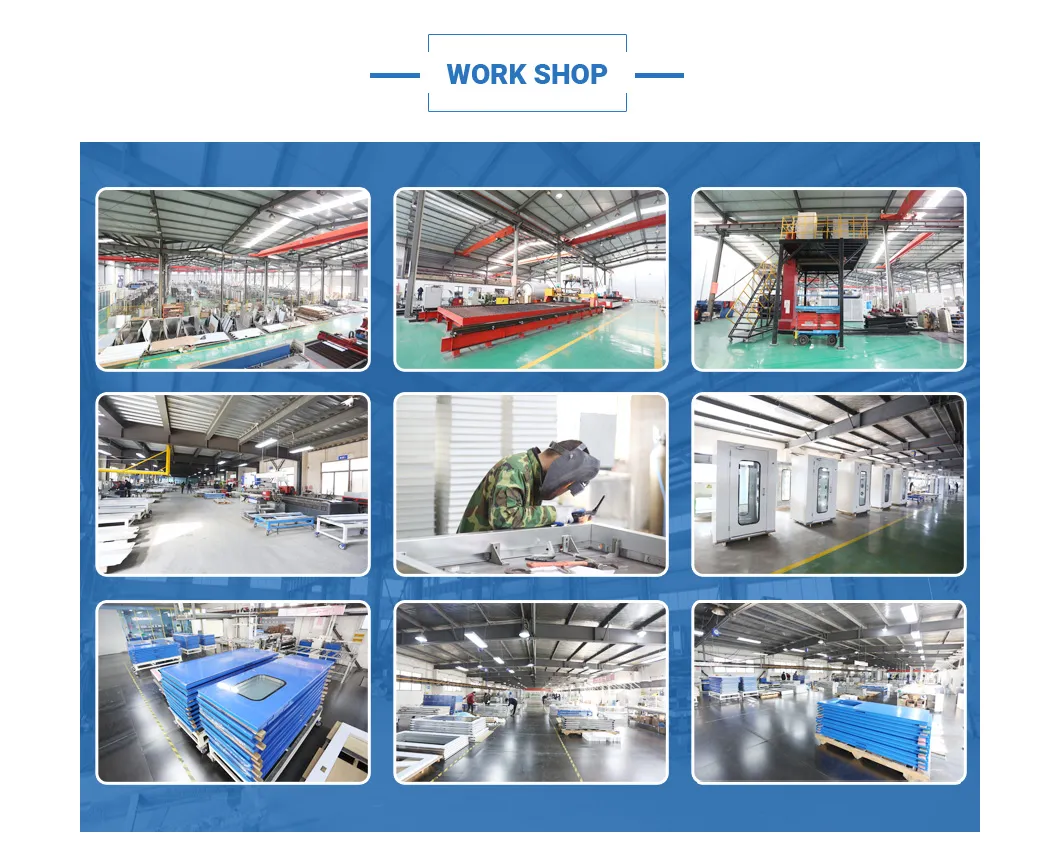

Workshop & Quality Control

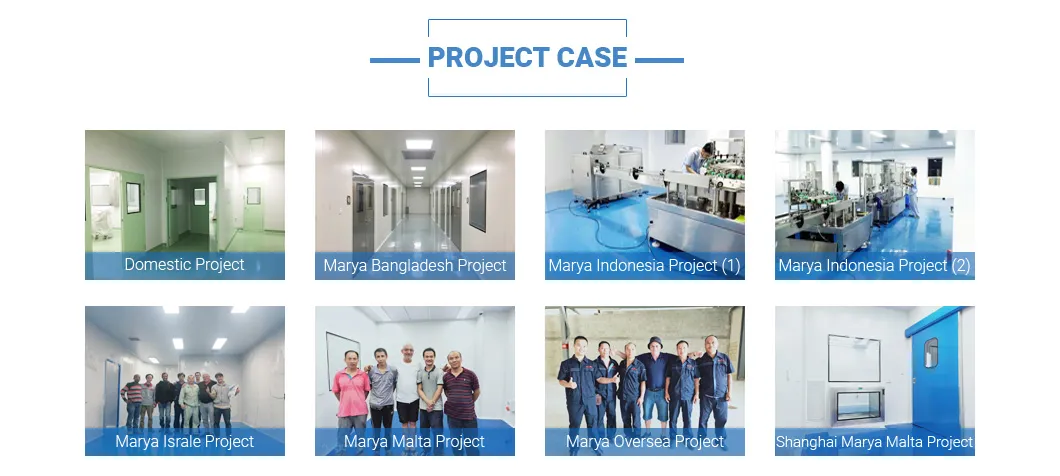

Certificates & Cases

Frequently Asked Questions

Q: What is the main application of this isolator? A: It is primarily used for sterile testing, sterile product dispensing, and pharmaceutical laboratory processes requiring a Class A environment.

Q: Does the system meet international standards? A: Yes, it complies with China GMP, EU GMP/FDA, and cGMP/USP-NF requirements.

Q: What material is used for the inner chamber? A: The inner chamber is constructed from high-quality 316L stainless steel or PTFE.

Q: Is the size of the isolator customizable? A: Yes, dimensions can be customized according to specific laboratory space and process requirements.

Q: How does the VHPS technology work? A: It controls H2O2 concentration and saturation to ensure high sterilization reproducibility and shorten cycle times.

Q: What kind of control system is integrated? A: It features a Siemens PLC+IPC intelligent control system with multi-level access control.
