📊 Basic Information
Classification
Lighting/Power
Standby Time
Standard Machine
Output Capacity
Small Type
Nominal Input
110/120VAC or 220/230/240 VAC
Operating Voltage
81-145VAC/162-290 VAC
Transfer Time
Typical 2-6 Ms, 10ms Max.
💡 Product Description

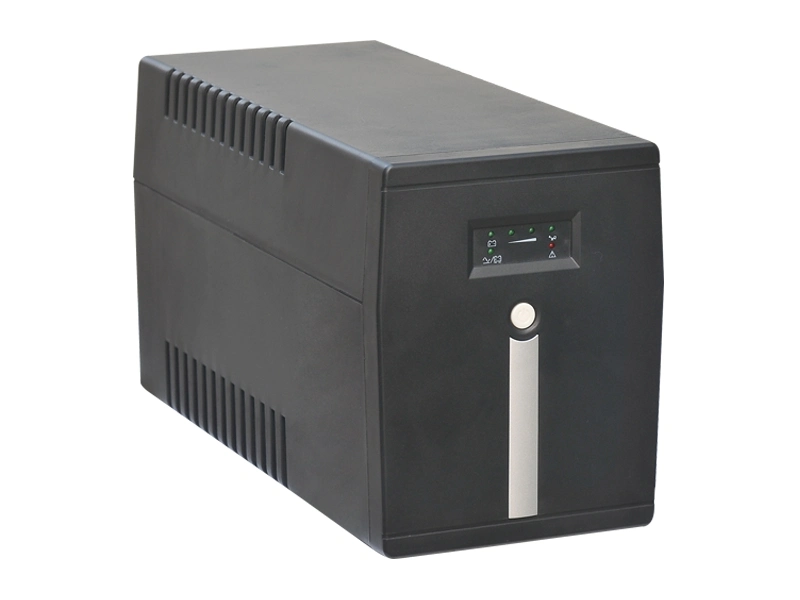

Offline UPS 400VA to 3000VA for Desktops/Computer Use
The 400-3000VA is a line interactive UPS that provides a simulated sinewave output. It is engineered to prevent impulse, surge, sag, and power outage situations, ensuring a reliable power source for your sensitive electronic equipment.
🛠️ General Features
- AVR boost and buck
- Cold start function
- Smart RS232/USB interface
- Built-in self-diagnostic
- Modem/LAN protection
- Generator compatible

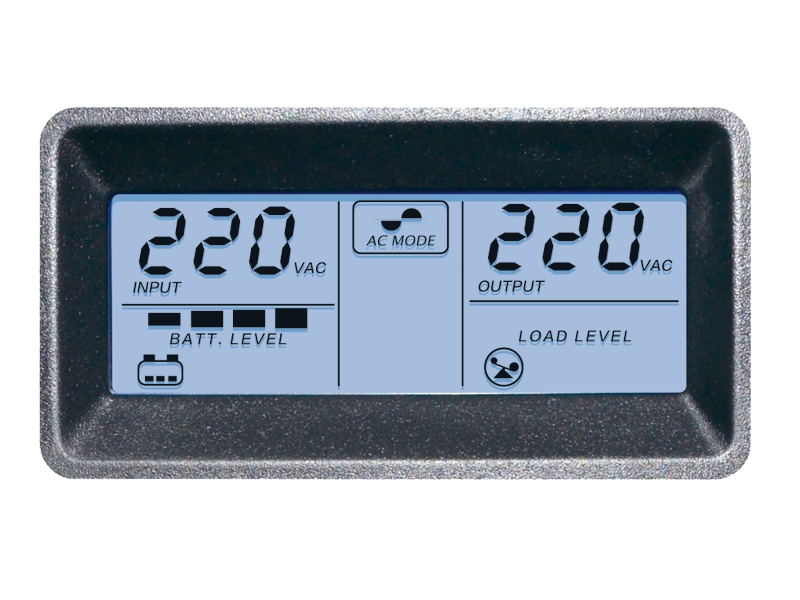

- LCD or LED panel option
- Fastest charging capacity
- Auto charging at off mode
- Auto-restart function
🖥️ Applications
PC & Workstations
NAS & Network Equipment
POS & ATMs
Kiosks
Critical Electronic Devices
⚙️ Technical Specifications
| Model |
Micro 400 |
Micro 1000 |
Micro 2000 |
Micro 3000 |
| Capacity (VA/Watts) |
400 / 240 |
1000 / 600 |
2000 / 1200 |
3000 / 1800 |
| Nominal Input |
110/120Vac or 220/230/240 Vac |
| Battery Type |
12 V / 4.5 Ah x 1 |
12 V / 7 Ah x 2 |
12 V / 9 Ah x 2 |
12 V / 9 Ah x 4 |
| Transfer Time |
Typical 2-6 ms, 10ms max. |
| Environment Temp. |
0-40°C |
| Net Weight (kg) |
3.8 |
7.8 |
10.5 |
23 |
🖼️ Product Gallery
❓ Frequently Asked Questions
What is the typical transfer time for this UPS?
The typical transfer time is between 2-6 ms, with a maximum of 10ms, ensuring seamless power transitions for most electronic devices.
Can this UPS be used with a generator?
Yes, this series is fully compatible with generators, making it versatile for areas with unstable power grids.
Does it support automatic restarting?
Yes, it features an auto-restart function that allows the UPS to automatically power up once AC power is restored.
How long does it take to recharge the battery?
It typically takes about 6-8 hours to recharge the battery to 90% capacity.
What kind of protection does this UPS offer?
The unit provides comprehensive protection against overvoltage, overload, overcharge, and features modem/LAN internet protection.
Which operating systems are compatible with the monitoring software?
The optional USB/RS232 ports support Windows (2000/XP/Vista/7/2008), Linux, Unix, and MAC OS.
