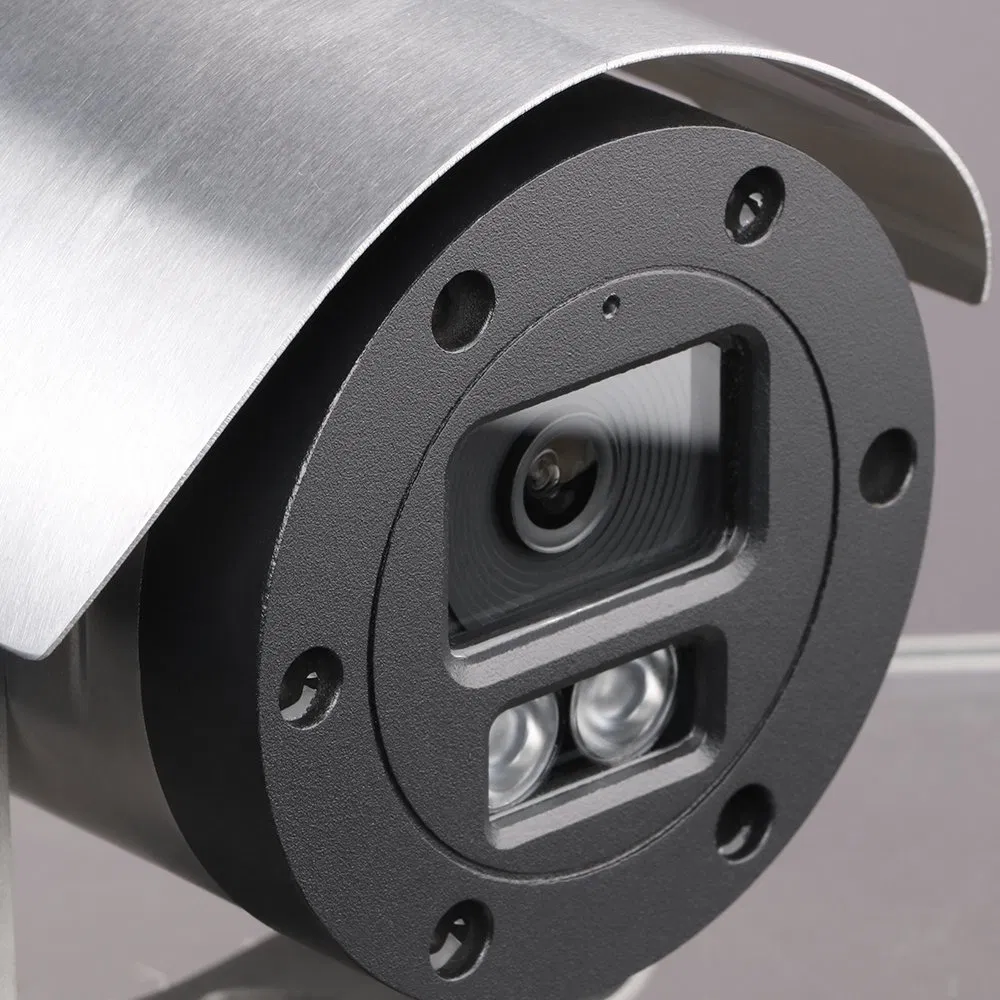

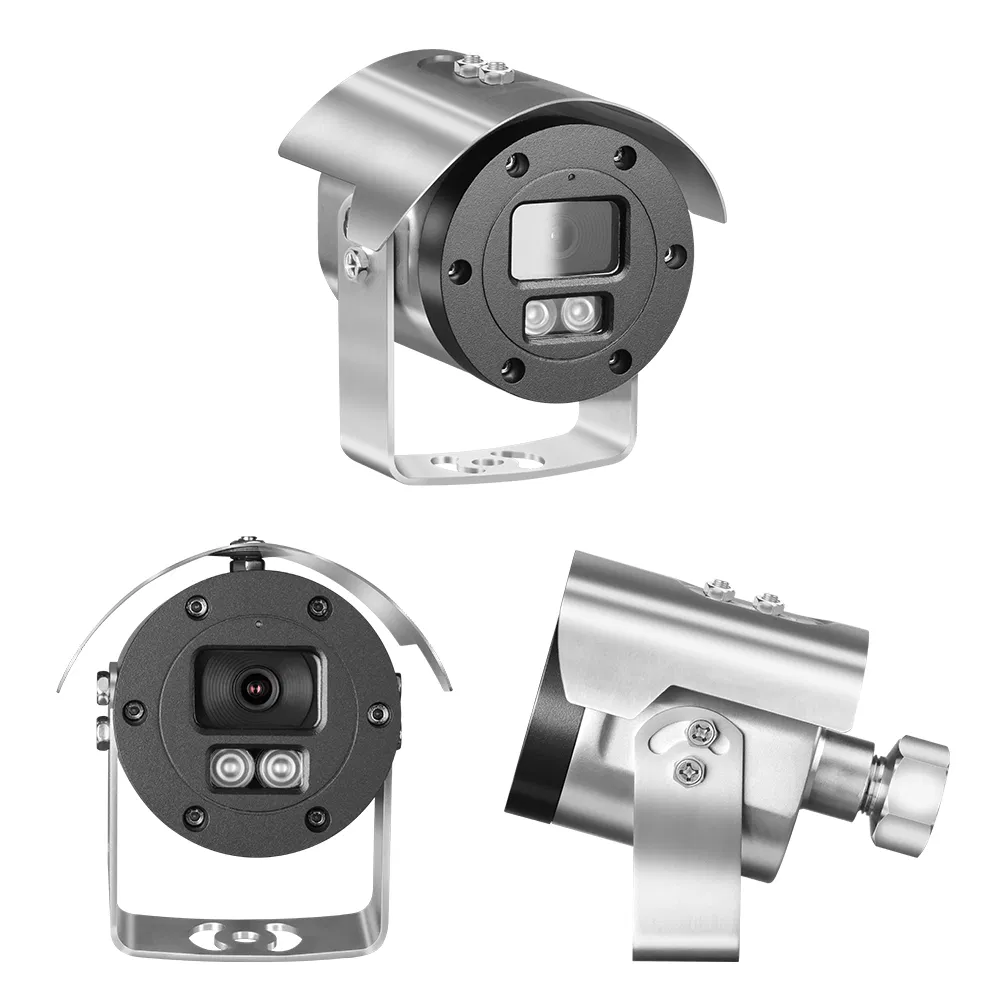

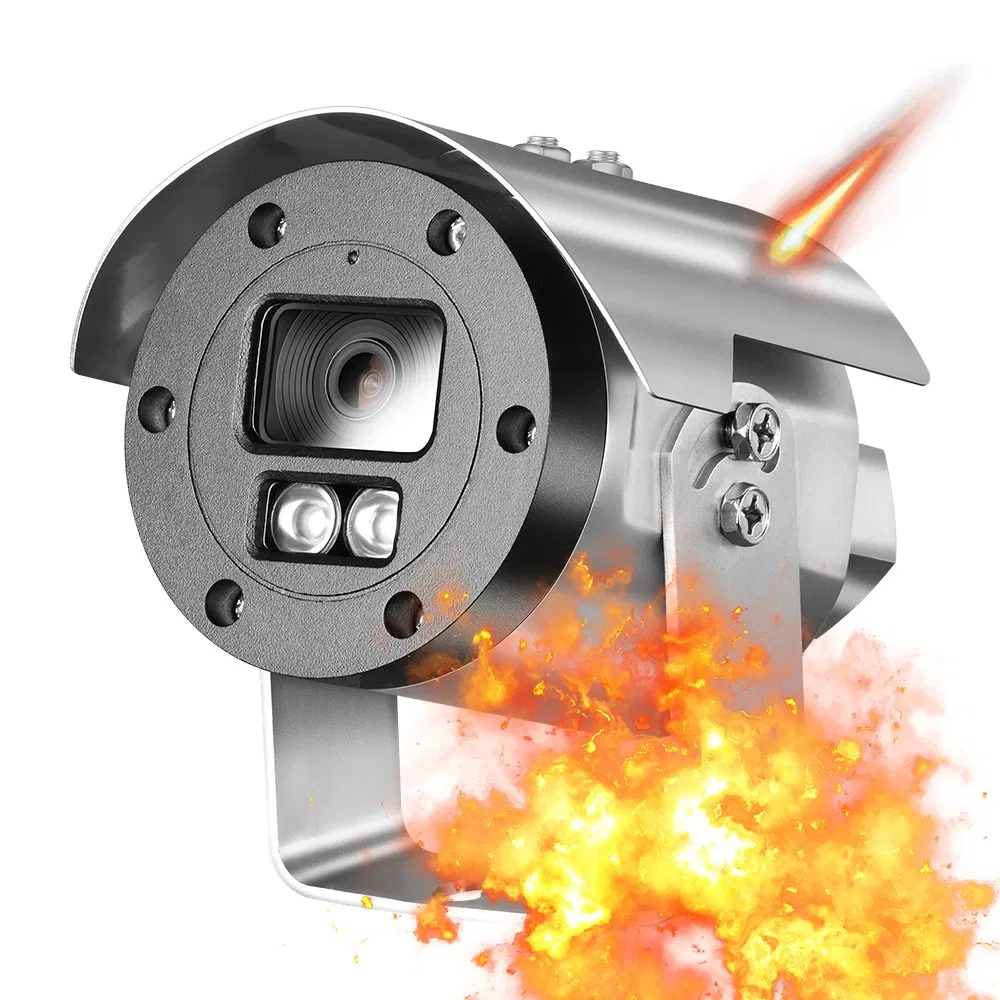

Ga-Ex3fi-M5s Outdoor Explosion-Proof Poe Security Camera with Gcraftsman 304 316 Stainless Steel IP CCTV Housing Working Hikvision NVR

1 / 5

Ga-Ex3fi-M5s Outdoor Explosion-Proof Poe Security Camera with Gcraftsman 304 316 Stainless Steel IP CCTV Housing Working Hikvision NVR

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

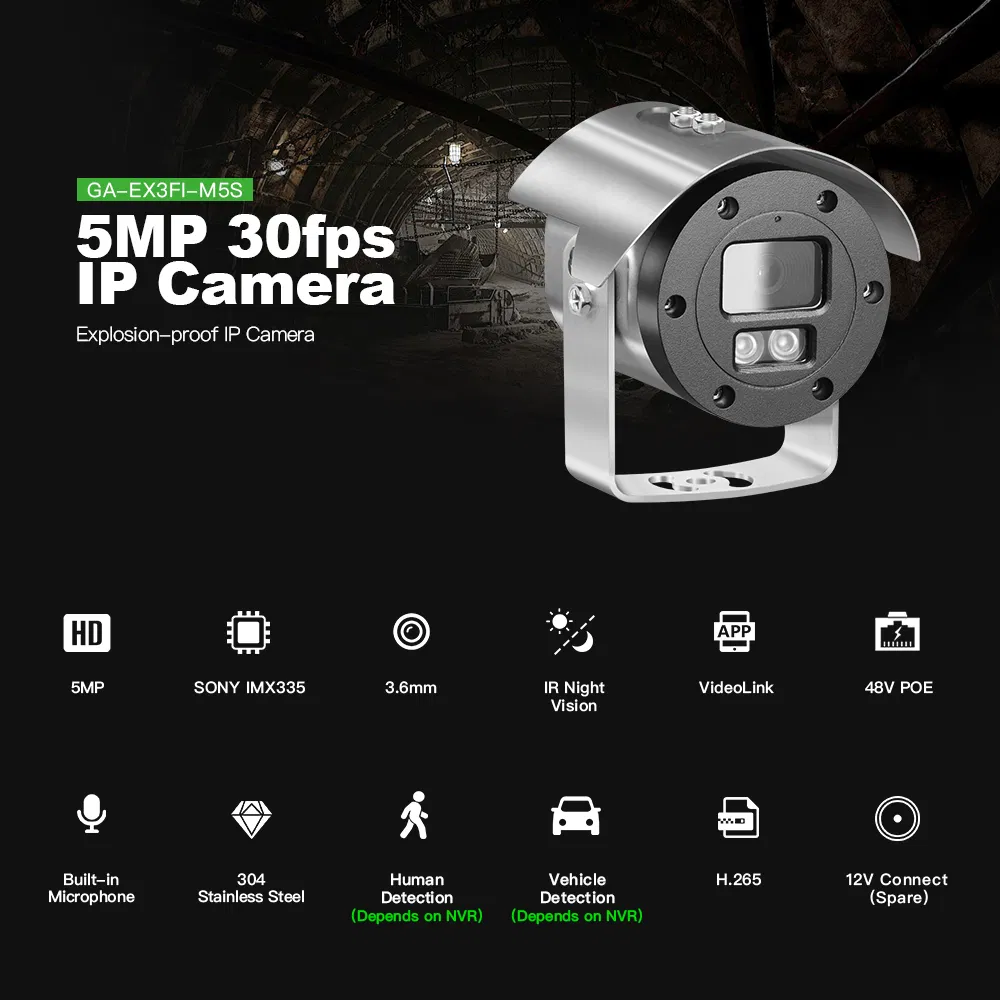

Product Description

Basic Info

Model NO.:

GA-EX3FI-M5S

Type:

IP Camera

Sensor:

CMOS (1/2.7")

HDMI Format:

H.265/H.264

Resolution:

5MP (2592*1944@30fps)

Lens:

3.6 mm Fixed Lens

Certification:

CE, FCC, CCC, RoHS, ISO9001

Night Vision:

IR Distance 25m

Smart AI:

Humanoid & Vehicle Detection

Material:

304 Stainless Steel

POE:

Yes (IEEE802.3af)

WDR:

120dB Super WDR

Packaging & Delivery

Package Size:

25.00cm * 19.00cm * 19.00cm

Gross Weight:

2.060kg

Product Description

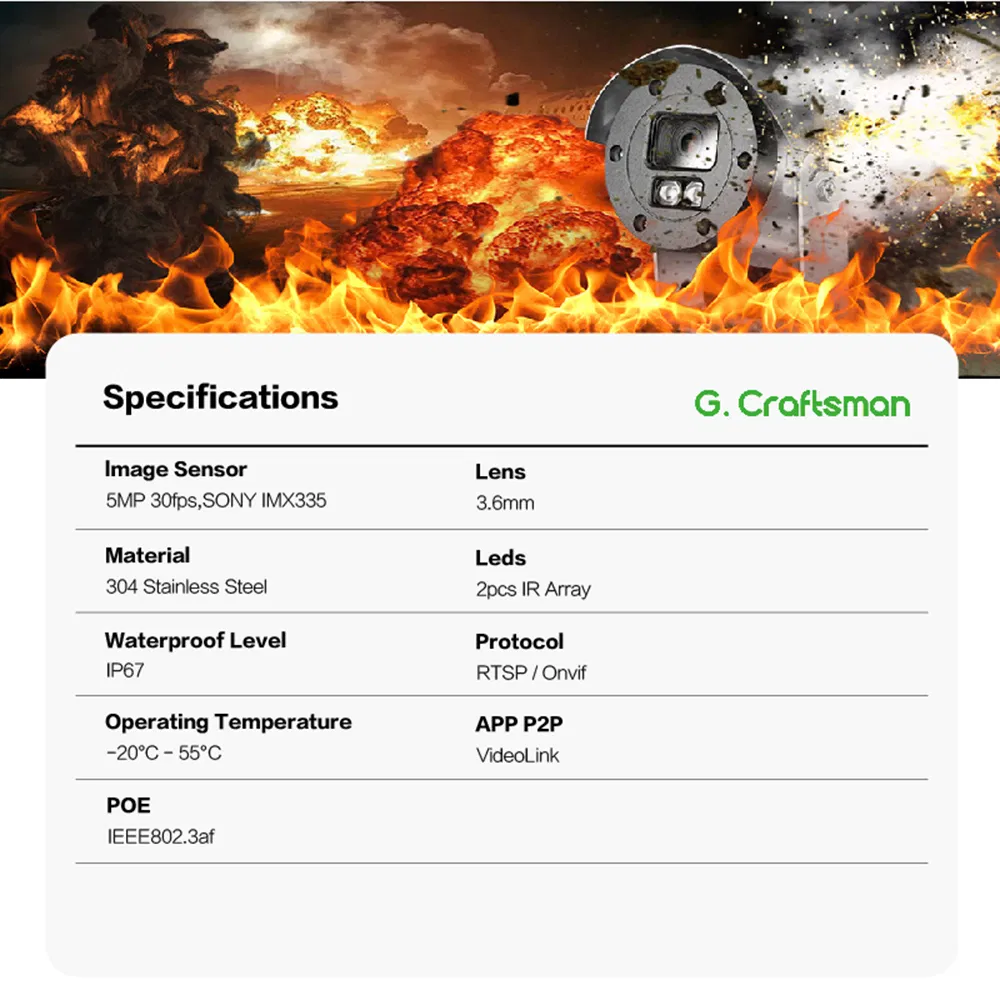

Technical Specifications
Image Sensor	5 Mega Pixel, HD SONY IMX335 Sensor
Min. Illumination	Color: 0.001Lux; B/W: 0Lux with LED on
Electronic Shutter	AUTO, 1/25s ~ 1/100000s
Image Enhancement	BLC, HLC, 2D/3D DNR, Defog
Video Compression	H.265+/H.265/H.264
Audio	Built-in Mic, G.711-u/G.711-a
Protocols	HTTP, RTSP, DHCP, NTP, ONVIF, P2P, RTMP
Working Temp.	-40ºC~60ºC (-40 °F to 140 °F)
Protection	304 Stainless Steel, IP67

Application Scenarios

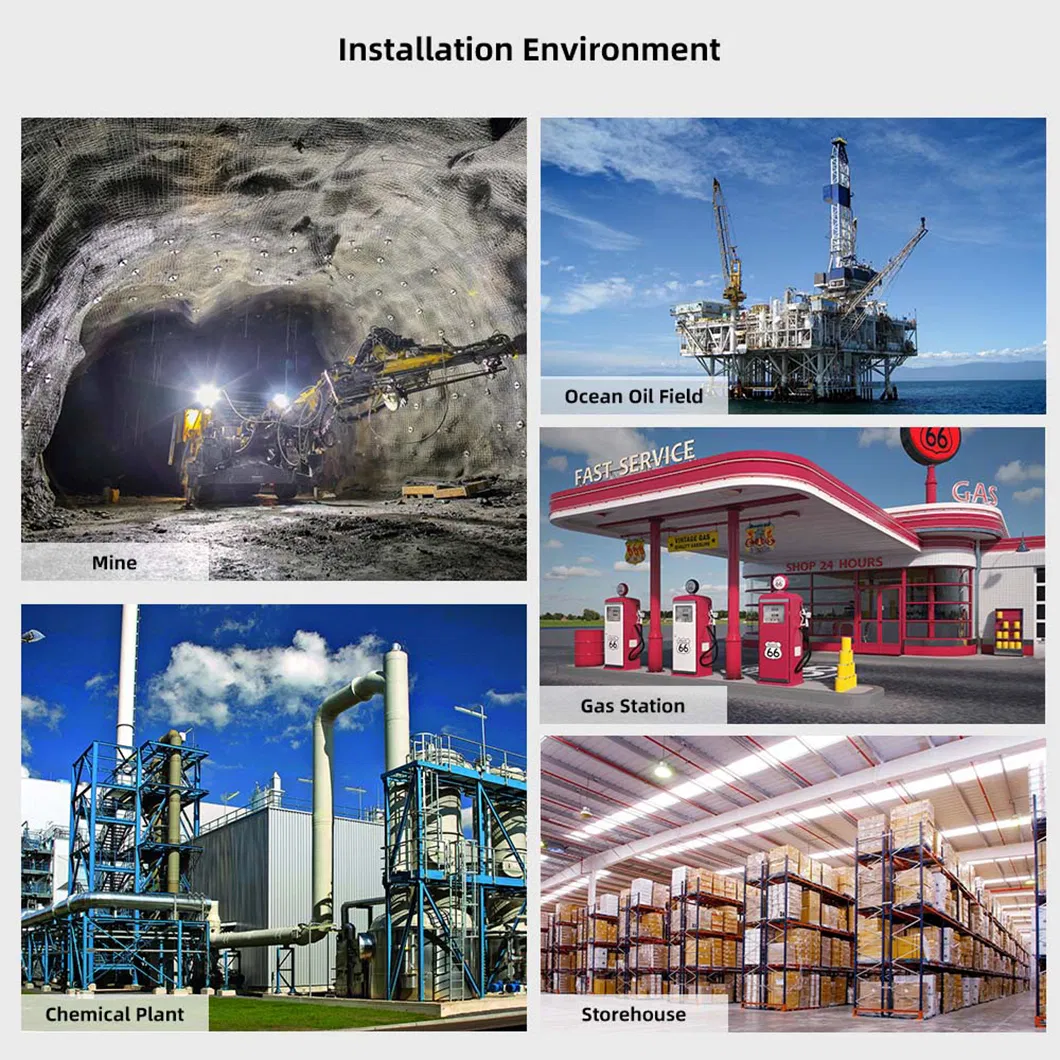

This EX Series Camera is ideal for Gas stations, Chemical factories, Oil bases, Garbage transfer stations, Seaside Ports, Boats & Ships, and Maritime monitoring.

Smart Features

Equipped with Human & Vehicle Detection to filter irrelevant objects and Smart Motion Detection for instant alerts via Email/APP Push.

Advanced Hardware

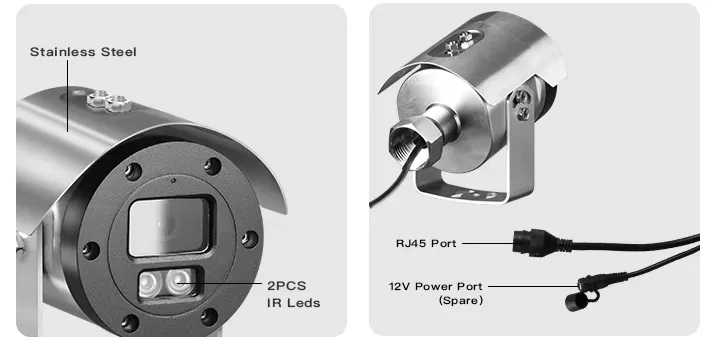

Features F1.6 Large Apertures for 1.7x more light intake and a unique 304/316 Stainless Steel housing for rugged environment protection.

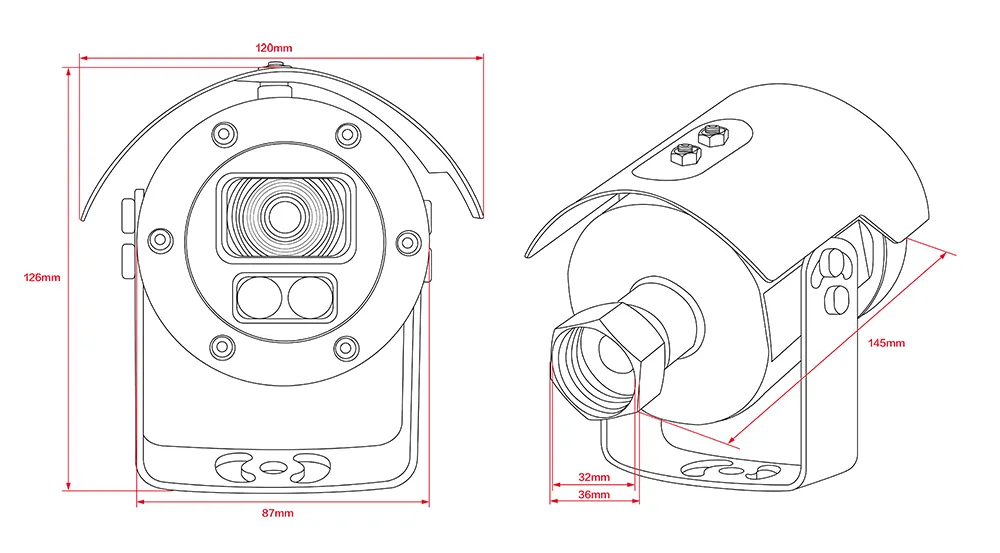

Detailed Engineering

Product FAQ

What are the core advantages of these explosion-proof cameras?

The cameras undergo 48 hours of aging and 7 strict inspections. They feature a defective rate of less than 2‰ and hold ISO 9001, CE, FCC, and RoHS certifications.

What kind of night vision technology is used?

The camera utilizes SONY Starvis Sensors with F1.6 large apertures, capable of delivering color images at 0.001Lux and infrared night vision up to 25 meters.

Is the housing suitable for corrosive environments?

Yes, the camera uses high-quality 304 stainless steel by default, with 316 stainless steel available as an option for even higher corrosion resistance in maritime environments.

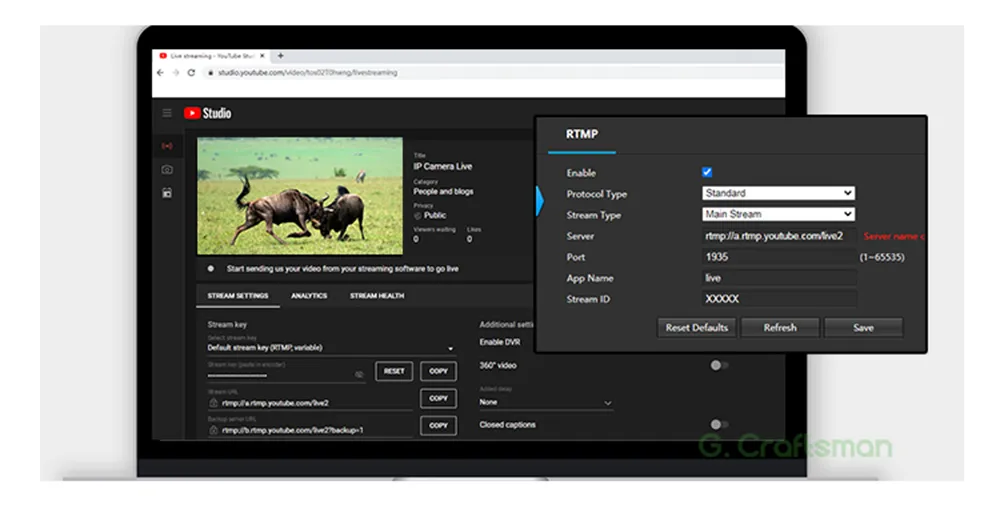

Does this camera support live streaming directly?

Yes, it supports RTMP streaming, allowing you to stream live video directly to platforms like YouTube, Facebook Live, Twitch, and Wowza.

What is the warranty and technical support policy?

The product comes with a 24-month quality guarantee and lifetime technical service. Response times for support queries are typically under 12 hours.

How does the AI detection function work?

The built-in AI supports Humanoid and Vehicle detection, which filters out false alarms caused by animals or weather, enhancing monitoring efficiency.
