Photoelectric safety sensors for personnel safety. Together with the appropriate safety control units, active photoelectric protective devices such as safety thru-beam sensors and safety light grids ensure that a stop is applied on detection of unauthorized access or if someone reaches into a danger zone.

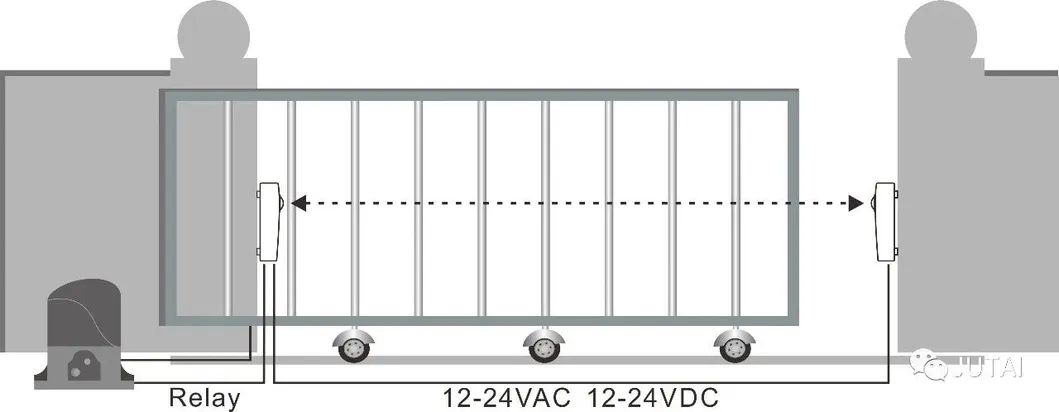

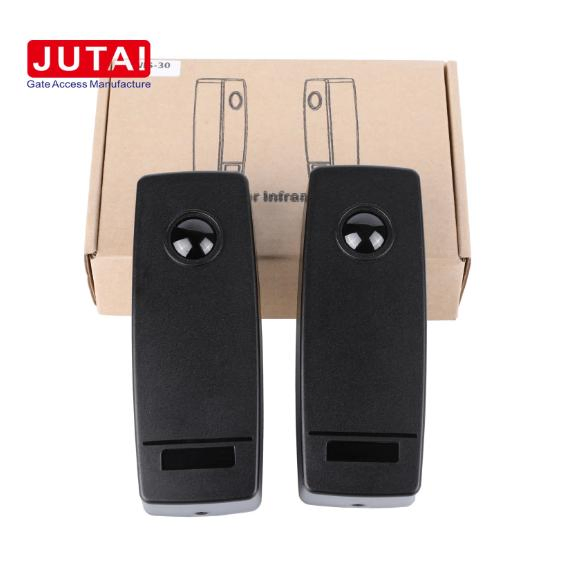

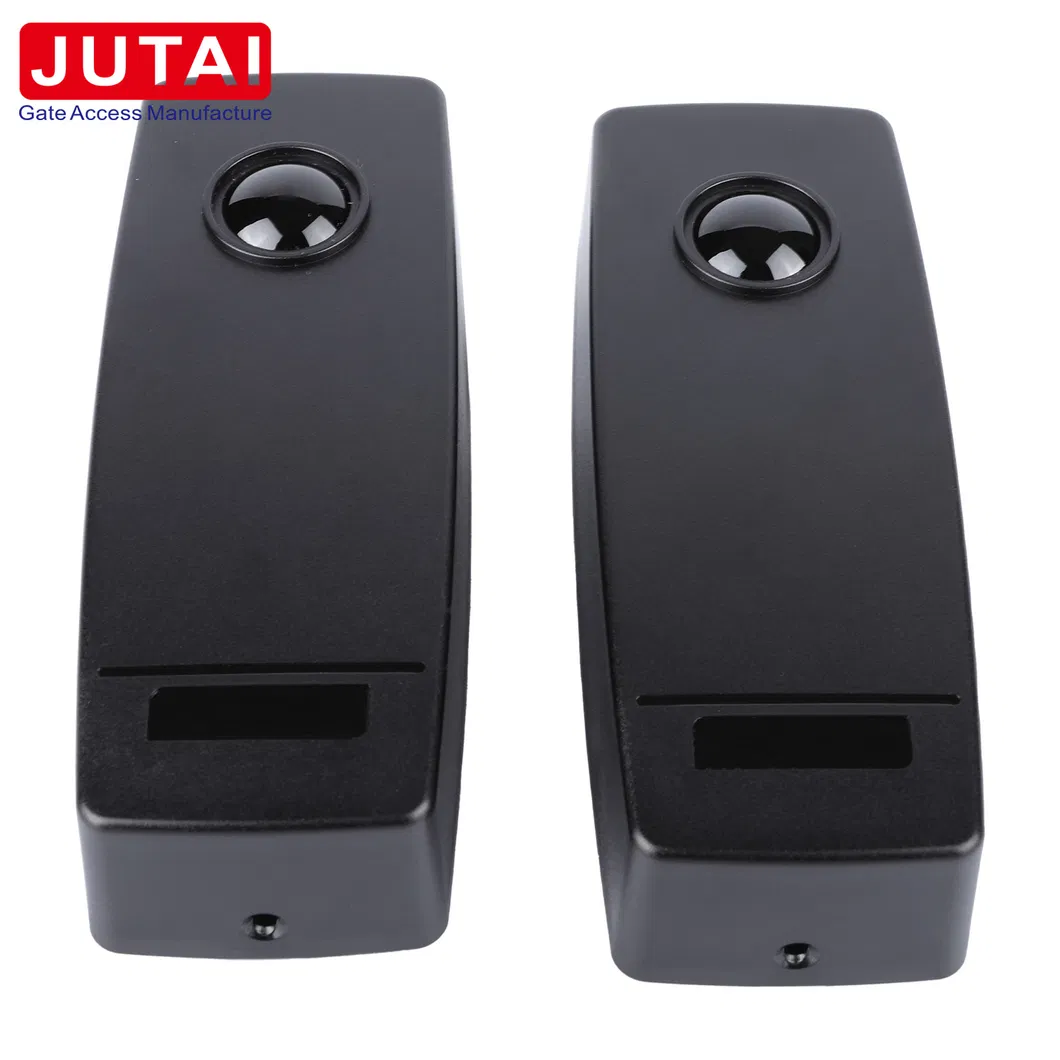

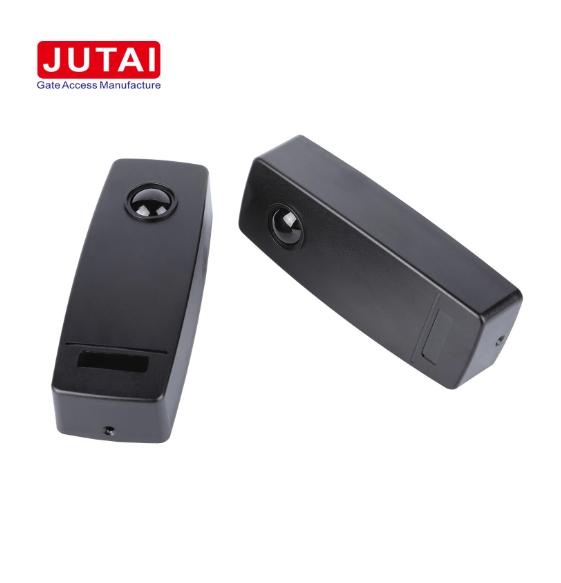

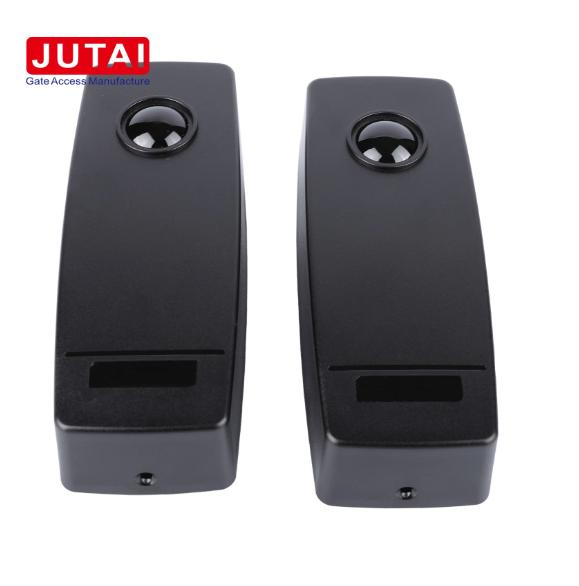

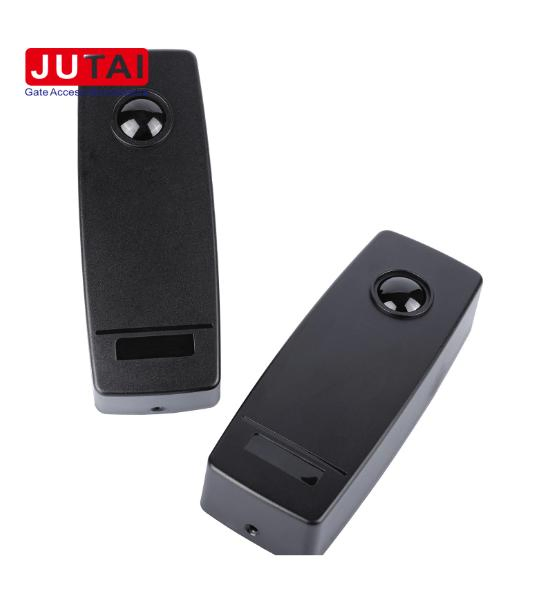

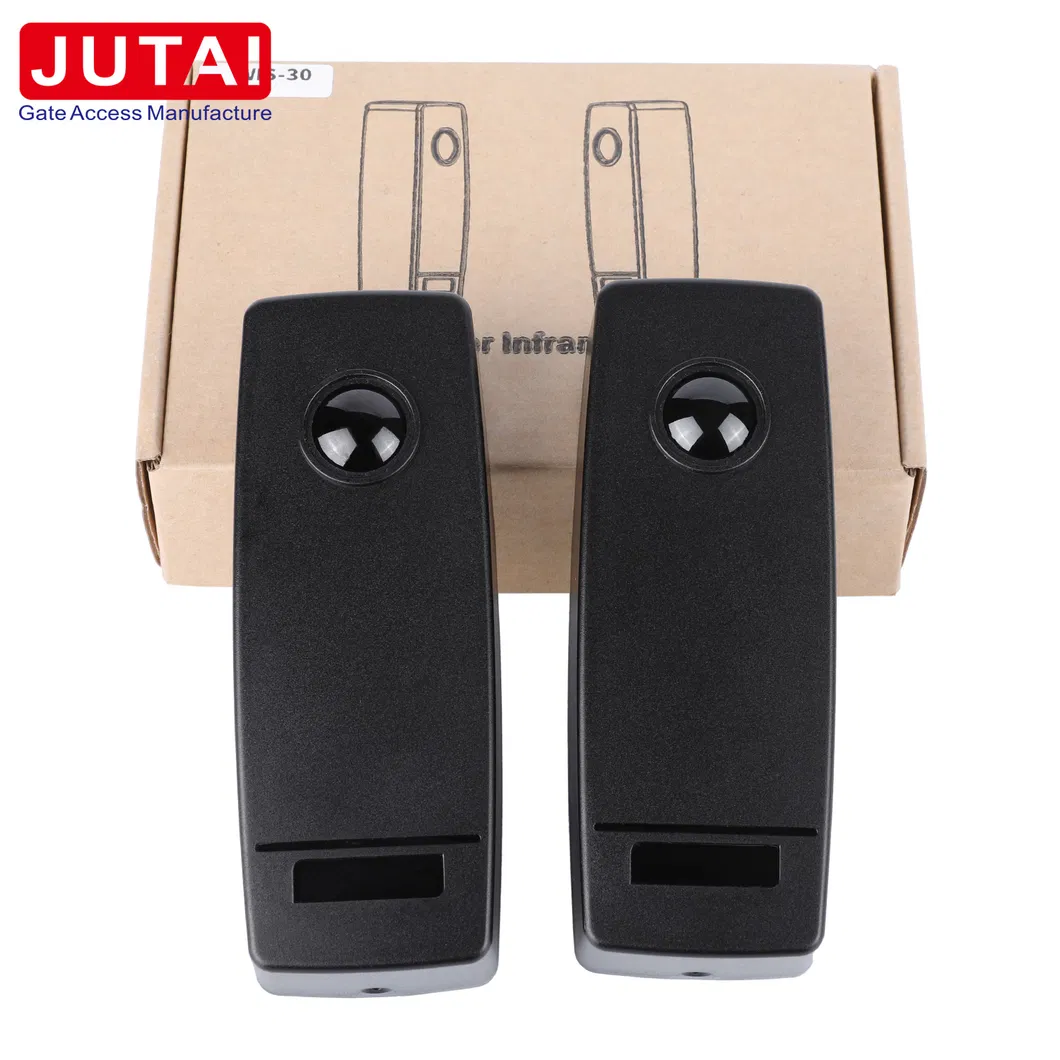

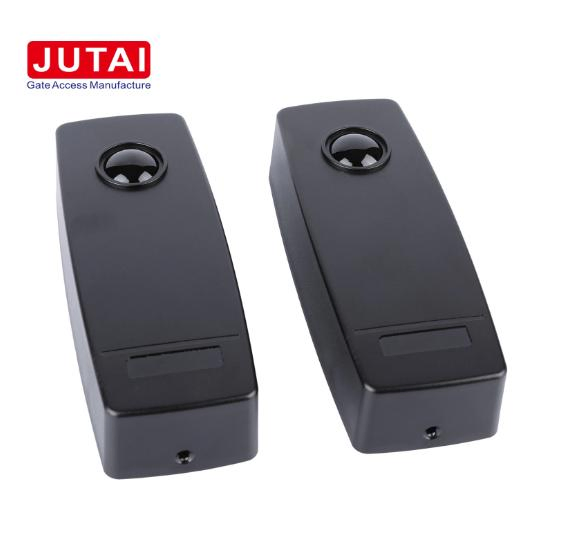

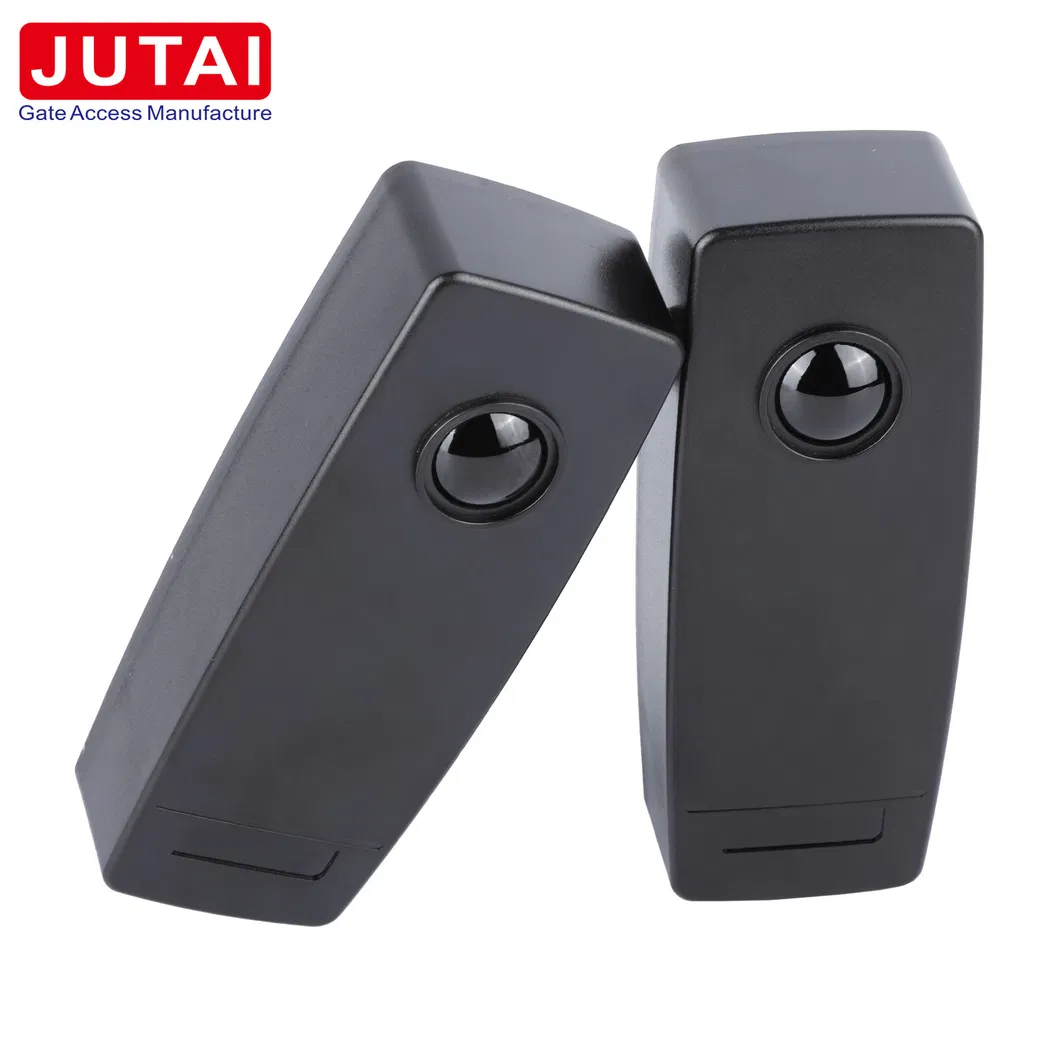

WIS-30 wireless photocell sensor gate safety beam with a wireless transmitter makes short work of achieving a safe automation system for even the most challenging of installations. With a wireless transmitter, there's no need to tunnel under the driveway. Simply align, more convenient and safe for door automation!

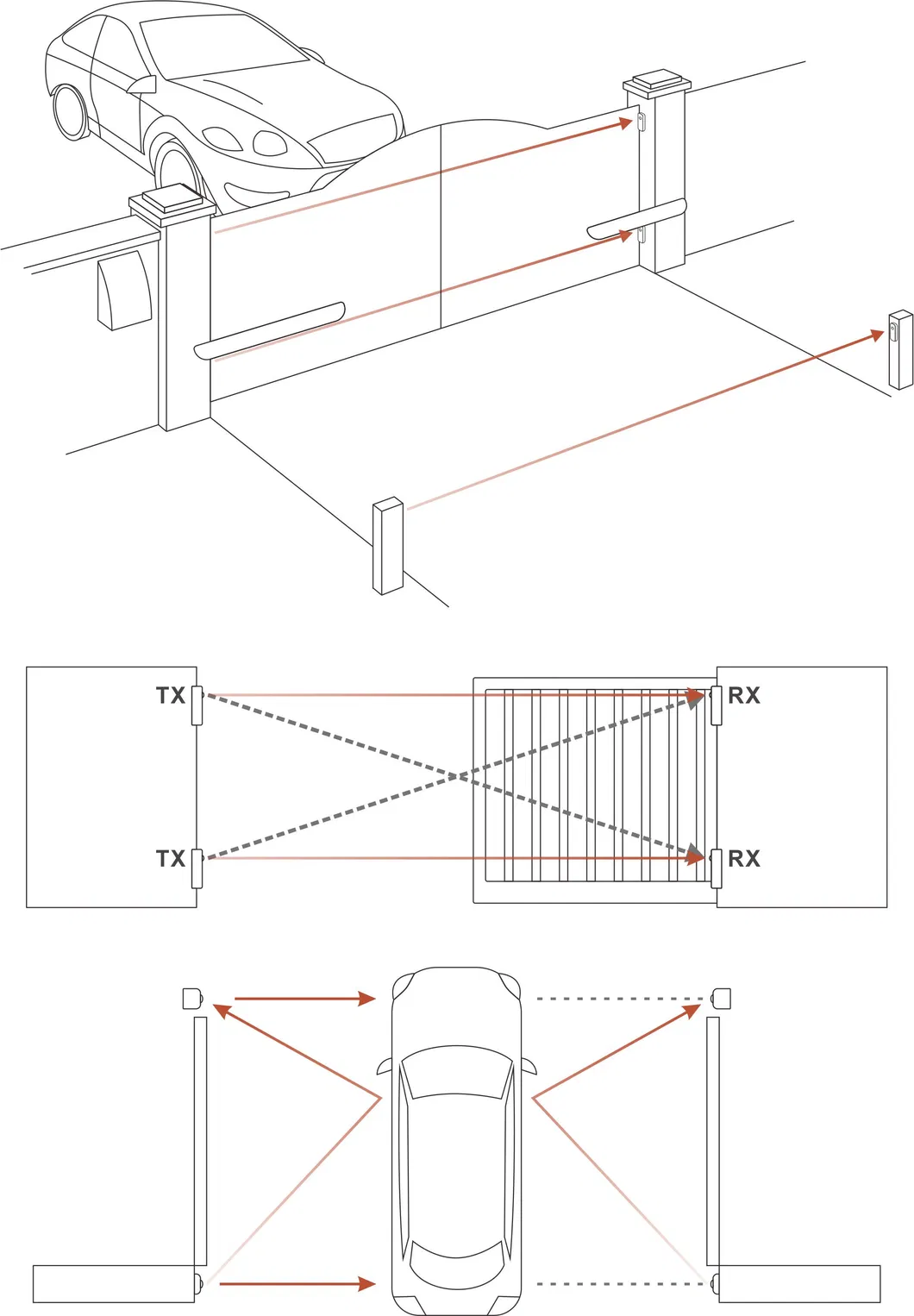

This installation is very simple and compatible with 12VAC/DC and 24VAC/DC voltage. Whether your door machine uses low or high voltage, this product handles it easily, reducing inventory pressure. It supports one-on-one and one-to-many working states via simple jumper cap adjustments.
| Transmitter Power | 2 x AA Alkaline Batteries |
| Receiver Power | 12 - 24V AC / 12 - 30V DC |
| Battery Life | Minimum 2 years |
| Battery Low Alert | Audible Beep |
| Operating Distance | 30m |
| Output Contact | Fail-Safe, N/C and N/O, Potential Free |
| Housing Material | PC(UV) Anti-aging |
| Degree Protection | IP65 with rubber seal |

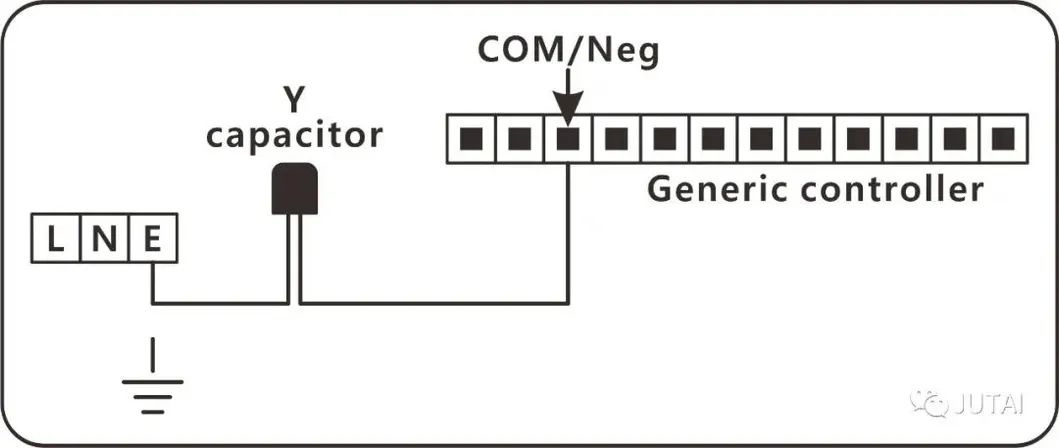

Note: For safety, we suggest using a Y capacitor to connect the COM contact and the power supply Earth.
