📦 Basic Information
Power Supply
2 x AA Alkaline Batteries
Battery Life
Minimum 2 Years
Temperature
-20°c to +60°c
🔍 Product Overview
Photoelectric safety sensors for personnel safety. Together with the appropriate safety control units, active photoelectric protective devices such as safety thru-beam sensors and safety light grids ensure that a stop is applied on detection of unauthorized access or if someone reaches into a danger zone.

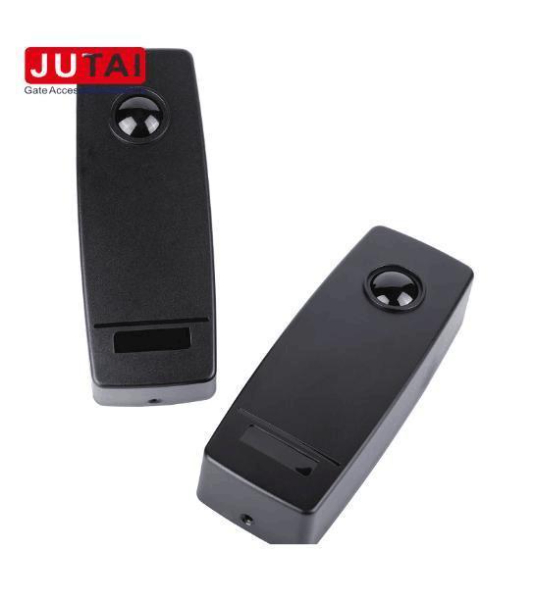

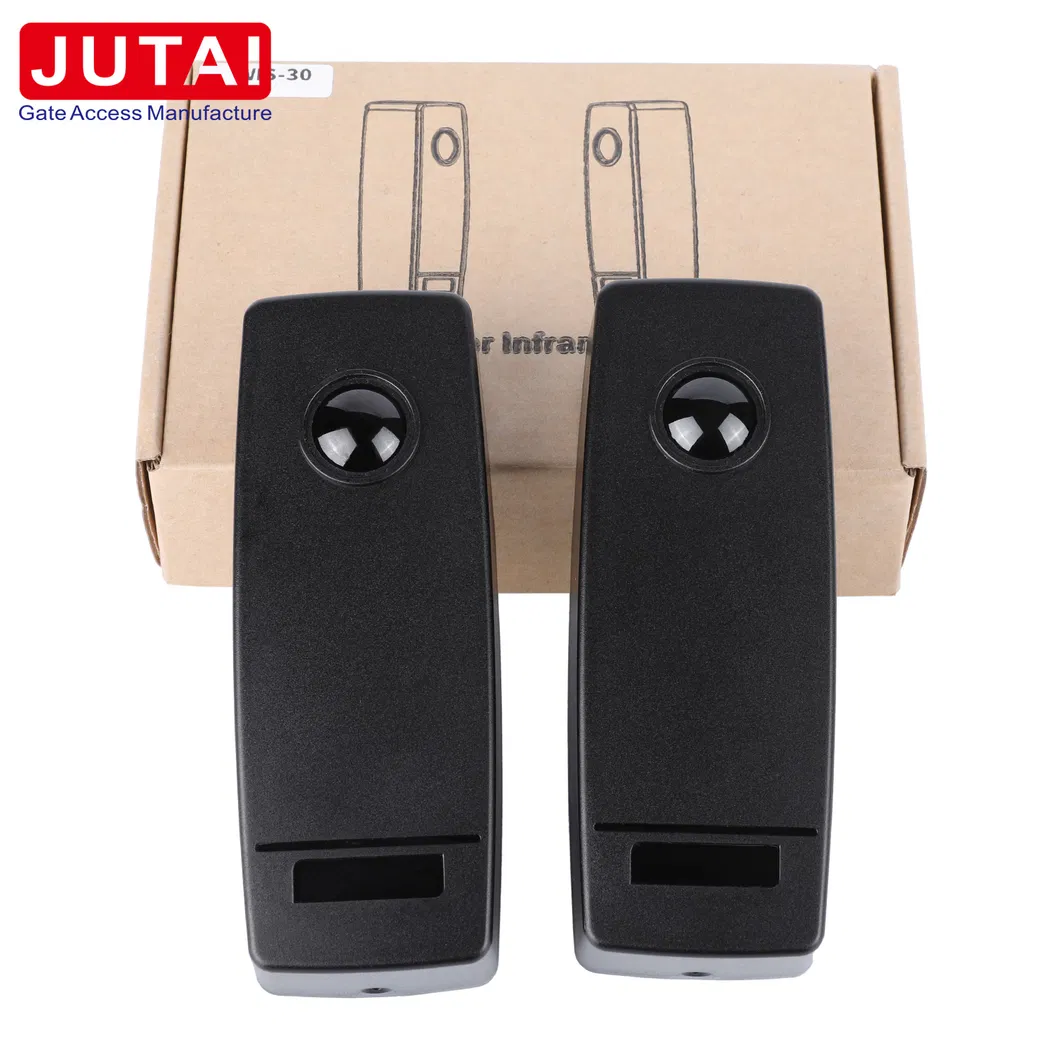

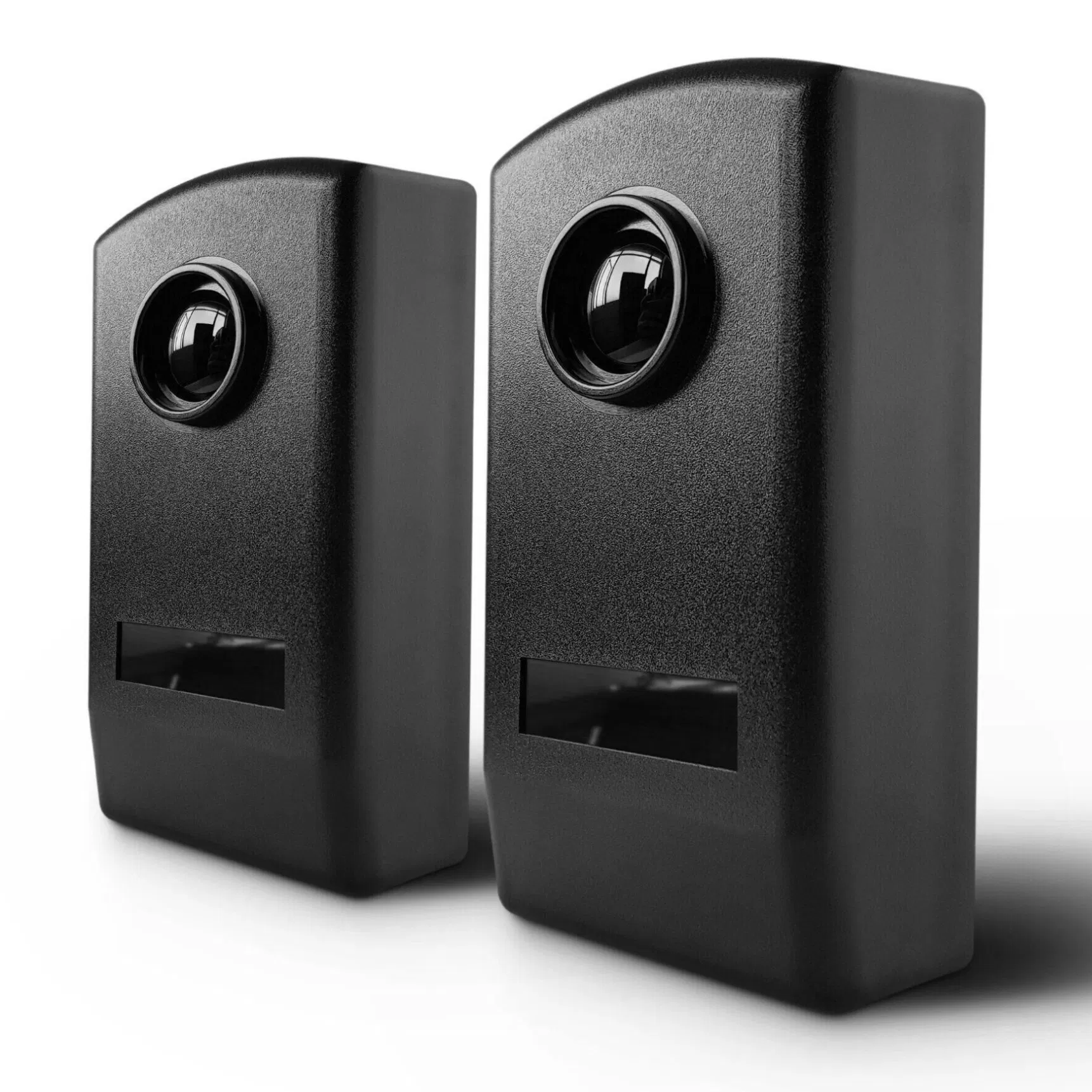

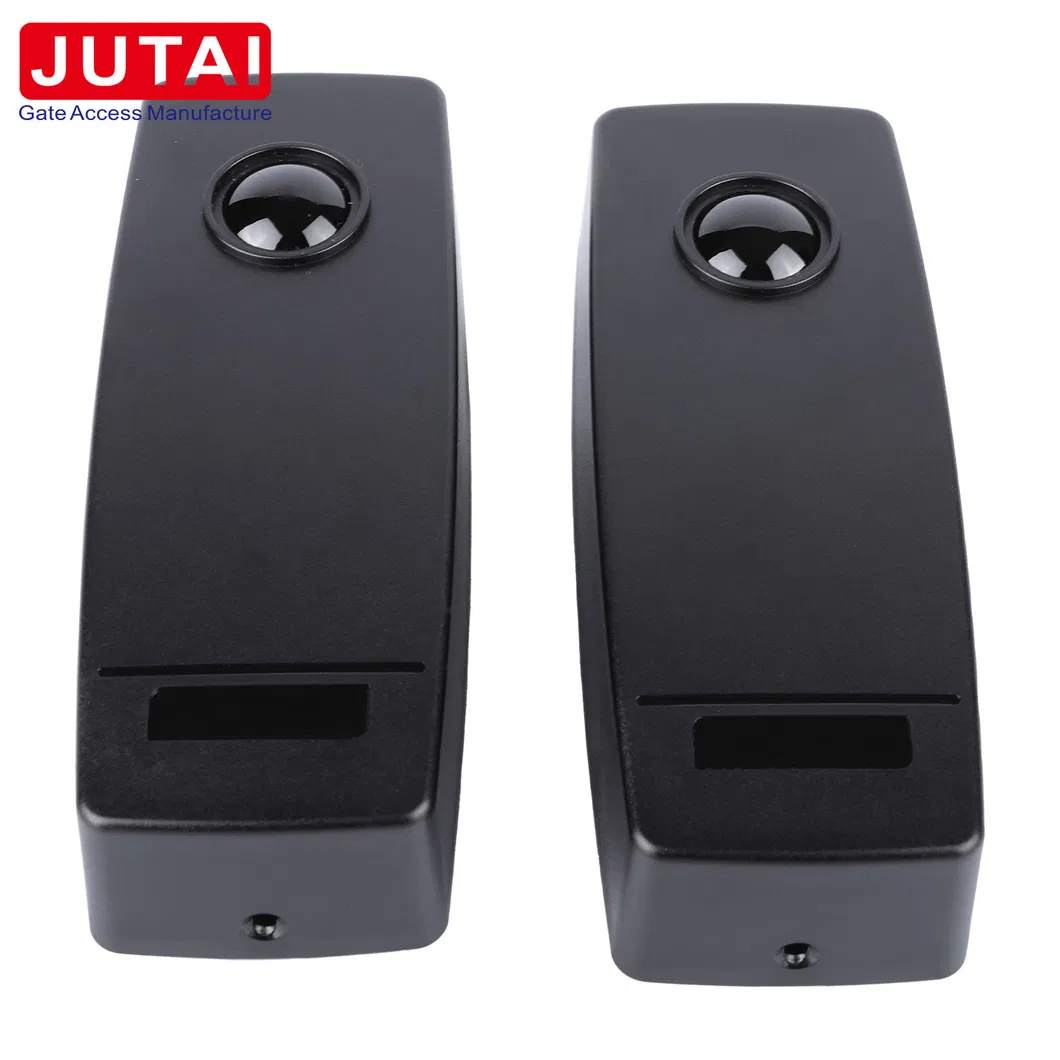

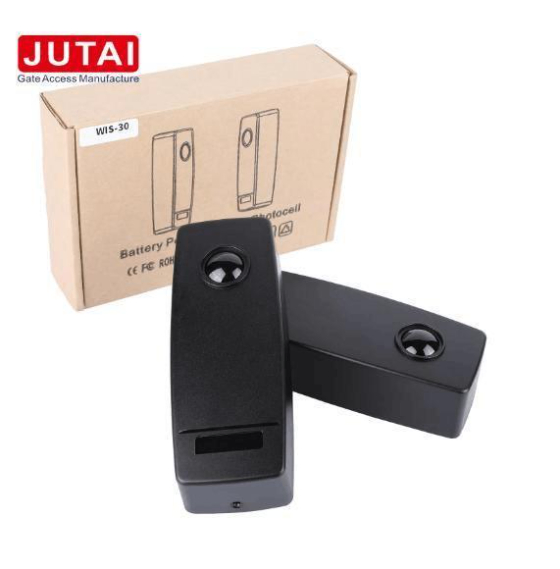

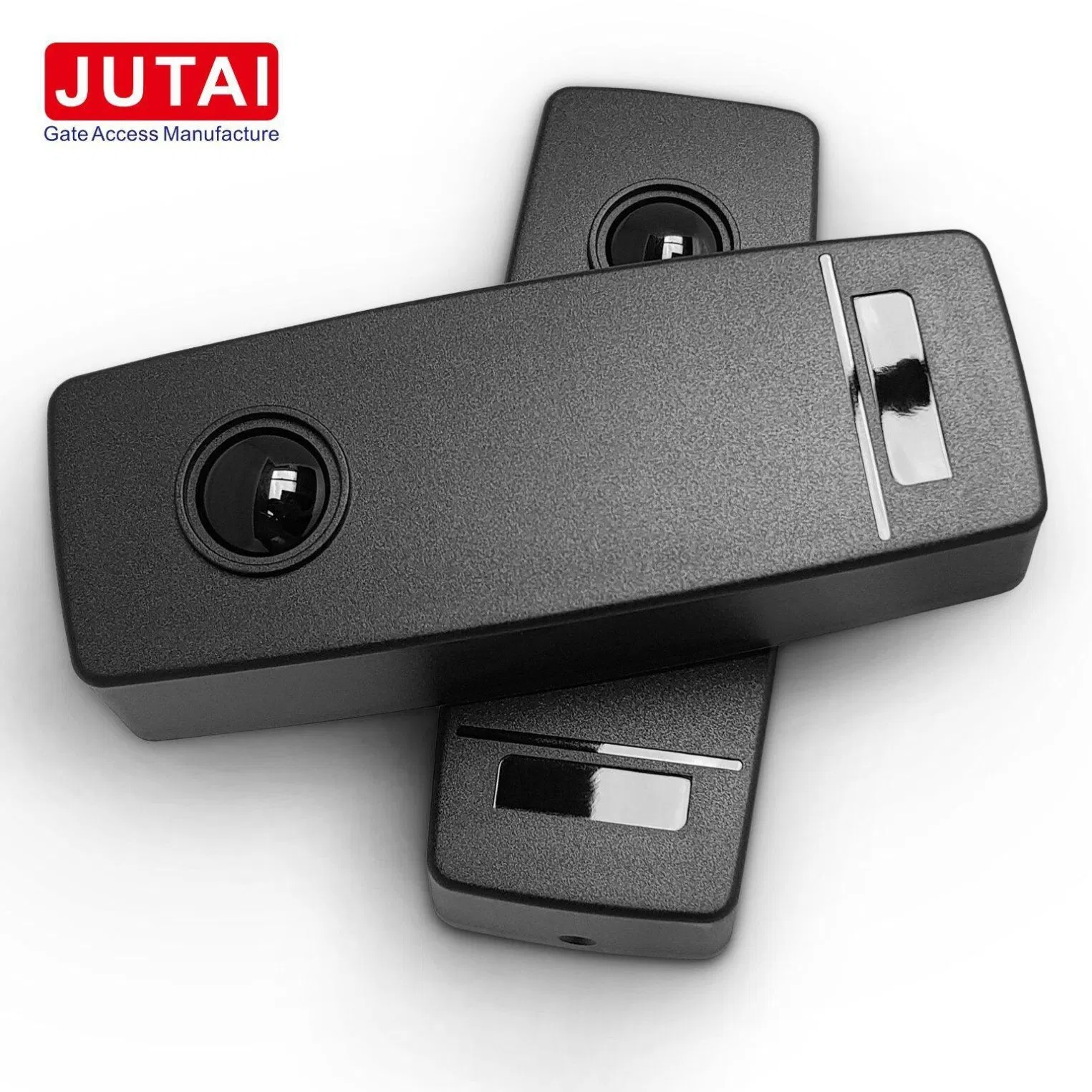

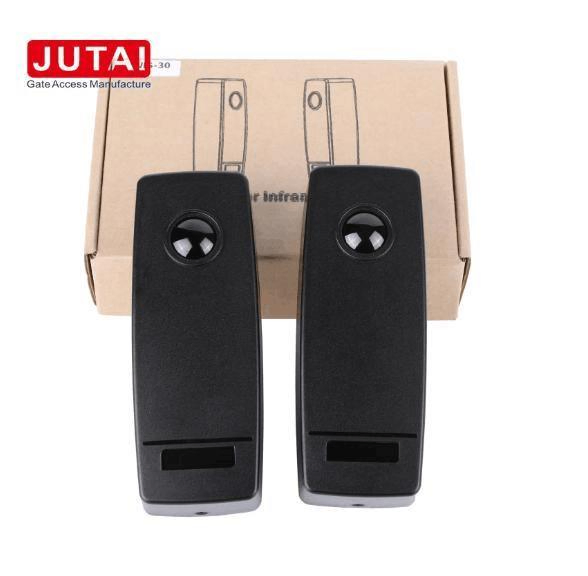

WIS-30 wireless photocell sensor gate safety beam with a wireless transmitter makes short work of achieving a safe automation system for even the most challenging of installations. With a wireless transmitter, there's no need to tunnel under the driveway. Simply align—more convenient and safe for door automation!
✨ Key Features
- The transmitter is wireless and battery-operated, saving time and money.
- 30 meters operating range - ideal for almost any entrance gate.
- Fully ant-proof and weather-resistant enclosure (IP65) for greater reliability.
- Transmitter provides audible feedback for easy setup and battery-low indication.
- Low power consumption throughout the system for greater efficiency.
- Quick, easy installation with built-in laser beam alignment system.
⚙️ Technical Parameters
Receiver Power
12-24V AC / 12-30V DC
Output Contact
Fail-Safe, N/C and N/O
Contact Rating
3A @ 30V DC

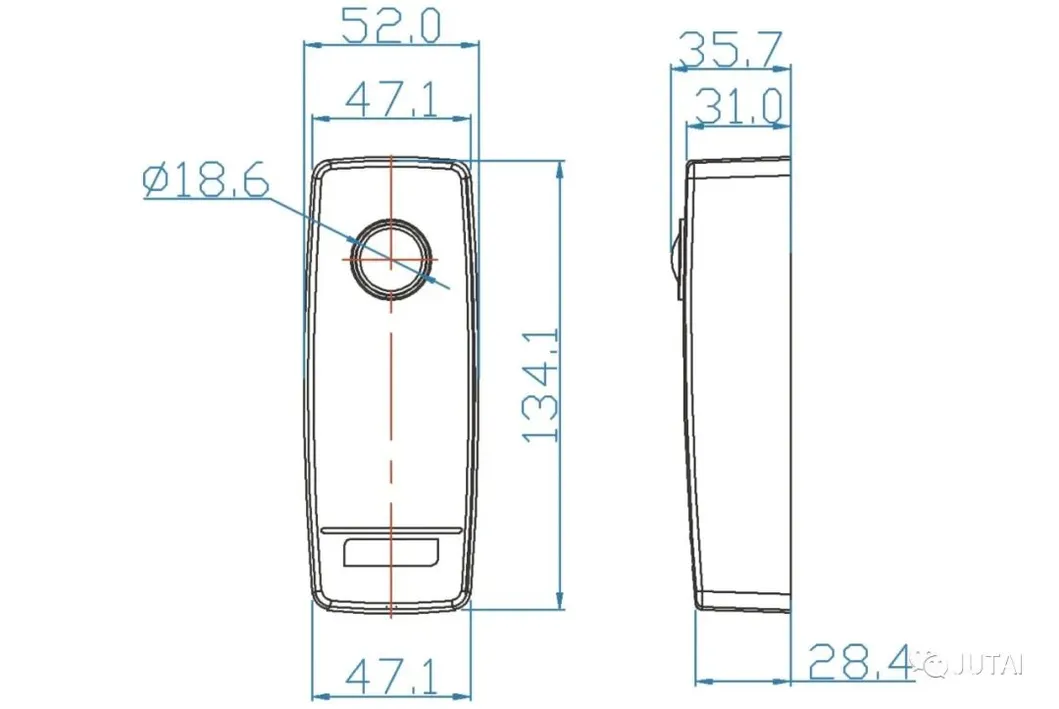

Dimensions
51 x 135 x 32 mm

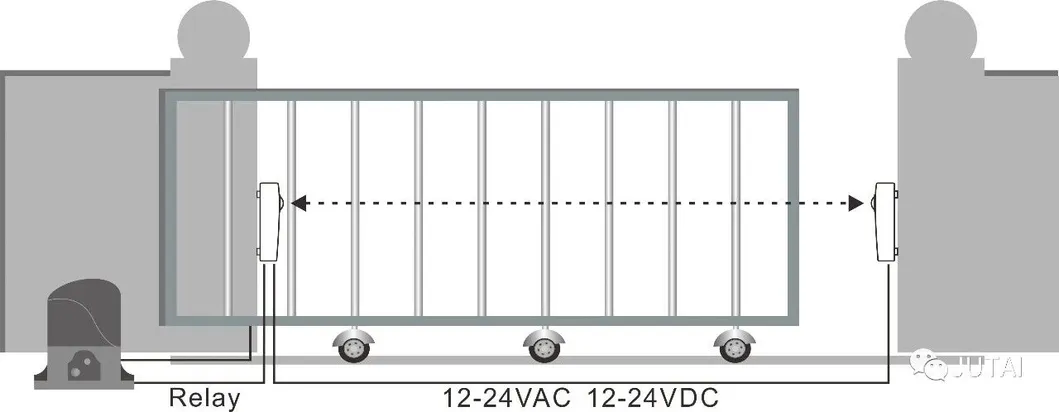

📐 Installation & Certification
Frequently Asked Questions
How long does the transmitter battery last?
The transmitter uses 2 x AA Alkaline batteries and has a minimum battery life of 2 years.
What is the maximum operating distance?
The WIS-30 sensor provides a specified operating distance of up to 30 meters.
Is the sensor waterproof for outdoor use?
Yes, it features an IP65 rating with rubber protection, making it weather-resistant and suitable for outdoor environments.
How does the system notify me of a low battery?
The transmitter provides an audible beep as feedback to indicate a low battery status.
Can this be used with different voltage systems?
Yes, the receiver is compatible with 12-24V AC and 12-30V DC, making it highly versatile for various gate operators.

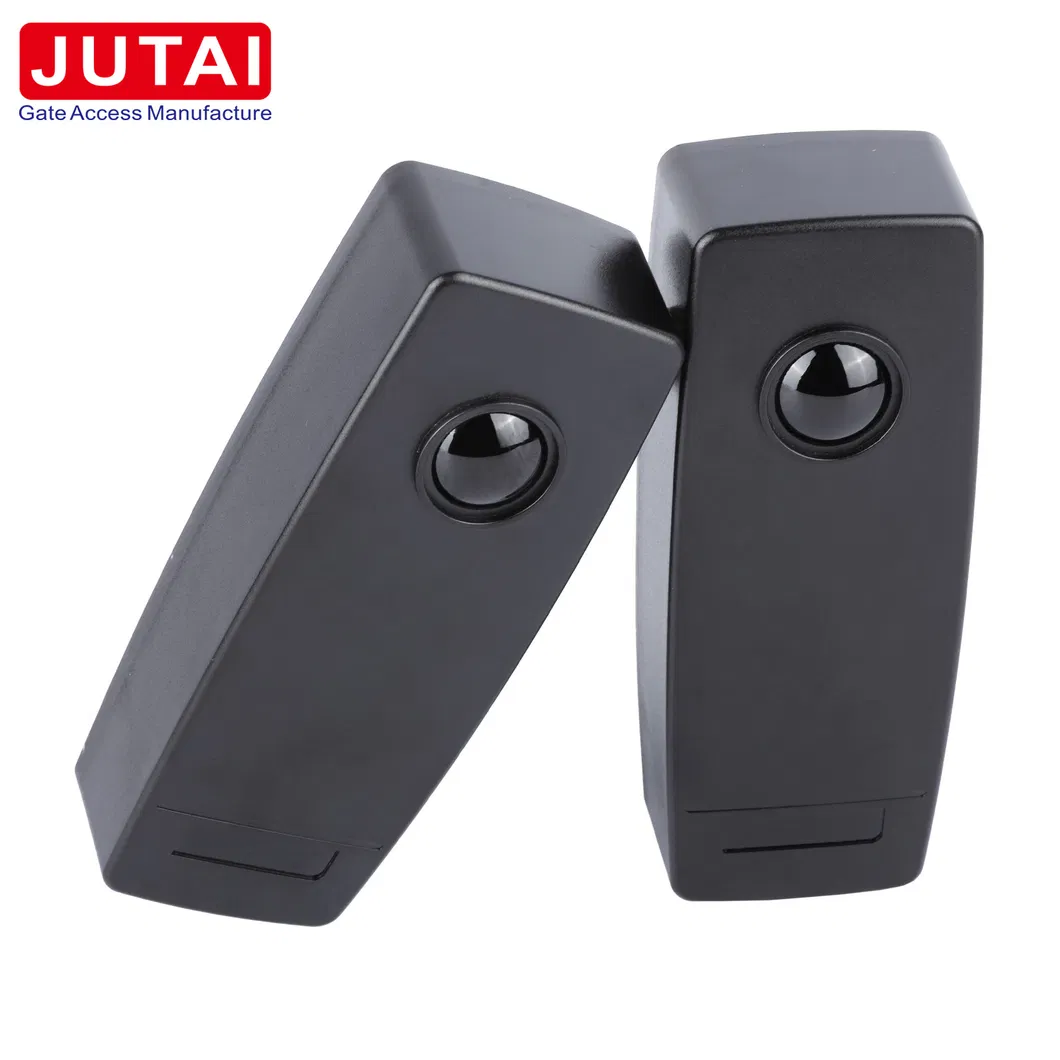

What applications is this sensor suitable for?
It is ideal for boom barrier gates, sliding gates, gate opener systems, and home security alarm warnings.
