The Latest Plant Physiology and Growth Environment Monitoring System

Customization: Available
After-sales Service: Support
Warranty: 1 Year

Product Description

📊 Basic Information
Model NO.TP-ZWSL
Transport PackageIn Carton
SpecificationISO
TrademarkTOP
OriginZhejiang, China
Production Capacity200 Piece/Pieces per Week
🌱 Product Description

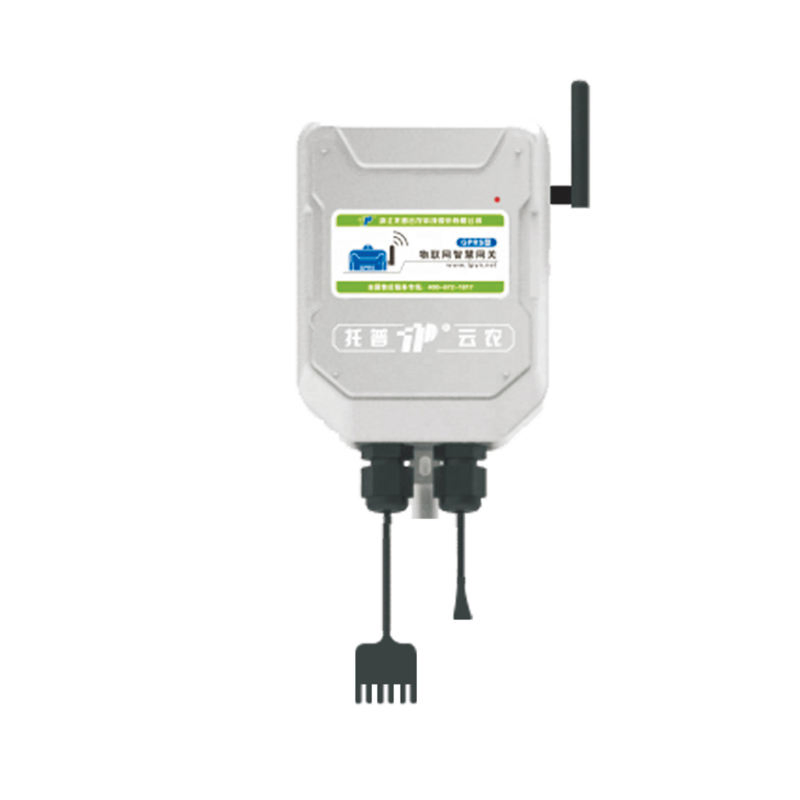

Plant Monitoring System

The plant physiological and ecological monitoring system is designed to monitor plant growth and environmental factors. It consists of a host, optional physiological/environmental sensors, a WEB platform, and a mobile APP. Using wireless sensors, it provides long-term tracking of plant states and environment data, widely applied in research and crop cultivation.

Key Features
Features

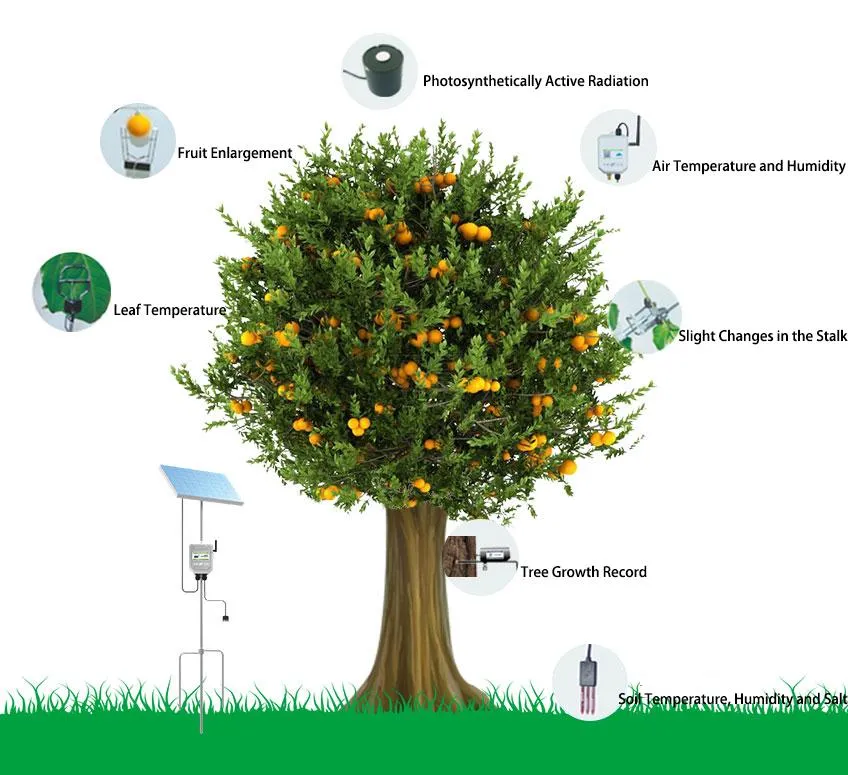

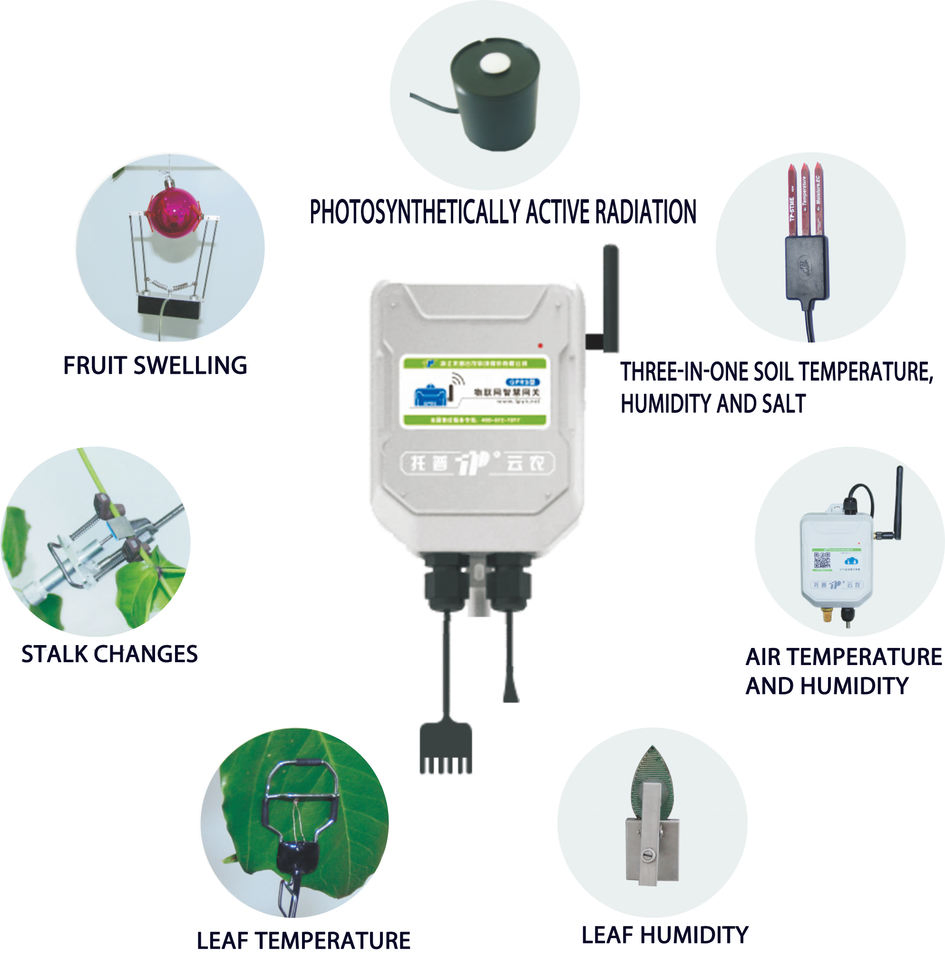

  • Comprehensive Collection: Monitors air temp/humidity, fruit changes, stem micro-changes, leaf temp, light intensity, and soil parameters.
  • Large Storage: Caches up to 500,000 data points.
  • Reliable Communication: Built-in wireless communication with automatic data re-uploading after network recovery.
  • Energy Efficient: Supports solar and 220V power; built-in lithium battery lasts over 200 days per charge (at 1-hour intervals).
  • GPS Positioning: Built-in module for real-time location mapping.
  • Abnormal Alarm: Instant alerts when sensors exceed preset limits.
📋 Technical Specification

Air Temp/Humidity: -40ºC~120ºC (±0.4ºC), 0%~100% (±3%)

Leaf Surface Temp: 0~50ºC (±0.1ºC)

Photosynthetically Active Radiation: 0~2700μmol/m2 s (±1μmol/m2 s)

Stem/Fruit Growth: Range up to 90mm, Precision: 0.001mm

Soil Moisture/Temp: 0-100% VWC, -20~70°C (±0.5°C)

Soil Conductance: 0~23 mS/cm (±2%FS)

ModelDifference
TP-ZWSL-ARS485 wired; Field use (Solar + Battery)
TP-ZWSL-BRS485 wired; Greenhouse use (Mains + Battery)
📦 Packing & After-Sales
Packing
Delivery

We have a professional after-sales team with global service coverage and 24-hour response to provide you with solutions.

Service Team
🏢 Company Profile
Factory

Founded in 2008, TOP Cloud-Agri is a national high-tech enterprise specializing in agricultural testing instruments and smart agriculture. Our products cover seed testing, plant physiology, soil analysis, and weather monitoring.

Cert 1
Cert 2
Main Certificate
Frequently Asked Questions
1. Are you a manufacturer?
Yes, we are. We have a production base of over 26,680 square meters and more than 300 workers.
2. How do you guarantee product quality?
We are ISO9001/14001/45001 certified with a professional team of over 30 inspectors controlling every process from raw materials to packaging.
3. What is your after-sales service?
We provide a 1-year full warranty and lifelong maintenance support.
4. How long is the delivery lead time?
Generally 3-5 days, varying by product type and order quantity.
5. Is OEM available?
Yes, OEM is acceptable. Please contact us for specific requirements.
6. What certifications does your company hold?
We hold 18 invention patents, 40 utility model patents, and are ISO9001:2015, ISO14001:2015, and ISO45001:2018 certified.
