📋 Basic Info.
Model NO.GD-2134A
Test RegionForming Cable
Cable TypeShielded
PowerElectricity
Impulse voltage500V
Impulse currentMax. 30A
Impulse frequency15 times/min
Continuous work>10 hours
ℹ️ General Information
GD-2134A Cable Identifier is an effective tool to detect and identify target cable from a bunch of underground cables. It is only applicable for cables that are not electrified.
📜 Testing Standards
| NO. |
Standard Name |
| 1 | GB50150-2006: Electric Equipment Installation Engineering |
| 2 | GB6587-86: Electric Tests Program for Electronic Measuring Instruments |
| 3 | DL/T 1253-2013: Code of Operation for Power Cable line |
| 4 | GB/T6995-2008: Markings for Electric Wires and Cables |
| 5 | DL/T 596-2005: Preventive Test Code for Electric Power Equipment |
⭐ Key Features
- Results are identified and displayed by hand-held receiver automatically, ensuring high accuracy.
- Specifically designed to identify target cables from a bunch of non-electrified cables.
- Uses Impulse current method (up to 30A) to inject signals into the cable core.
- Equipped with a flexible clamp for magnetic field signal detection.
- Lightweight design, highly portable for field operations.
⚙️ Technical Specifications
Transmitter Specifications:
| Power supply | Built-in 12V/2.6AH lithium battery |
| Impulse voltage | 500V |
| Pulse width | 10ms |
| Work temperature | -25 ~ 60ºC |
| Weight | 1250g (with battery) |
Receiver Specifications:
| Power supply | 2pcs 1.5 V AA alkaline batteries |
| Clamp | Ø 180mm flexible clamp |
| Gain adjustment | 10 steps (-3 ~ 24 dB) |
| Continuous work | >50 hours |
| Display | Highlight LED, legible in sunlight |

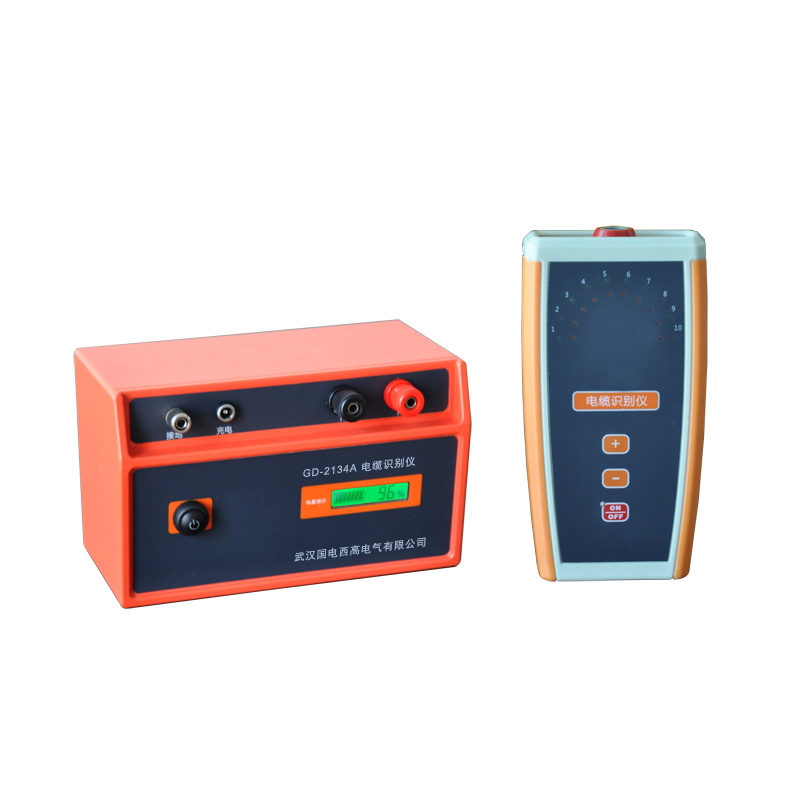

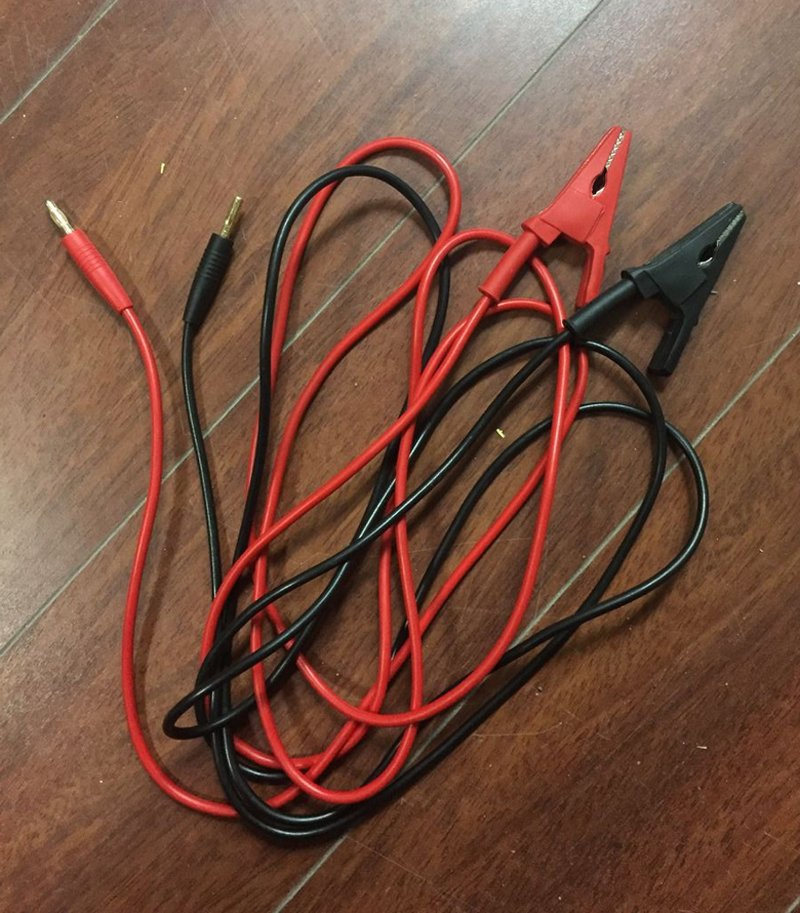

📸 Product Display
❓ Frequently Asked Questions
Q1: Can the GD-2134A be used on live cables?
No, this cable identifier is specifically designed for offline use and is only applicable for cables that are not electrified.
Q2: What is the maximum impulse current it can generate?
The transmitter can output a maximum impulse current of 30A, depending on the loop resistance value of the cable.
Q3: Is the display visible under direct sunlight?
Yes, both the transmitter's LCD and the receiver's highlight LED are designed to be legible even in bright sunlight.
Q4: How long does the battery last during continuous operation?
The transmitter provides over 10 hours of work time, while the receiver can operate for more than 50 hours on standard AA batteries.
Q5: What size cables can the receiver clamp accommodate?
The receiver is equipped with a flexible clamp with a diameter of Ø 180mm, suitable for a wide range of cable bundles.
