Basic Information
Model NO.:Customized
Measurement Uncertainty:≤1
Measurement Repeatability:≤2
Module:0.2-20
ODM/OEM:Support
Transport Package:Wooden Case
Origin:China
Production Capacity:1000piece/Year
Product Description

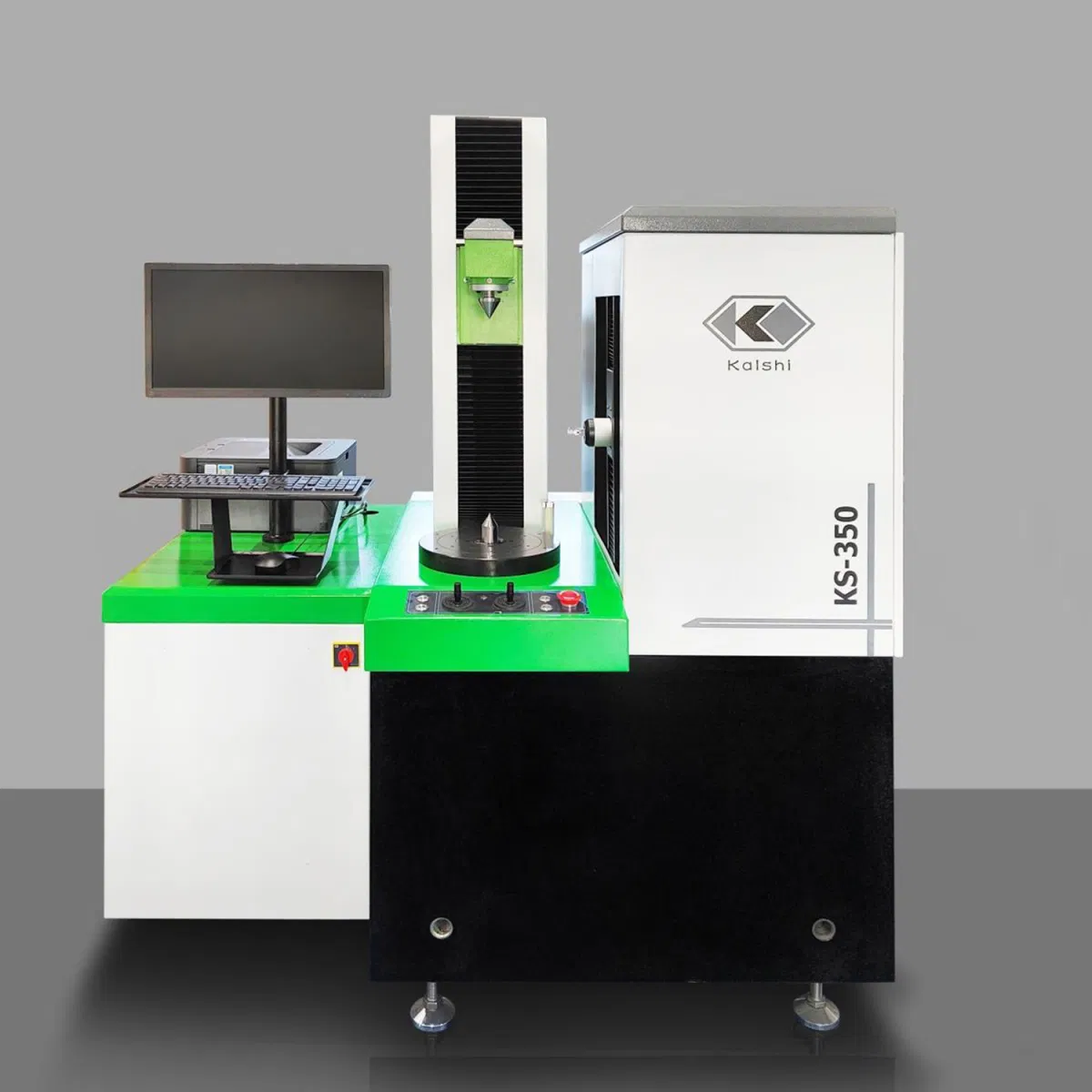

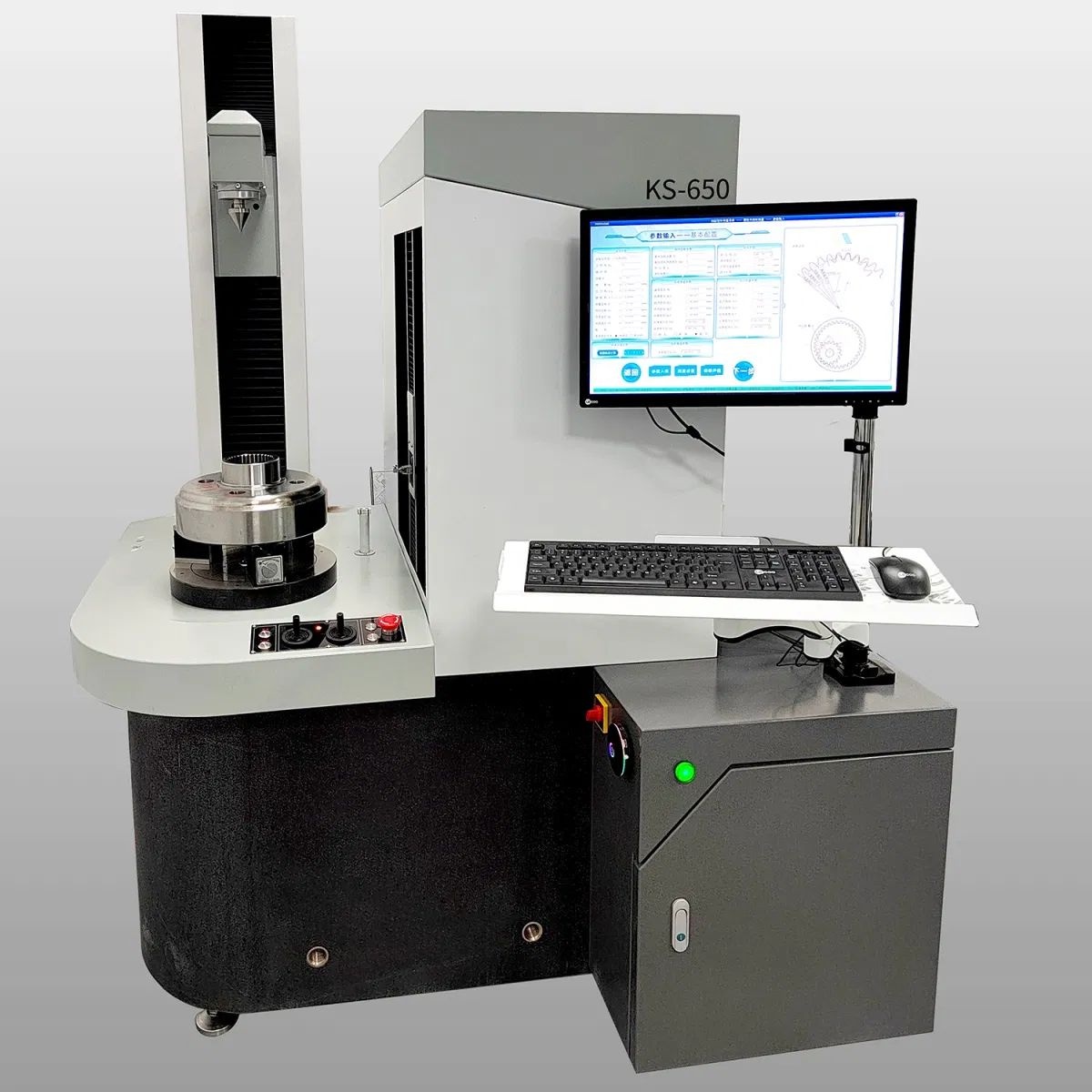

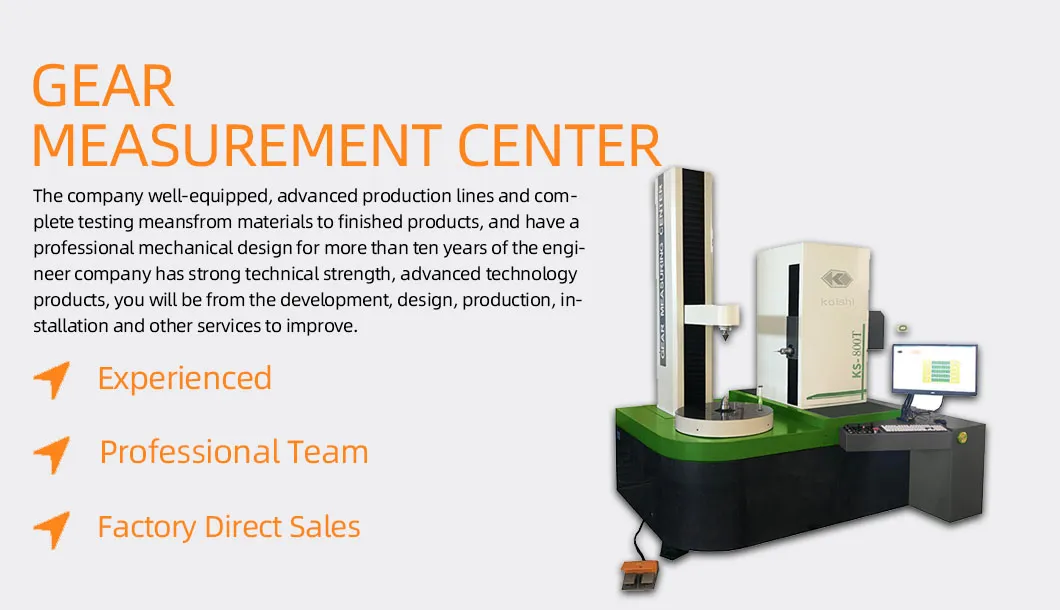

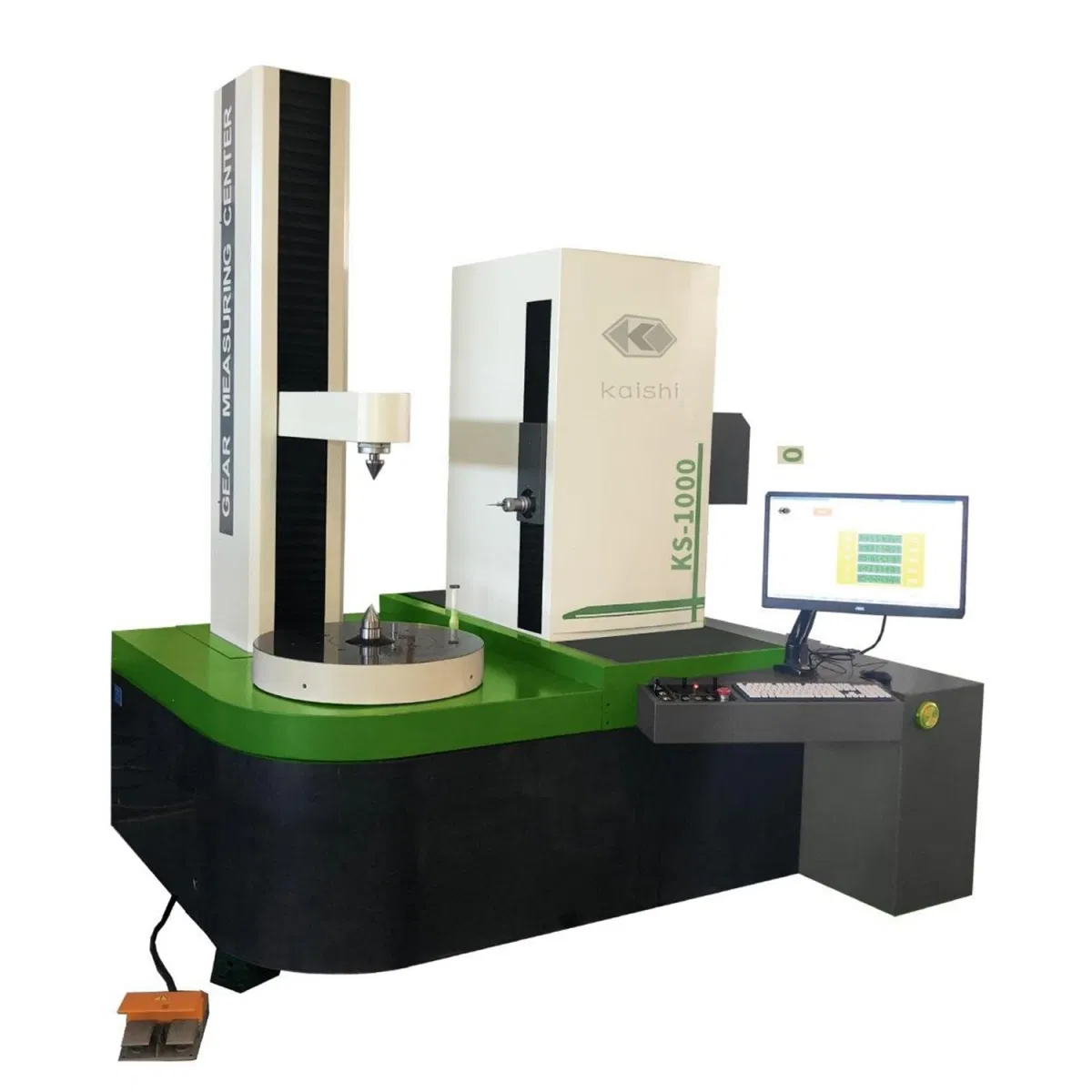

Engineered as the ultimate solution for dimensional verification across the entire spectrum of gear-driven systems, the KS Series Gear Measuring Center delivers uncompromising accuracy in evaluating straight and helical cylindrical gears, hobbing/shaping/shaving cutters, worm gears, worm wheels, as well as straight and spiral bevel gears. Utilizing advanced multi-axis CNC probing technology integrated with micron-resolution linear encoders and AI-driven error compensation algorithms, this platform performs rapid, high-repeatability measurements of critical parameters including profile deviation, pitch error, runout, helix angle, and tooth thickness – all traceable to international standards (ISO 1328, DIN 3962, AGMA 2015).
Professional Capability
We are professionally engaged in the development, production, and sales of all kinds of precision gear and mechanical transmission parts. Our main products include all kinds of gearboxes for host plant supporting gears and transmission parts. We specialize in mass production of modulus 0.8 to 6 straight gears, bevel gears, inner gear rings, and cone type gears, with accuracy reaching standard 5-8 levels.
Our Service Process
- Customer sends drawing or sample (CAD support available)
- Processing technique and quotation supply
- Sample production after confirmation
- Order placement and 50% deposit
- Quantity production with full testing
- Balance payment and delivery
Frequently Asked Questions
Q: What are the primary advantages of your gear measuring services?
A: We utilize professional equipment and full sets of processing solutions to provide the most personalized and accurate measurement services for precision gears.
Q: Is OEM or customization available?
A: Yes, we provide full OEM and customization support. The minimum order quantity (MOQ) depends on the specific product requirements.
Q: Can I request samples before placing a bulk order?
A: Samples are available upon request at an additional cost covering both the sample production and the freight charges.
Q: What is the typical delivery timeframe?
A: Normal orders take 3-7 days. For customized gear components or complex measurement projects, the delivery time is calculated separately based on quantity.
Q: What gear accuracy levels can you achieve?
A: We can achieve gear accuracy ranging from level 5 to level 8 according to international standards for various gear types.
Q: How do you ensure measurement repeatability?
A: Our systems use multi-axis CNC probing and thermally stabilized granite bases to ensure sub-micron precision (±0.5μm) and high repeatability.
