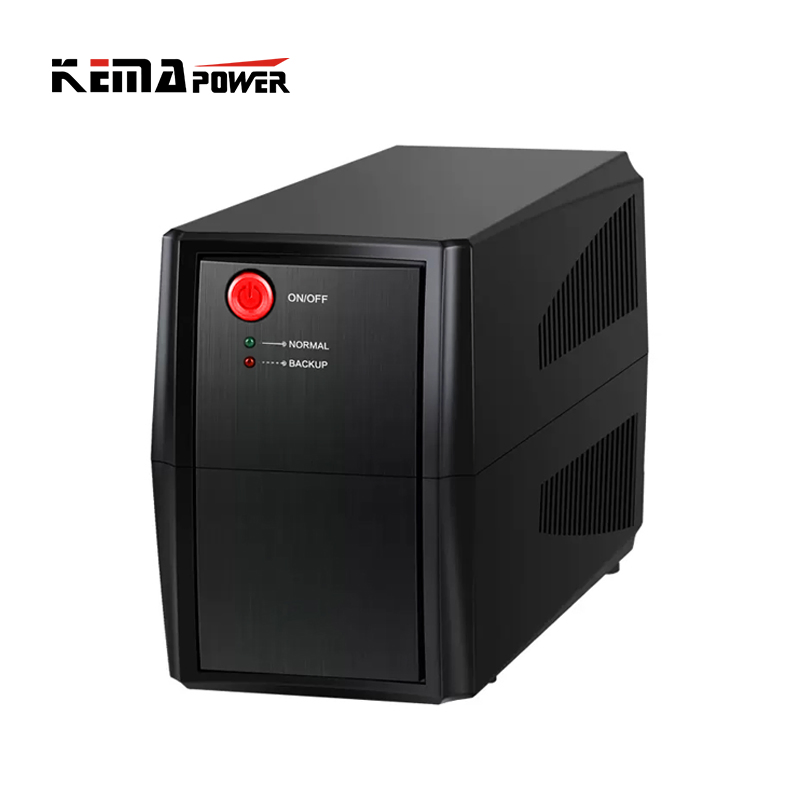

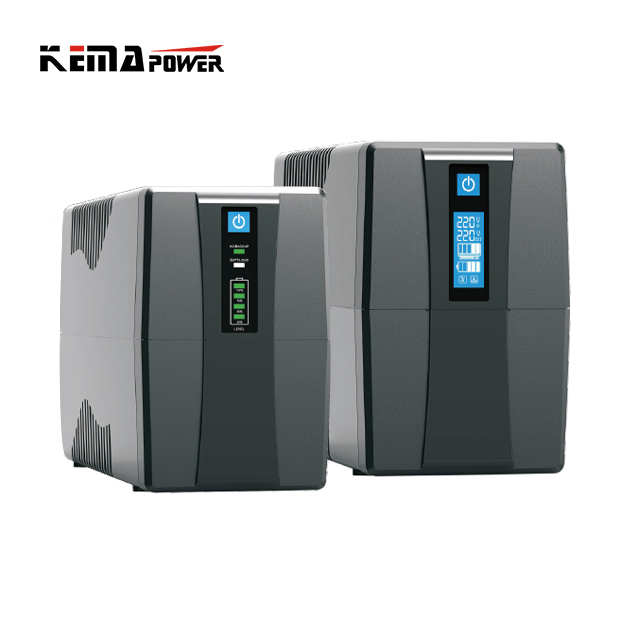

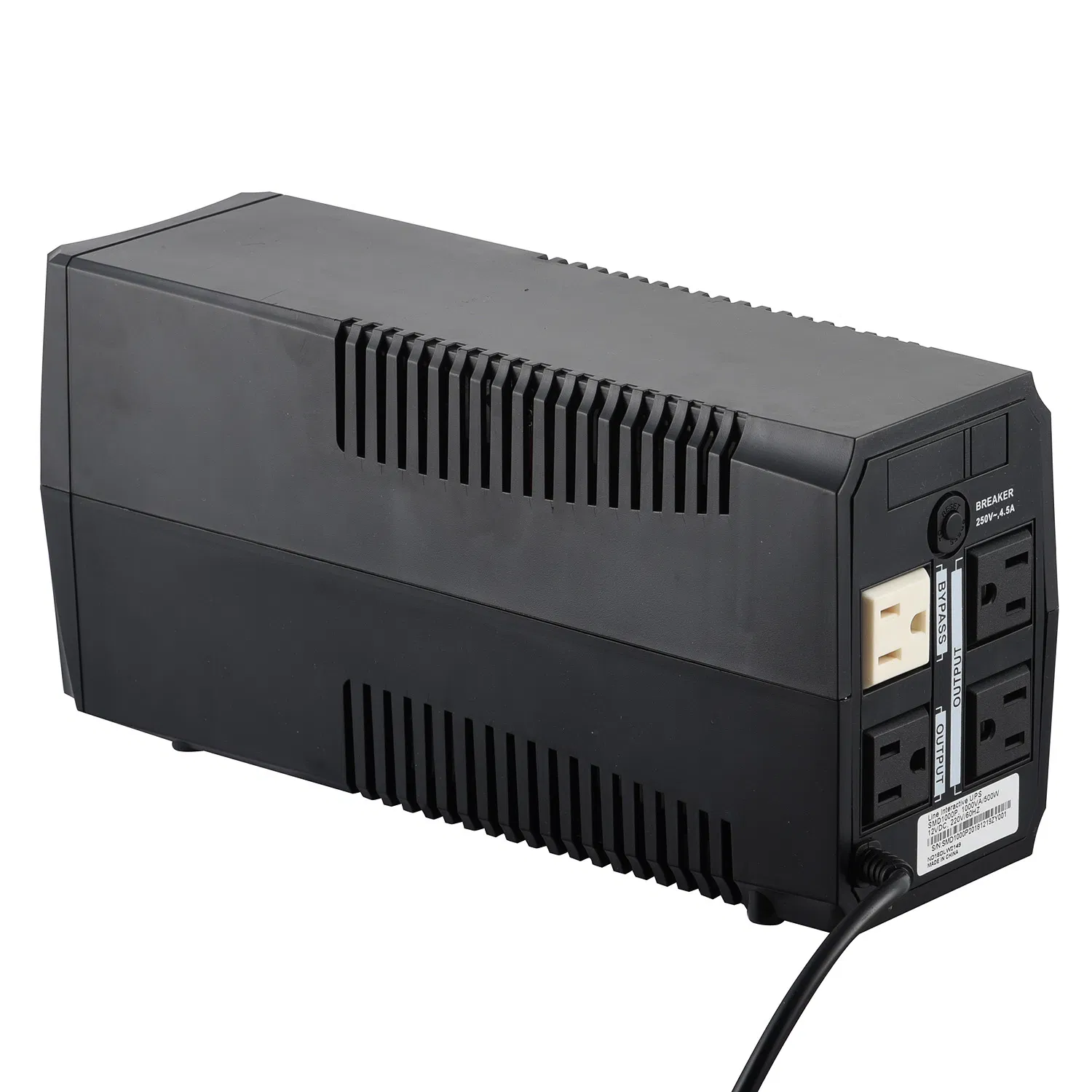

SMD-P 500va -1000va Line Interactive Offline UPS Standby Power for Computer
SMD-P 500va -1000va Line Interactive Offline UPS Standby Power for Computer
SMD-P 500va -1000va Line Interactive Offline UPS Standby Power for Computer
SMD-P 500va -1000va Line Interactive Offline UPS Standby Power for Computer
SMD-P 500va -1000va Line Interactive Offline UPS Standby Power for Computer
1 / 5
SMD-P 500va -1000va Line Interactive Offline UPS Standby Power for Computer
SMD-P 500va -1000va Line Interactive Offline UPS Standby Power for Computer
SMD-P 500va -1000va Line Interactive Offline UPS Standby Power for Computer
SMD-P 500va -1000va Line Interactive Offline UPS Standby Power for Computer
SMD-P 500va -1000va Line Interactive Offline UPS Standby Power for Computer

SMD-P 500va -1000va Line Interactive Offline UPS Standby Power for Computer

Customization: Available
Phase: Single Phase
Type: Line Interactive
Send Inquiry

Product Description

Basic Specifications
Model NO.
SMD-P
Protection
Overvoltage
Application
Industry
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Decentralized
Packing Size
425*400*454-422*264*275
Origin
China
HS Code
8504402000
Capacity
5,000,000 PCS /Year
Line Interactive UPS SMD-(E)P 500-1500VA

KEY FEATURES

  • Plastic case, Line interactive UPS 500VA-1500VA
  • Input output 110V/120V or 220V/230V
  • CPU Control, SMT Technology, Boost and Buck AVR
  • Full Protection: Short circuit, overload and more
  • LED display and alarm function, Silence Settable
  • Intelligent battery management
  • AUTO Restart while AC recovers
  • Off charge and cold start function
  • USB Communication RJ45 Port, LCD Display option
Technical Specifications
MODEL SMD500P SMD500PA SMD600EP SMD1000EP SMD1200EP SMD1500EP
Capacity 500VA/300W 500VA/300W 600VA/360W 1000VA/500W 1200VA/720W 1500VA/900W
Input Voltage Range 90-132/175-265Vac 85-150/145-290Vac
Output Wave Form Modified Sine Wave (BAT Mode)
Battery Internal 1*4.5AH 1*4.5AH 1*7AH 1*9AH 2*7AH 2*9AH
Transfer Time Typical 2-6ms, 10ms max
Product Showcase

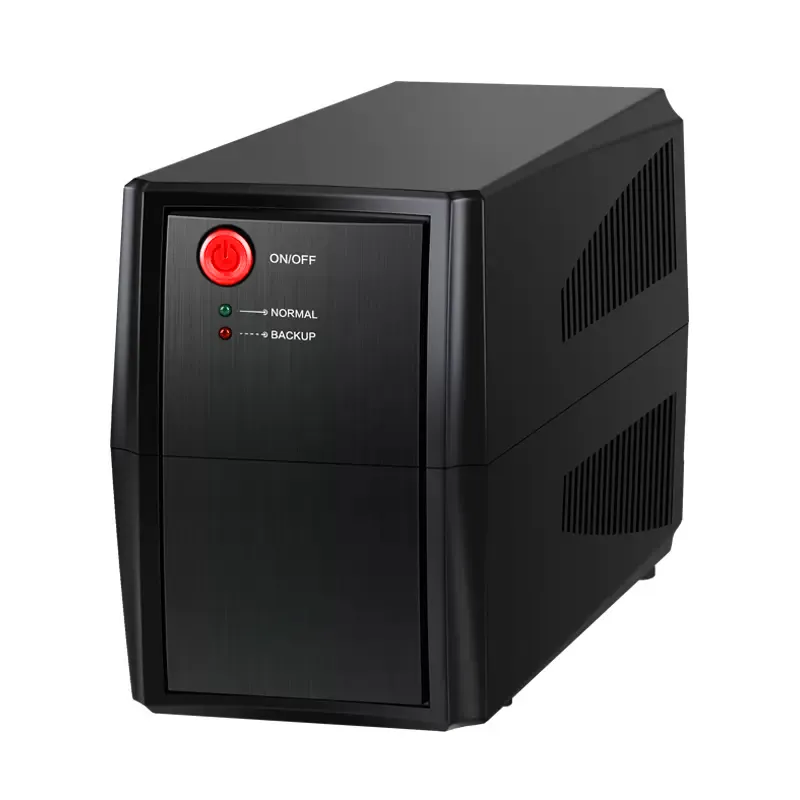

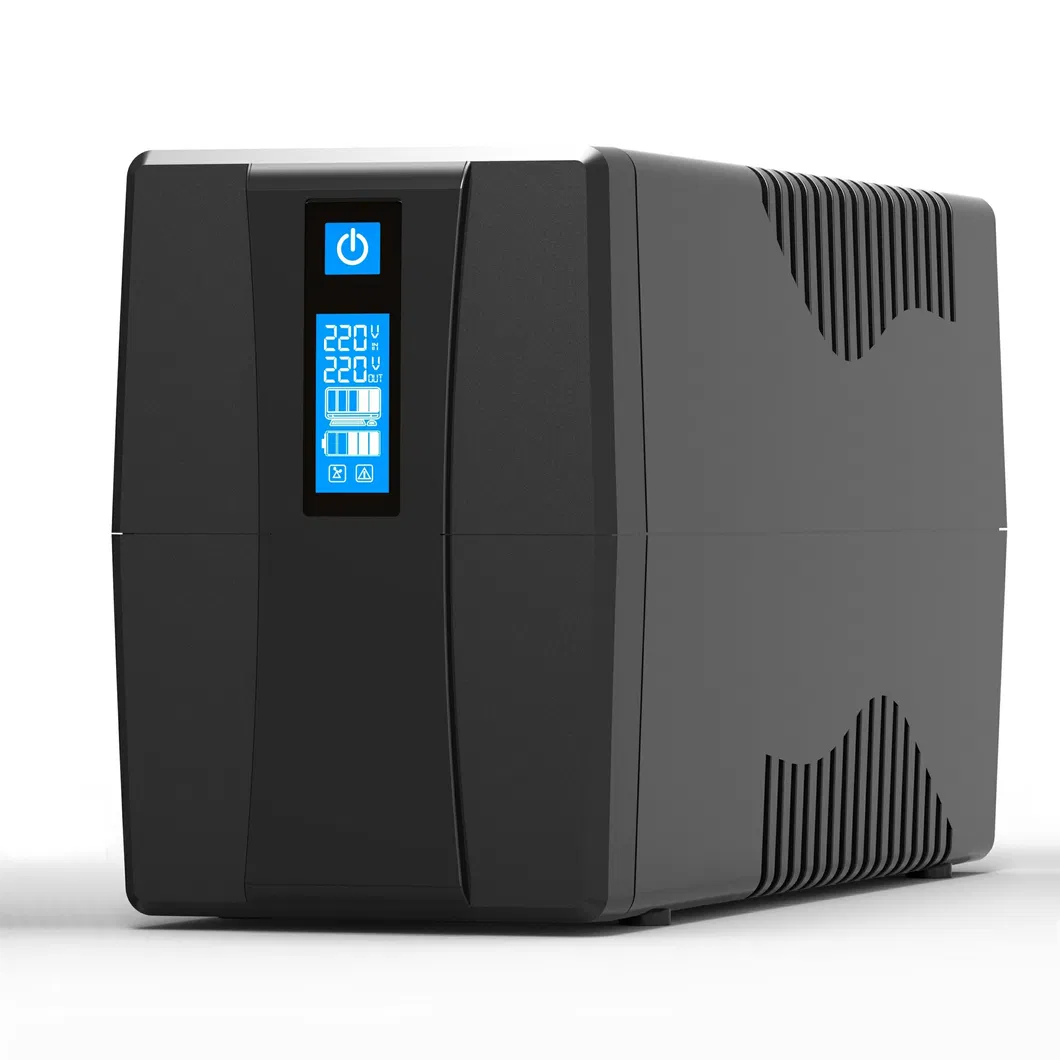

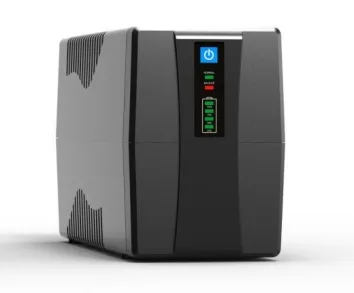

UPS Unit 1 UPS Unit 2 UPS Unit 3

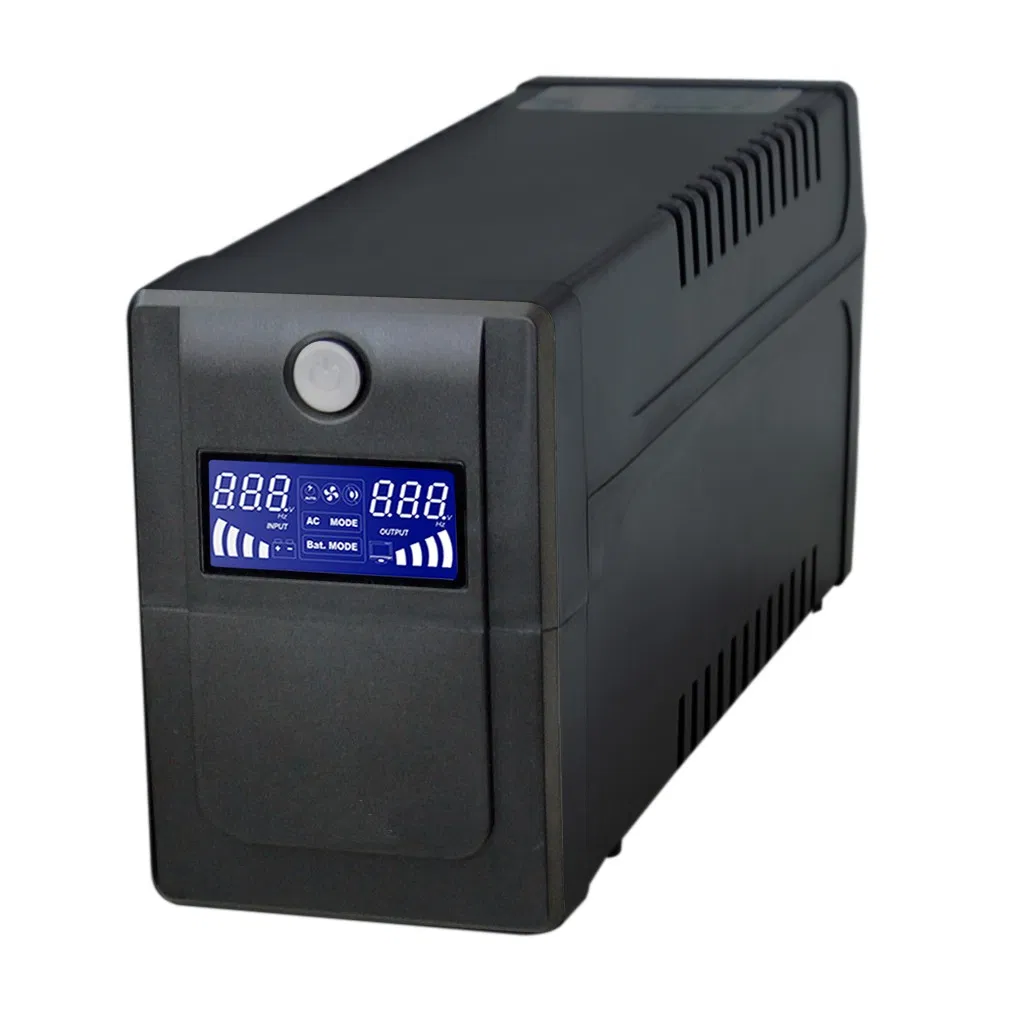

LCD Display

LCD SMD-EP Display Interface

1. ON/OFF switch | 2. Input voltage | 3. Output voltage | 4. Load level | 5. Battery capacity | 6. UPS fault | 7. Overload

LED Display

LED SMD-EP Display Interface

1. ON/OFF switch | 2. AC / Backup status | 3. Battery / Load Status | 4. Battery capacity / Load level indicator

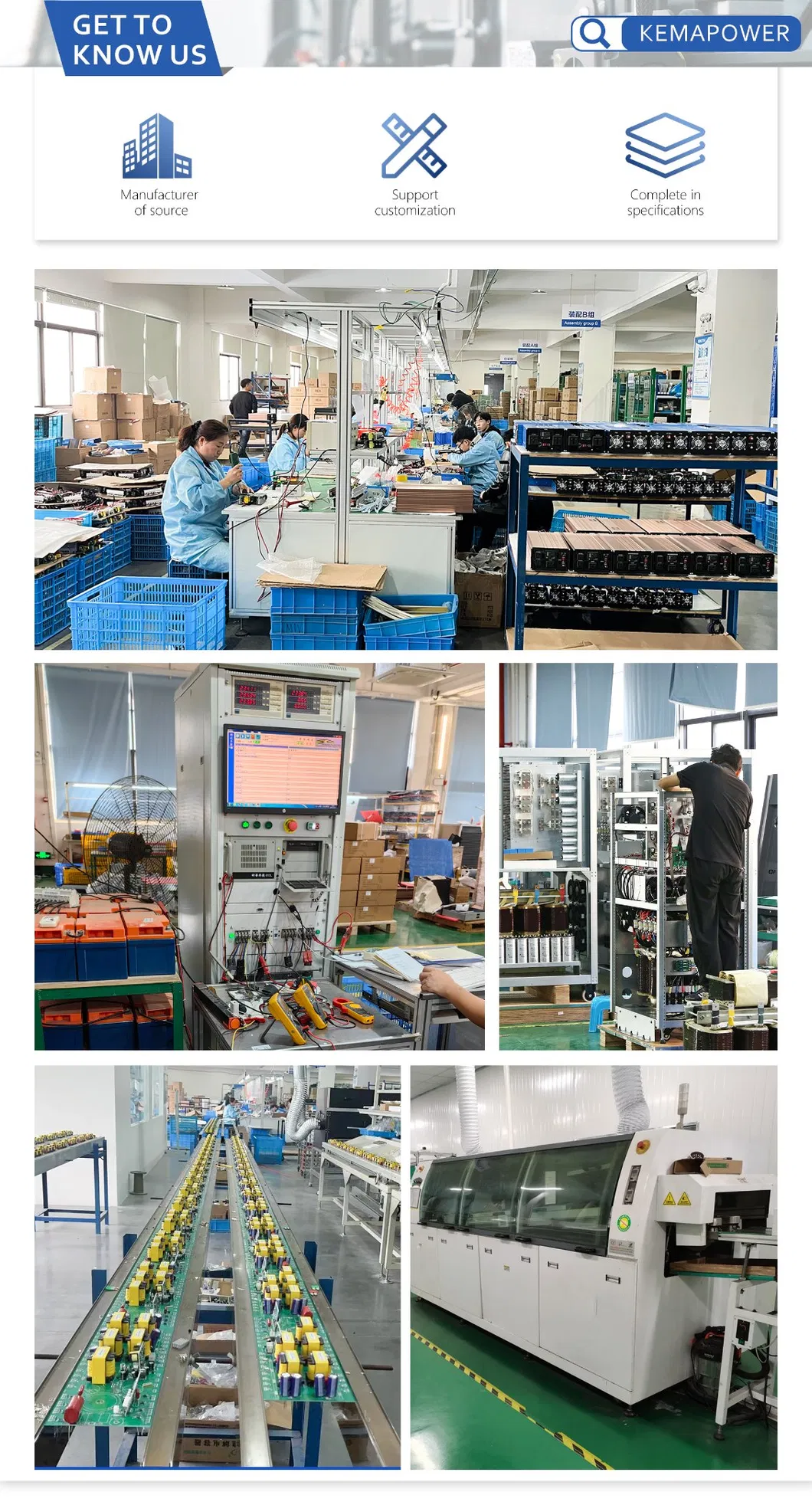

Detail 1 Detail 2 Detail 3 Detail 4
Frequently Asked Questions
What is the typical transfer time for this UPS?
The typical transfer time for the SMD series is between 2-6ms, with a maximum of 10ms, ensuring seamless power transitions for connected devices.
Does the UPS support cold start function?
Yes, it features a cold start function, allowing you to turn on the UPS and power your devices even when there is no AC utility power available.
How long does it take to recharge the battery?
The battery typically requires 4-6 hours to recover to 90% of its full capacity after a discharge.
What kind of protection does this UPS provide?
It offers full protection including low voltage, overload, short circuit, and battery low voltage protection to keep your equipment safe.
Is there a difference between the LED and LCD options?
The LED display shows AC/DC modes and load levels via indicators, while the optional LCD display provides more detailed information like I/O voltage, frequency, and specific fault codes.
What is the input voltage range?
Depending on the model, it supports ranges of 90-132Vac / 175-265Vac or a wider 85-150Vac / 145-290Vac for varied power environments.
