Product Description

📊 Basic Specifications

Model NO.

WIS-30

Operating Distance

30m

Output Signal

NO/NC Potential Free

Power Supply

2 X AA Alkaline Batteries (Transmitter)

Receiver Voltage

12-24V AC / 12-30V DC

IP Rating

IP65 (Weather-resistant)

Material

PC (UV Protected) / ABS

Battery Life

Minimum 2 Years

Temperature

-20°C to +60°C

Output Contact

3A @ 30V DC

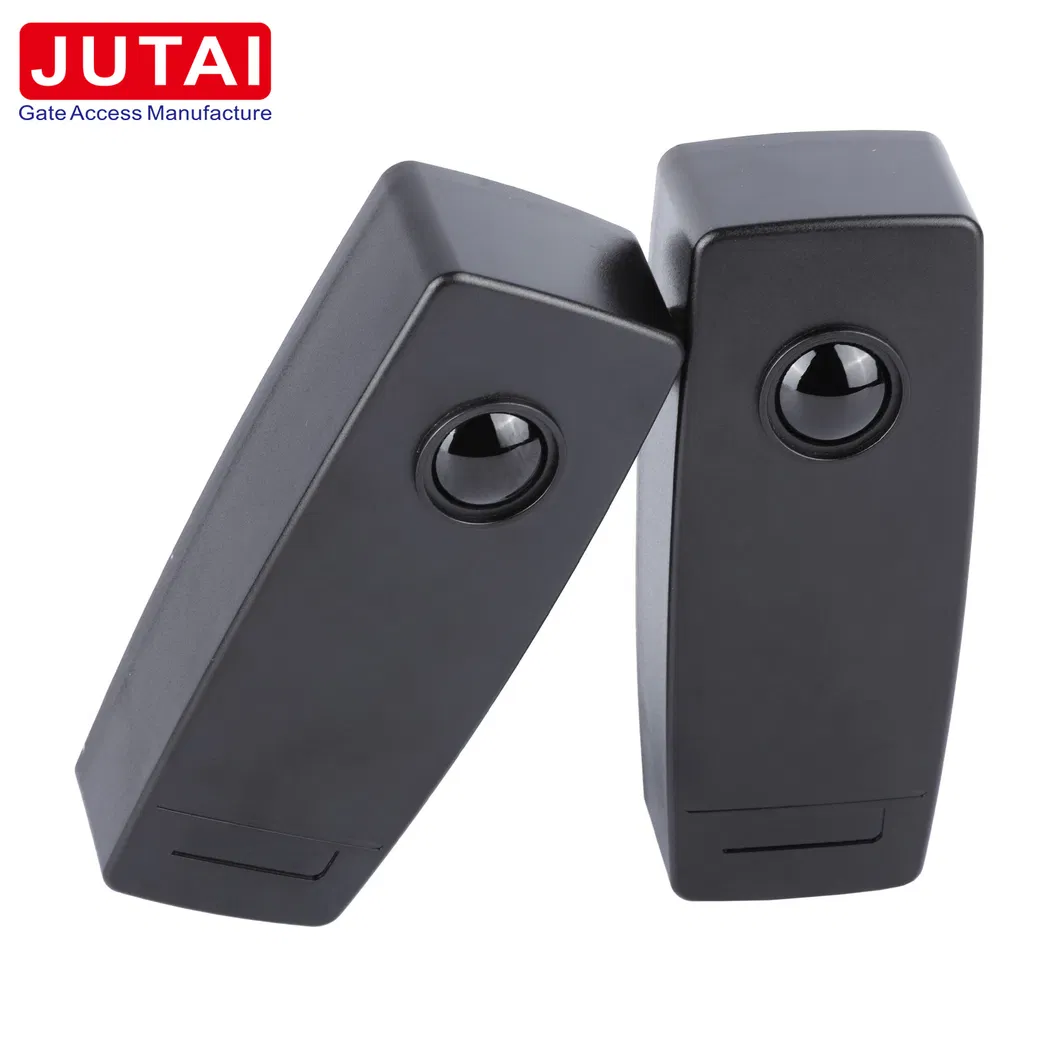

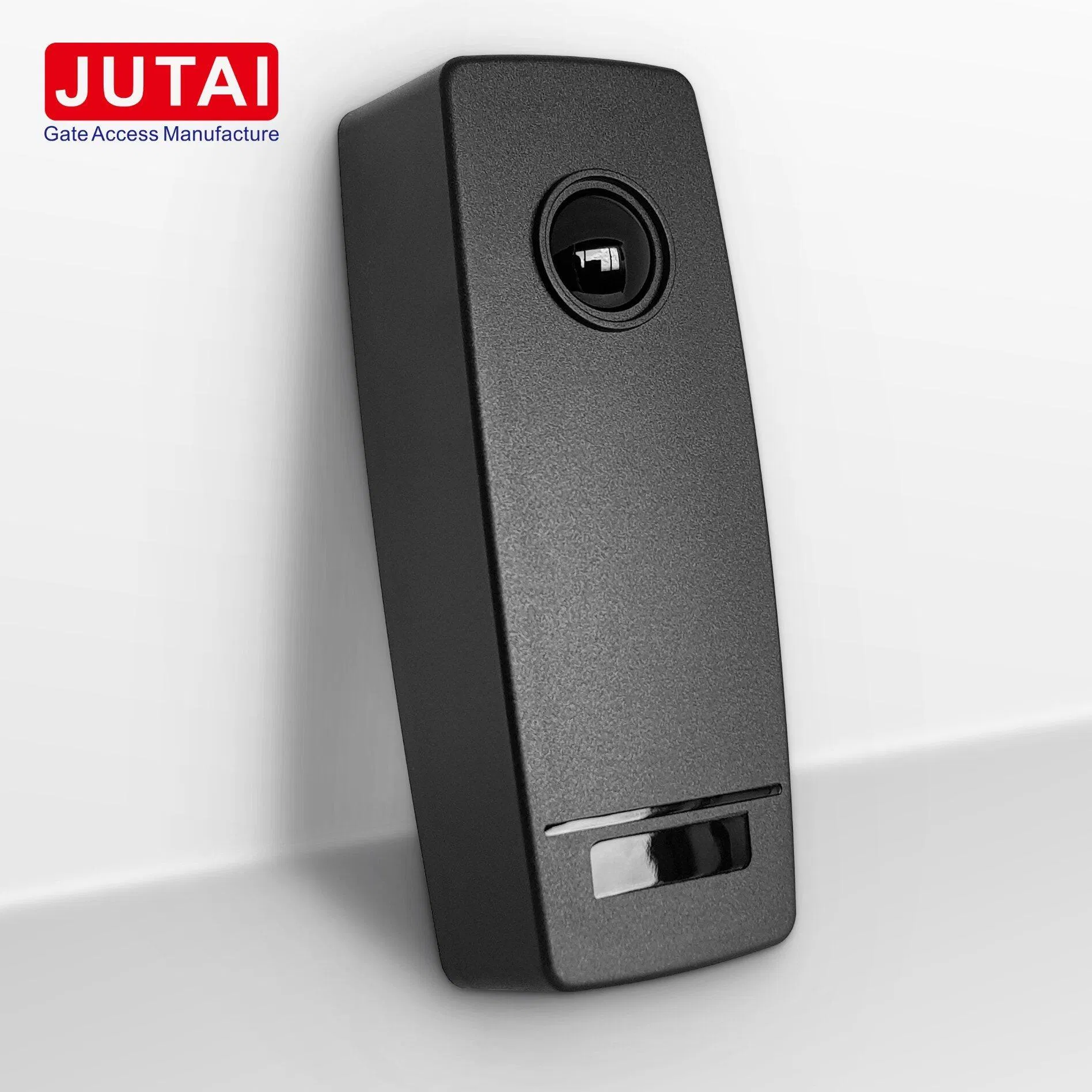

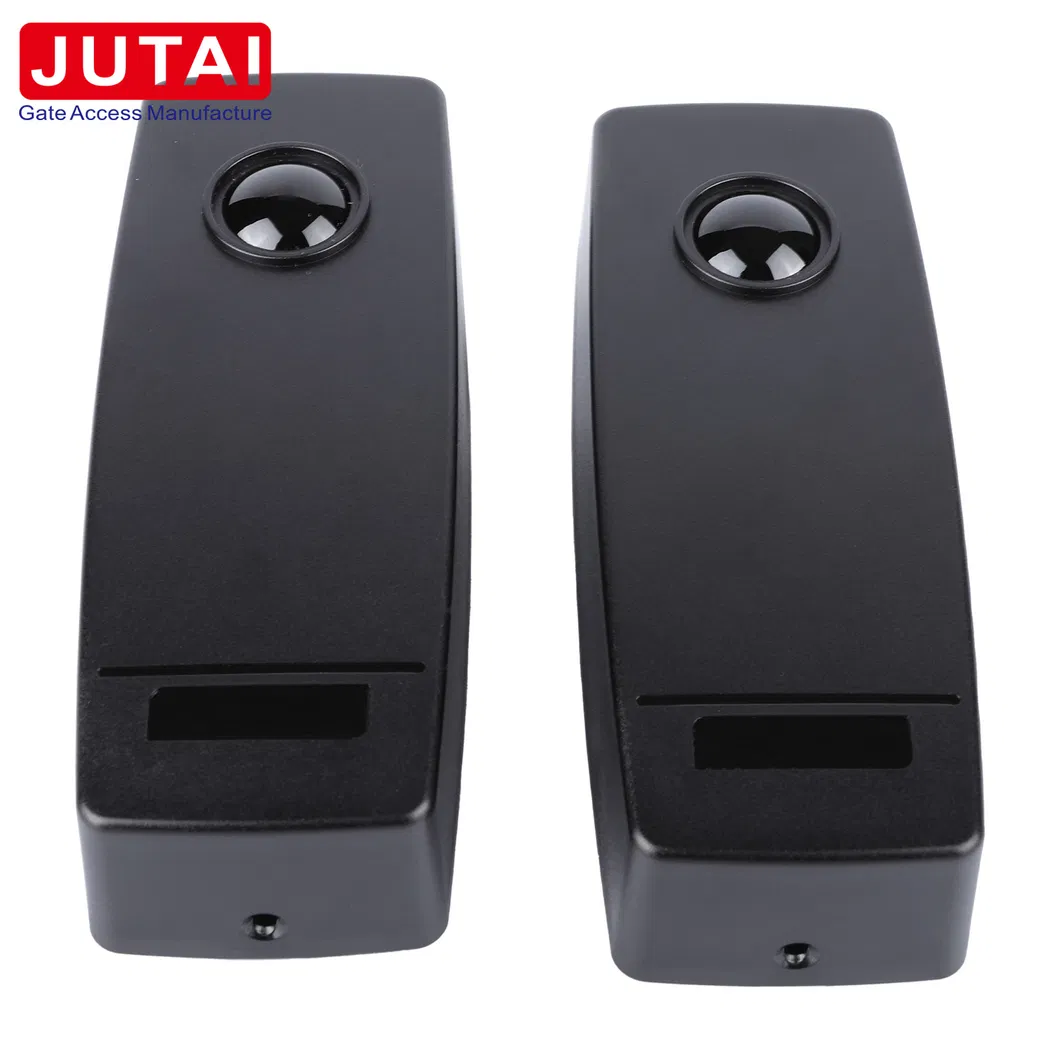

🔍 Product Overview

The WIS-30 wireless photocell sensor gate safety beam features a wireless transmitter, making it an ideal solution for challenging installations. By eliminating the need to tunnel under driveways for cabling, it ensures a safe automation system with maximum convenience.

Compatible with a wide range of voltages (12VAC/DC to 24VAC/DC), this sensor reduces inventory pressure and supports both one-to-one and one-to-many working states through simple jumper cap adjustments.

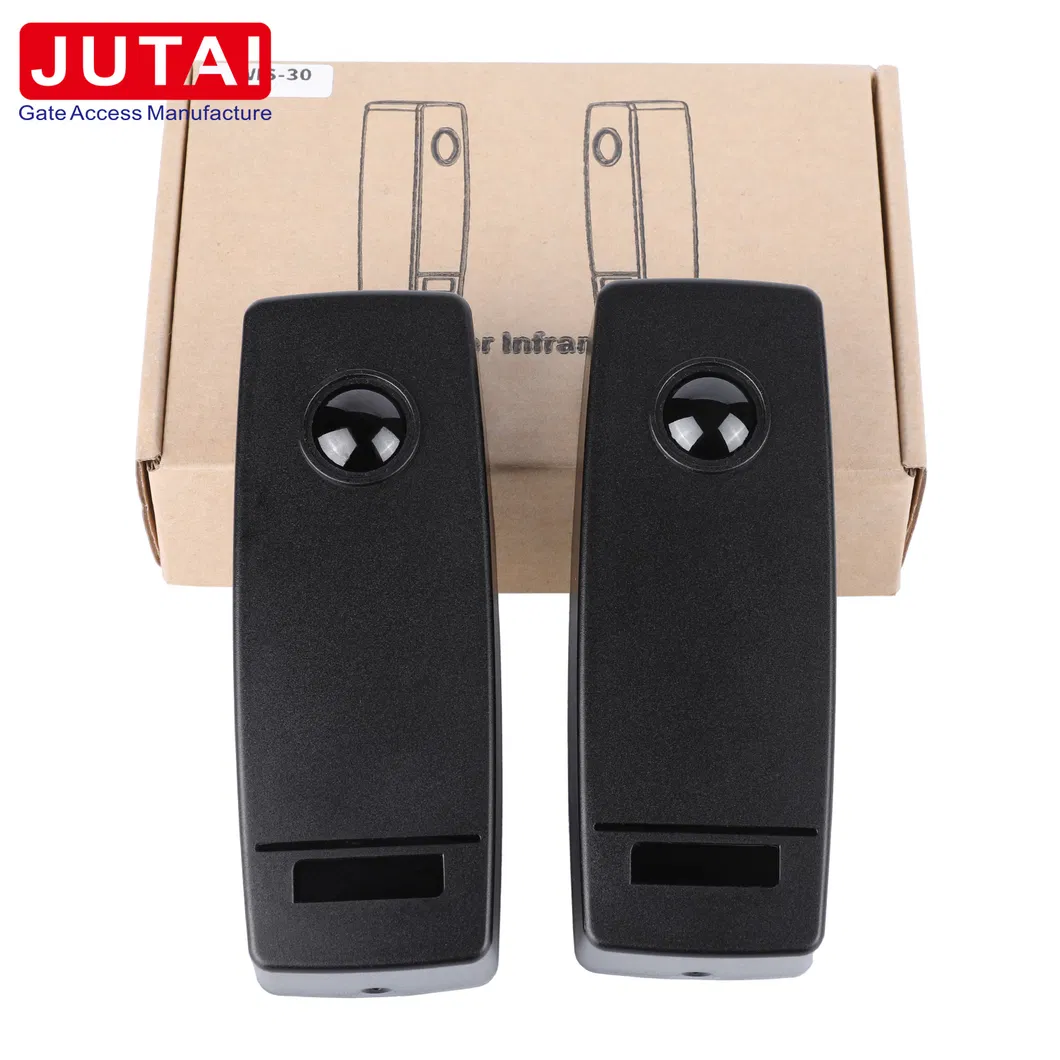

⭐ Key Features

Wireless & Battery-operated Transmitter: Saves installation time and costs.
30-Meter Range: Suitable for almost any entrance or sliding gate.
Weather-Resistant Enclosure: Fully ant-proof and IP65 rated.
Audible Feedback: Built-in buzzer for easy alignment and low battery alerts.
High Compatibility: Works with intruder alarms and various door operators.
Easy Alignment: Built-in laser beam alignment system for quick setup.

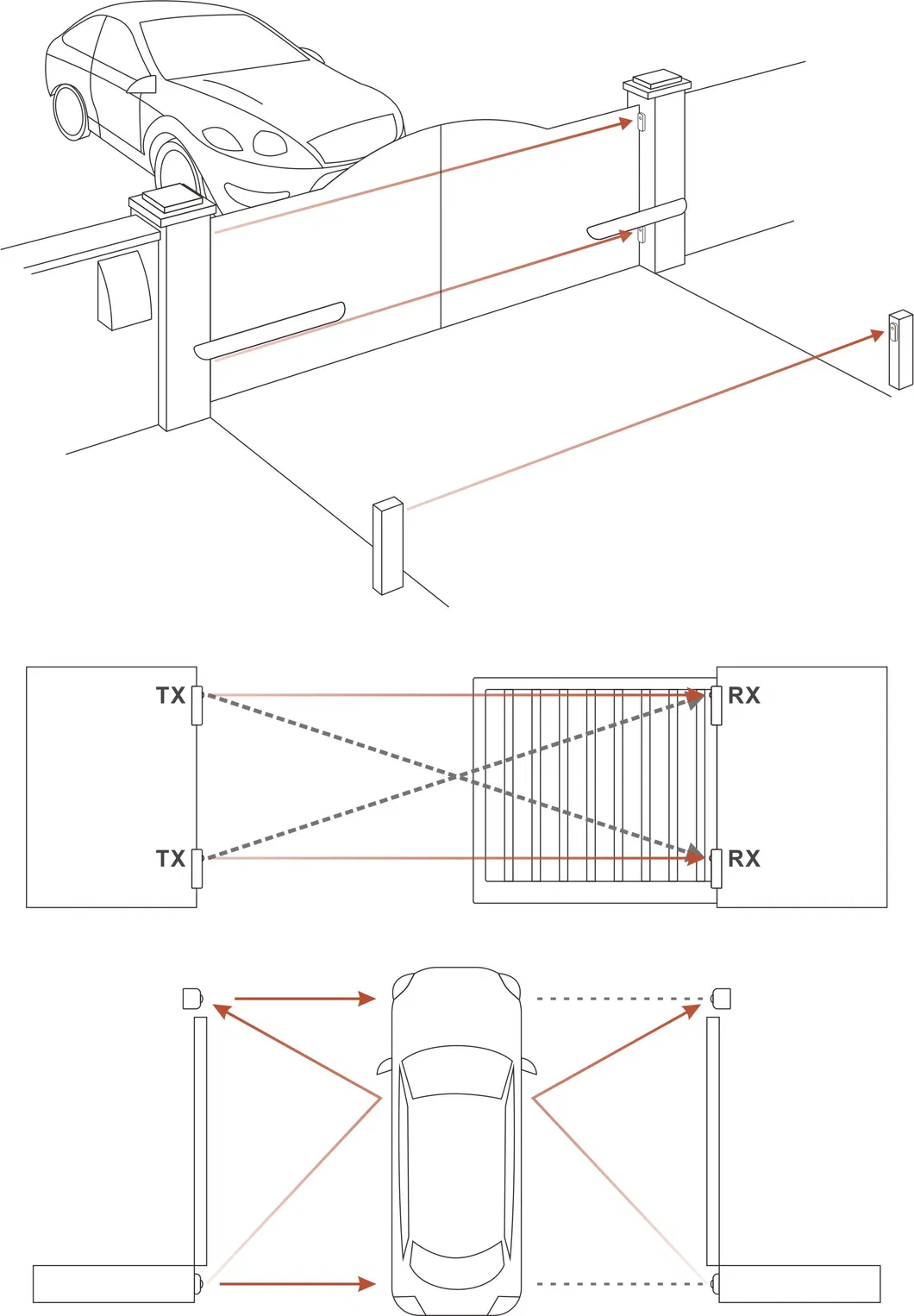

🚀 Application Areas

Ideal for Boom barrier gates, Sliding gates, Gate opener systems, Security Alarms, and general Home Security accessories.

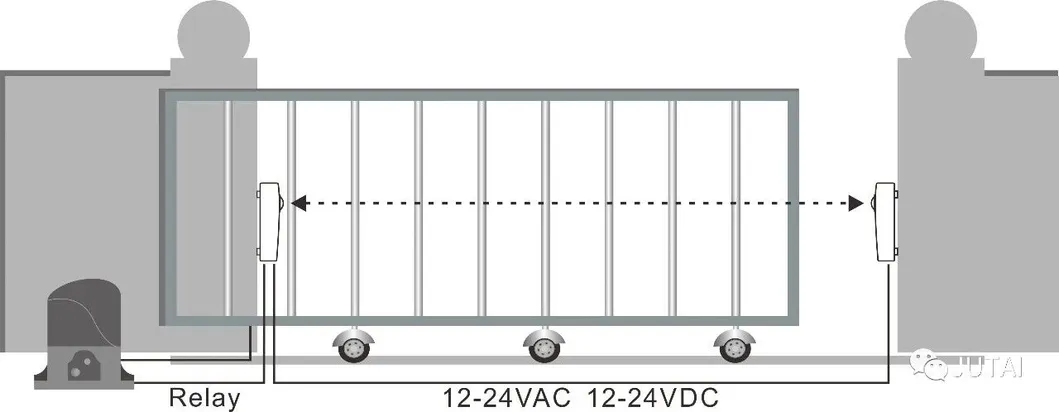

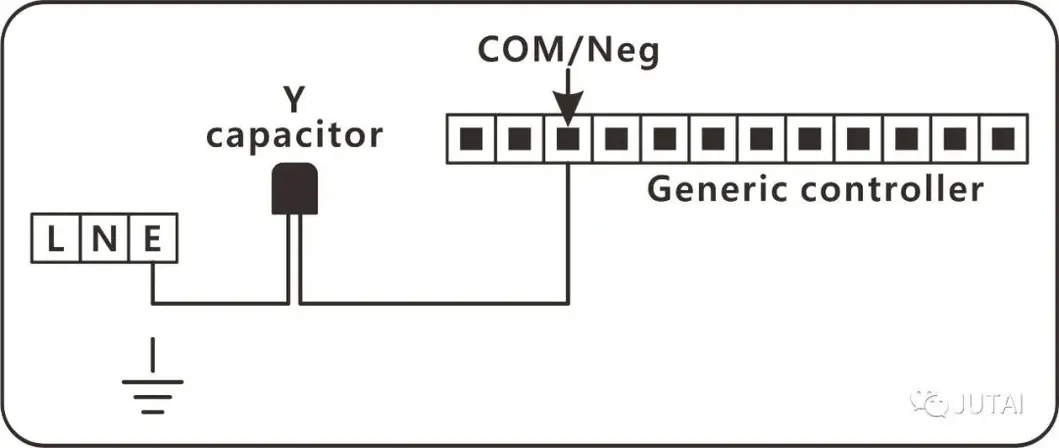

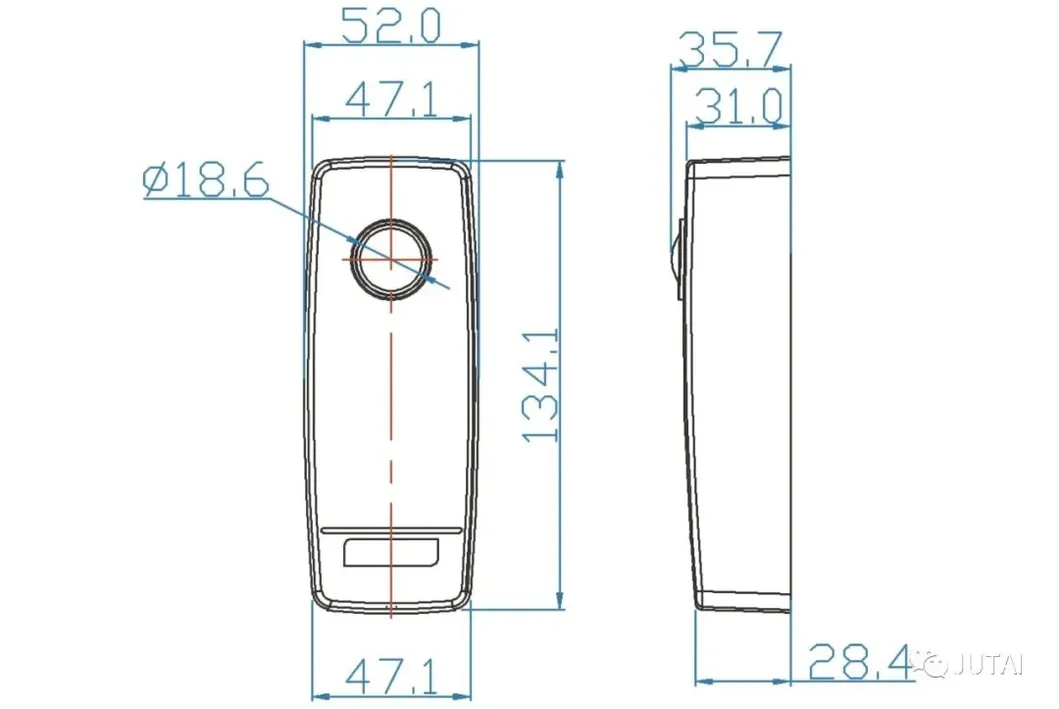

📐 Technical Dimensions & Wiring

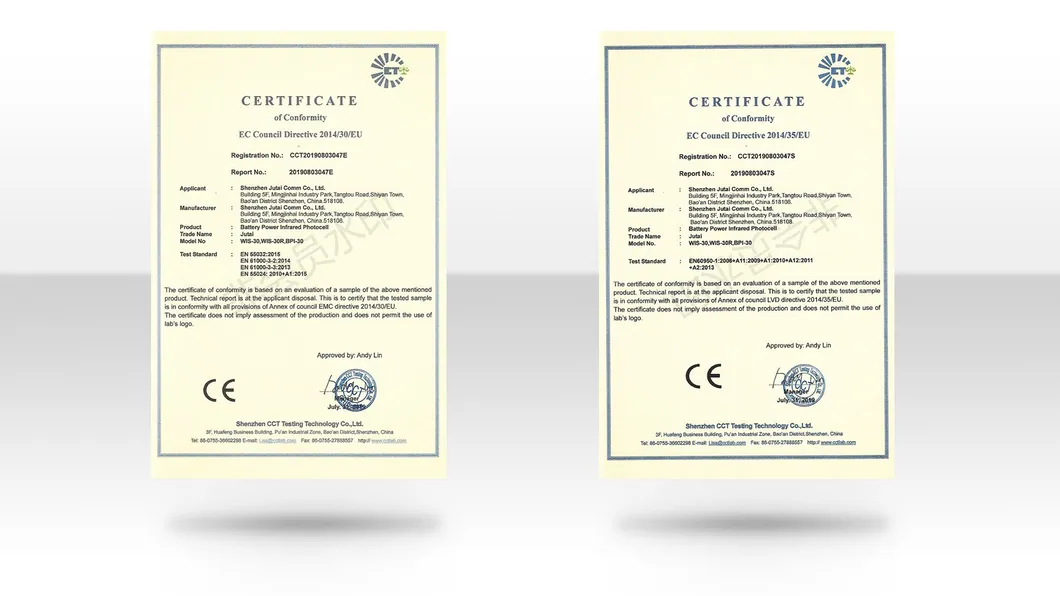

📜 Certification & Shipping

❓ Frequently Asked Questions

1. What is the maximum operating distance of the WIS-30?

The specified operating distance is up to 30 meters, making it ideal for most residential and commercial entrance gates.

2. What type of batteries does the transmitter use?

The transmitter uses 2 x AA Alkaline batteries. It is recommended to use only alkaline batteries and avoid rechargeable ones for optimal performance.

3. Is the sensor waterproof for outdoor use?

Yes, it features an IP65 protection rating with a rubber seal, ensuring it is weather-resistant and suitable for outdoor installation.

4. How long does the transmitter battery typically last?

The transmitter is designed for low power consumption, providing a minimum battery life of 2 years.

5. Does the system provide any alert for low battery?

Yes, the transmitter includes an audible beep feedback system to indicate low battery status and assist during setup.

6. Is it compatible with both AC and DC power?

The receiver is compatible with 12-24V AC and 12-30V DC, allowing it to work with almost any gate operator system.
