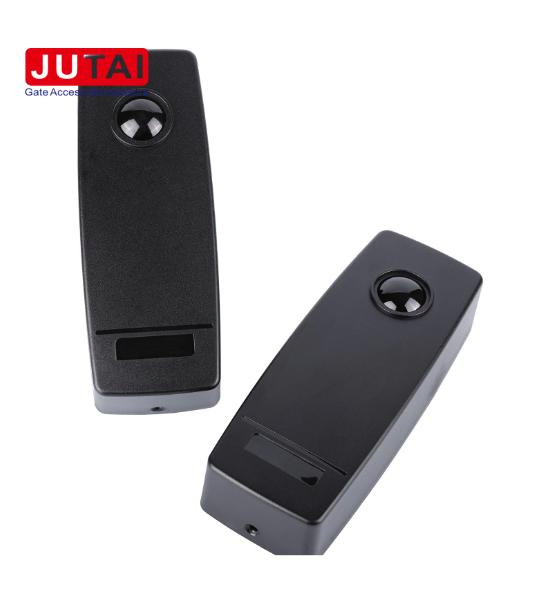

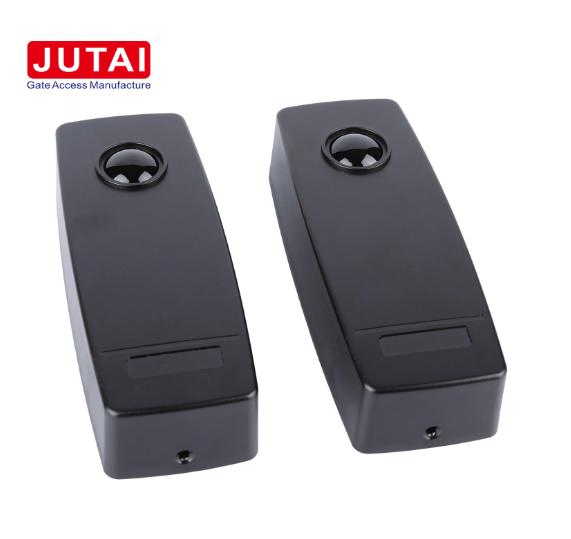

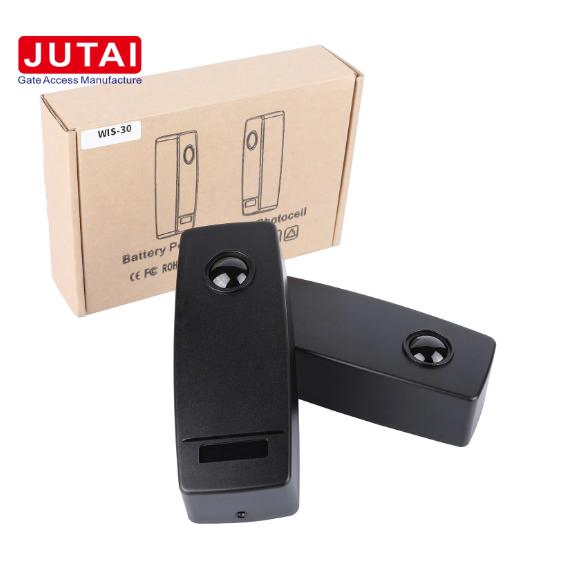

Wireless Infrared Beams Sensor for Security Alarms and Warnings System
Wireless Infrared Beams Sensor for Security Alarms and Warnings System
Wireless Infrared Beams Sensor for Security Alarms and Warnings System
Wireless Infrared Beams Sensor for Security Alarms and Warnings System
Wireless Infrared Beams Sensor for Security Alarms and Warnings System
1 / 5
Wireless Infrared Beams Sensor for Security Alarms and Warnings System
Wireless Infrared Beams Sensor for Security Alarms and Warnings System
Wireless Infrared Beams Sensor for Security Alarms and Warnings System
Wireless Infrared Beams Sensor for Security Alarms and Warnings System
Wireless Infrared Beams Sensor for Security Alarms and Warnings System

Wireless Infrared Beams Sensor for Security Alarms and Warnings System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
WIS-30
Signal Type
No/Nc
Material
ABS / PC(UV)
IP Rating
IP65 with Rubber
Power Supply
2 x AA Alkaline Batteries
Operating Dist.
30m
Working Temp.
-20°c to +60°c
Size
51 x 135 x 32 mm
Product Description

The WIS-30 wireless photocell sensor ensures safety for automation systems in challenging installations. By using a wireless transmitter, there is no need to tunnel under driveways, making it ideal for door automation, sliding gates, and barrier systems.

Infrared Beams Sensor

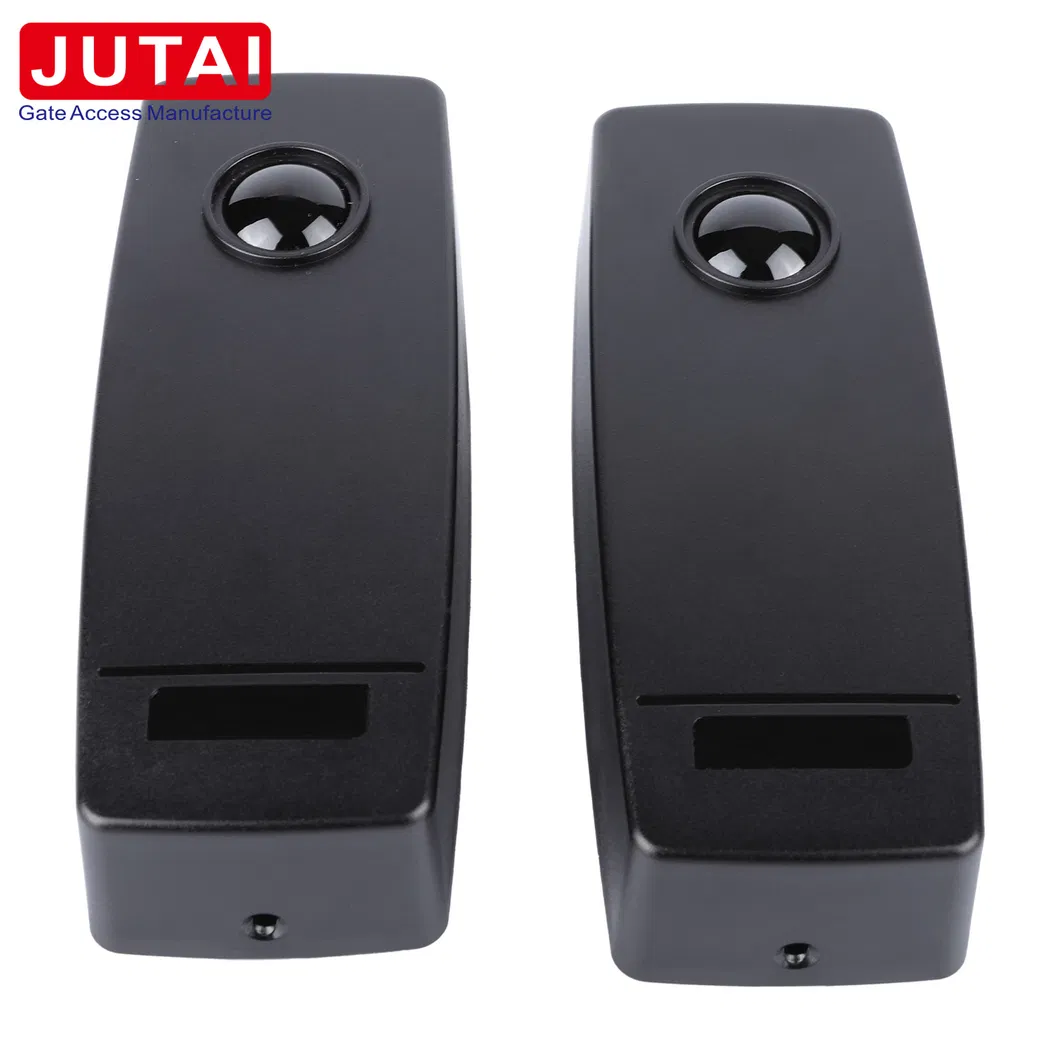

Wireless Sensor Installation
Core Features
Wireless & battery-operated transmitter saves installation time and costs.
30 meters operating range - suitable for most entrance gates.
Fully anti-proof and weather-resistant (IP65) for high reliability.
Audible feedback for easy setup and low battery indication.
Low power consumption for maximum efficiency.
Built-in laser beam alignment system for quick installation.

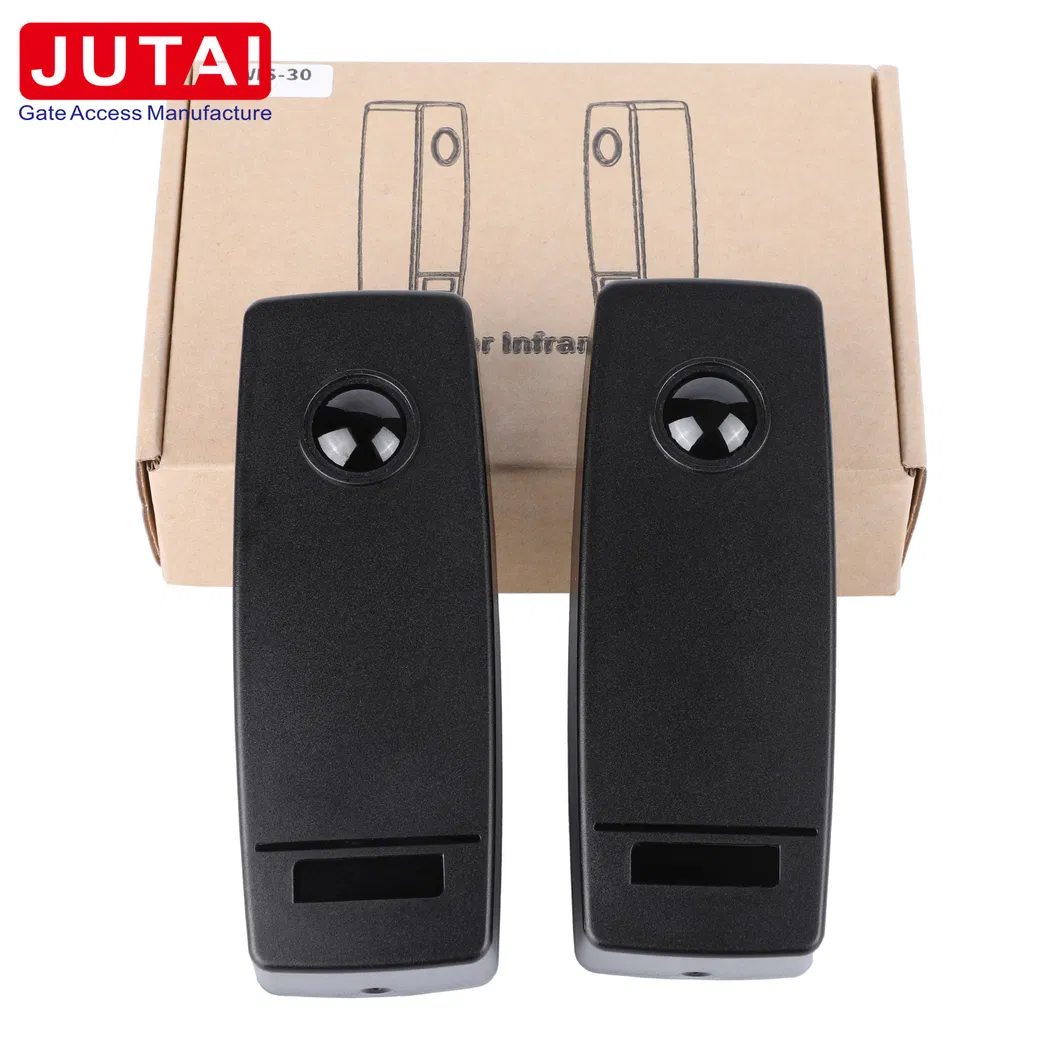

Sensor Features

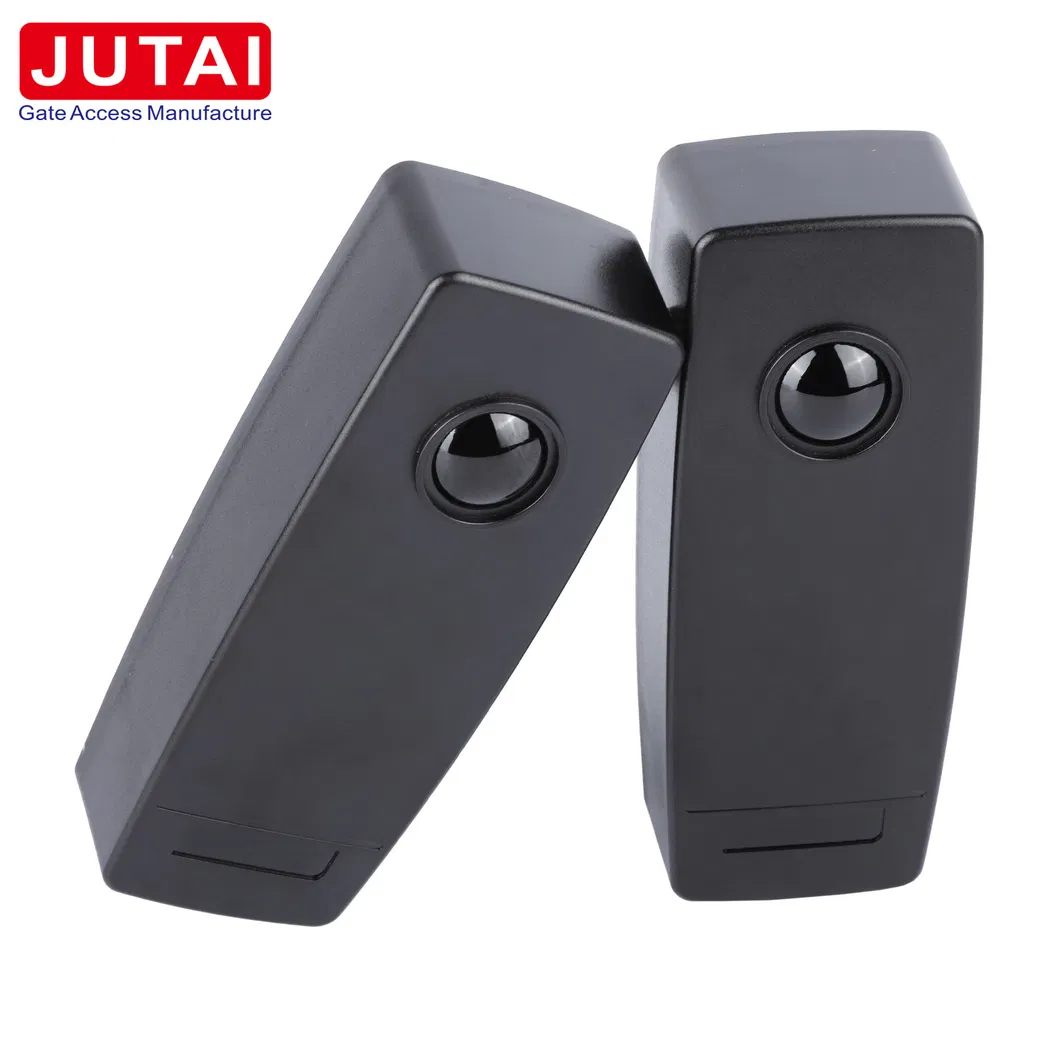

Application Area
Technology Parameters
Receiver Voltage12 - 24V AC / 12 - 30V DC
Transmitter Battery2 x AA Alkaline (Minimum 2 Years Life)
Receiver Consumption30mA @ 12V DC
Output ContactFail-safe, N/C and N/O, 3A @ 30V DC
AlignmentAutomatic – 1m² @ 10m
Humidity0 - 90% Non-condensing

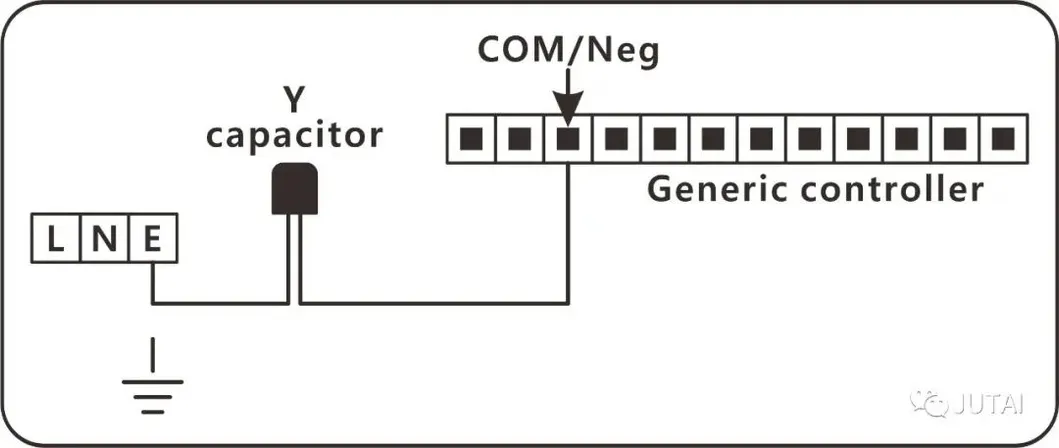

Connection Diagram

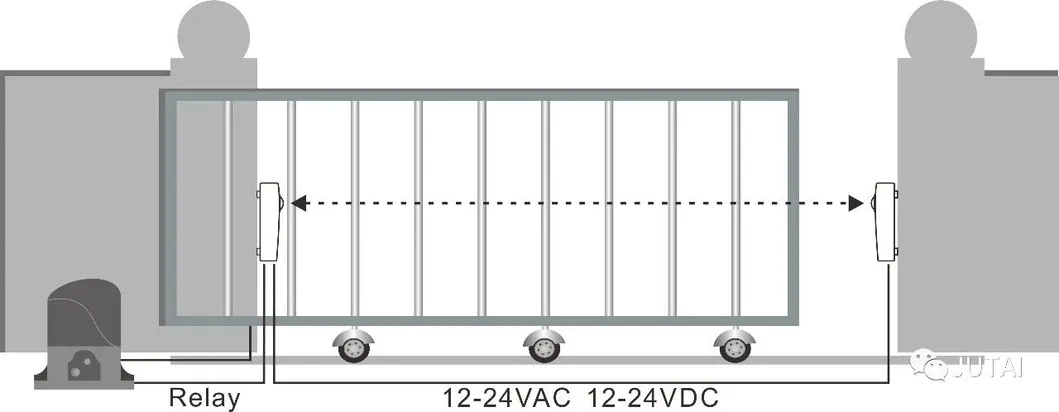

Installation Diagram

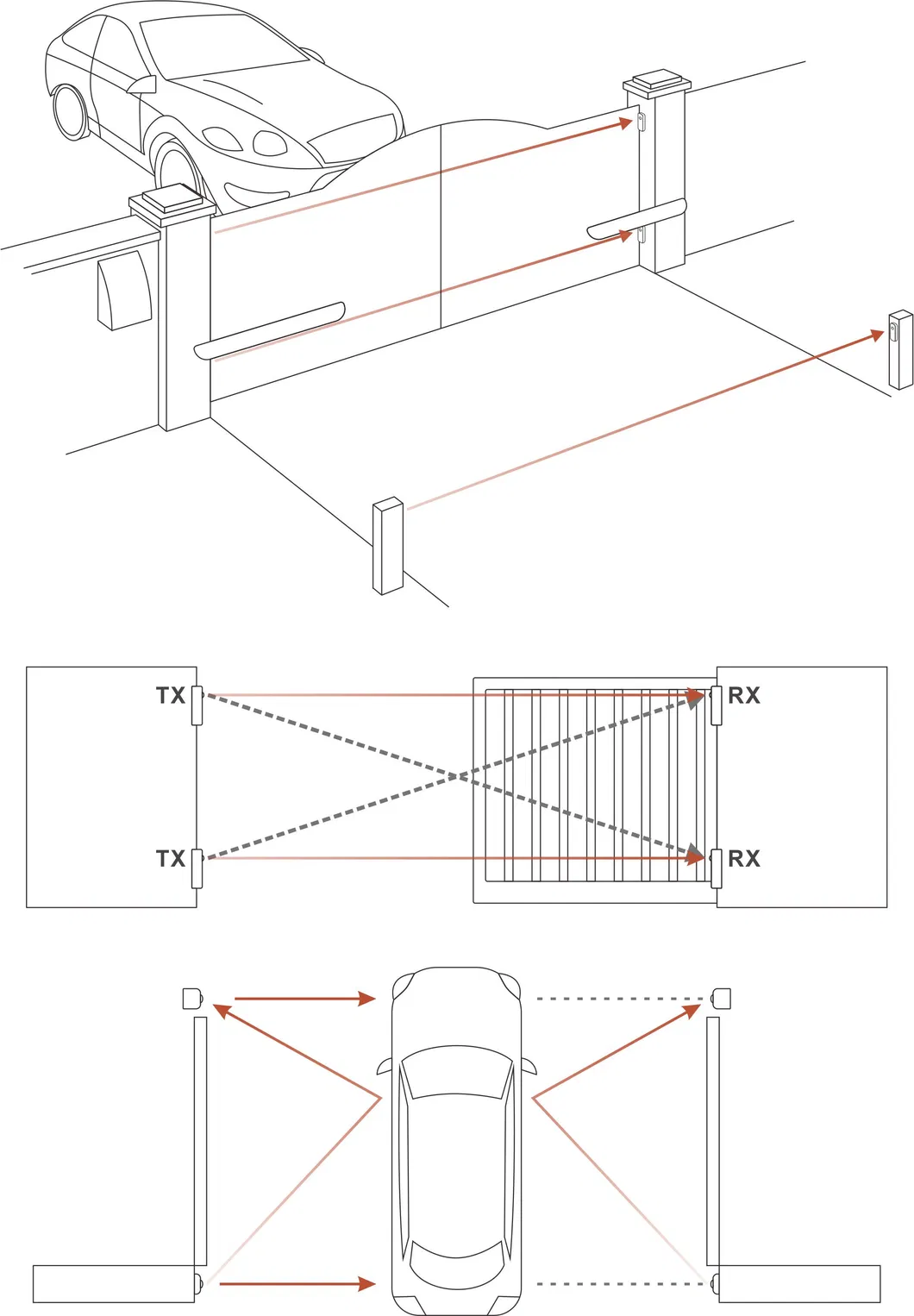

Application Case

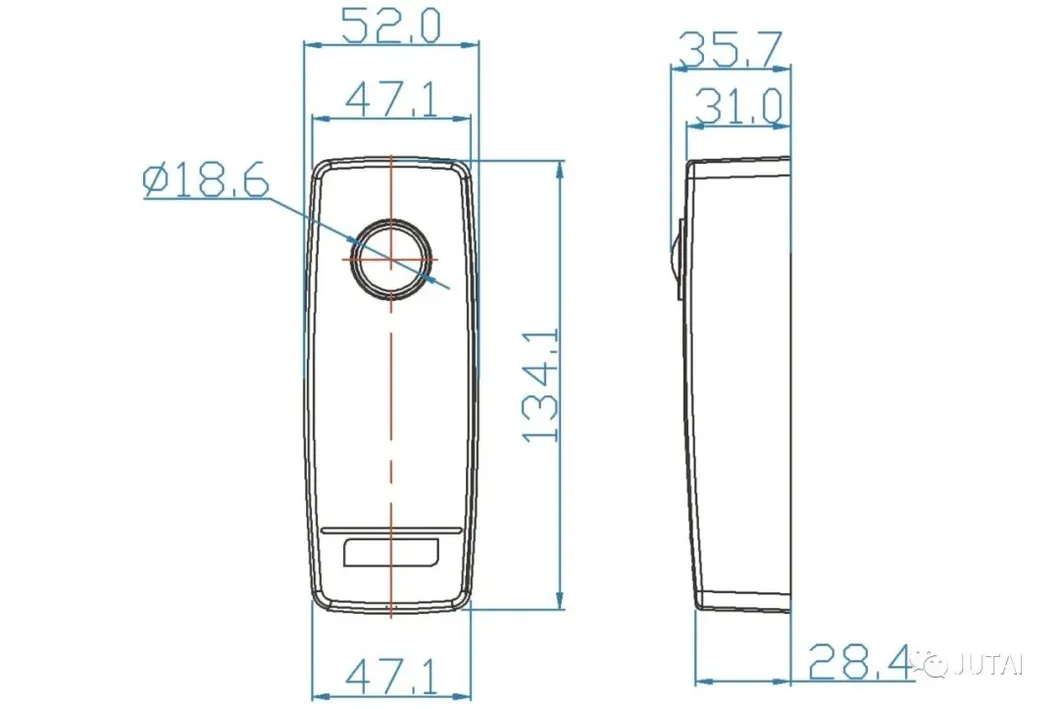

Product Size
Certification & Shipping
Certification
Shipping
Frequently Asked Questions
Q1: How long does the transmitter battery last?
The transmitter uses 2 x AA Alkaline batteries and typically offers a minimum life of 2 years.
Q2: What is the maximum operating distance?
The specified operating distance for the WIS-30 sensor is up to 30 meters.
Q3: Is the sensor waterproof for outdoor use?
Yes, it features an IP65 rating with rubber protection, making it fully weather-resistant.
Q4: Does it work with both AC and DC voltage?
The receiver is compatible with 12-24V AC and 12-30V DC power supplies.
Q5: How do I know if the battery is low?
The system provides an audible beep as a low-battery indication for easy maintenance.
Q6: Can this be used for home security?
Absolutely. It is compatible with intruder-detection alarms and suitable for gate openers and perimeter security.
